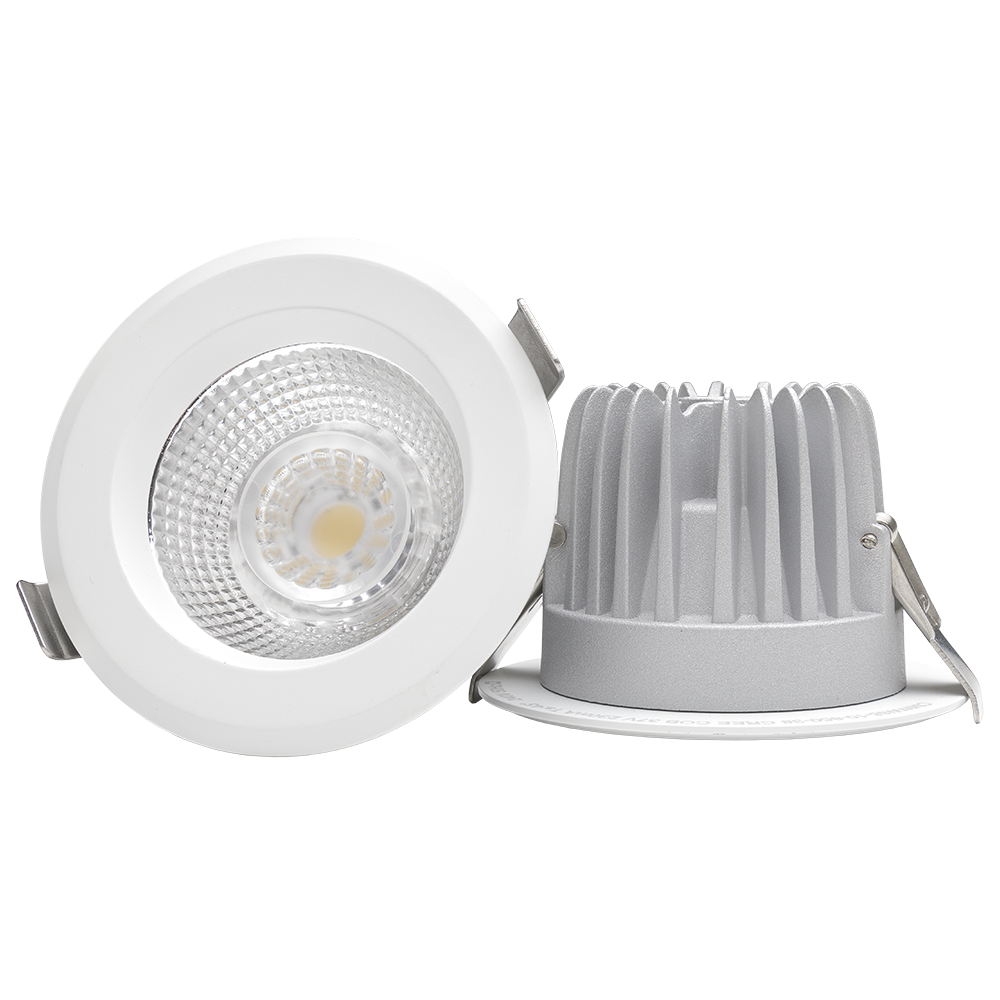

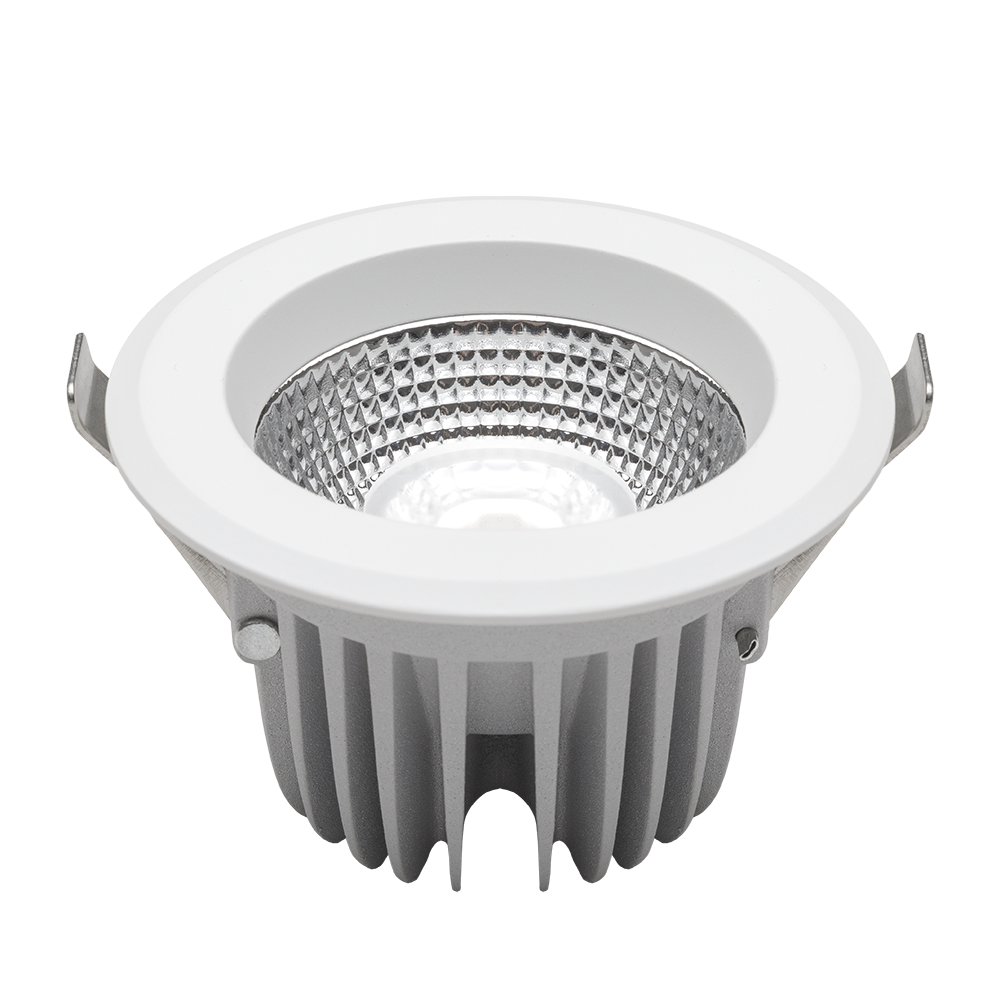

Crown Mini Downlight

Professional Series Downlight

✓ Pure Aluminium Housing
✓ Reflector Bowl + Optical Lens
✓ High Quality Cree LED
✓ Ultra Long 60,000 hours lifetime
✓ Triac Dimming
✓ IC-F Rated

see Detailed specs
High

95lm/W

System Efficacy
Lifetime of

60,000

Hours to L70
Excellent

83

CRI
Up to

70%

Energy Savings
1

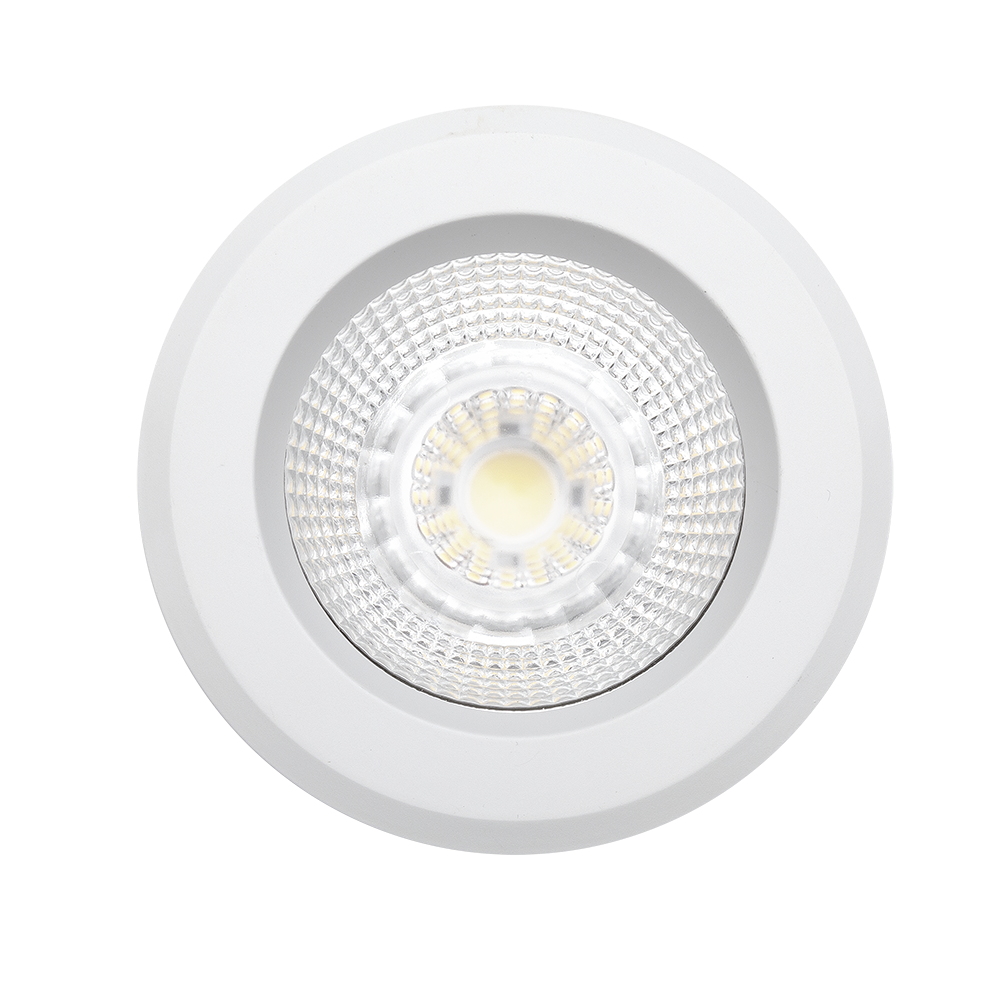

Dual Optical Design

The combination of an optical lens and reflector provides excellent light control while maximising the efficacy of the luminaire

2
High quality CREE LED Chip

CREE LED chips are both high-performance and long-lasting

3

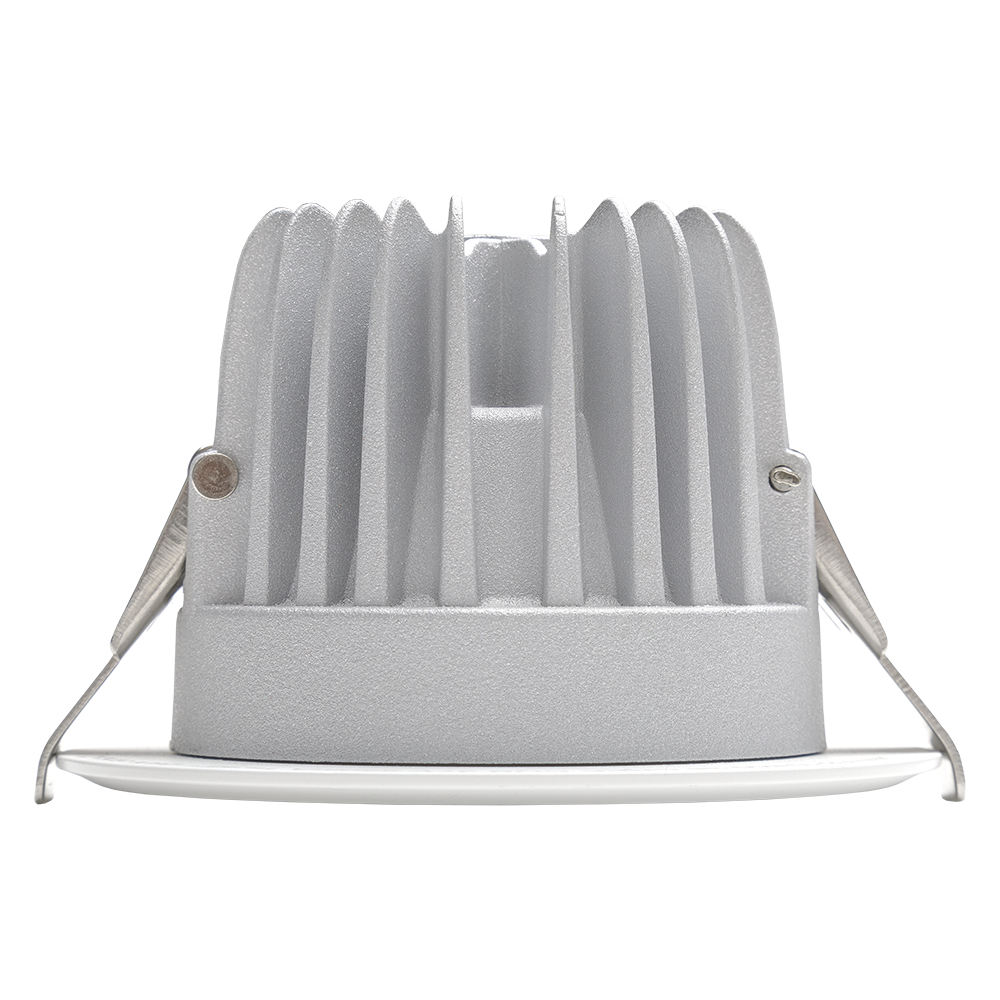

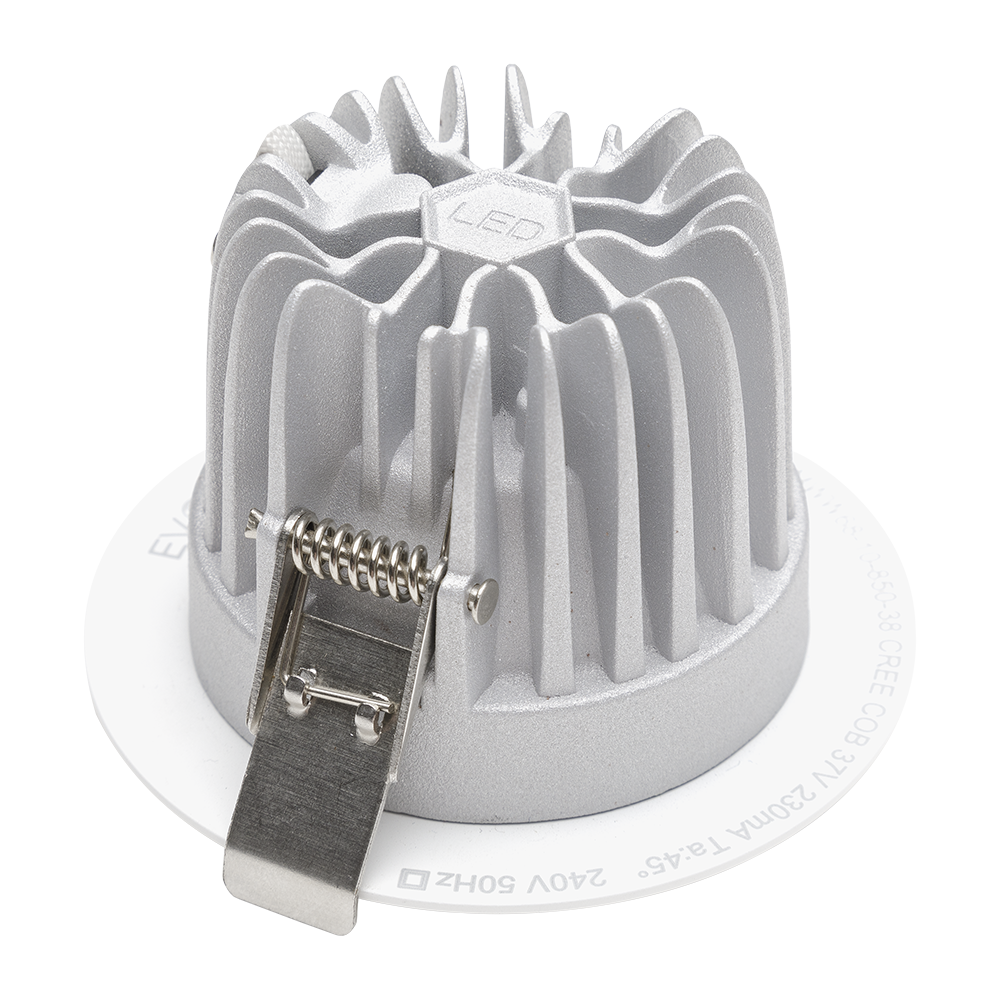

Pure Aluminium Housing

The pure aluminium heat sink will keep the LED nice and cool ensuring its maximum life.

Specifications

Filter all product variations
CMWP68-10-840-38
CROWNMINI
10W
4000K
Ø68mm
Ø88*66mm
950lm
95lm/W
>83
60,000hrs
Cree CXA COB
≤3
38º
Triac Dimmable
Full specifications
Product Type
CROWNMINI
System Wattage
10W
CCT
4000K
Cut-out
Ø68mm
Size
Ø88*66mm
Lumen Output
950lm
Luminaire Efficacy
95lm/W
CRI
>83
Lifetime - L70
60,000hrs
Light Source
Cree CXA COB
SDCM
≤3
Beam Angle
38º
Control
Triac Dimmable
Dimming Range
8%-100%
Power Factor
≥0.90
Input Voltage
AC200-240V
THD
≤18%
Rated Output Current
230mA
Body Material
Aluminium
Finish
Powder Coating
Lens Material
PMMA
Bezel Colour
White (RAL 9016)
Reflector Type
Polished Aluminium
Weight
<0.35kg
IP Rating
IP20
Operating Temp
-20º to +45ºC
IC Rating
IC-F
Certifications
SAA, CE, RoHS
Protection Class
Class II
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Crown Mini Downlight Spec Sheet
pdf
SDoC - Crown Mini Downlight - 15082
ies
CROWN MINI 68 10W D 4K 38D CRI83
