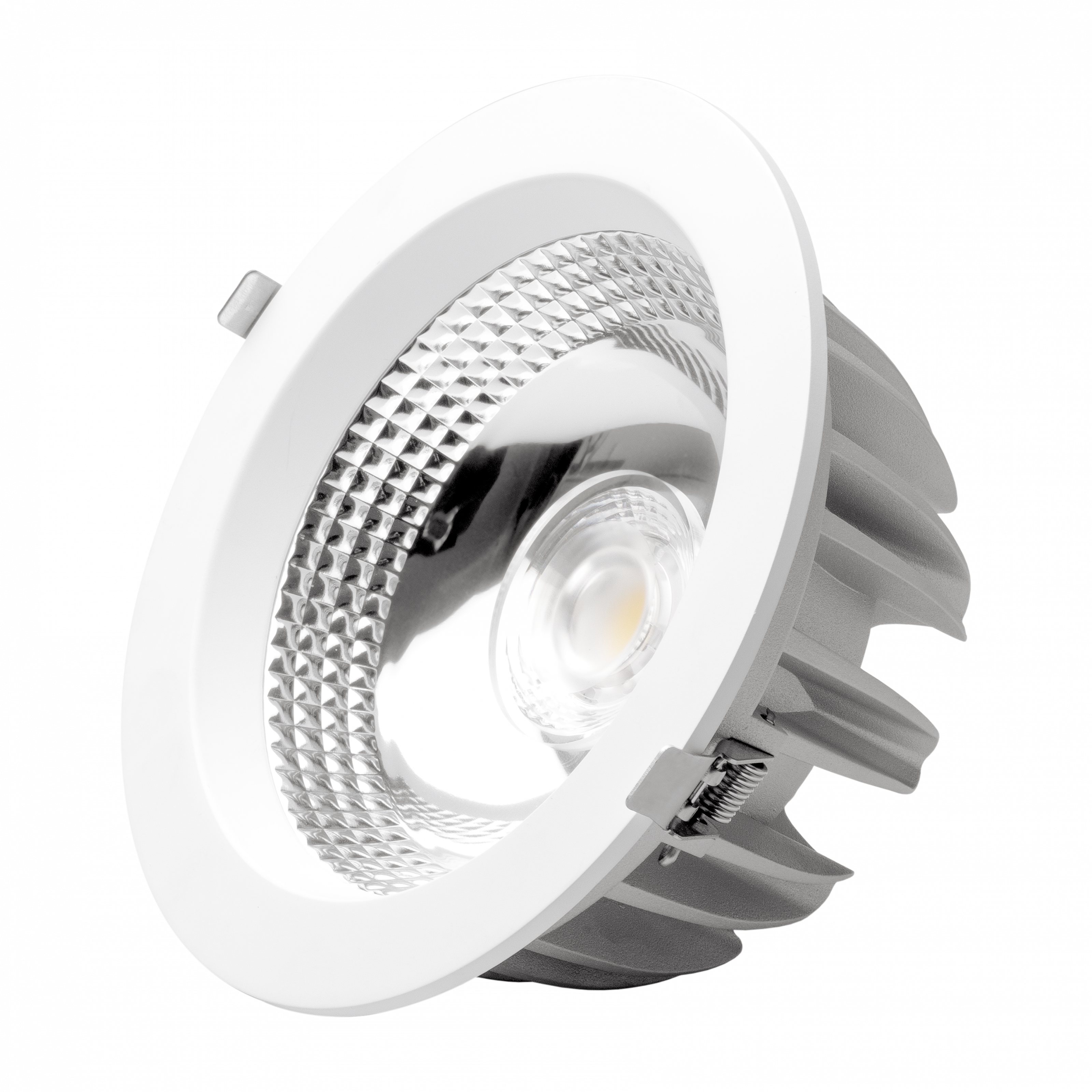

Crown Downlight

Professional Series Downlight

✓ Ultra-efficient system efficacy of up to 120lm/W
✓ Latest generation Cree CXA2 LED Chip for ultimate light quality
✓ High-performance 100,000hr Tridonic Driver
✓ >60,000 hours LED lifetime to L90
✓ Pure Aluminium heat sink for superior thermal management
✓ Dual optical design
✓ Interchangeable lens for easy beam angle change
✓ Anti-glare ring available

see Detailed specs
TOTAL OF

5

WATTAGES
UP TO

70%

ENERGY SAVINGS
UP TO

120lm/W

SYSTEM EFFICACY
LIFETIME OF

60,000+

HOURS TO L90

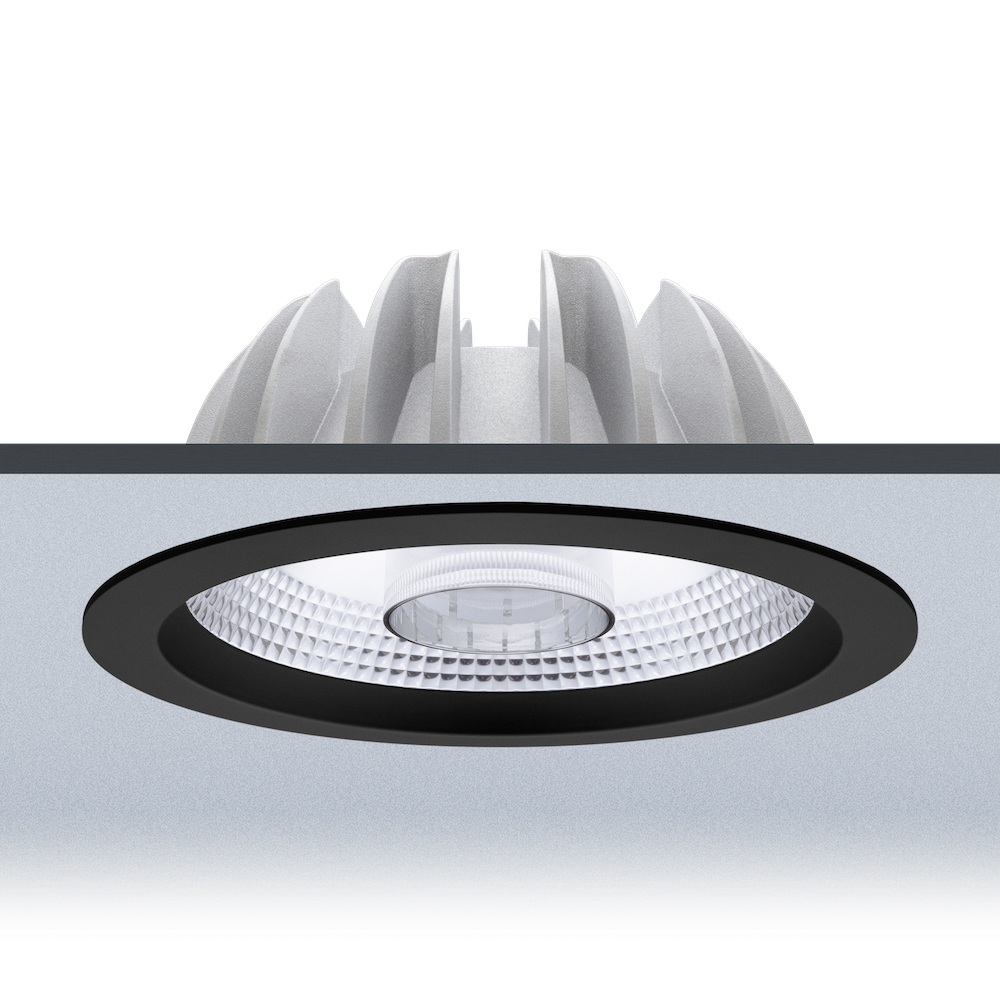

Customise

Size
Large
  • Small
  • Medium
  • Large
Reflector Type
Polished Aluminium
  • Matte White Alumnium
  • Matte Silver Alumnium
  • Polished Aluminium
Bezel colour
Black
  • White
  • Black
  • Silver
Anti glare ring
Include
  • Include
  • Exclude
Light
Off
1
Anti-glare Ring

Can be added for improved glare control in office applications

2
Interchangeable Lens

Allows for a quick and easy change of the beam angle

3
Dual Optical Design

The combination of an optical lens and reflector provides excellent light control while maximising the efficacy of the luminaire

Feature

High Performance

To ensure the highest performance possible we hand-picked only the best components from companies like Cree and Tridonic

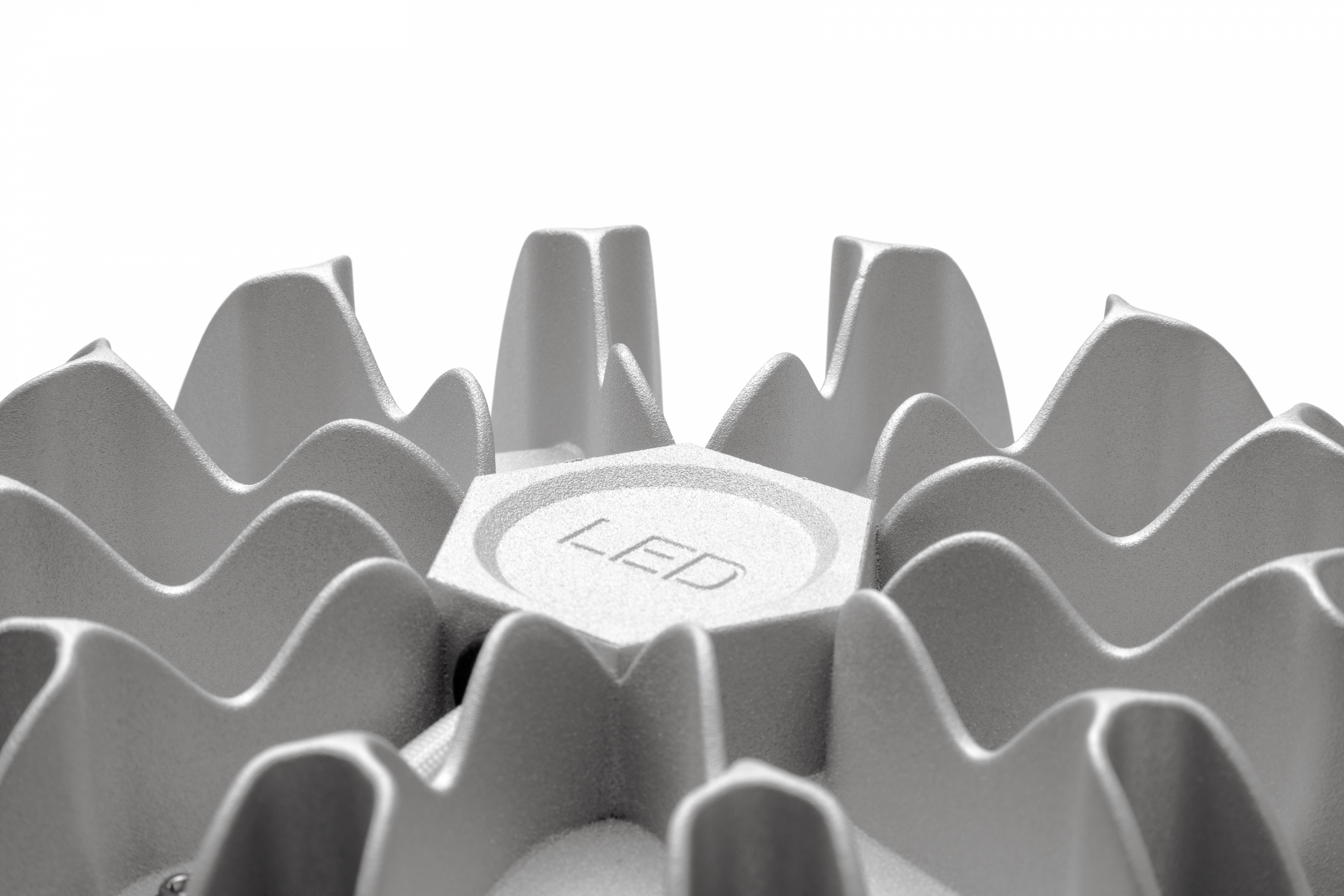

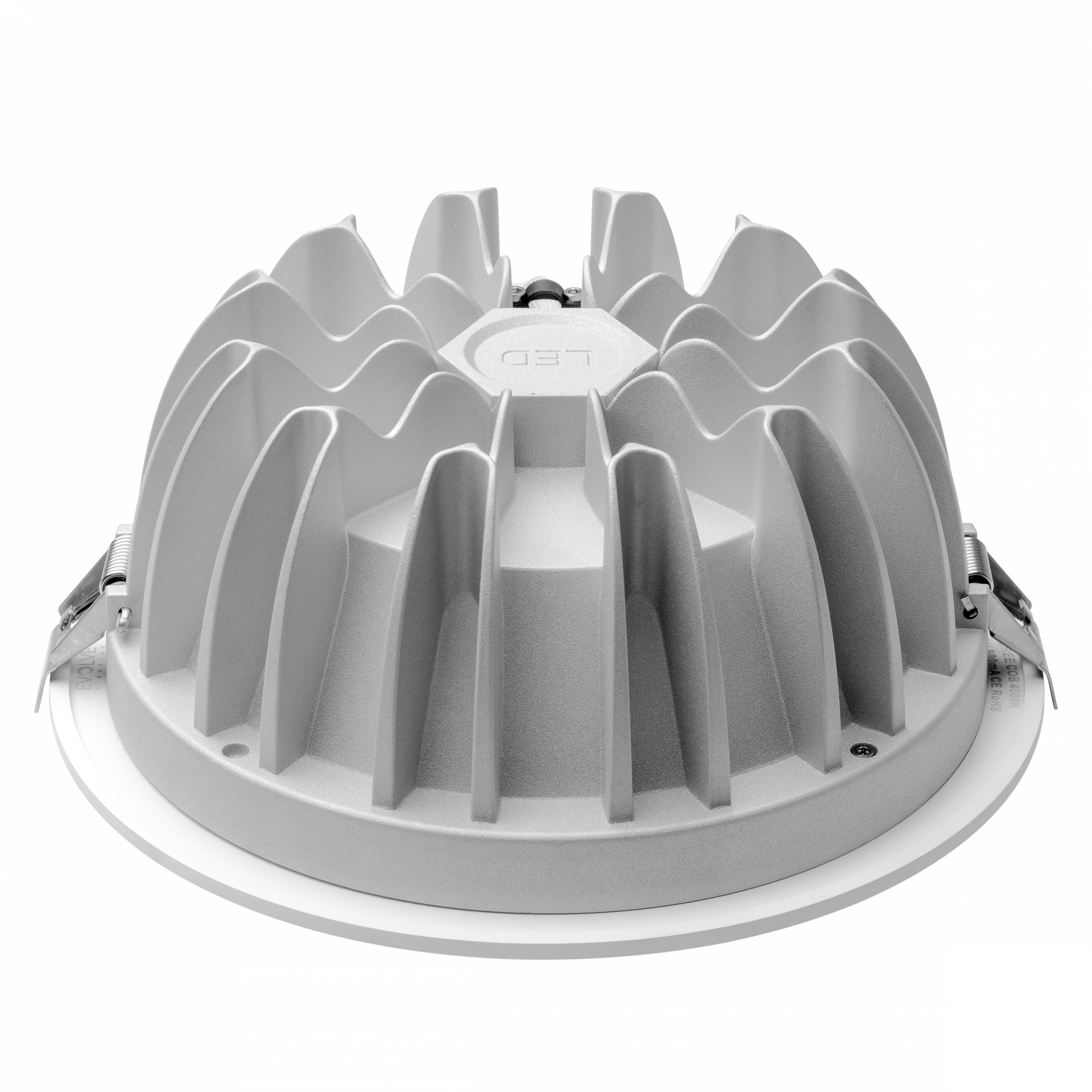

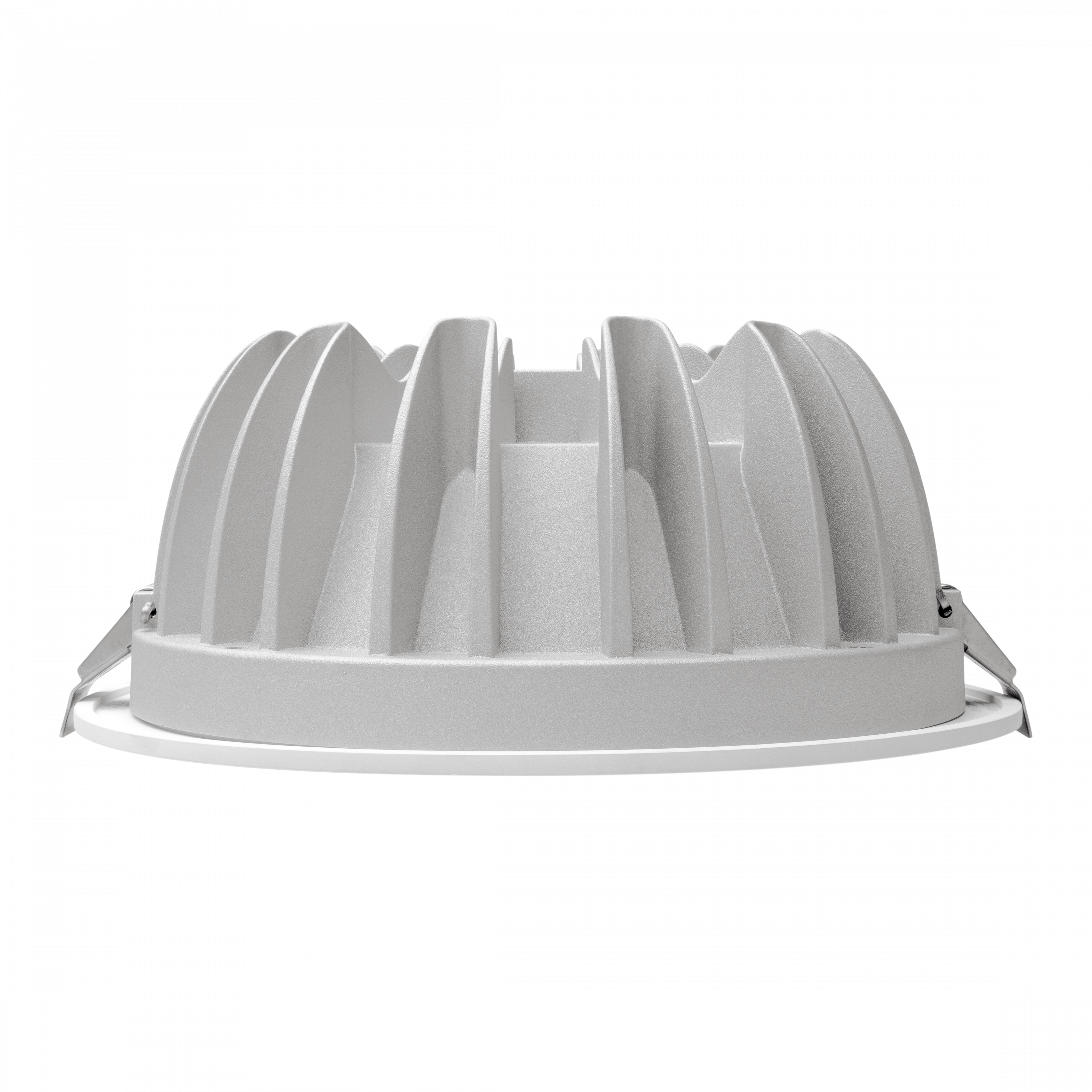

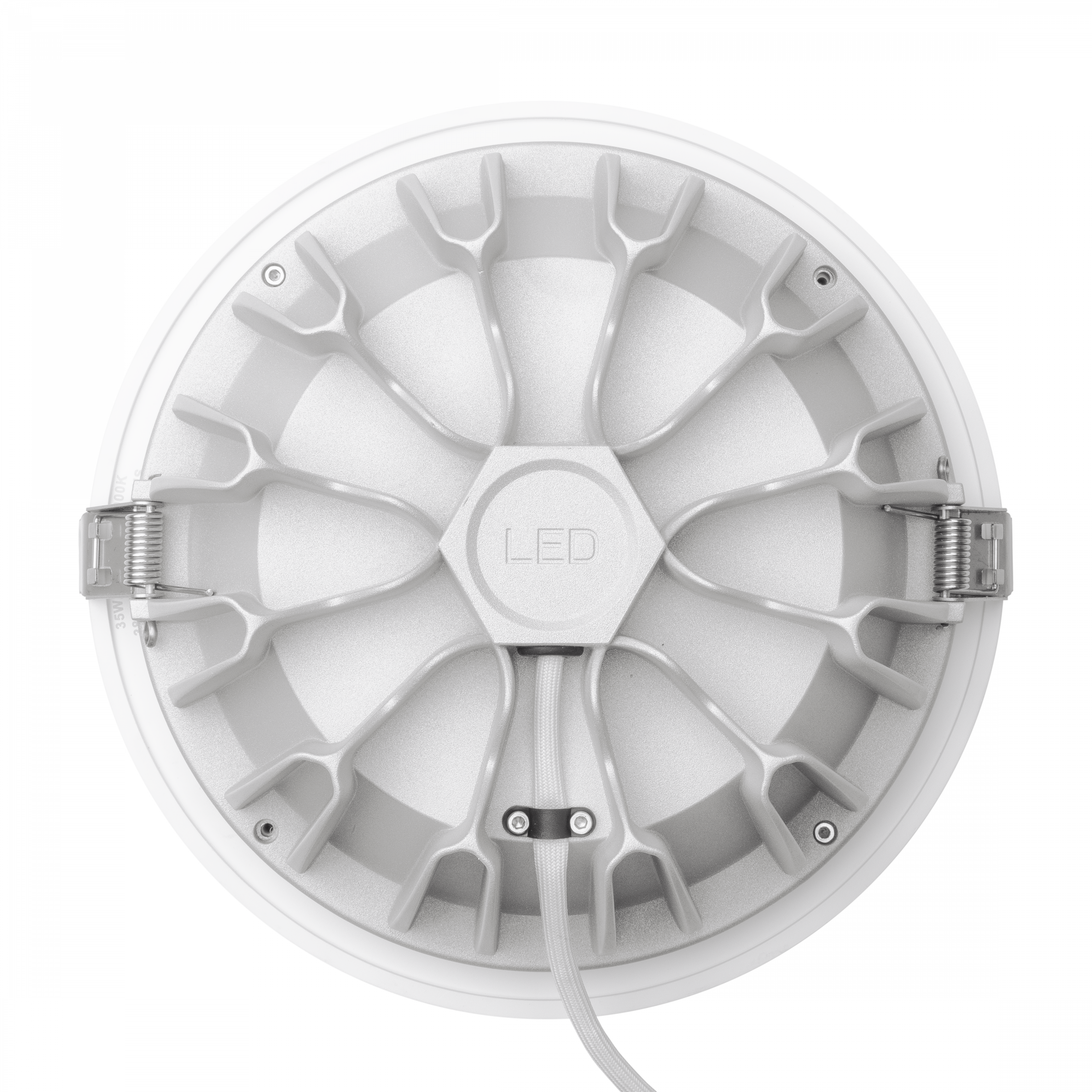

Pure Aluminium Heat sink

Offers excellent thermal management, ensuring the maximum life of the Cree COB

Family specifications and downloads

Download family spec sheetpdf • 1.11 MB
  • crown413crown420
  • 4inch (140mm)
  • 120-130mm
  • 13W20W
  • 1,521lm2,300lm
  • 117lm/W115lm/W
  • 4000K (3000K, 5000K, 6000K optional)
  • >Ra83 (>Ra90, >Ra98 optional)
  • 38° , 60°
  • AC200-240V / 50-60Hz, PF≥0.95
  • IP20
  • Tridonic
  • CREE CXB1
  • DALI, SwitchDIM, Phase Cut/Triac, Casambi
  • crown625crown632
  • 6inch (195mm)
  • 170-180mm
  • 25W32W
  • 2,675lm3,840lm
  • 107lm/W120lm/W
  • 4000K (3000K, 5000K, 6000K optional)
  • >Ra83 (>Ra90, >Ra98 optional)
  • 38° , 90°
  • AC200-240V / 50-60Hz, PF≥0.95
  • IP20
  • Tridonic
  • CREE CXA2CREE CXB2
  • DALI, SwitchDIM, Phase Cut/Triac, Casambi
  • crown832crown840
  • 8inch (245mm)
  • 220-230mm
  • 32W40W
  • 3,936lm4,800lm
  • 123lm/W120lm/W
  • 4000K (3000K, 5000K, 6000K optional)
  • >Ra83 (>Ra90, >Ra98 optional)
  • 38° , 90°
  • AC200-240V / 50-60Hz, PF≥0.95
  • IP20
  • Tridonic
  • CREE CXB2
  • DALI, SwitchDIM, Phase Cut/Triac, Casambi
  • Product code
  • Size
  • Cut-Out
  • System Wattage
  • Lumen Output
  • Efficacy
  • CCT
  • CRI
  • Beam Angle
  • Input Voltage
  • IP Rating
  • LED Driver
  • LED Chips
  • Dimming Options
  • Downloads

Specifications

Filter all product variations
Stocked
Bezel Colour
Reflector Type
Wattage
Lumen Output
Distribution
Size
Controls
PRODUCT CODE
Product Type
System Wattage
Cut-out
Size
Lumen Output
Efficacy
Beam Angle
CRI
Lifetime - L90
UGR
R9 Value
Light Source
CCT
CWP120-13-840-38
CROWN413
13W
Ø120-130mm
Ø140*65mm
1,521lm
117lm/W
38º
>83
>60,000hrs
19
23
Cree CXB1512 COB
4000K
Full specifications
Product Type
CROWN413
System Wattage
13W
Cut-out
Ø120-130mm
Size
Ø140*65mm
Lumen Output
1,521lm
Efficacy
117lm/W
Beam Angle
38º
CRI
>83
Lifetime - L90
>60,000hrs
UGR
19
R9 Value
23
Light Source
Cree CXB1512 COB
CCT
4000K
SDCM
<3
Power/Flux tolerance
+/-5%
Power Supply
Tridonic LC 25W 350-600mA flexC SC ADV
Power Factor
≥0.95
Input Voltage
AC200-240V / 50-60Hz
THD
<10%
Connection
Junction box
Driver Lifetime (Tc≤65°C)
Up to 100,000hrs
Control
Fixed Output
Glare Ring
No
Body Material
Aluminium
Finish
Powder Coating
Lens Material
PMMA
Bezel Colour
White (RAL 9016)
Reflector Type
Polished Aluminium
Weight
0.40kg
IP Rating
IP20
Operating Temp
-20º to +45ºC
IC Rating
NON IC
Certifications
SAA, CE, RoHS
Protection Class
Class 2
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Crown 4 inch
pdf
Driver Spec Sheet (Tridonic LC 25W)
ies
IES File (CWP120-15-840-38)
CWP120-13-840-38-CA
CROWN413
13W
Ø120-130mm
Ø140*65mm
1,521lm
117lm/W
38º
>83
>60,000hrs
19
23
Cree CXB1512 COB
4000K
Full specifications
Product Type
CROWN413
System Wattage
13W
Cut-out
Ø120-130mm
Size
Ø140*65mm
Lumen Output
1,521lm
Efficacy
117lm/W
Beam Angle
38º
CRI
>83
Lifetime - L90
>60,000hrs
UGR
19
R9 Value
23
Light Source
Cree CXB1512 COB
CCT
4000K
SDCM
<3
Power/Flux tolerance
+/-5%
Power Supply
Tridonic LC 25W 350-600mA flexC SC ADV
Power Factor
≥0.95
Input Voltage
AC200-240V / 50-60Hz
THD
<10%
Connection
Junction box
Driver Lifetime (Tc≤65°C)
Up to 100,000hrs
Control
Casambi
Glare Ring
No
Body Material
Aluminium
Finish
Powder Coating
Lens Material
PMMA
Bezel Colour
White (RAL 9016)
Reflector Type
Polished Aluminium
Weight
0.40kg
IP Rating
IP20
Operating Temp
-20º to +45ºC
IC Rating
NON IC
Certifications
SAA, CE, RoHS
Protection Class
Class 2
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Crown 4 inch
pdf
Driver Spec Sheet (Tridonic LC 25W)
ies
IES File (CWP120-15-840-38)
CWP120-13-840-38-CA-GR
CROWN413
13W
Ø120-130mm
Ø140*65mm
1,521lm
117lm/W
38º
>83
>60,000hrs
19
23
Cree CXB1512 COB
4000K
Full specifications
Product Type
CROWN413
System Wattage
13W
Cut-out
Ø120-130mm
Size
Ø140*65mm
Lumen Output
1,521lm
Efficacy
117lm/W
Beam Angle
38º
CRI
>83
Lifetime - L90
>60,000hrs
UGR
19
R9 Value
23
Light Source
Cree CXB1512 COB
CCT
4000K
SDCM
<3
Power/Flux tolerance
+/-5%
Power Supply
Tridonic LC 25W 350-600mA flexC SC ADV
Power Factor
≥0.95
Input Voltage
AC200-240V / 50-60Hz
THD
<10%
Connection
Junction box
Driver Lifetime (Tc≤65°C)
Up to 100,000hrs
Control
Casambi
Glare Ring
Yes
Body Material
Aluminium
Finish
Powder Coating
Lens Material
PMMA
Bezel Colour
White (RAL 9016)
Reflector Type
Polished Aluminium
Weight
0.40kg
IP Rating
IP20
Operating Temp
-20º to +45ºC
IC Rating
NON IC
Certifications
SAA, CE, RoHS
Protection Class
Class 2
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Crown 4 inch
pdf
Driver Spec Sheet (Tridonic LC 25W)
ies
IES File (CWP120-15-840-38)
CWP120-13-840-38-DA
CROWN413
13W
Ø120-130mm
Ø140*65mm
1,521lm
117lm/W
38º
>83
>60,000hrs
19
23
Cree CXB1512 COB
4000K
Full specifications
Product Type
CROWN413
System Wattage
13W
Cut-out
Ø120-130mm
Size
Ø140*65mm
Lumen Output
1,521lm
Efficacy
117lm/W
Beam Angle
38º
CRI
>83
Lifetime - L90
>60,000hrs
UGR
19
R9 Value
23
Light Source
Cree CXB1512 COB
CCT
4000K
SDCM
<3
Power/Flux tolerance
+/-5%
Power Supply
Tridonic LC 25W 350-600mA flexC SC ADV
Power Factor
≥0.95
Input Voltage
AC200-240V / 50-60Hz
THD
<10%
Connection
Junction box
Driver Lifetime (Tc≤65°C)
Up to 100,000hrs
Control
DALI
Glare Ring
No
Body Material
Aluminium
Finish
Powder Coating
Lens Material
PMMA
Bezel Colour
White (RAL 9016)
Reflector Type
Polished Aluminium
Weight
0.40kg
IP Rating
IP20
Operating Temp
-20º to +45ºC
IC Rating
NON IC
Certifications
SAA, CE, RoHS
Protection Class
Class 2
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Crown 4 inch
pdf
Driver Spec Sheet (Tridonic LC 25W)
ies
IES File (CWP120-15-840-38)
CWP120-13-840-38-DA-GR
CROWN413
13W
Ø120-130mm
Ø140*65mm
1,521lm
117lm/W
38º
>83
>60,000hrs
19
23
Cree CXB1512 COB
4000K
Full specifications
Product Type
CROWN413
System Wattage
13W
Cut-out
Ø120-130mm
Size
Ø140*65mm
Lumen Output
1,521lm
Efficacy
117lm/W
Beam Angle
38º
CRI
>83
Lifetime - L90
>60,000hrs
UGR
19
R9 Value
23
Light Source
Cree CXB1512 COB
CCT
4000K
SDCM
<3
Power/Flux tolerance
+/-5%
Power Supply
Tridonic LC 25W 350-600mA flexC SC ADV
Power Factor
≥0.95
Input Voltage
AC200-240V / 50-60Hz
THD
<10%
Connection
Junction box
Driver Lifetime (Tc≤65°C)
Up to 100,000hrs
Control
DALI
Glare Ring
Yes
Body Material
Aluminium
Finish
Powder Coating
Lens Material
PMMA
Bezel Colour
White (RAL 9016)
Reflector Type
Polished Aluminium
Weight
0.40kg
IP Rating
IP20
Operating Temp
-20º to +45ºC
IC Rating
NON IC
Certifications
SAA, CE, RoHS
Protection Class
Class 2
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Crown 4 inch
pdf
Driver Spec Sheet (Tridonic LC 25W)
ies
IES File (CWP120-15-840-38)
CWP120-13-840-38-GR
CROWN413
13W
Ø120-130mm
Ø140*65mm
1,521lm
117lm/W
38º
>83
>60,000hrs
19
23
Cree CXB1512 COB
4000K
Full specifications
Product Type
CROWN413
System Wattage
13W
Cut-out
Ø120-130mm
Size
Ø140*65mm
Lumen Output
1,521lm
Efficacy
117lm/W
Beam Angle
38º
CRI
>83
Lifetime - L90
>60,000hrs
UGR
19
R9 Value
23
Light Source
Cree CXB1512 COB
CCT
4000K
SDCM
<3
Power/Flux tolerance
+/-5%
Power Supply
Tridonic LC 25W 350-600mA flexC SC ADV
Power Factor
≥0.95
Input Voltage
AC200-240V / 50-60Hz
THD
<10%
Connection
Junction box
Driver Lifetime (Tc≤65°C)
Up to 100,000hrs
Control
Fixed Output
Glare Ring
Yes
Body Material
Aluminium
Finish
Powder Coating
Lens Material
PMMA
Bezel Colour
White (RAL 9016)
Reflector Type
Polished Aluminium
Weight
0.40kg
IP Rating
IP20
Operating Temp
-20º to +45ºC
IC Rating
NON IC
Certifications
SAA, CE, RoHS
Protection Class
Class 2
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Crown 4 inch
pdf
Driver Spec Sheet (Tridonic LC 25W)
ies
IES File (CWP120-15-840-38)
CWP120-13-840-38-PC
CROWN413
13W
Ø120-130mm
Ø140*65mm
1,521lm
117lm/W
38º
>83
>60,000hrs
19
23
Cree CXB1512 COB
4000K
Full specifications
Product Type
CROWN413
System Wattage
13W
Cut-out
Ø120-130mm
Size
Ø140*65mm
Lumen Output
1,521lm
Efficacy
117lm/W
Beam Angle
38º
CRI
>83
Lifetime - L90
>60,000hrs
UGR
19
R9 Value
23
Light Source
Cree CXB1512 COB
CCT
4000K
SDCM
<3
Power/Flux tolerance
+/-5%
Power Supply
Tridonic LC 25W 350-600mA flexC SC ADV
Power Factor
≥0.95
Input Voltage
AC200-240V / 50-60Hz
THD
<10%
Connection
Junction box
Driver Lifetime (Tc≤65°C)
Up to 100,000hrs
Control
Phase cut/Triac
Glare Ring
No
Body Material
Aluminium
Finish
Powder Coating
Lens Material
PMMA
Bezel Colour
White (RAL 9016)
Reflector Type
Polished Aluminium
Weight
0.40kg
IP Rating
IP20
Operating Temp
-20º to +45ºC
IC Rating
NON IC
Certifications
SAA, CE, RoHS
Protection Class
Class 2
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Crown 4 inch
pdf
Driver Spec Sheet (Tridonic LC 25W)
ies
IES File (CWP120-15-840-38)
CWP120-13-840-38-PC-GR
CROWN413
13W
Ø120-130mm
Ø140*65mm
1,521lm
117lm/W
38º
>83
>60,000hrs
19
23
Cree CXB1512 COB
4000K
Full specifications
Product Type
CROWN413
System Wattage
13W
Cut-out
Ø120-130mm
Size
Ø140*65mm
Lumen Output
1,521lm
Efficacy
117lm/W
Beam Angle
38º
CRI
>83
Lifetime - L90
>60,000hrs
UGR
19
R9 Value
23
Light Source
Cree CXB1512 COB
CCT
4000K
SDCM
<3
Power/Flux tolerance
+/-5%
Power Supply
Tridonic LC 25W 350-600mA flexC SC ADV
Power Factor
≥0.95
Input Voltage
AC200-240V / 50-60Hz
THD
<10%
Connection
Junction box
Driver Lifetime (Tc≤65°C)
Up to 100,000hrs
Control
Phase cut/Triac
Glare Ring
Yes
Body Material
Aluminium
Finish
Powder Coating
Lens Material
PMMA
Bezel Colour
White (RAL 9016)
Reflector Type
Polished Aluminium
Weight
0.40kg
IP Rating
IP20
Operating Temp
-20º to +45ºC
IC Rating
NON IC
Certifications
SAA, CE, RoHS
Protection Class
Class 2
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Crown 4 inch
pdf
Driver Spec Sheet (Tridonic LC 25W)
ies
IES File (CWP120-15-840-38)
CWP120-13-840-38-SD
CROWN413
13W
Ø120-130mm
Ø140*65mm
1,521lm
117lm/W
38º
>83
>60,000hrs
19
23
Cree CXB1512 COB
4000K
Full specifications
Product Type
CROWN413
System Wattage
13W
Cut-out
Ø120-130mm
Size
Ø140*65mm
Lumen Output
1,521lm
Efficacy
117lm/W
Beam Angle
38º
CRI
>83
Lifetime - L90
>60,000hrs
UGR
19
R9 Value
23
Light Source
Cree CXB1512 COB
CCT
4000K
SDCM
<3
Power/Flux tolerance
+/-5%
Power Supply
Tridonic LC 25W 350-600mA flexC SC ADV
Power Factor
≥0.95
Input Voltage
AC200-240V / 50-60Hz
THD
<10%
Connection
Junction box
Driver Lifetime (Tc≤65°C)
Up to 100,000hrs
Control
SwitchDIM
Glare Ring
No
Body Material
Aluminium
Finish
Powder Coating
Lens Material
PMMA
Bezel Colour
White (RAL 9016)
Reflector Type
Polished Aluminium
Weight
0.40kg
IP Rating
IP20
Operating Temp
-20º to +45ºC
IC Rating
NON IC
Certifications
SAA, CE, RoHS
Protection Class
Class 2
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Crown 4 inch
pdf
Driver Spec Sheet (Tridonic LC 25W)
ies
IES File (CWP120-15-840-38)
CWP120-13-840-38-SD-GR
CROWN413
13W
Ø120-130mm
Ø140*65mm
1,521lm
117lm/W
38º
>83
>60,000hrs
19
23
Cree CXB1512 COB
4000K
Full specifications
Product Type
CROWN413
System Wattage
13W
Cut-out
Ø120-130mm
Size
Ø140*65mm
Lumen Output
1,521lm
Efficacy
117lm/W
Beam Angle
38º
CRI
>83
Lifetime - L90
>60,000hrs
UGR
19
R9 Value
23
Light Source
Cree CXB1512 COB
CCT
4000K
SDCM
<3
Power/Flux tolerance
+/-5%
Power Supply
Tridonic LC 25W 350-600mA flexC SC ADV
Power Factor
≥0.95
Input Voltage
AC200-240V / 50-60Hz
THD
<10%
Connection
Junction box
Driver Lifetime (Tc≤65°C)
Up to 100,000hrs
Control
SwitchDIM
Glare Ring
Yes
Body Material
Aluminium
Finish
Powder Coating
Lens Material
PMMA
Bezel Colour
White (RAL 9016)
Reflector Type
Polished Aluminium
Weight
0.40kg
IP Rating
IP20
Operating Temp
-20º to +45ºC
IC Rating
NON IC
Certifications
SAA, CE, RoHS
Protection Class
Class 2
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Crown 4 inch
pdf
Driver Spec Sheet (Tridonic LC 25W)
ies
IES File (CWP120-15-840-38)
Show 10 moreShow all 1080 product variants
Buy this Product

in store

There are 226 retailer locations all across New Zealand.

FIND ONE CLOSE TO YOU
Related Products

ACE Downlight

Essential Series Downlight

Duke Downlight

Essential Series Commercial Downlight
Contact us
FacebookInstagramLinkedInTwitter
Privacy StatementWarranties
Copyright Evolve Lighting 2018
Made by BSD & FFF
