ACE Downlight

Essential Series Downlight

✓ Adjustable and Fixed options
✓ Optical Lens design
✓ CREE LED chip
✓ Triac Dimming
✓ IP65 from below

see Detailed specs
UP TO

70%

ENERGY SAVING
UP TO

100lm/W

SYSTEM EFFICACY
LIFETIME OF

40,000

HOURS TO L70
SAFE

IC-F

RATING
Feature

Optical Lens Design

Provides a uniform light distribution
Feature

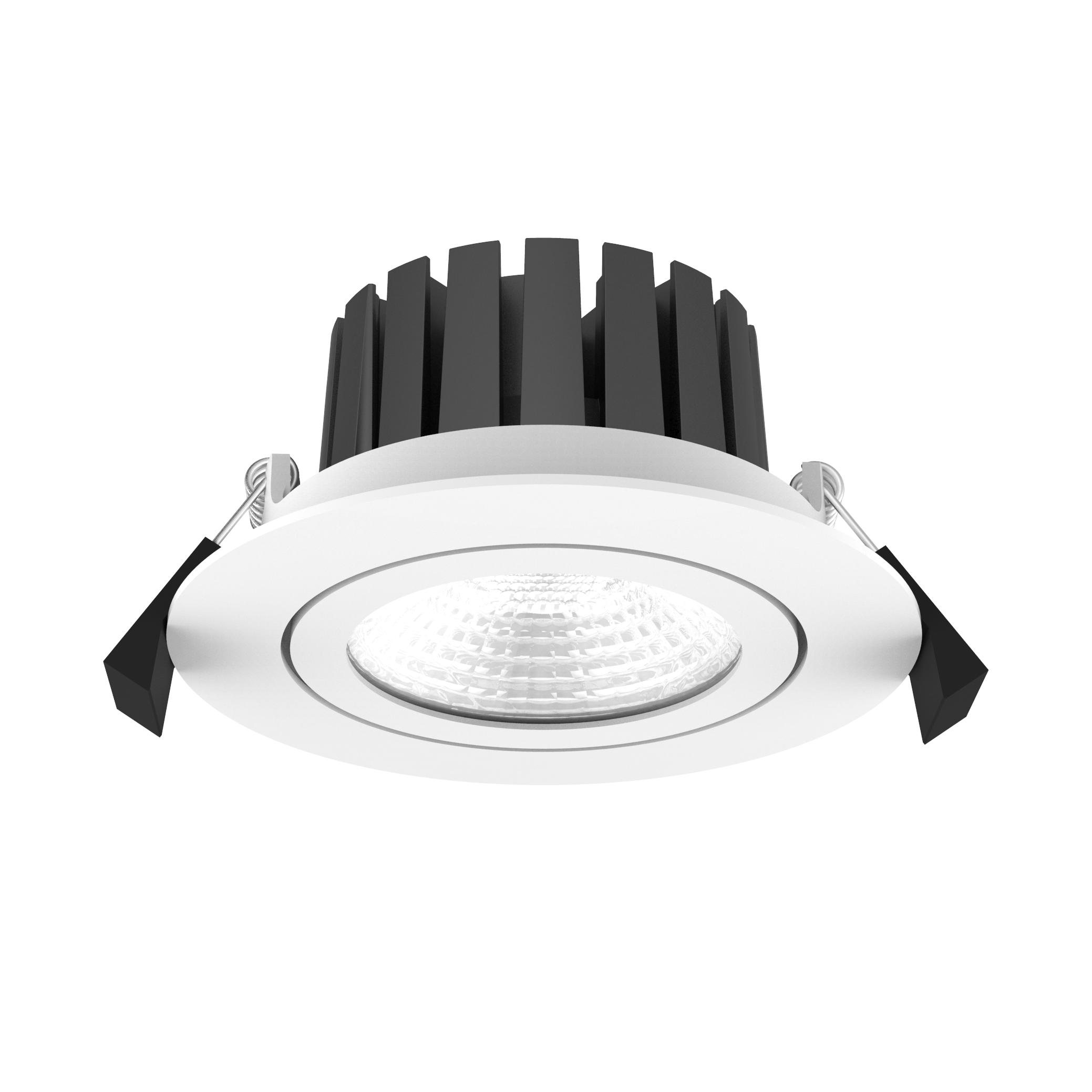

Adjustable Tilt Design

Easily adjust the direction of light by tilting the downlight up to 30°

Family specifications and downloads

Download family spec sheetpdf • 658.43 KB
  • awf68-8-840awf75-10-840awf90-13-840
  • Ø80*30mmØ90*39.3mmØ110*49.5mm
  • Ø68-72mmØ75-80mmØ90-95mm
  • 8W10W13W
  • 800lm(+/-5%)900lm(+/-5%)1,170lm(+/-5%)
  • 100lm/W90lm/W90lm/W
  • 4000K
  • >83
  • 36°60°60°
  • AC200-240V / 50-60Hz
  • IP65 (from below)
  • IC-F
  • Cree CXA COB
  • Triac
  • 3 year product replacement
  • awa68-8-840awa75-10-840awa90-13-840
  • Ø80*30mmØ90*39.3mmØ110*49.5mm
  • Ø68-72mmØ75-80mmØ90-95mm
  • 8W10W13W
  • 800lm(+/-5%)900lm(+/-5%)1,170lm(+/-5%)
  • 100lm/W90lm/W90lm/W
  • 4000K
  • >83
  • 36°60°60°
  • AC200-240V / 50-60Hz
  • IP65 (from below)
  • IC-F
  • Cree CXA COB
  • Triac
  • 3 year product replacement
  • Product code
  • Size
  • Cut Out
  • Wattage
  • Lumen Output
  • Luminous Efficacy
  • CCT
  • CRI
  • Beam Angle
  • Input Voltage
  • IP Rating
  • IC Rating
  • LED Chips
  • Dimming
  • Warranty
  • Downloads

Specifications

Filter all product variations
PRODUCT CODE
Product Type
System Wattage
CCT
Cut-out
Size
Lumen Output (+/- 5%)
Luminaire Efficacy
Beam Angle
CRI
Lifetime - L70
UGR
R9 Value
Light Source
AWA68-8-840
Adjustable
8W
4000K
Ø68-72mm
Ø80*30mm
800lm
100lm/W
36º
>83
40,000hrs
19
21
CREE CXA1507
Full specifications
Product Type
Adjustable
System Wattage
8W
CCT
4000K
Cut-out
Ø68-72mm
Size
Ø80*30mm
Lumen Output (+/- 5%)
800lm
Luminaire Efficacy
100lm/W
Beam Angle
36º
CRI
>83
Lifetime - L70
40,000hrs
UGR
19
R9 Value
21
Light Source
CREE CXA1507
SDCM
<3
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
≥0.90
THD
<18%
Connection
Junction box
Control
Triac Dimming
Dimming Range
8%-100%
Body Material
Aluminium
Lens Material
PMMA
Finish
Powder Coating
Colour
White (RAL 9016)
Degree of Rotation
-30º to +30º (horizontally)
IP Rating
IP65 (from below)
IC Rating
IC-F
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Certifications
SAA, CE, RoHS
Warranty
3 Year product replacement
Stocked
Yes
Downloads
pdf
Ace Downlight Booklet
pdf
ACE Adjustable Individual Spec Sheet
pdf
SDoC - ACE Downlight - 15068
ies
IES File (AWF68-8-840 - AWA68-8-840)
AWA75-10-840
Adjustable
10W
4000K
Ø75-80mm
Ø90*39.3mm
900lm
90lm/W
60º
>83
40,000hrs
22
21
CREE CXA1508
Full specifications
Product Type
Adjustable
System Wattage
10W
CCT
4000K
Cut-out
Ø75-80mm
Size
Ø90*39.3mm
Lumen Output (+/- 5%)
900lm
Luminaire Efficacy
90lm/W
Beam Angle
60º
CRI
>83
Lifetime - L70
40,000hrs
UGR
22
R9 Value
21
Light Source
CREE CXA1508
SDCM
<3
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
≥0.90
THD
<18%
Connection
Junction box
Control
Triac Dimming
Dimming Range
8%-100%
Body Material
Aluminium
Lens Material
PMMA
Finish
Powder Coating
Colour
White (RAL 9016)
Degree of Rotation
-30º to +30º (horizontally)
IP Rating
IP65 (from below)
IC Rating
IC-F
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Certifications
SAA, CE, RoHS
Warranty
3 Year product replacement
Stocked
Yes
Downloads
pdf
Ace Downlight Booklet
pdf
ACE Adjustable Individual Spec Sheet
pdf
SDoC - ACE Downlight - 15068
ies
IES File (AWF75-10-840 - AWA75-10-840)
AWA90-13-840
Adjustable
13W
4000K
Ø90-95mm
Ø110*49.5mm
1,170lm
90lm/W
60º
>83
40,000hrs
25
21
CREE CXA1512
Full specifications
Product Type
Adjustable
System Wattage
13W
CCT
4000K
Cut-out
Ø90-95mm
Size
Ø110*49.5mm
Lumen Output (+/- 5%)
1,170lm
Luminaire Efficacy
90lm/W
Beam Angle
60º
CRI
>83
Lifetime - L70
40,000hrs
UGR
25
R9 Value
21
Light Source
CREE CXA1512
SDCM
<3
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
≥0.90
THD
<18%
Connection
Junction box
Control
Triac Dimming
Dimming Range
8%-100%
Body Material
Aluminium
Lens Material
PMMA
Finish
Powder Coating
Colour
White (RAL 9016)
Degree of Rotation
-30º to +30º (horizontally)
IP Rating
IP65 (from below)
IC Rating
IC-F
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Certifications
SAA, CE, RoHS
Warranty
3 Year product replacement
Stocked
Yes
Downloads
pdf
Ace Downlight Booklet
pdf
ACE Adjustable Individual Spec Sheet
pdf
SDoC - ACE Downlight - 15068
ies
IES File (AWF90-13-840 - AWA90-13-840)
AWF68-8-840

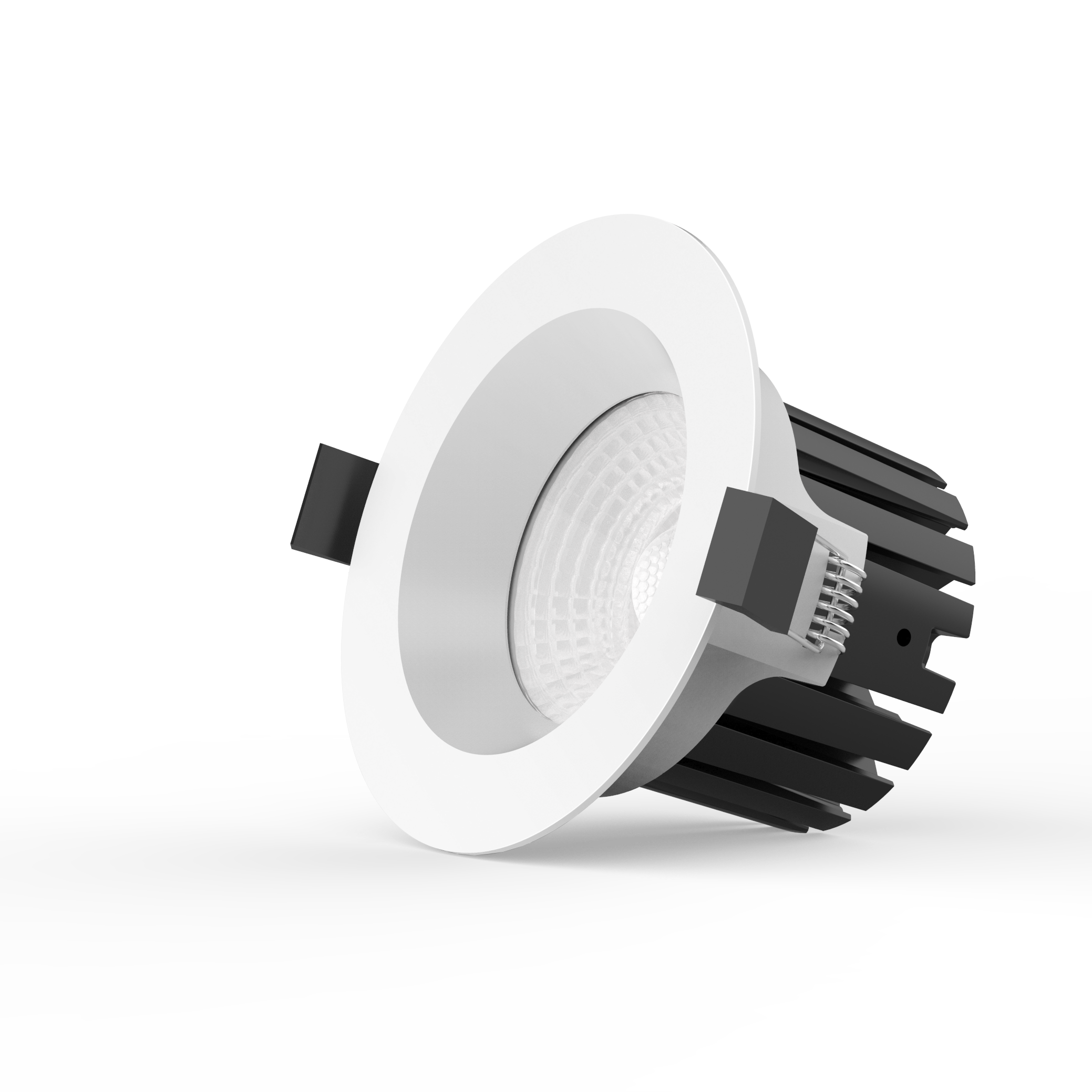

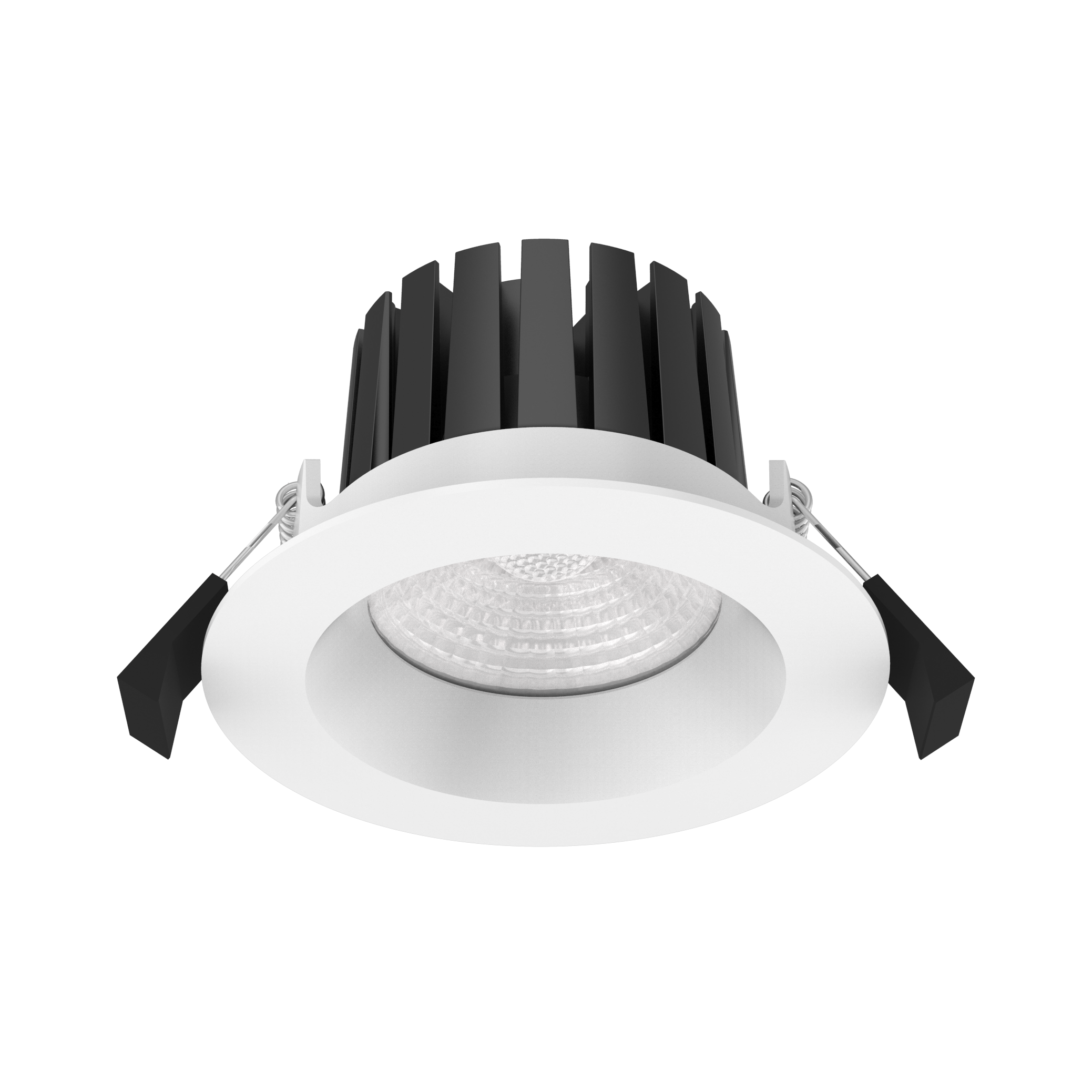

Fixed
8W
4000K
Ø68-72mm
Ø80*30mm
800lm
100lm/W
36º
>83
40,000hrs
19
21
CREE CXA1507
Full specifications
Product Type
Fixed
System Wattage
8W
CCT
4000K
Cut-out
Ø68-72mm
Size
Ø80*30mm
Lumen Output (+/- 5%)
800lm
Luminaire Efficacy
100lm/W
Beam Angle
36º
CRI
>83
Lifetime - L70
40,000hrs
UGR
19
R9 Value
21
Light Source
CREE CXA1507
SDCM
<3
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
≥0.90
THD
<18%
Connection
Junction box
Control
Triac Dimming
Dimming Range
8%-100%
Body Material
Aluminium
Lens Material
PMMA
Finish
Powder Coating
Colour
White (RAL 9016)
Degree of Rotation
-
IP Rating
IP65 (from below)
IC Rating
IC-F
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Certifications
SAA, CE, RoHS
Warranty
3 Year product replacement
Stocked
Yes
Downloads
pdf
Ace Downlight Booklet
pdf
ACE Fixed Individual Spec Sheet
pdf
SDoC - ACE Downlight - 15068
ies
IES File (AWF68-8-840 - AWA68-8-840)
AWF75-10-840
Fixed
10W
4000K
Ø75-80mm
Ø90*39.3mm
900lm
90lm/W
60º
>83
40,000hrs
22
21
CREE CXA1508
Full specifications
Product Type
Fixed
System Wattage
10W
CCT
4000K
Cut-out
Ø75-80mm
Size
Ø90*39.3mm
Lumen Output (+/- 5%)
900lm
Luminaire Efficacy
90lm/W
Beam Angle
60º
CRI
>83
Lifetime - L70
40,000hrs
UGR
22
R9 Value
21
Light Source
CREE CXA1508
SDCM
<3
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
≥0.90
THD
<18%
Connection
Junction box
Control
Triac Dimming
Dimming Range
8%-100%
Body Material
Aluminium
Lens Material
PMMA
Finish
Powder Coating
Colour
White (RAL 9016)
Degree of Rotation
-
IP Rating
IP65 (from below)
IC Rating
IC-F
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Certifications
SAA, CE, RoHS
Warranty
3 Year product replacement
Stocked
Yes
Downloads
pdf
Ace Downlight Booklet
pdf
ACE Fixed Individual Spec Sheet
pdf
SDoC - ACE Downlight - 15068
ies
IES File (AWF75-10-840 - AWA75-10-840)
AWF90-13-840
Fixed
13W
4000K
Ø90-95mm
Ø110*49.5mm
1,170lm
90lm/W
60º
>83
40,000hrs
25
21
CREE CXA1512
Full specifications
Product Type
Fixed
System Wattage
13W
CCT
4000K
Cut-out
Ø90-95mm
Size
Ø110*49.5mm
Lumen Output (+/- 5%)
1,170lm
Luminaire Efficacy
90lm/W
Beam Angle
60º
CRI
>83
Lifetime - L70
40,000hrs
UGR
25
R9 Value
21
Light Source
CREE CXA1512
SDCM
<3
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
≥0.90
THD
<18%
Connection
Junction box
Control
Triac Dimming
Dimming Range
8%-100%
Body Material
Aluminium
Lens Material
PMMA
Finish
Powder Coating
Colour
White (RAL 9016)
Degree of Rotation
-
IP Rating
IP65 (from below)
IC Rating
IC-F
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Certifications
SAA, CE, RoHS
Warranty
3 Year product replacement
Stocked
Yes
Downloads
pdf
Ace Downlight Booklet
pdf
ACE Fixed Individual Spec Sheet
pdf
SDoC - ACE Downlight - 15068
ies
IES File (AWF90-13-840 - AWA90-13-840)
