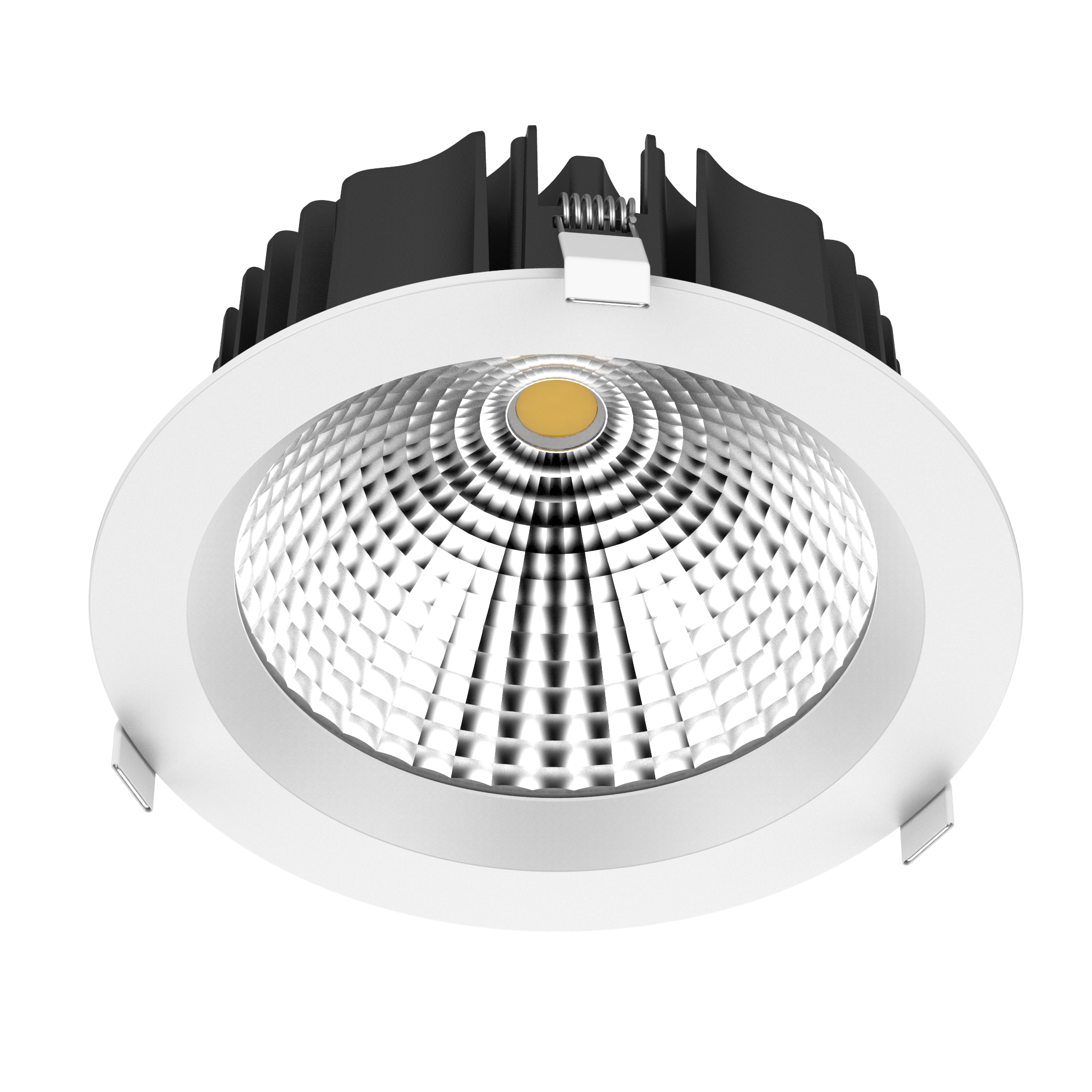

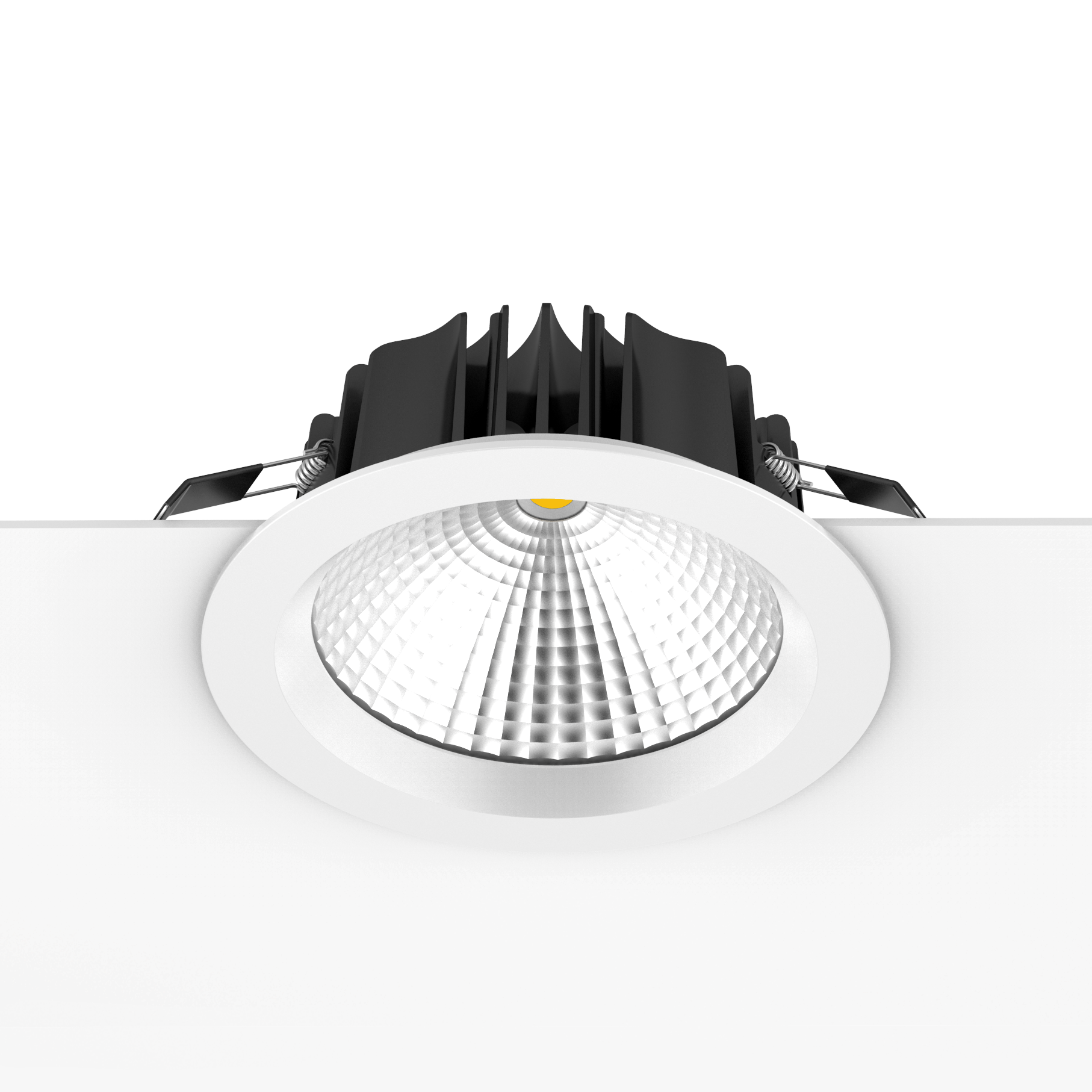

Duke Downlight

Essential Series Commercial Downlight

✓ Available in three sizes
✓ Faceted aluminium reflector
✓ Citizen LED chip
✓ Dimming options available

see Detailed specs
UP TO

70%

ENERGY SAVING
MASSIVE

100lm/W

SYSTEM EFFICACY
LIFETIME OF

40,000

HOURS TO L70
TOTAL OF

6

WATTAGES

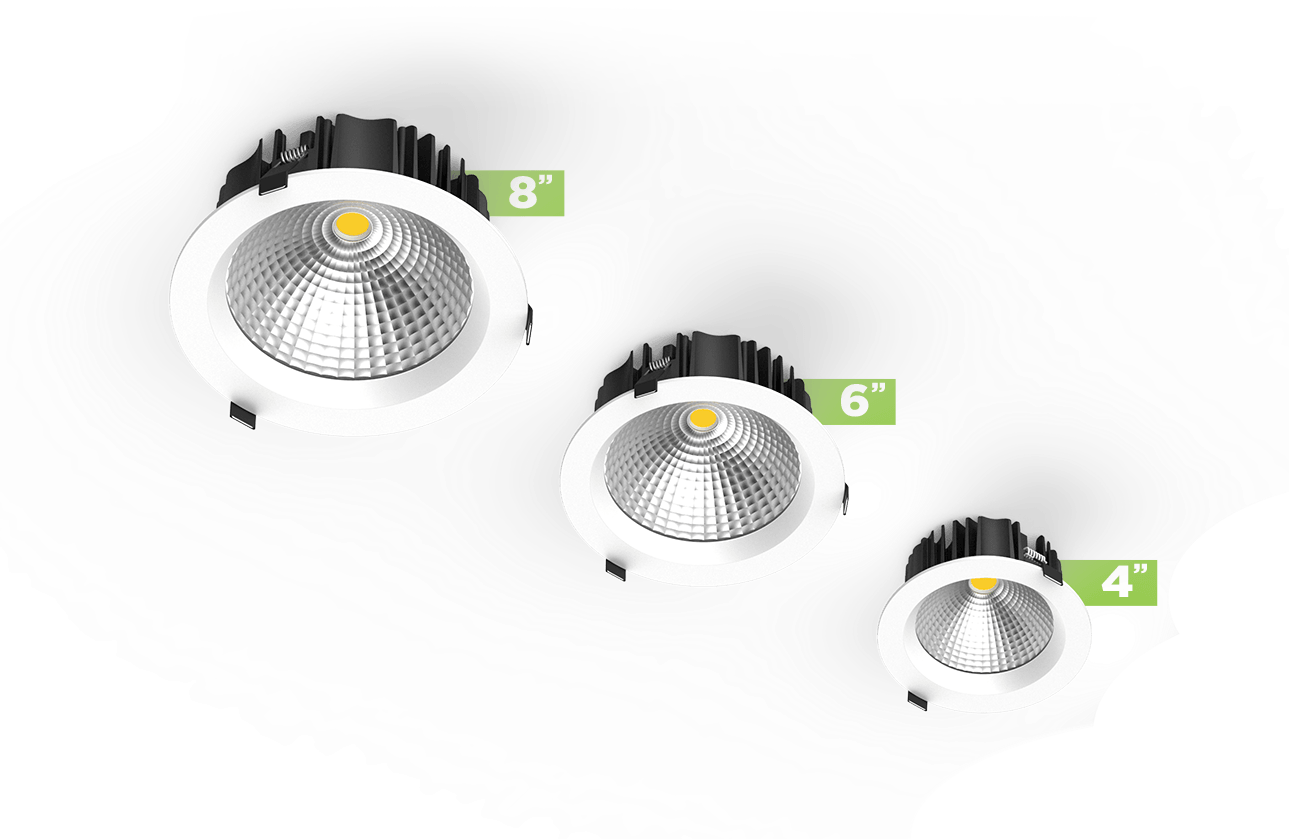

One size doesn't fit all

The Duke comes in multiple sizes and wattages to suit most commercial applications
Feature

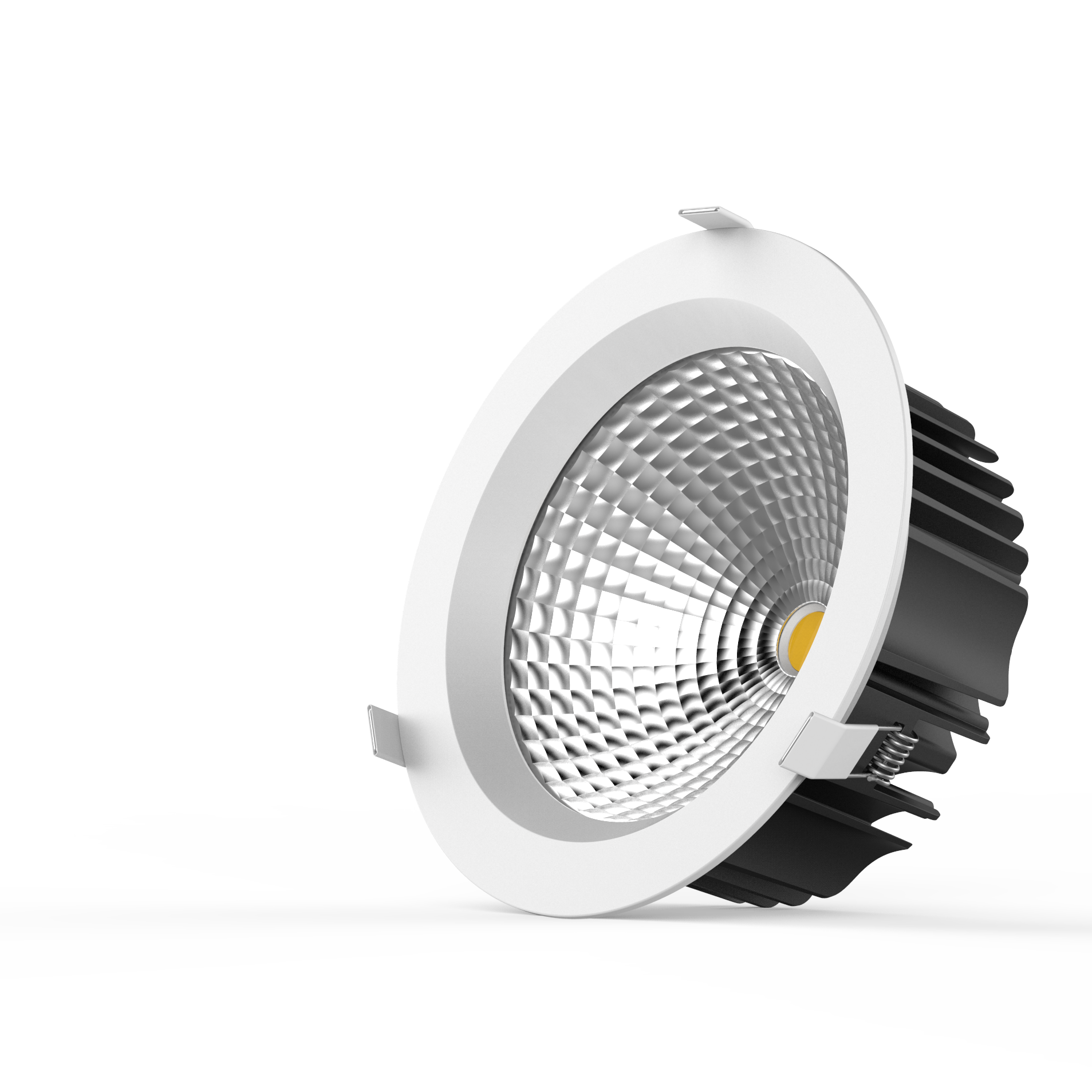

Faceted Reflector Design

A faceted aluminium reflector combined with a high output citizen cob provides a uniform light distribution while being extremely efficient
Feature

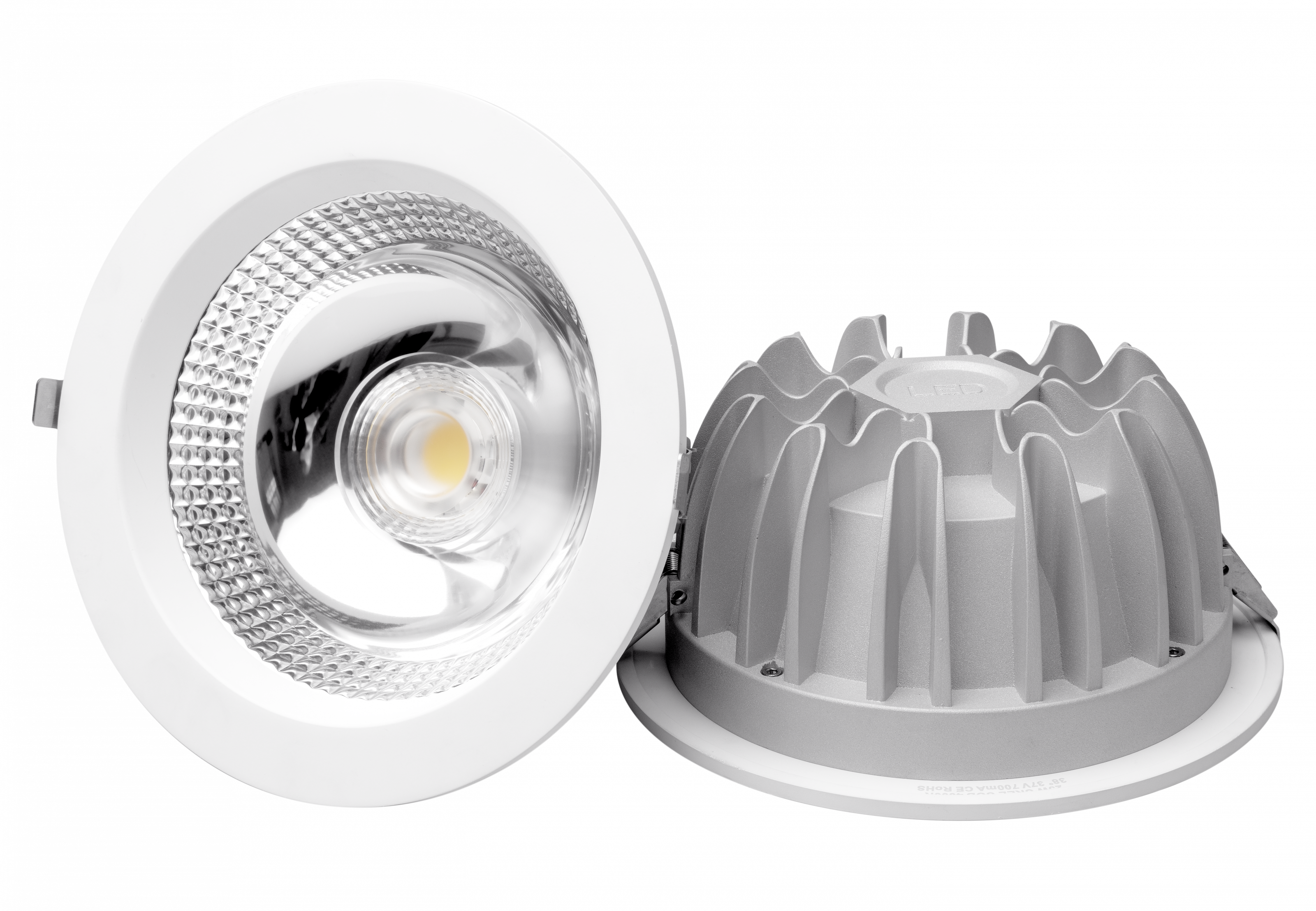

ADC12 Aluminium Heat Sink

Provides excellent thermal dissipation in a shallow heatsink suitable for any ceiling space

Family specifications and downloads

Download family spec sheetpdf • 502.6 KB
  • dw120-18-840dw120-25-840
  • Ø145*65mm
  • Ø120-130mm
  • 18W25W
  • 1900lm (+/-5%)2500lm (+/-5%))
  • 105lm/W100lm/W
  • 4000K
  • ≥80
  • <3
  • 60°
  • AC200-240V / 50-60 Hz
  • IP20
  • NON IC
  • Citizen LED COB
  • Triac, DALI, 0-10V, SwitchDim
  • 3 Year product replacement
  • dw160-25-840dw160-35-840
  • Ø190*75mm
  • Ø160-170mm
  • 25W35W
  • 2500lm (+/-5%)3,430lm (+/-5%)
  • 100lm/W
  • 4000K
  • ≥80
  • <3
  • 60°
  • AC200-240V / 50-60 Hz
  • IP20
  • NON IC
  • Citizen LED COB
  • Triac, DALI, 0-10V, SwitchDim
  • 3 Year product replacement
  • dw200-35-840dw200-45-840
  • Ø225x75mm
  • Ø200-210mm
  • 35W45W
  • 3,430lm (+/-5%)4,725lm (+/-5%)
  • 100lm/W105lm/W
  • 4000K
  • ≥80
  • <3
  • 60°
  • AC200-240V / 50-60 Hz
  • IP20
  • NON IC
  • Citizen LED COB
  • Triac, DALI, 0-10V, SwitchDim
  • 3 Year product replacement
  • Product code
  • Size
  • Cut Out
  • Wattage
  • Lumen Output
  • Luminous Efficacy
  • CCT
  • CRI
  • SDCM
  • Beam Angle
  • Input Voltage
  • IP Rating
  • IC Rating
  • LED Chips
  • Dimming Options
  • Warranty
  • Downloads

Specifications

Filter all product variations
Controls
PRODUCT CODE
System Wattage
Cut-out
Size
Lumen Output
Luminaire Efficacy
Beam Angle
CRI
Lifetime - L70
Dimming Options
UGR
Light Source
CCT
SDCM
DW120-18-840
18W
Ø120-130mm
Ø145*65mm
1,900lm
105lm/W
60°
≥80
40,000hrs
Fixed Output
22
Citizen LED COB
4000K
<3
Full specifications
System Wattage
18W
Cut-out
Ø120-130mm
Size
Ø145*65mm
Lumen Output
1,900lm
Luminaire Efficacy
105lm/W
Beam Angle
60°
CRI
≥80
Lifetime - L70
40,000hrs
Dimming Options
Fixed Output
UGR
22
Light Source
Citizen LED COB
CCT
4000K
SDCM
<3
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor
≥0.90
THD
<18%
Connection
Junction box
Body Material
Aluminium
Finish
Powder Coating
Colour
White (RAL 9016)
IP Rating
IP20
IC Rating
NON IC
Operating Temp
-20° to +45°C
Protection Class
Class 2
Certifications
SAA, CE, RoHS
Warranty
3 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Duke Spec Sheet
pdf
SDoC - Duke Downlight - 15069
pdf
Duke Commercial Downlight Booklet
ies
DW120-18-840
DW120-25-840
25W
Ø120-130mm
Ø145*65mm
2,500lm
100lm/W
60°
≥80
40,000hrs
Fixed Output
22
Citizen LED COB
4000K
<3
Full specifications
System Wattage
25W
Cut-out
Ø120-130mm
Size
Ø145*65mm
Lumen Output
2,500lm
Luminaire Efficacy
100lm/W
Beam Angle
60°
CRI
≥80
Lifetime - L70
40,000hrs
Dimming Options
Fixed Output
UGR
22
Light Source
Citizen LED COB
CCT
4000K
SDCM
<3
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor
≥0.90
THD
<18%
Connection
Junction box
Body Material
Aluminium
Finish
Powder Coating
Colour
White (RAL 9016)
IP Rating
IP20
IC Rating
NON IC
Operating Temp
-20° to +45°C
Protection Class
Class 2
Certifications
SAA, CE, RoHS
Warranty
3 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Duke Spec Sheet
pdf
SDoC - Duke Downlight - 15069
pdf
Duke Commercial Downlight Booklet
ies
DW120-25-840
DW160-25-840
25W
Ø160-170mm
Ø190*75mm
2,500lm
100lm/W
60°
≥80
40,000hrs
Fixed Output
25
Citizen LED COB
4000K
<3
Full specifications
System Wattage
25W
Cut-out
Ø160-170mm
Size
Ø190*75mm
Lumen Output
2,500lm
Luminaire Efficacy
100lm/W
Beam Angle
60°
CRI
≥80
Lifetime - L70
40,000hrs
Dimming Options
Fixed Output
UGR
25
Light Source
Citizen LED COB
CCT
4000K
SDCM
<3
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor
≥0.90
THD
<18%
Connection
Junction box
Body Material
Aluminium
Finish
Powder Coating
Colour
White (RAL 9016)
IP Rating
IP20
IC Rating
NON IC
Operating Temp
-20° to +45°C
Protection Class
Class 2
Certifications
SAA, CE, RoHS
Warranty
3 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Duke Spec Sheet
pdf
SDoC - Duke Downlight - 15069
pdf
Duke Commercial Downlight Booklet
ies
DW160-25-840
DW160-35-840
35W
Ø160-170mm
Ø190*75mm
3,430lm
100lm/W
60°
≥80
40,000hrs
Fixed Output
25
Citizen LED COB
4000K
<3
Full specifications
System Wattage
35W
Cut-out
Ø160-170mm
Size
Ø190*75mm
Lumen Output
3,430lm
Luminaire Efficacy
100lm/W
Beam Angle
60°
CRI
≥80
Lifetime - L70
40,000hrs
Dimming Options
Fixed Output
UGR
25
Light Source
Citizen LED COB
CCT
4000K
SDCM
<3
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor
≥0.90
THD
<18%
Connection
Junction box
Body Material
Aluminium
Finish
Powder Coating
Colour
White (RAL 9016)
IP Rating
IP20
IC Rating
NON IC
Operating Temp
-20° to +45°C
Protection Class
Class 2
Certifications
SAA, CE, RoHS
Warranty
3 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Duke Spec Sheet
pdf
SDoC - Duke Downlight - 15069
pdf
Duke Commercial Downlight Booklet
ies
DW160-35-840
DW200-35-840
35W
Ø200-210mm
Ø225x75mm
3,430lm
100lm/W
60°
≥80
40,000hrs
Fixed Output
25
Citizen LED COB
4000K
<3
Full specifications
System Wattage
35W
Cut-out
Ø200-210mm
Size
Ø225x75mm
Lumen Output
3,430lm
Luminaire Efficacy
100lm/W
Beam Angle
60°
CRI
≥80
Lifetime - L70
40,000hrs
Dimming Options
Fixed Output
UGR
25
Light Source
Citizen LED COB
CCT
4000K
SDCM
<3
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor
≥0.90
THD
<18%
Connection
Junction box
Body Material
Aluminium
Finish
Powder Coating
Colour
White (RAL 9016)
IP Rating
IP20
IC Rating
NON IC
Operating Temp
-20° to +45°C
Protection Class
Class 2
Certifications
SAA, CE, RoHS
Warranty
3 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Duke Spec Sheet
pdf
SDoC - Duke Downlight - 15069
pdf
Duke Commercial Downlight Booklet
ies
DW200-35-840
DW200-45-840
45W
Ø200-210mm
Ø225x75mm
4,725lm
105lm/W
60°
≥80
40,000hrs
Fixed Output
25
Citizen LED COB
4000K
<3
Full specifications
System Wattage
45W
Cut-out
Ø200-210mm
Size
Ø225x75mm
Lumen Output
4,725lm
Luminaire Efficacy
105lm/W
Beam Angle
60°
CRI
≥80
Lifetime - L70
40,000hrs
Dimming Options
Fixed Output
UGR
25
Light Source
Citizen LED COB
CCT
4000K
SDCM
<3
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor
≥0.90
THD
<18%
Connection
Junction box
Body Material
Aluminium
Finish
Powder Coating
Colour
White (RAL 9016)
IP Rating
IP20
IC Rating
NON IC
Operating Temp
-20° to +45°C
Protection Class
Class 2
Certifications
SAA, CE, RoHS
Warranty
3 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Duke Spec Sheet
pdf
SDoC - Duke Downlight - 15069
pdf
Duke Commercial Downlight Booklet
ies
DW200-45-840
DW120-18-840-DIM
18W
Ø120-130mm
Ø145*65mm
1,900lm
105lm/W
60°
≥80
40,000hrs
Triac, DALI, 0-10V, SwitchDim
22
Citizen LED COB
4000K
<3
Full specifications
System Wattage
18W
Cut-out
Ø120-130mm
Size
Ø145*65mm
Lumen Output
1,900lm
Luminaire Efficacy
105lm/W
Beam Angle
60°
CRI
≥80
Lifetime - L70
40,000hrs
Dimming Options
Triac, DALI, 0-10V, SwitchDim
UGR
22
Light Source
Citizen LED COB
CCT
4000K
SDCM
<3
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor
≥0.90
THD
<18%
Connection
Junction box
Body Material
Aluminium
Finish
Powder Coating
Colour
White (RAL 9016)
IP Rating
IP20
IC Rating
NON IC
Operating Temp
-20° to +45°C
Protection Class
Class 2
Certifications
SAA, CE, RoHS
Warranty
3 Year product replacement
Stocked
No
Lead Time
5 Working days
Downloads
pdf
Duke Spec Sheet
pdf
SDoC - Duke Downlight - 15069
pdf
Duke Commercial Downlight Booklet
ies
DW120-18-840
DW120-25-840-DIM
25W
Ø120-130mm
Ø145*65mm
2,500lm
100lm/W
60°
≥80
40,000hrs
Triac, DALI, 0-10V, SwitchDim
22
Citizen LED COB
4000K
<3
Full specifications
System Wattage
25W
Cut-out
Ø120-130mm
Size
Ø145*65mm
Lumen Output
2,500lm
Luminaire Efficacy
100lm/W
Beam Angle
60°
CRI
≥80
Lifetime - L70
40,000hrs
Dimming Options
Triac, DALI, 0-10V, SwitchDim
UGR
22
Light Source
Citizen LED COB
CCT
4000K
SDCM
<3
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor
≥0.90
THD
<18%
Connection
Junction box
Body Material
Aluminium
Finish
Powder Coating
Colour
White (RAL 9016)
IP Rating
IP20
IC Rating
NON IC
Operating Temp
-20° to +45°C
Protection Class
Class 2
Certifications
SAA, CE, RoHS
Warranty
3 Year product replacement
Stocked
No
Lead Time
5 Working days
Downloads
pdf
Duke Spec Sheet
pdf
SDoC - Duke Downlight - 15069
pdf
Duke Commercial Downlight Booklet
ies
DW120-25-840
DW160-25-840-DIM
25W
Ø160-170mm
Ø190*75mm
2,500lm
100lm/W
60°
≥80
40,000hrs
Triac, DALI, 0-10V, SwitchDim
25
Citizen LED COB
4000K
<3
Full specifications
System Wattage
25W
Cut-out
Ø160-170mm
Size
Ø190*75mm
Lumen Output
2,500lm
Luminaire Efficacy
100lm/W
Beam Angle
60°
CRI
≥80
Lifetime - L70
40,000hrs
Dimming Options
Triac, DALI, 0-10V, SwitchDim
UGR
25
Light Source
Citizen LED COB
CCT
4000K
SDCM
<3
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor
≥0.90
THD
<18%
Connection
Junction box
Body Material
Aluminium
Finish
Powder Coating
Colour
White (RAL 9016)
IP Rating
IP20
IC Rating
NON IC
Operating Temp
-20° to +45°C
Protection Class
Class 2
Certifications
SAA, CE, RoHS
Warranty
3 Year product replacement
Stocked
No
Lead Time
5 Working days
Downloads
pdf
Duke Spec Sheet
pdf
SDoC - Duke Downlight - 15069
pdf
Duke Commercial Downlight Booklet
ies
DW160-25-840
DW160-35-840-DIM
35W
Ø160-170mm
Ø190*75mm
3,430lm
100lm/W
60°
≥80
40,000hrs
Triac, DALI, 0-10V, SwitchDim
25
Citizen LED COB
4000K
<3
Full specifications
System Wattage
35W
Cut-out
Ø160-170mm
Size
Ø190*75mm
Lumen Output
3,430lm
Luminaire Efficacy
100lm/W
Beam Angle
60°
CRI
≥80
Lifetime - L70
40,000hrs
Dimming Options
Triac, DALI, 0-10V, SwitchDim
UGR
25
Light Source
Citizen LED COB
CCT
4000K
SDCM
<3
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor
≥0.90
THD
<18%
Connection
Junction box
Body Material
Aluminium
Finish
Powder Coating
Colour
White (RAL 9016)
IP Rating
IP20
IC Rating
NON IC
Operating Temp
-20° to +45°C
Protection Class
Class 2
Certifications
SAA, CE, RoHS
Warranty
3 Year product replacement
Stocked
No
Lead Time
5 Working days
Downloads
pdf
Duke Spec Sheet
pdf
SDoC - Duke Downlight - 15069
pdf
Duke Commercial Downlight Booklet
ies
DW160-35-840
Show 2 moreShow all 12 product variants
Buy this Product

in store

There are 226 retailer locations all across New Zealand.

FIND ONE CLOSE TO YOU
Related Products

ACE Downlight

Essential Series Downlight

Crown Downlight

Professional Series Downlight
Contact us
FacebookInstagramLinkedInTwitter
Privacy StatementWarranties
Copyright Evolve Lighting 2018
Made by BSD & FFF
