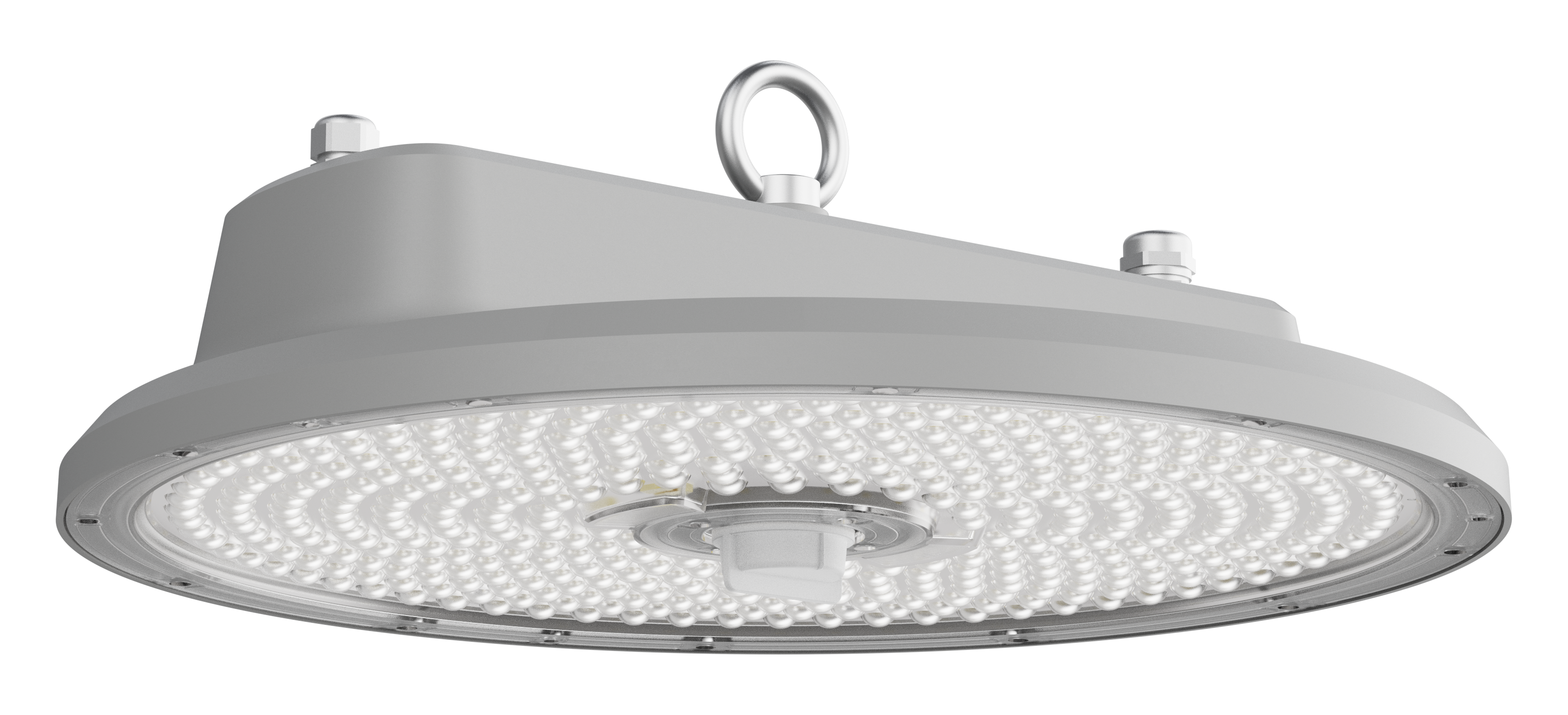

ATLAS
INDUSTRIAL LED HIGHBAY
✓ High output up to 36,000lm @ 200W
✓ Long >100,000 hours life
✓ High efficacy of up to 190lm/W
✓ Finless easy clean design
✓ Flexible wattage select options (100W/150W/200W)
✓ Wide operating temperatures of -40° to +50°
✓ Reduced glare (UGR25)
✓ 3CCT selectable (4000k/5000K/5700K)
✓ NSF Listed – suitable for food processing and wash-down areas
✓ Emergency version
✓ Quick connect sensor options
HIGH
36,000lm
OUTPUT
ULTRA HIGH
190lm/W
SYSTEM EFFICACY
LONG LIFETIME
100,000hrs
@L80
REDUCED GLARE
25UGR
@150W
Feature
Flexible CCT and Output Options
Easily select from 3 CCTs and 3 Wattages, providing you with plenty of on-site flexibility.
Feature

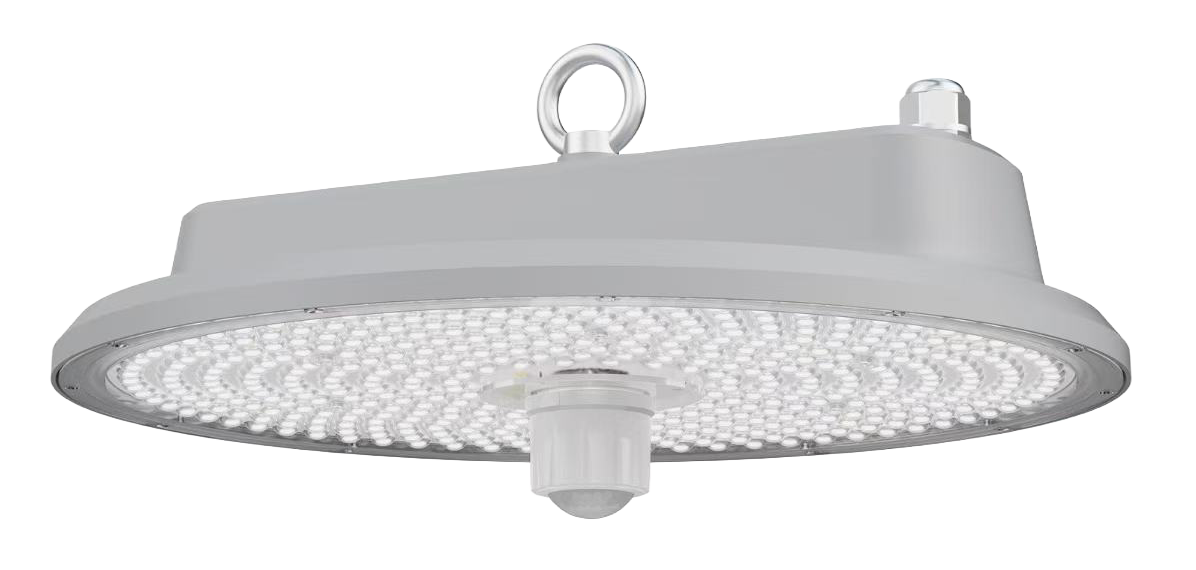

Sensor Options
We provide a wide range of sensor options to fit your project, including PIR and Casambi wireless control.
Feature
NSF Certified
The Atlas highbay is NSF/ANSI 2 listed and IP69K rated — built to be hosed at pressure and temperature without missing a beat.
Specifications
ATLAS-200-8457-90
150W
100W/150W/200W
4000K/5000K/5700K
100W (19,000lm), 150W (27,000lm), 200W (36,000lm)
180lm/W
90º
25(200W) 25(150W) 22(100W)
>80
>100,000hrs
<5
100-277VAC / 50-60 Hz
0.97
<8%

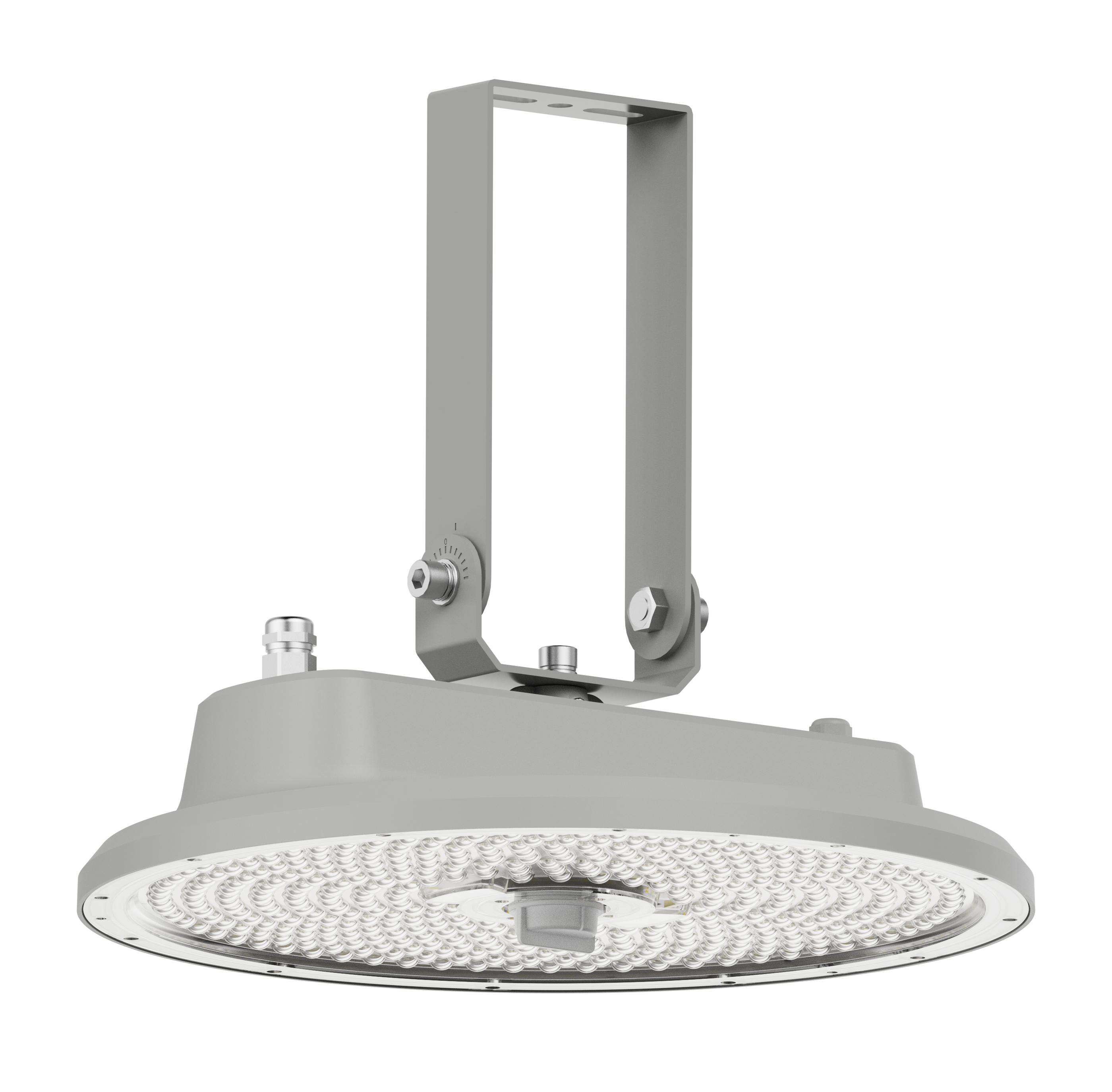

Surface Mount Kit
Material
Steel
Titlable
90°
Product Code
ATLAS-SMKIT

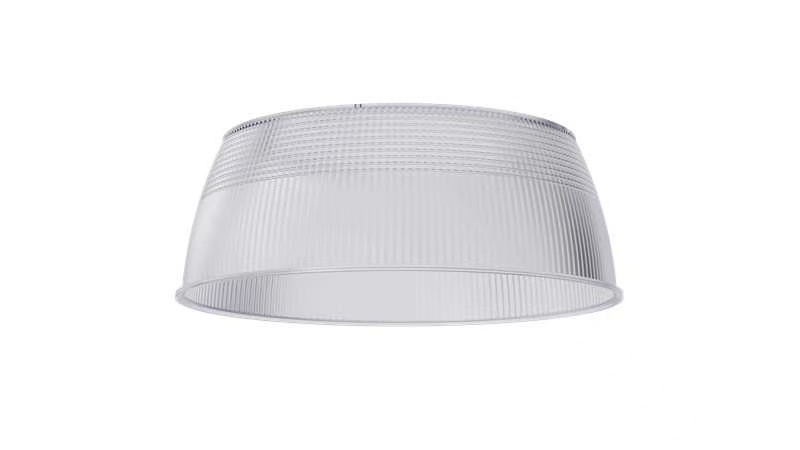

PC Reflector
