Slate

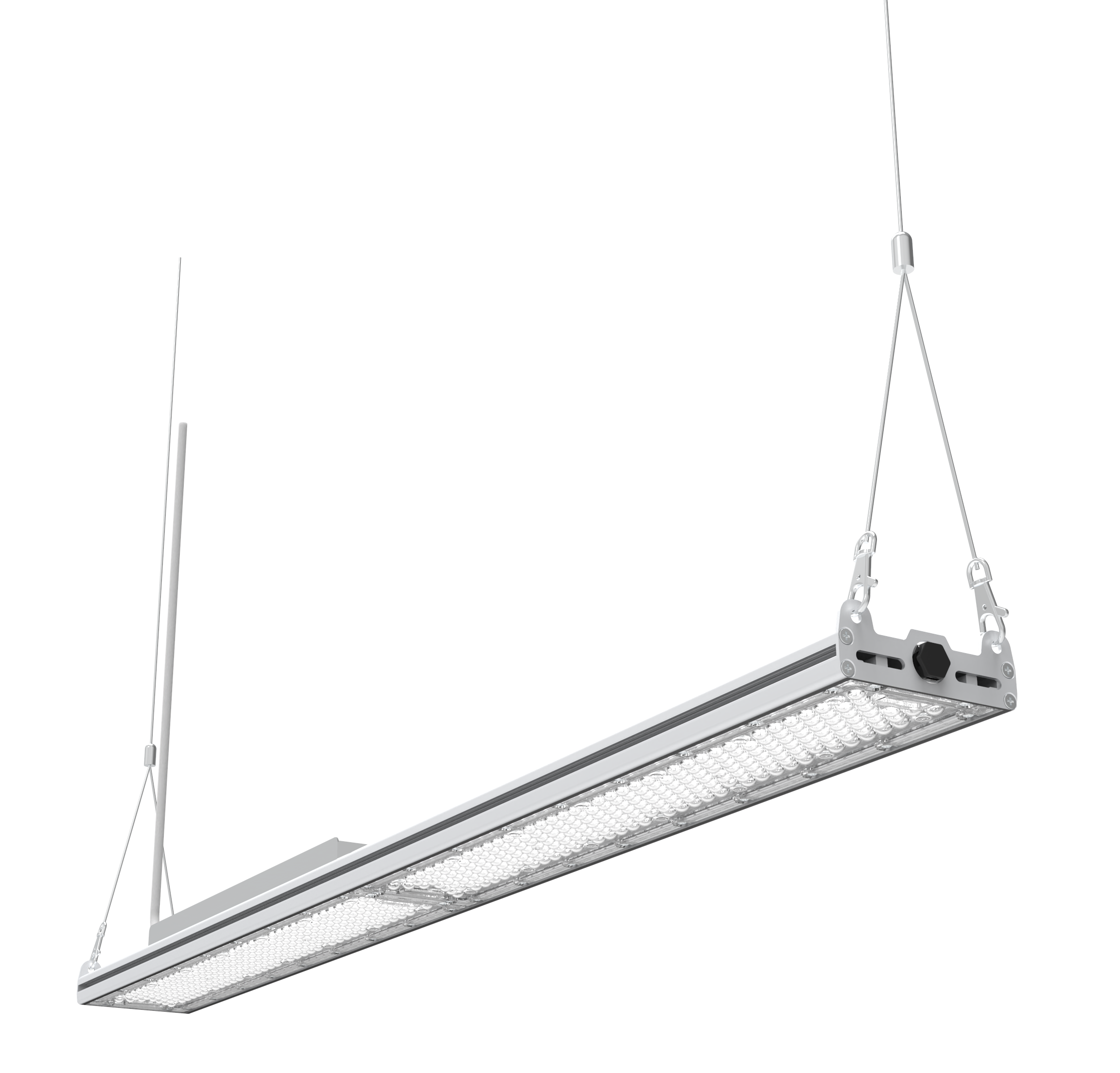

FOUNDATION SERIES LINEAR HIGHBAY

✓ One-for-one T5 highbay replacement 4x54W =100W / 6x54W =150W
✓ 54% energy savings over T5 equivalent
✓ High output up to 26,000lm @ 150W
✓ Long >60,000 hours life
✓ High efficacy of up to 180lm/W
✓ Flexible wattage select options (100W/150W)
✓ Low profile design
✓ Optics for warehouse aisles and open areas
✓ Casambi wireless control options with sensors
✓ Reduce labor costs with easy installation

see Detailed specs
HIGH

180lm/W

EFFICACY
LONG

>60,000Hrs

LIFETIME
UP TO

26,000lms

OUTPUT
LOW

25UGR

Rating

Specifications

Filter all product variations
Distribution
SLATE-150-840-G-90
150W
65W/80W/100W/120W/150W
4000K
65W (11,700lm)/80W (14,400lm)/100W (18,000lm)/120W (21,800lm)/150W (26,000lm)
180lm/W
>80
>60,000hrs
SMD
<3
90° (Open Area)
<25
AC200-240V / 50-60 Hz
0.99
Full specifications
Default Wattage
150W
Wattage Options
65W/80W/100W/120W/150W
CCT
4000K
Lumen Output @
65W (11,700lm)/80W (14,400lm)/100W (18,000lm)/120W (21,800lm)/150W (26,000lm)
Luminaire Efficacy
180lm/W
CRI
>80
Lifetime - TM21 L70
>60,000hrs
Light Source
SMD
SDCM
<3
Beam Angle
90° (Open Area)
UGR Rating
<25
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor
0.99
THD
5%
Driver Lifetime
<100,000hrs
Control
1-10V
Body Material
Aluminium
Lens Material
Polycarbonate
Body Colour
Grey
Dimensions
1000mm x 110mm x 60mm
Weight
2.5kg
IP Rating
IP20
IK Rating
IK08
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certifications
SAA
Warranty
5 Year product replacement
Stocked
Yes
Downloads
pdf
Evolve Slate Highbay Spec Sheet
ies
SLATE-150-840-G-90
ies
SLATE-100-840-G-90
SLATE-150-840-G-AD
150W
65W/80W/100W/120W/150W
4000K
65W (11,700lm)/80W (14,400lm)/100W (18,000lm)/120W (21,800lm)/150W (26,000lm)
180lm/W
>80
>60,000hrs
SMD
<3
30°x100° (Aisle)
<25
AC200-240V / 50-60 Hz
0.99
Full specifications
Default Wattage
150W
Wattage Options
65W/80W/100W/120W/150W
CCT
4000K
Lumen Output @
65W (11,700lm)/80W (14,400lm)/100W (18,000lm)/120W (21,800lm)/150W (26,000lm)
Luminaire Efficacy
180lm/W
CRI
>80
Lifetime - TM21 L70
>60,000hrs
Light Source
SMD
SDCM
<3
Beam Angle
30°x100° (Aisle)
UGR Rating
<25
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor
0.99
THD
5%
Driver Lifetime
<100,000hrs
Control
1-10V
Body Material
Aluminium
Lens Material
Polycarbonate
Body Colour
Grey
Dimensions
1000mm x 110mm x 60mm
Weight
2.5kg
IP Rating
IP20
IK Rating
IK08
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certifications
SAA
Warranty
5 Year product replacement
Stocked
Yes
Downloads
pdf
Evolve Slate Highbay Spec Sheet
ies
SLATE-150-840-G-AD
ies
SLATE-100-840-G-AD
