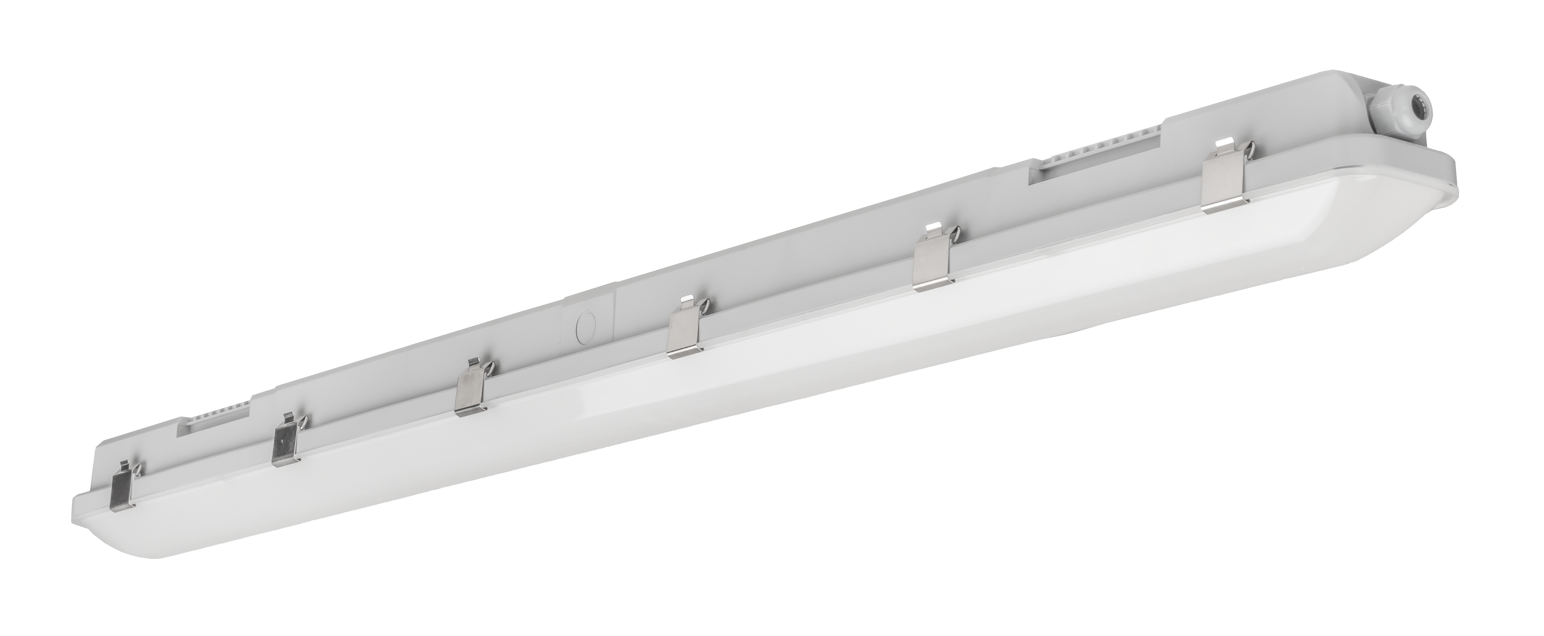

Trident 5 Foot

FOUNDATION SERIES LED IP66 BATTEN

✓ High output 6,500lm
✓ Long >50,000 hours life
✓ High efficacy of 130lm/W
✓ Slim Design
✓ Side entry points
✓ Fast install with:
– Pre-threaded M20 cable entry with a blanking cap
– Integrated cable clips
– Quick release gear tray

see Detailed specs
HIGH

130lm/W

EFFICACY
EXCELLENT

6,500lm

OUTPUT
LONG

>50,000HRS

LIFETIME
WEATHERPROOF

IP66

CONSTUCTION
Feature

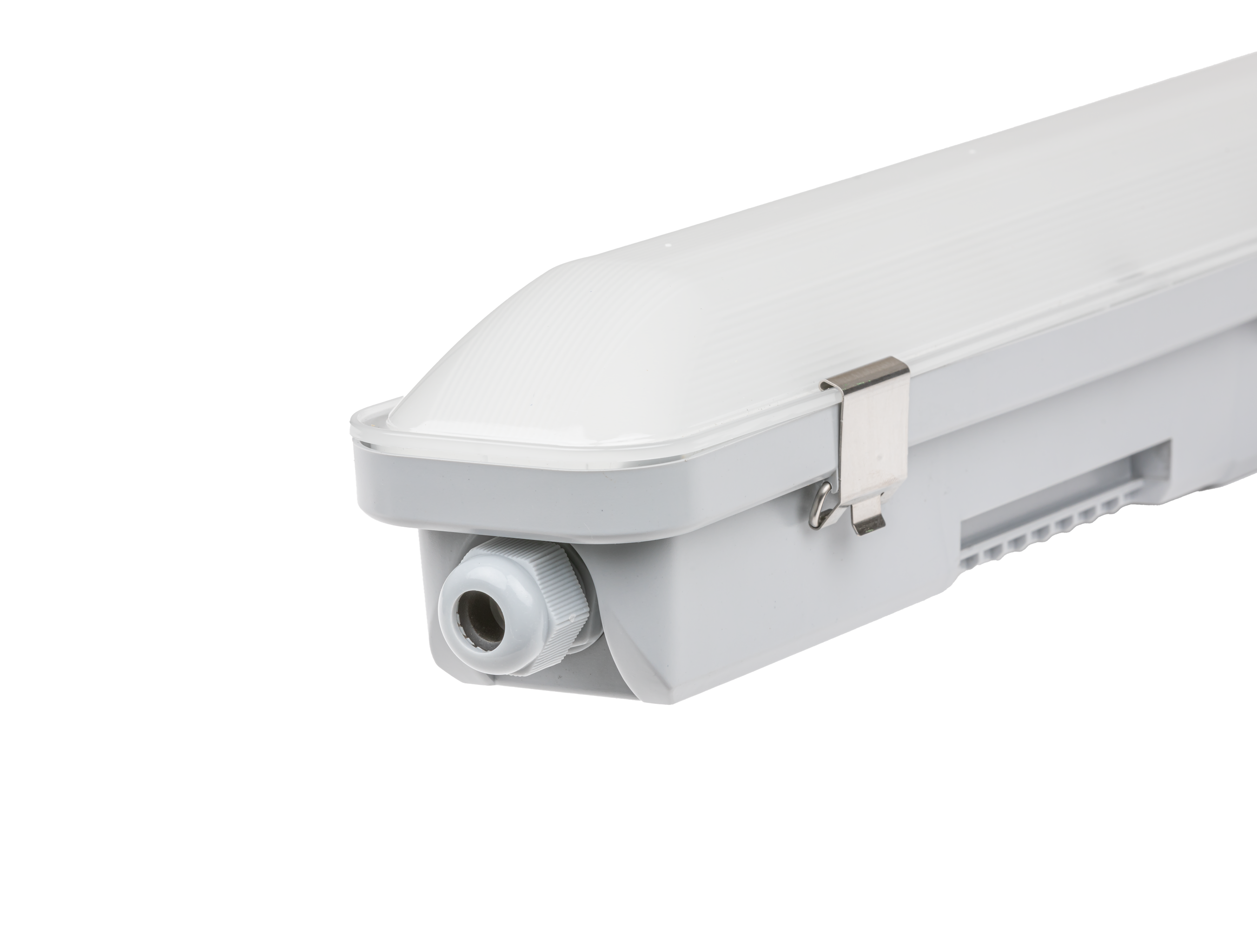

Pre-threaded cable entry

The Trident comes with pre-threaded M20 cable entries for easy and fast install of the included cable gland or conduit adaptor
Feature

Integrated cable clips

Keep the wiring out of the way and tidy with the integrated cable clips

Specifications

Filter all product variations
TRI1500-50-840
1.5m
50W
4000K
6,500lm
130lm/W
>80
>50,000hrs
SMD
<3
AC200-240V / 50-60 Hz
>0.95
<10%
>50,000hrs
Full specifications
Size
1.5m
Wattage
50W
CCT
4000K
Lumen Output
6,500lm
Luminaire Efficacy
130lm/W
CRI
>80
Lifetime L70
>50,000hrs
Light Source
SMD
SDCM
<3
Mains Voltage
AC200-240V / 50-60 Hz
Power Factor
>0.95
THD
<10%
Driver Lifetime
>50,000hrs
Control
Fixed Output
Body Material
Polycarbonate
Lens Material
Polycarbonate
Body Colour
Grey
Clip Material
Stainless 304
Dimensions
1465mm x 75mm x 80mm
Weight
2kg
IP Rating
IP66
IK Rating
IK08
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certifications
SAA
Warranty
5 Year product replacement
Stocked
Yes
Downloads
pdf
Evolve Trident IP66 Batten Spec Sheet
ies
TRI1500-50-840
pdf
Trident Manual
