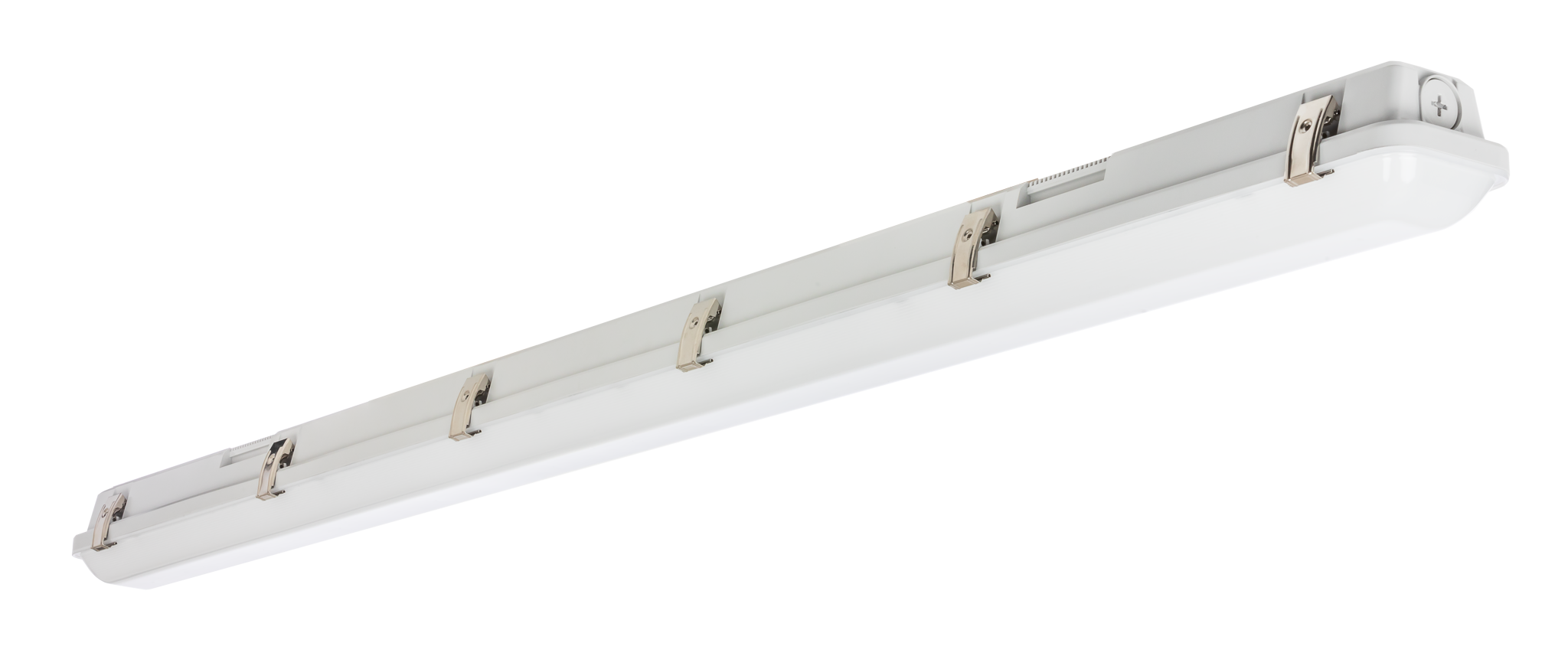

TYPHOON
LED IP66 BATTEN
✓ High output up to 8,000lm @ 56W
✓ Long >50,000 hours life
✓ High efficacy of 140lm/W
✓ Tridonic Driver
✓ Flexible with Wattage Select & 3CCT Selectable
✓ Emergency option with self testing
✓ Fast install with:
– Pre-threaded M20 cable entry with a blanking cap
– Integrated cable clips
– Quick release gear tray
HIGH
140lm/W
SYSTEM EFFICACY
UP TO
8,000LM
OUTPUT
LONG
>50,000HRS
LIFETIME
EXCELLENT
IP66
PROTECTION
Feature

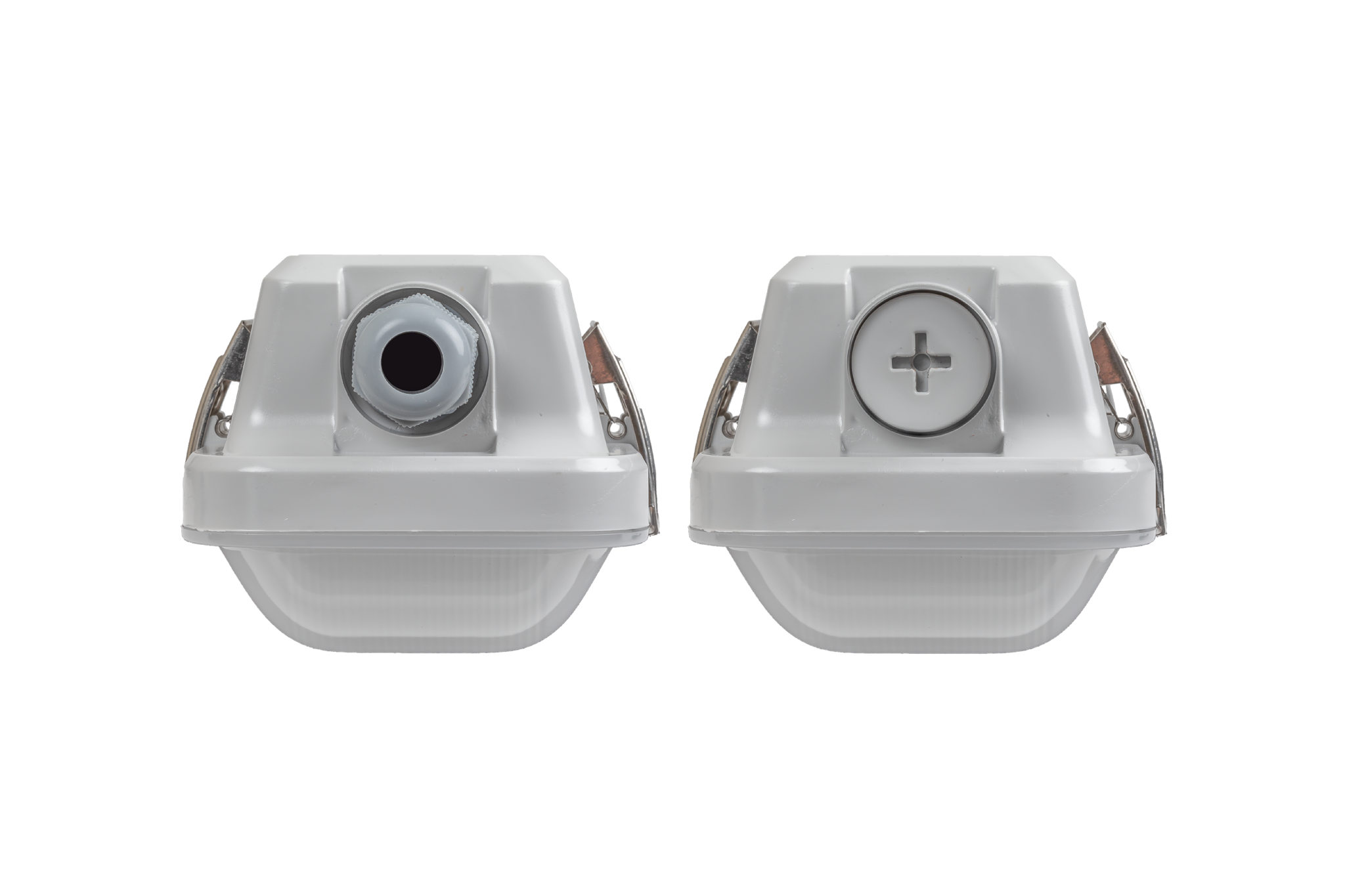

Pre-threaded cable entry
The Typhoon comes with pre-threaded M20 cable entries for easy and fast install of the included cable gland or conduit adaptor
Feature

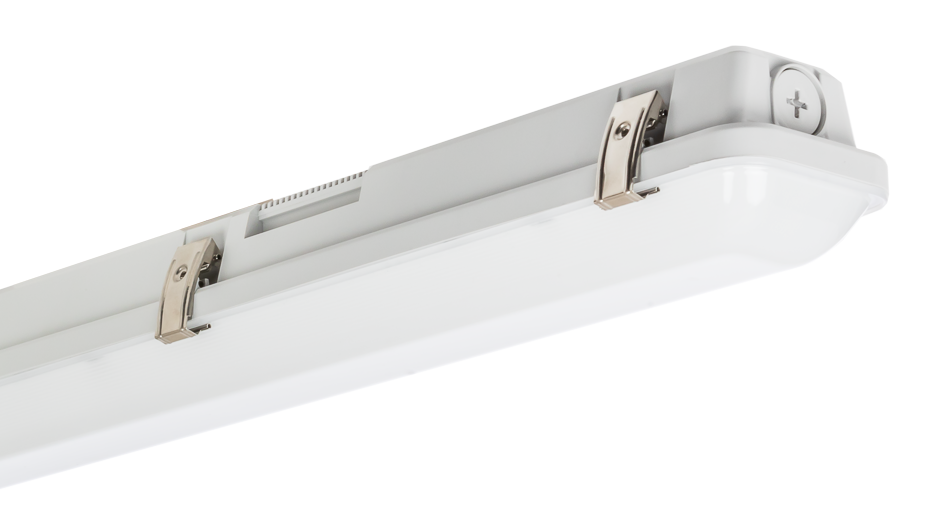

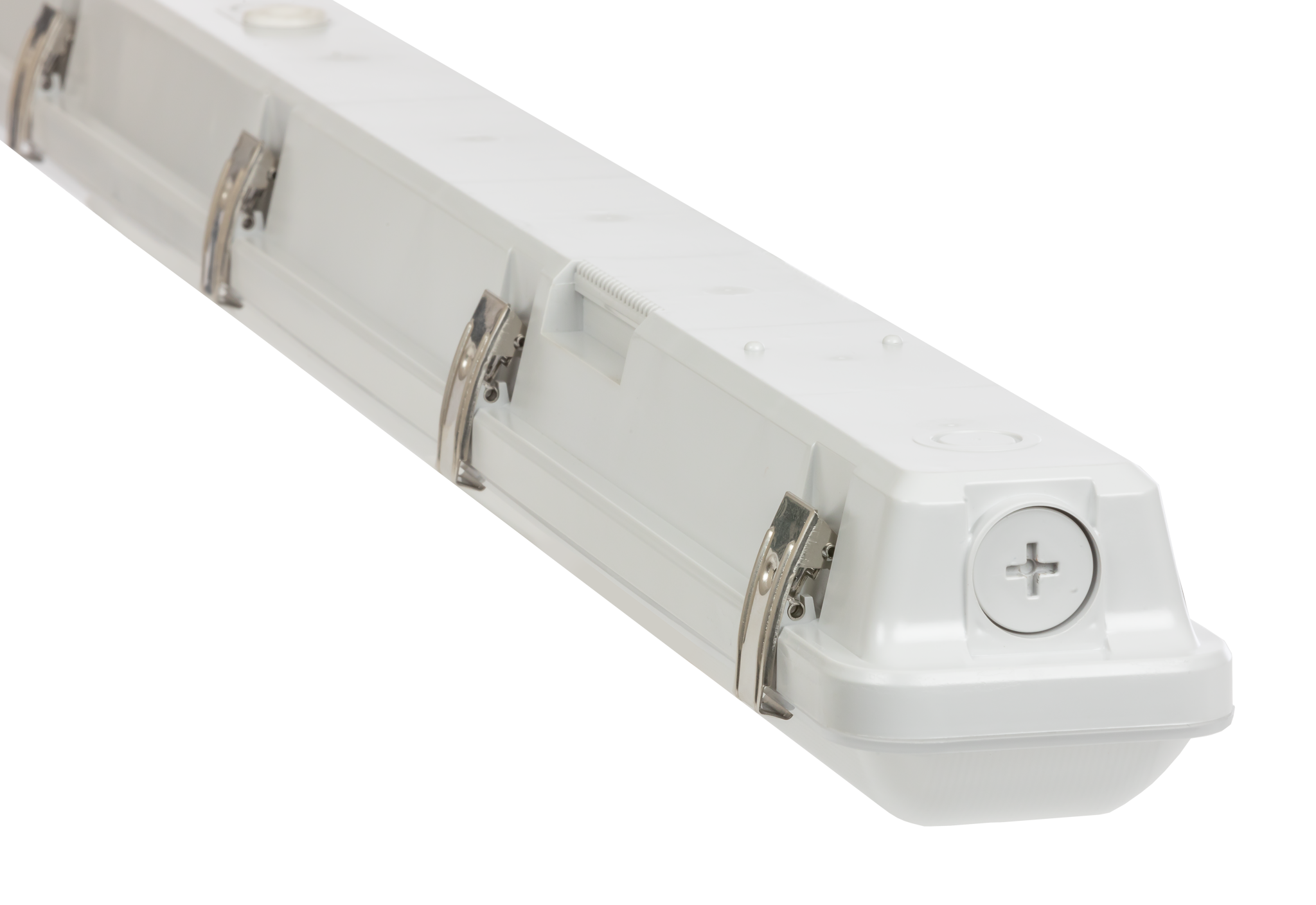

Integrated cable clips
Keep the wiring out of the way and tidy with the integrated cable clips
Feature
Flexible
Multiple options at your fingertips with both Wattage Select and 3CCT
Feature
Quick release gear tray
Remove the gear tray with ease to more comfortably install the base
Specifications
Light Colour
Size
PRODUCT CODE
Size
Default Wattage
Wattage Options
CCT Options
Lumen Output @ 4000K
Luminaire Efficacy
CRI
Lifetime - TM21 L70
Light Source
SDCM
Power Supply
Mains Voltage
Power Factor
TYP1200-40-8346
1.2m
34W
40W/34W/28W/22W
3000K/4000K/6000K
(40W) 5,659lm/(34W) 4,590lm/(28W) 4,090lm/(22W) 3,034lm
140lm/W
>80
>50,000hrs
SMD
<4
Tridonic
AC200-240V / 50-60 Hz
>0.95
TYP1500-56-8346
1.5m
47W
56W/47W/39W/32W
3000K/4000K/6000K
(56W) 8,000lm/(47W) 6,652lm/(39W) 5,598lm/(32W) 4,632lm
140lm/W
>80
>50,000hrs
SMD
<4
Tridonic
AC200-240V / 50-60 Hz
>0.95
TYP600-20-8346
0.6m
16W
20W/16W/14W/11W
3000K/4000K/6000K
(20W) 2,800lm/(16W) 2,328lm/(14W) 1,949lm/(11W) 1,439lm
140lm/W
>80
>50,000hrs
SMD
<4
Tridonic
AC200-240V / 50-60 Hz
>0.95
