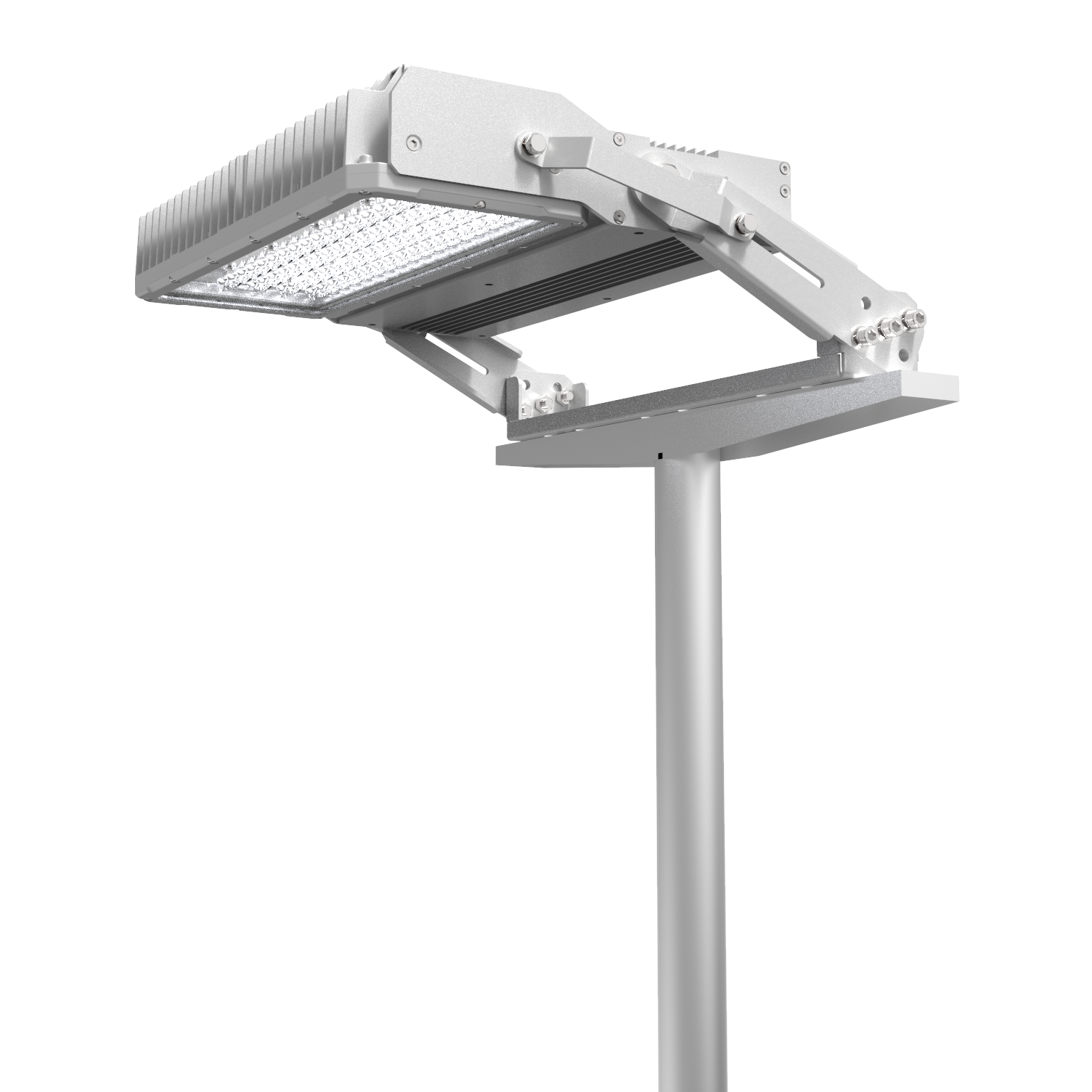

Titan Floodlight
Professional Series Sports Floodlight
✓ Massive light output of up to 230,000lm
✓ Ultra-high system efficiency of up to 145lm/W
✓ High quality Lumileds LED chips
✓ Long >102,000 hours lifespan to L70
✓ 198-440Vac Input voltage
✓ Professionally designed true asymmetric flat optics
✓ New single driver design for easy remote mounting
✓ DALI-2 and CLO function
✓ High quality Interpon anti-corrosion powder-coating
MASSIVE
230,000lm
LIGHT OUTPUT
ULTRA HIGH
145lm/W
SYSTEM EFFICACY
LIFETIME OF
102,000+
HOURS TO L70
FLEXABLE
198-440V
INPUT VOLTAGE
Feature

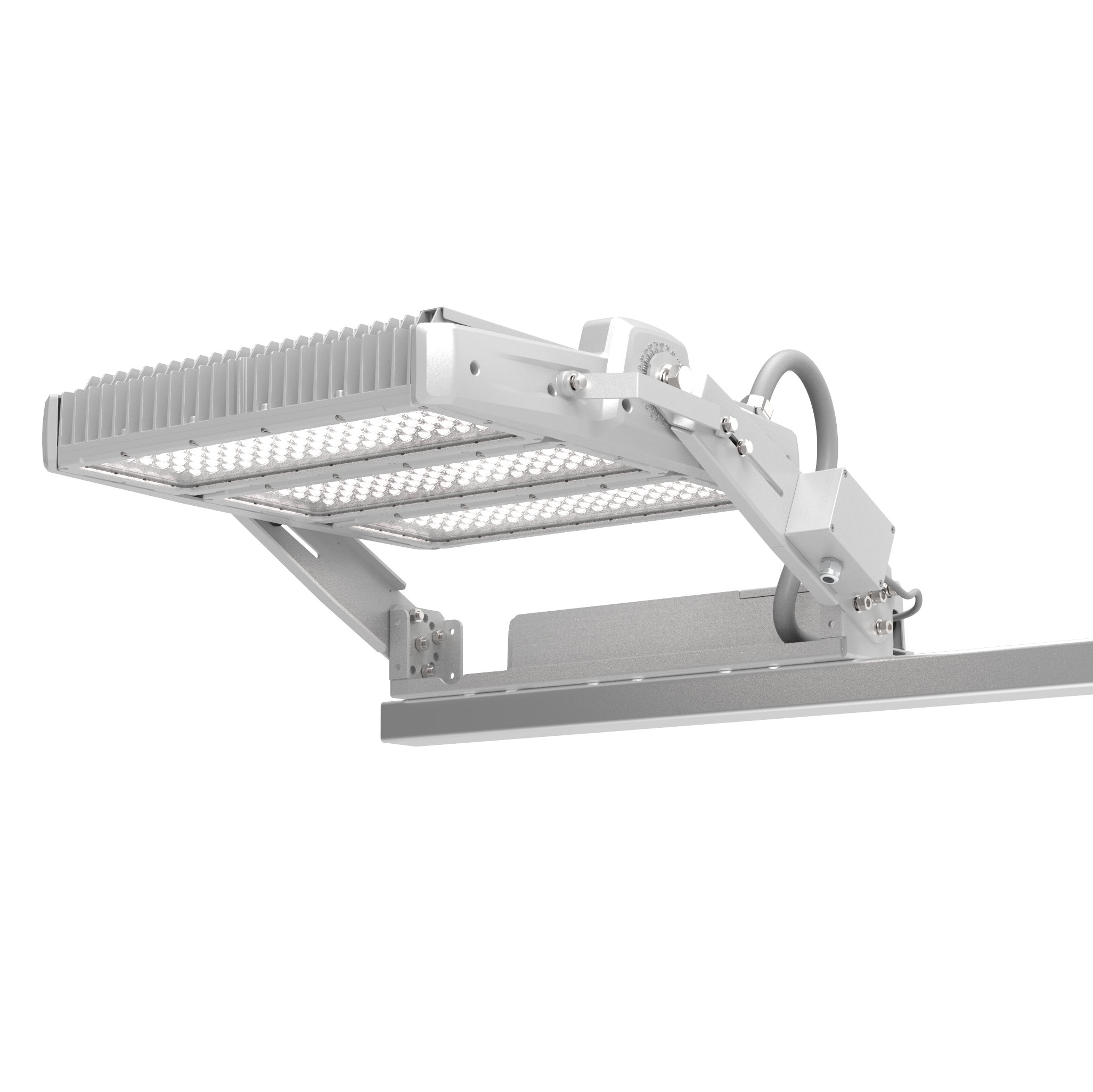

New Driver for Improved Flexibility
New single driver design for our Double and Triple module Titans offers greater flexibility with easy remote mounting, 198-440V input voltage and DALI-2 dimming as standard.
Feature

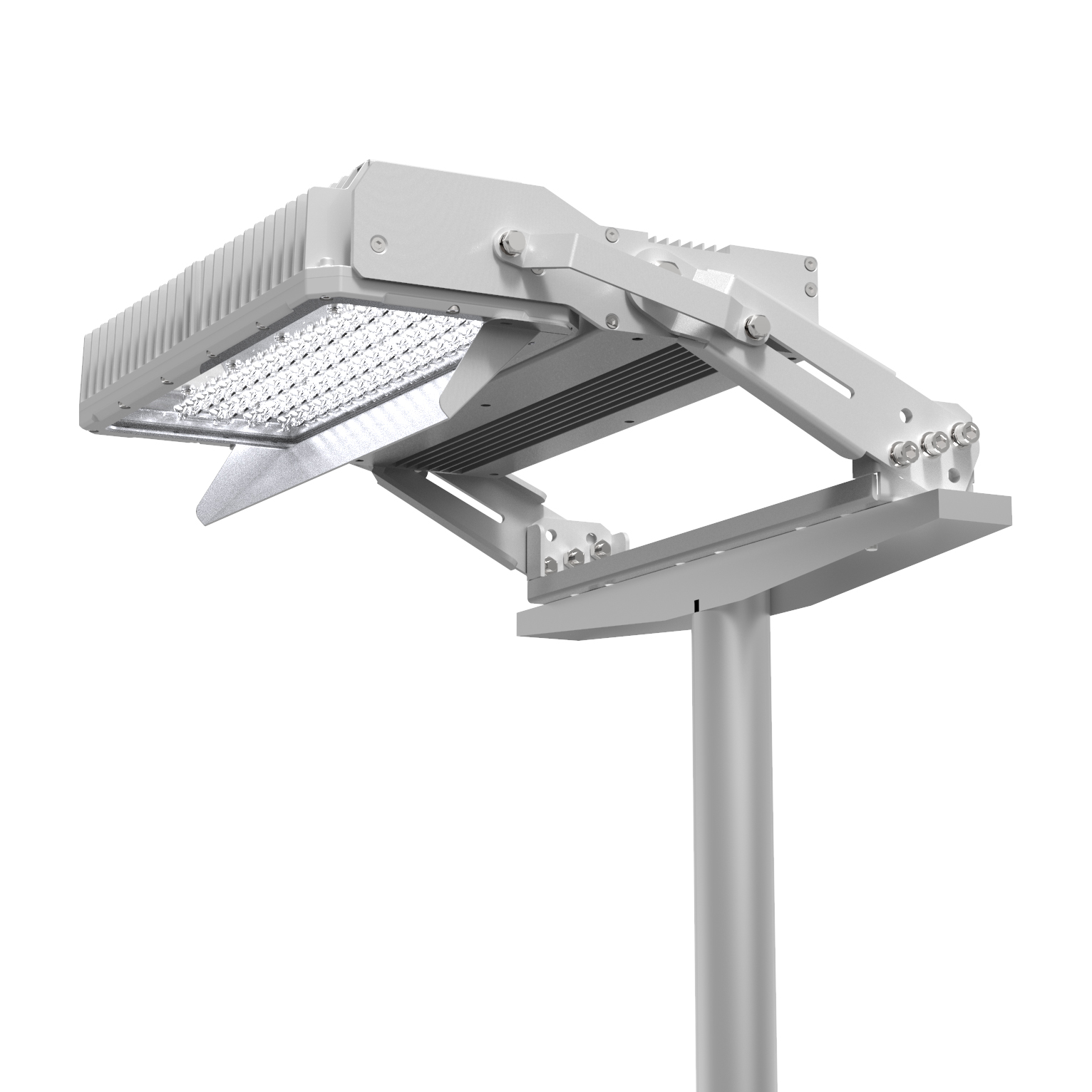

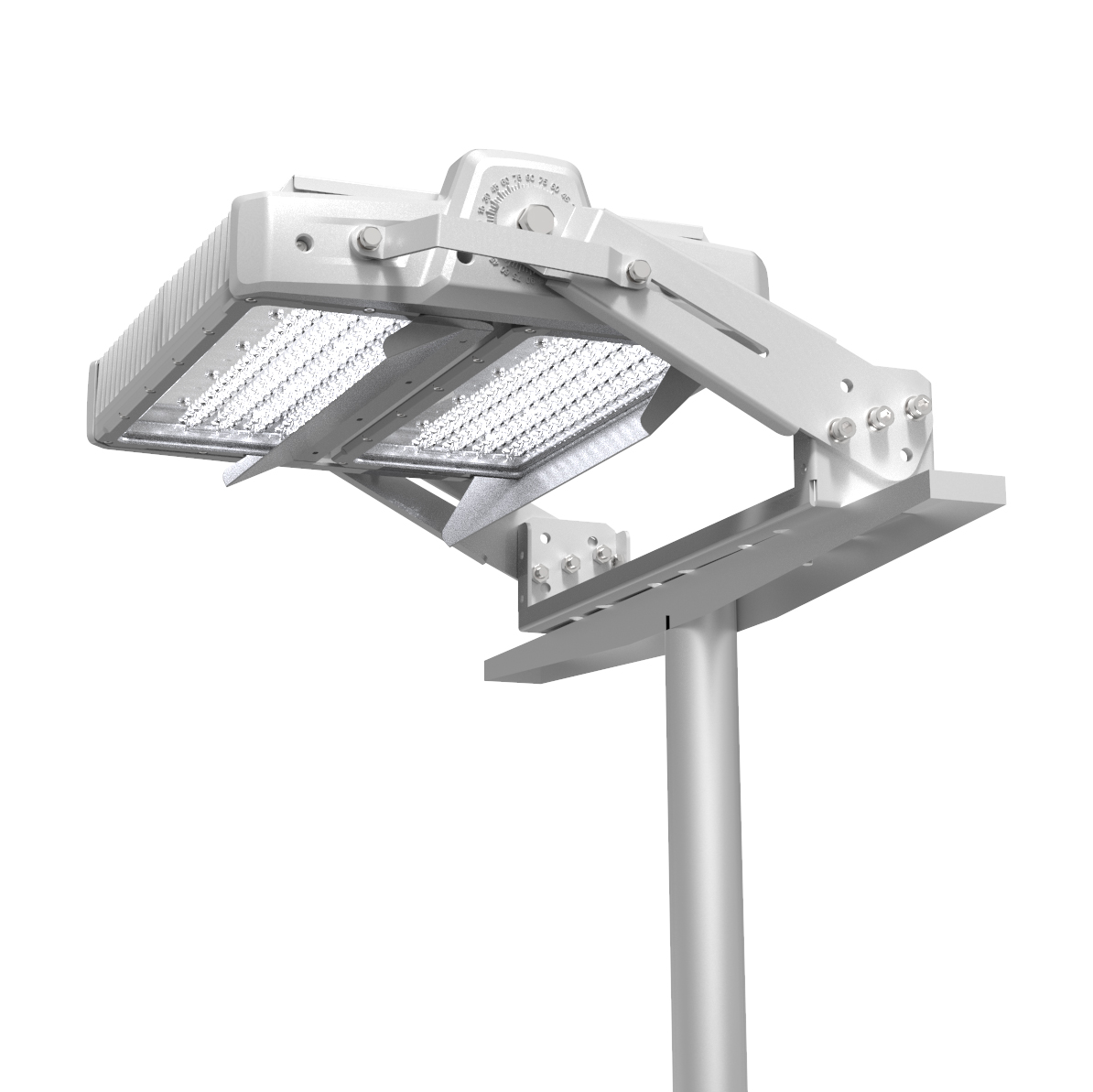

Back Spill Shields
We offer back spill shields to prevent spill light into neighbouring properties.
Feature
Ultra Low Windage
Innovative flat glass optics and slim design greatly reduce the wind-affected area of the Titan, which allows the reuse of existing poles in most cases.
Titan Sports Lighting Booklet
Use our sports lighting design templates to get an understanding of your lighting needs and how the Titan can get you there.
Family specifications and downloads
- titan-320-750titan-480-750titan-550-750
- Single
- 320W480W550W
- 47,000lm(±5%)70,000lm(±5%)79,000lm(±5%)
- 147lm/W145lm/W145lm/W
- 5000K (3000K, 4000K, 5700K available)
- >70 (>80, >90 available)
- 12°, 30°, 60°, AS1, AS2
- AC100-240V / 50-60 Hz, PF ≥ 0.97 (400V optional)
- IP66
- DALI-2 optional
- Lumileds
- Telegrey (RAL7047), or Black (RAL9011)
- titan-2-960-757titan-2-1100-757
- Double
- 960W1100W
- 140,000lm(±5%)152,000lm(±5%)
- 145lm/W140lm/W
- 5000K (3000K, 4000K, 5700K available)
- >70 (>80, >90 available)
- 12°, 30°, 60°, AS1, AS2, AS3
- AC198-440V / 50-60 Hz, PF ≥ 0.97
- IP66
- DALI-2
- Lumileds
- Telegrey (RAL7047), or Black (RAL9011)
Back Spill Shield - Single
Product Code
TITAN-1M-BS
Material
Aluminium
Finish
AkzoNobel Powder-Coat
Colour
Black/Silver
Back Spill Shield - Double
