Falcon PRO Floodlight
Professional Series Floodlight
Designed with high quality in mind, the Evolve Falcon Pro floodlight series combines efficient high-end components with a reliable, superior build. Savings in both energy and maintenance costs are achieved using high-output Philips Lumileds LED Chips and Mean Well control gear, while also meeting the highest performance standards.
✓ Ultra-efficient system efficacy of up to 170lm/W
✓ Long lifetime of >102,000 hours life to L70
✓ High-quality Lumileds LED chips and Mean Well Driver
✓ Multiple beam angles available
✓ Range of wattages from 80W – 640W
✓ Tough IP67 and IK10 construction

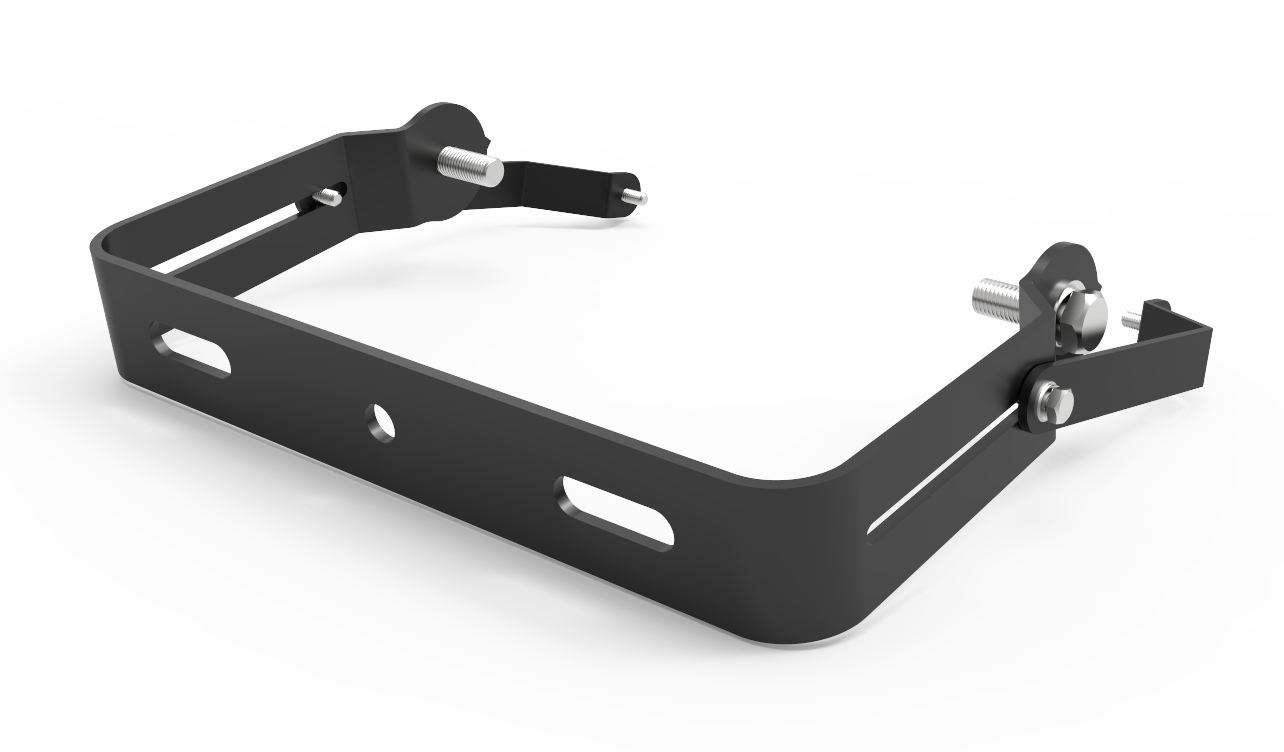

✓ Suitable for coastal areas (with optional 316 stainless steel bracket)
✓ Durable Interpon Polyester coating
108,800lm
170lm/W
102,000+
70%
The Falcon Pro offers flexible design options. Such as four different stocked beam profiles, including symmetric and asymmetric, and multiple colour temperatures available on request, ranging from 3000K to 6500K.
A universal mounting bracket and an angle-adjustment dial make installation a breeze.
Available on request, the Falcon Pro comes in White or any of the other 1625 RAL colours.
Our PRO comes with professional top-of-the-line HLG control gear separated into its own compartment, ensuring its maximum lifetime.

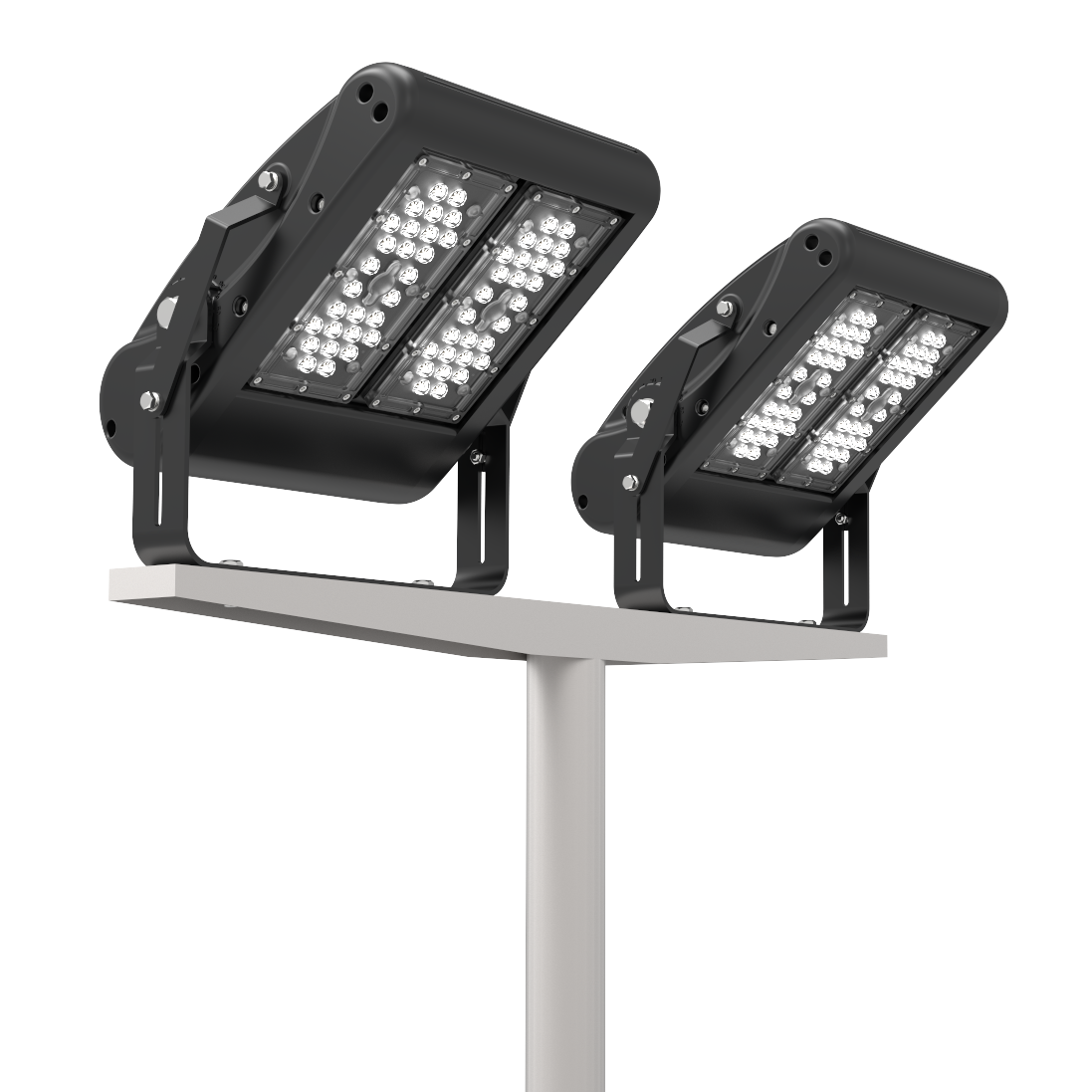

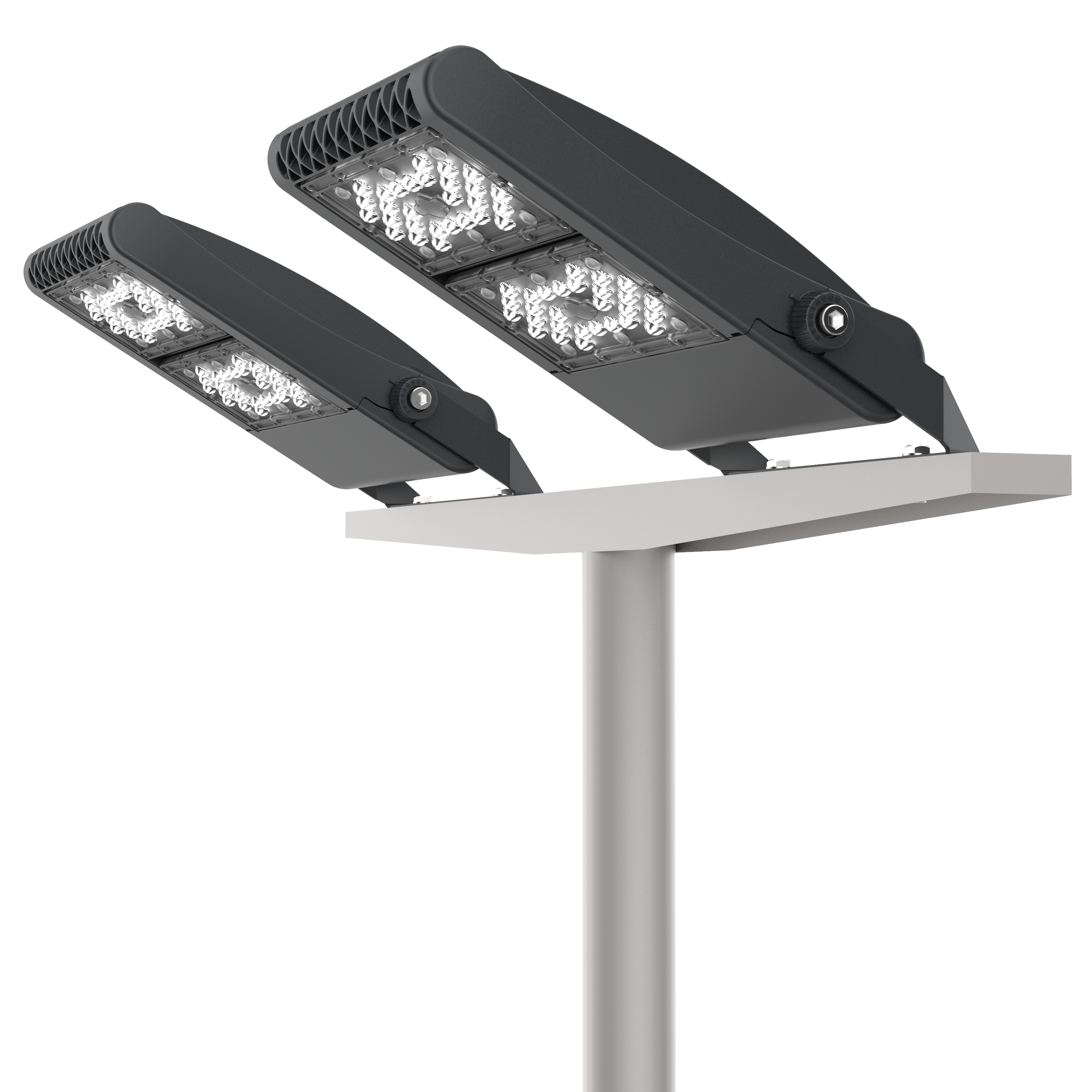

Meet the Family
The Falcon Pro offers a wide range of wattages giving you maximum flexibility when designing, from the smallest project to the largest. The use of quality components throughout this range allows for efficacies of up to 170lm/W and tops out at a massive 100,000 lumens.
Built to Last
Outstanding Efficiency

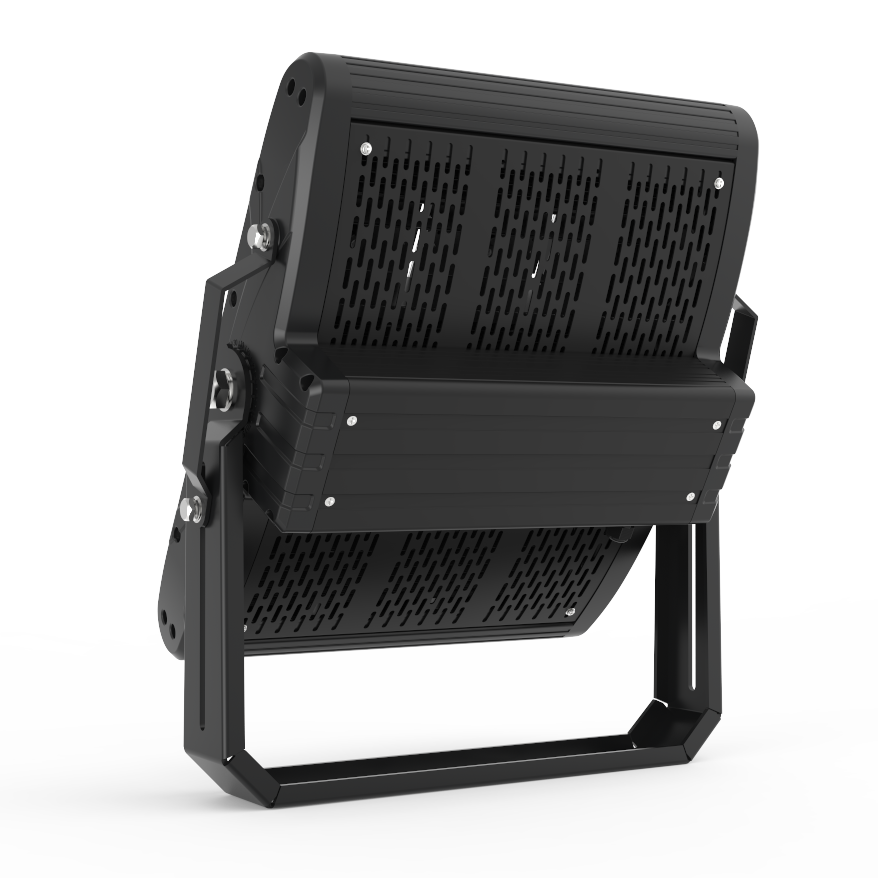

Excellent Cooling Performance
Family specifications and downloads
- falconpro-80falconpro-120
- 80W120W
- 13,600lm20,400lm
- 170lm/W
- >102,000hrs
- 74,000hrs
- 5000K (other CCT's available)
- >70 (>80, >90 available)
- 30°, 60°, 90°, AW, AS330°, 60°, 90°, AW, AS4
- AC100-277V, 50-60Hz, PF>0.95
- IP67
- IK10
- DALI, 1-10V
- Mean Well HLG Series
- Lumileds
- falconpro-150
- 150W
- 25,500lm
- 170lm/W
- >102,000hrs
- 74,000hrs
- 5000K (other CCT's available)
- >70 (>80, >90 available)
- 30°, 60°, 90°, AW, AS5
- AC100-277V, 50-60Hz, PF>0.95
- IP67
- IK10
- DALI, 1-10V
- Mean Well HLG Series
- Lumileds
- falconpro-240
- 240W
- 40,800lm
- 170lm/W
- >102,000hrs
- 74,000hrs
- 5000K (other CCT's available)
- >70 (>80, >90 available)
- 30°, 60°, 90°, AW, AS6
- AC100-277V, 50-60Hz, PF>0.95
- IP67
- IK10
- DALI, 1-10V
- Mean Well HLG Series
- Lumileds
- falconpro-320
- 320W
- 54,400lm
- 170lm/W
- >102,000hrs
- 74,000hrs
- 5000K (other CCT's available)
- >70 (>80, >90 available)
- 30°, 60°, 90°, AW, AS7
- AC100-277V, 50-60Hz, PF>0.95
- IP67
- IK10
- DALI, 1-10V
- Mean Well HLG Series
- Lumileds
- falconpro-480
- 480W
- 81,600lm
- 170lm/W
- >102,000hrs
- 74,000hrs
- 5000K (other CCT's available)
- >70 (>80, >90 available)
- 30°, 60°, 90°, AW, AS8
- AC100-277V, 50-60Hz, PF>0.95
- IP67
- IK10
- DALI, 1-10V
- Mean Well HLG Series
- Lumileds
- falconpro-640
- 640W
- 108,800lm
- 170lm/W
- >102,000hrs
- 74,000hrs
- 5000K (other CCT's available)
- >70 (>80, >90 available)
- 30°, 60°, 90°, AW, AS9
- AC100-277V, 50-60Hz, PF>0.95
- IP67
- IK10
- DALI, 1-10V
- Mean Well HLG Series
- Lumileds
- Product code
- Wattage
- Lumen Output (max)
- Efficacy (max)
- Lifetime @L70 (TM-21)
- Lifetime @L80 (TM-21)
- CCT
- CRI
- Beam Angle
- Input Voltage
- IP Rating
- IK Rating
- Dimming Options
- Driver
- LED Chips
- Downloads
Specifications
PRODUCT CODE
System Wattage
CCT
Lumen Output
Luminaire Efficacy
Beam Angle
CRI
Lifetime - TM21 L70
Distribution
Lifetime - TM21 L80
Lifetime - TM21 L90
Light Source
SDCM
Power Supply
FALCONPRO-120-750-AW
FALCONPRO-120-750-AW-1-10V
FALCONPRO-120-750-AW-DA
FALCONPRO-120-750-B30
FALCONPRO-120-750-B30-1-10V
FALCONPRO-120-750-B30-DA
FALCONPRO-120-750-B60
FALCONPRO-120-750-B60-1-10V
FALCONPRO-120-750-B60-DA
FALCONPRO-120-750-B90
