Strix
Foundation Series Floodlight
✓ High output up to 34,000lm @ 200W
✓ Long >102,000 hours life @ L70
✓ Ultra high efficacy of up to 170lm/W @ 4000K
✓ Asymmetric distribution for excellent light control
✓ Flexible with Wattage Select & 3CCT Selectable
✓ Easy access junction box for loop in-loop out
✓ Built in daylight sensor (100W and 200W)
✓ C4 corrosion classification (>200m from ocean)
✓ Duplex coating system – electrophoretic e-coating and polyester powder coating
✓ 316 stainless steel bracket and fasteners fitted as standard
High
34,000lm
Output
Long
>102,000hrs
Lifetime
Ultra high
170lm/W
Efficacy
Excellent
C4
Corosion rating
Feature

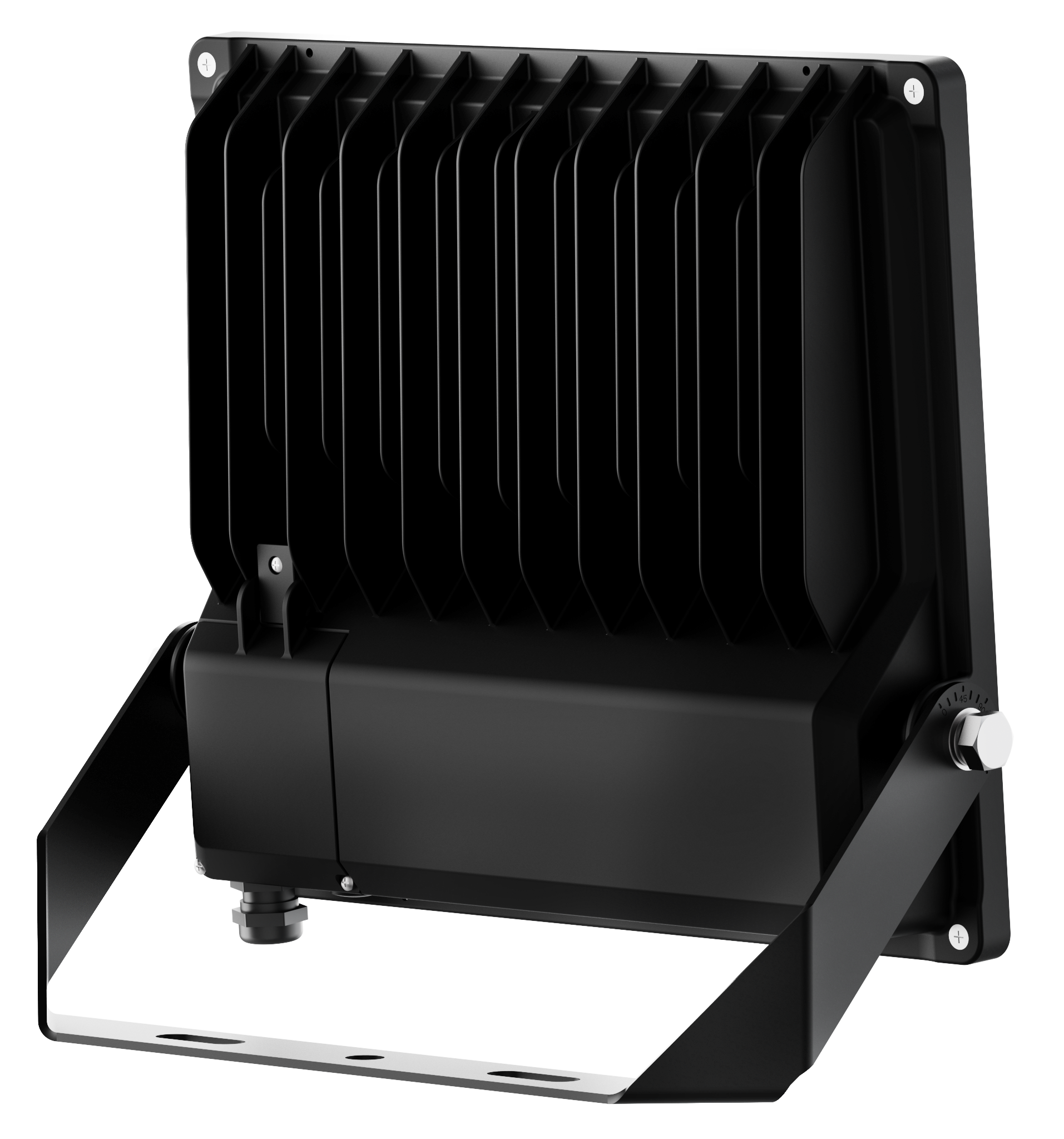

EASY ACCESS JUNCTION BOX
Convenient rear access for mains termination and on-site adjustment of CCT, wattage and daylight sensor settings without opening the main luminaire housing.
Specifications
PRODUCT CODE
Default Wattage
Wattage Options
CCT Options
Lumen Output @ 4000K
Luminaire Efficacy
Beam Angle
CRI
Lifetime - TM21 L70 B10
Distribution
SDCM
Mains Voltage
Power Factor (Typ)
THD (Typ)
STRIX-100-8345-B-AF
100W
60W/80W/100W
3000K/4000K/5000K
100W (17,000lm) 80W (13,600lm) 60W (10,200lm)
170lm/W
60x90º
>80
>102,000hrs
Asymmetric
<5
100-277VAC / 50-60Hz
0.95
<10%
STRIX-200-8345-B-AF
200W
120W/160W/200W
3000K/4000K/5000K
200W (34,000lm) 160W (27,200lm) 120W (20,400lm)
170lm/W
60x90º
>80
>102,000hrs
Asymmetric
<5
100-277VAC / 50-60Hz
0.95
<10%
STRIX-50-8345-B-AF
50W
20W/30W/50W
3000K/4000K/5000K
50W (8,000lm) 30W (4,800lm) 20W (3,200lm)
170lm/W
60x90º
>80
>102,000hrs
Asymmetric
<5
220-240VAC / 50-60Hz
0.95
<10%
