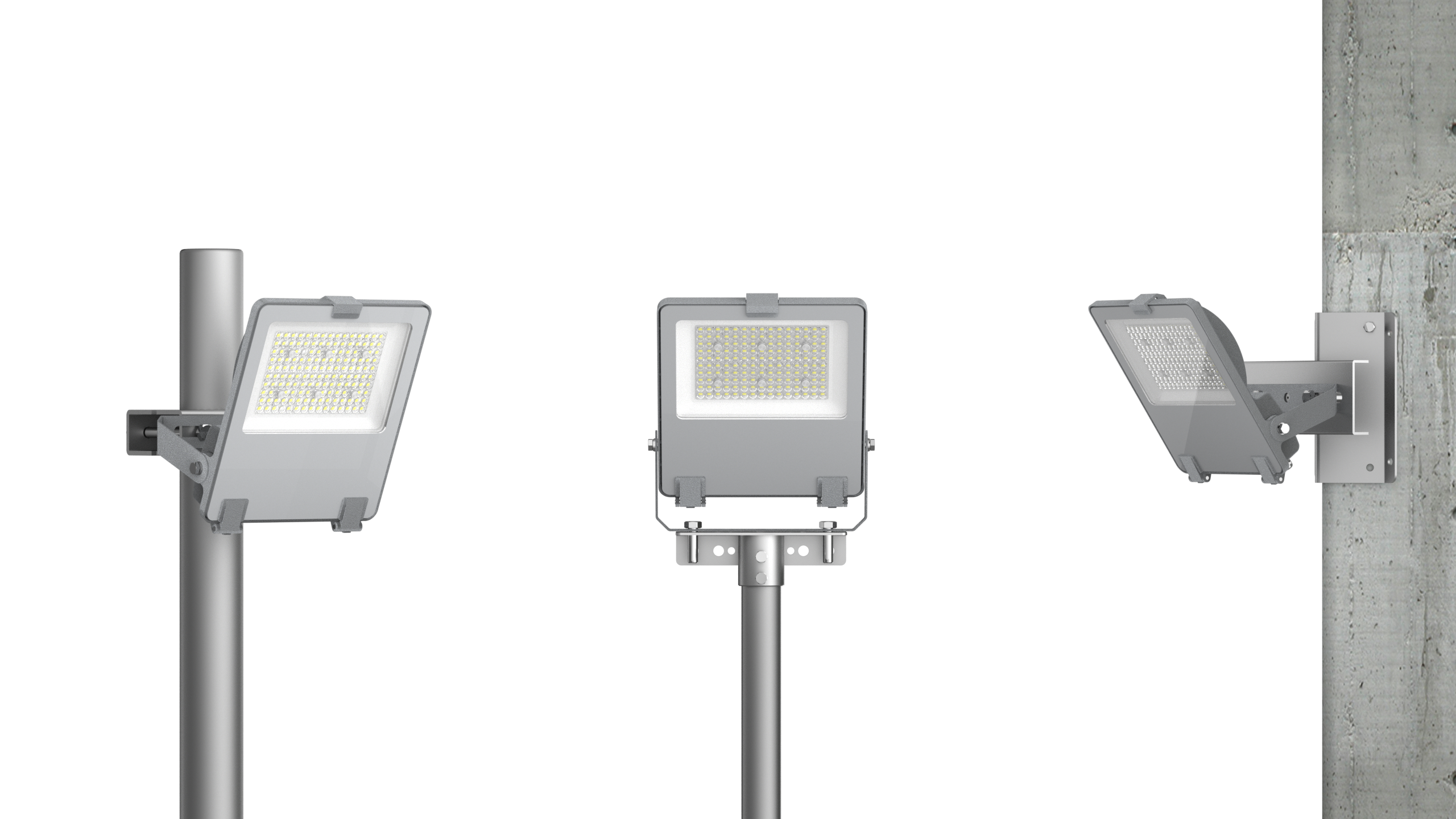

Quick and easy Installation with our three mounting options

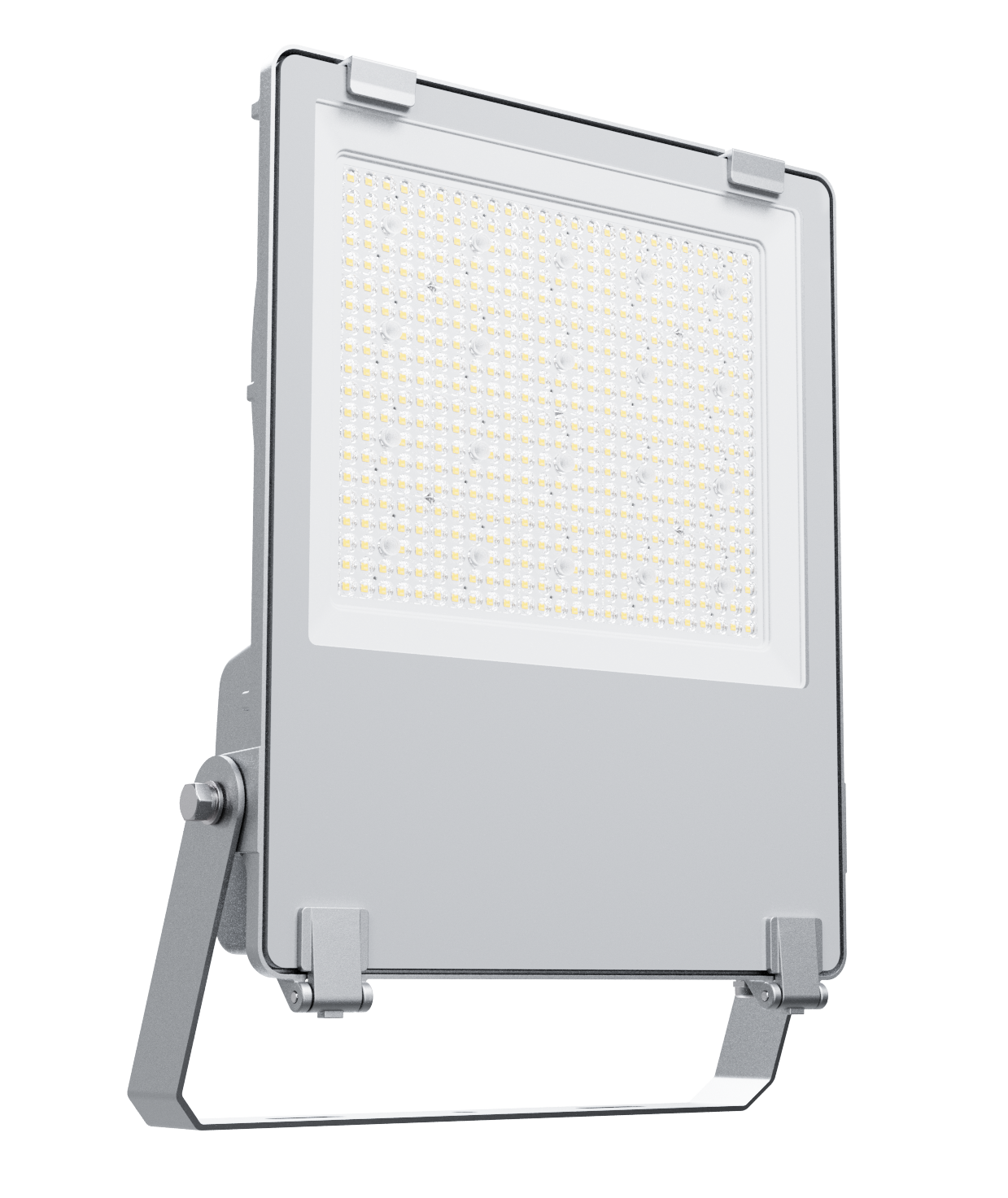

Cadet
FOUNDATION SERIES FLOODLIGHT
✓ High output up to 38,000lm @ 200W
✓ Long >102,000 hours life @L70
✓ Ultra high efficacy of up to 180lm/W @ 4000K
✓ Asymmetric distribution for excellent light control
✓ Flexible with Wattage Select & 3CCT Selectable
✓ 1000 hours salt spray resistance
✓ Mounting accessories available
✓ 400W Metal halide replacement at 130W
✓ Electroplated bracket for excellent corrosion resistance
HIGH
180lm/W
EFFICACY
LONG
>102,000hrs
LIFETIME
UP TO
38,000lm
OUTPUT
FLEXIBLE
3CCT
SWITCHABLE

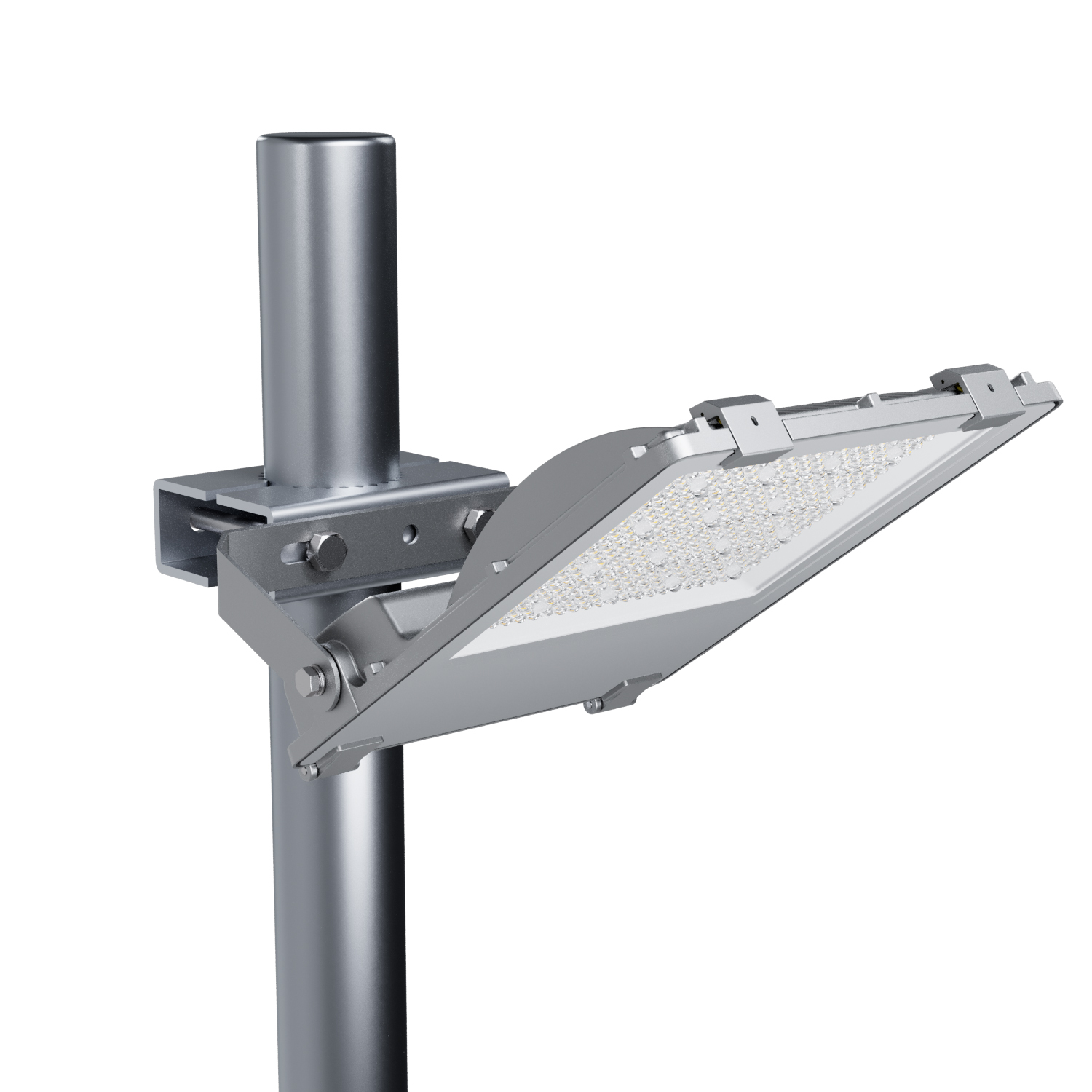

Mounting Options
Specifications
PRODUCT CODE
Default Wattage
Wattage Options
CCT Options
Lumen Output @ 4000K
Luminaire Efficacy
Beam Angle
CRI
Lifetime - TM21 L70 B10
Distribution
SDCM
Mains Voltage
Power Factor (Typ)
THD (Typ)

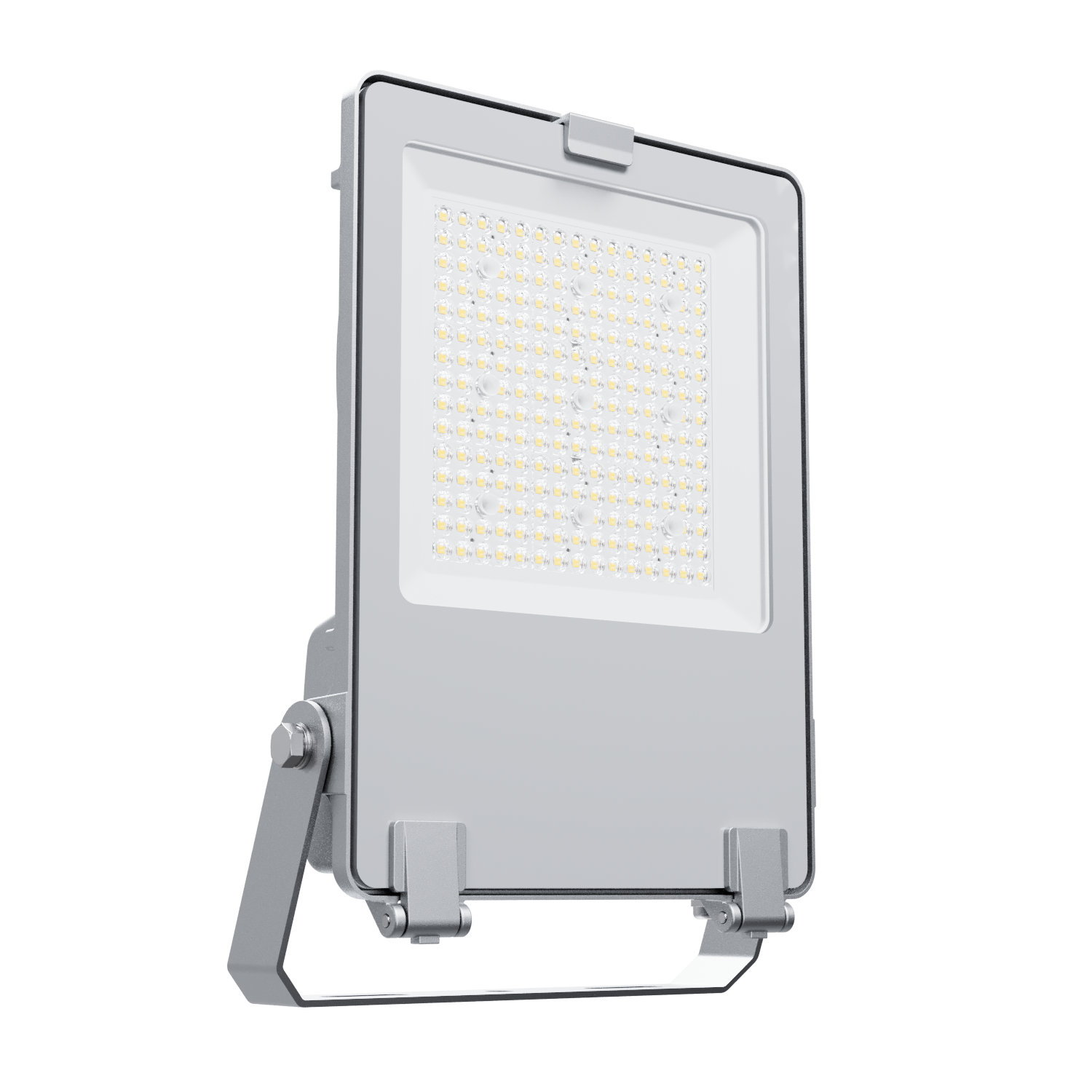

CAD-130-7345-G-AW
130W
90W/110W/130W
3000K/4000K/5000K
130W (23,275lm) 110W (19,756lm) 90W (15,756lm)
180lm/W
90x60º
>70
>102,000hrs
Asymmetric
<5
100-277VAC / 50-60 Hz
0.97
<10%
CAD-200-7345-G-AW
160W
120W/160W/200W
3000K/4000K/5000K
200W (38,000lm) 160W (29,163lm) 120W (21,708lm)
180lm/W
90x60º
>70
>102,000hrs
Asymmetric
<5
100-277VAC / 50-60 Hz
0.97
<10%
CAD-50-7345-G-AW
50W
30W/40W/50W
3000K/4000K/5000K
50W (9,000lm) 40W (7,000lm) 30W (5,310lm)
180lm/W
90x60º
>70
>102,000hrs
Asymmetric
<5
100-277VAC / 50-60 Hz
0.97
<10%

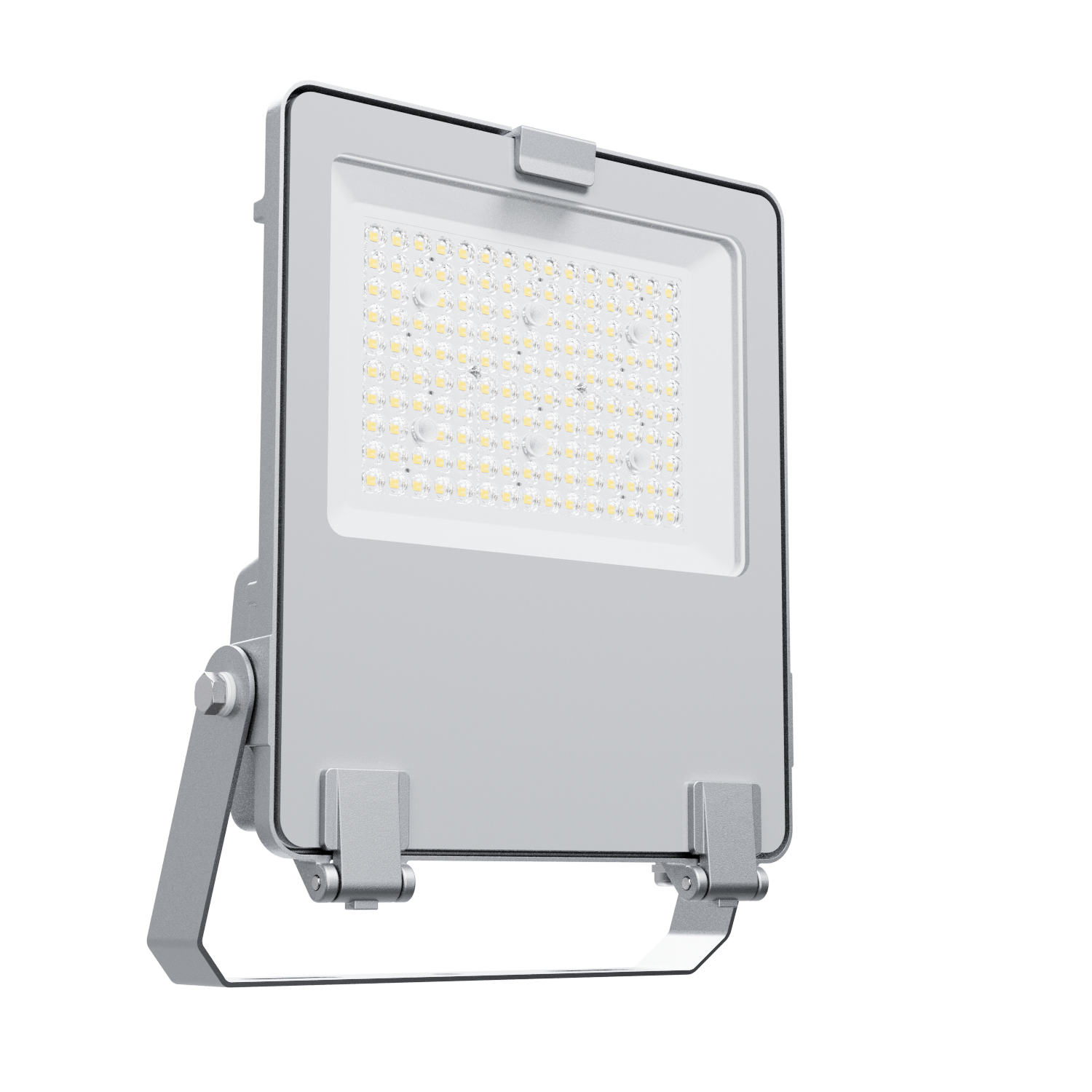

CAD-90-7345-G-AW
90W
60W/75W/90W
3000K/4000K/5000K
90W (17,000lm) 75W (13,716lm) 60W (11,390lm)
180lm/W
90x60º
>70
>102,000hrs
Asymmetric
<5
100-277VAC / 50-60 Hz
0.97
<10%

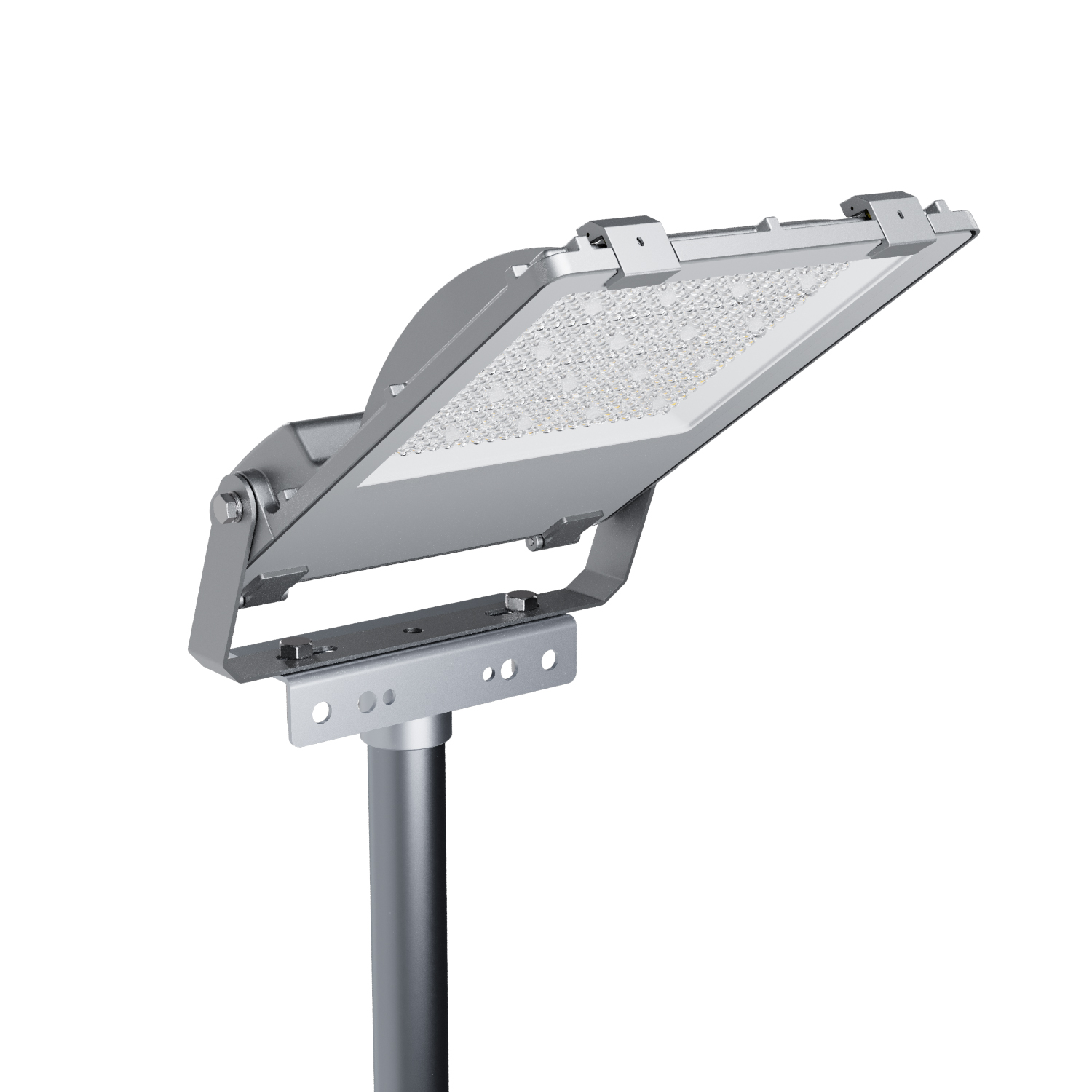

Pole Top Adaptor
CODE:
CAD-PT-G
Adaptor size
Ø60mm
Material
Electroplated steel
Coating
Powder coated
Colour
Grey
Pole Adaptor
