Our custom-designed internal reflector system allows us
to offer a wide beam angle for better uniformity whilst also
providing reduced glare for a comfortable working
environment.

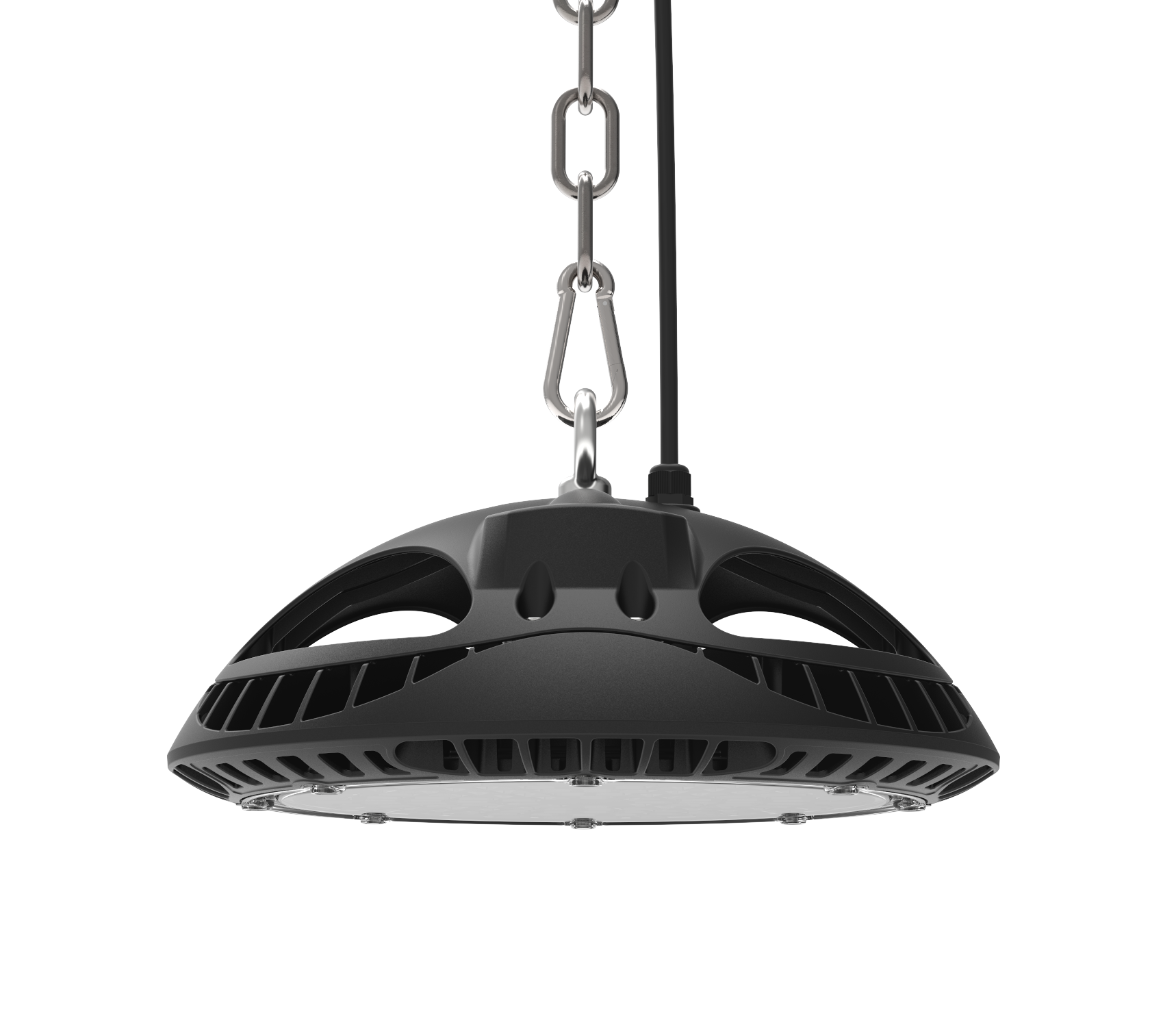

Apollo Highbay
Professional Series Highbay
Our new Apollo LED highbay combines high-end components for efficiency with a superior build quality for reliability. Our unique dust cover design provides extra protection from dust, moisture, and environmental contaminants. High output Philips Lumileds LED Chips and Mean Well control gear ensures you will save on both energy and maintenance costs while meeting the highest performance standards.
✓ Ultra efficient system efficacy of up to 130lm/W
✓ >60,000hrs to L80
✓ High-quality Lumileds LED chips and Mean Well Driver
✓ IP65 and IK10 rated
✓ Innovative protective dust cover
✓ Shatterproof polycarbonate lens
✓ Wide beam reflector
✓ 3m Flex and Plug
✓ Carabiner included
✓ Epoxy anti-corrosion coating
LOW UGR
25
AVAILABLE
UP TO
65%
ENERGY SAVINGS
HIGH
130LM/W
SYSTEM EFFICACY
LIFETIME OF
60,000+
HOURS TO L80
1
Stainless steel loop
Single point suspension for quick and easy installation with the included carabiner. (Bracket accessories available)
2
Mean well driver
Linear Mean Well driver is fixed under the cover and kept away from the heat sink to assure the driver’s lifetime.
3
Breather
A breather allows the Apollo to constantly breathe with changing temperatures, preventing condensation while ensuring an IP65 seal.
4
High purity aluminum heatsink
Our optimised heatsink is made of ADC12 aluminium with excellent thermal management, helping the highbay stay cooler & more reliable.
5
Lumileds LED chips
Ultra-efficient Philips Lumileds chips, with 130lm/W system efficacy.
6
Tough PC Lens
Shatterproof, IK10 rated PC lens provides extra safety in the workplace and makes it suitable for food storage areas.
Feature
We've Got You Covered
Our innovative professionally designed aluminium cover protects against dust, moisture and other environmental contaminants.
Feature
Optimized Thermal Management
We understand that a well designed, substantial heat sink is the key to longevity. We have included inlets to funnel air over the driver to keep it nice and cool whilst it's protected under the cover.

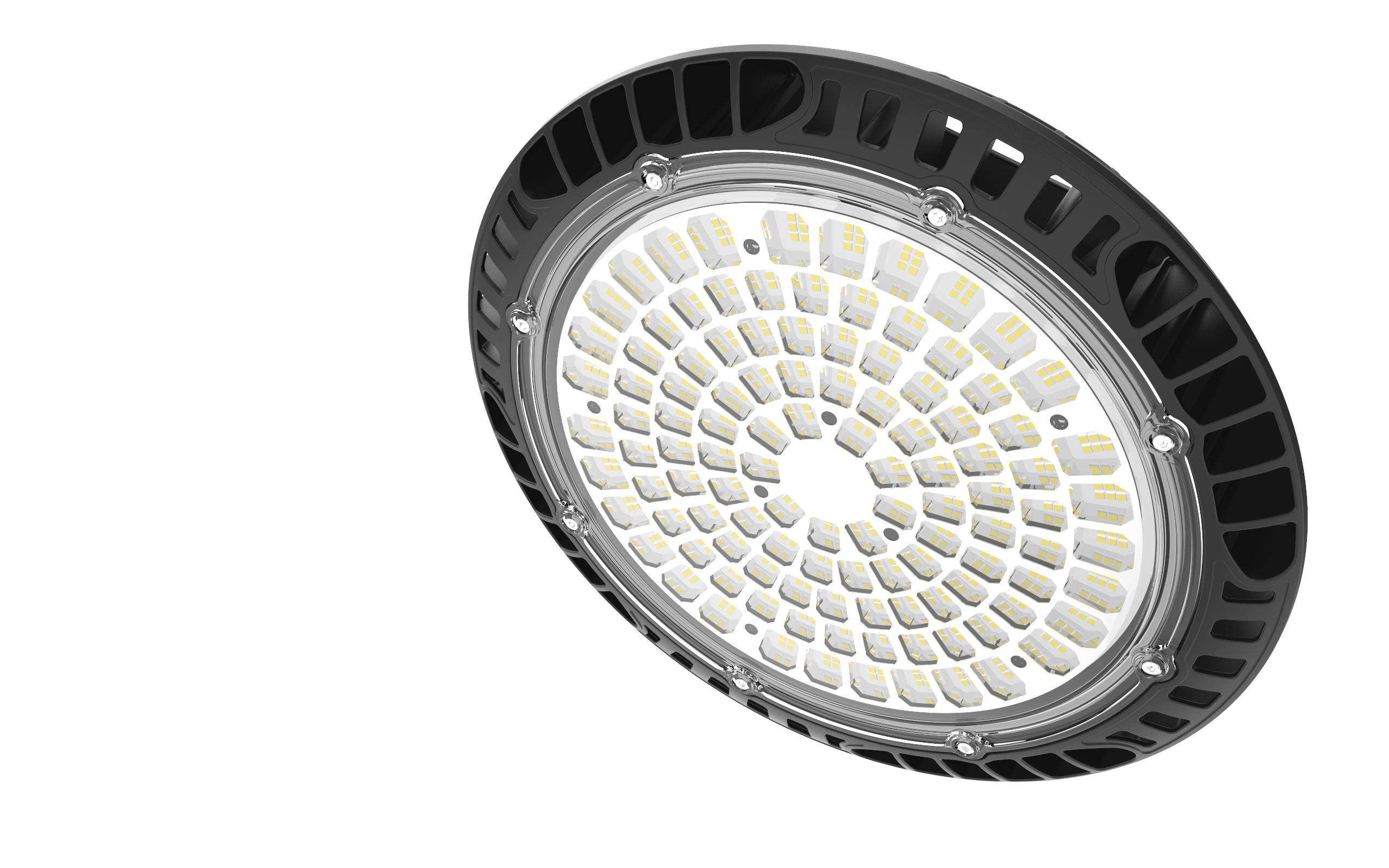

Wide Beam Reflector
Family specifications and downloads
- apollo150-pro-cw
- 19,500lm
- 150W
- Lumileds 3030 2D
- 130lm/W
- 4000K (5700K available)
- >Ra80
- 100° (wide)
- 25
- ADC12 Al + Polycarbonate Lens
- Mean Well ELG
- AC100-277V, 50-60Hz, PF≥0.95
- -30 to +45ºC
- >60,000hrs
- 43,000hrs
- IP65
- IK10
- Ø360*H138, 5.72kg
- DALI, 0-10V
- Professional (5 year product replacement, 3 year OnSite)
Specifications
Stocked
Light Colour
LED Power
Controls
Housing Colour
Distribution
PRODUCT CODE
System Wattage
CCT
Lumen Output
Luminaire Efficacy
Beam Angle
CRI
Lifetime - TM21 L80
Lifetime - TM21 L90
Control
Light Source
SDCM
UGR
Power Supply
APOLLO150 PRO CW
150W
4000K
19,500lm
130lm/W
100º
>80
>60,000hrs
43,000hrs
Fixed Output
Lumileds 3030 2D
<3
25
Mean Well ELG-150-48A
APOLLO200 PRO CW
200W
4000K
26,000lm
130lm/W
100º
>80
>60,000hrs
43,000hrs
Fixed Output
Lumileds 3030 2D
<3
28
Mean Well ELG-240-48A
APOLLO200 PRO CW 0-10V
200W
4000K
26,000lm
130lm/W
100º
>80
>60,000hrs
43,000hrs
0-10V
Lumileds 3030 2D
<3
28
Mean Well ELG-240-48B
APOLLO200 PRO DW
200W
5700K
26,000lm
130lm/W
100º
>80
>60,000hrs
43,000hrs
Fixed Output
Lumileds 3030 2D
<3
28
Mean Well ELG-240-48A
APOLLO150 PRO CW 0-10V
150W
4000K
19,500lm
130lm/W
100º
>80
>60,000hrs
43,000hrs
0-10V
Lumileds 3030 2D
<3
25
Mean Well ELG-150-48B
APOLLO150 PRO CW 0-10V WH
150W
4000K
19,500lm
130lm/W
100º
>80
>60,000hrs
43,000hrs
0-10V
Lumileds 3030 2D
<3
25
Mean Well ELG-150-48B
APOLLO150 PRO CW DALI
150W
4000K
19,500lm
130lm/W
100º
>80
>60,000hrs
43,000hrs
DALI
Lumileds 3030 2D
<3
25
Mean Well ELG-150-48DA
APOLLO150 PRO CW DALI WH
150W
4000K
19,500lm
130lm/W
100º
>80
>60,000hrs
43,000hrs
DALI
Lumileds 3030 2D
<3
25
Mean Well ELG-150-48DA
APOLLO150 PRO CW WH
150W
4000K
19,500lm
130lm/W
100º
>80
>60,000hrs
43,000hrs
Fixed Output
Lumileds 3030 2D
<3
25
Mean Well ELG-150-48A
APOLLO150 PRO DW
150W
5700K
19,500lm
130lm/W
100º
>80
>60,000hrs
43,000hrs
Fixed Output
Lumileds 3030 2D
<3
25
Mean Well ELG-150-48A

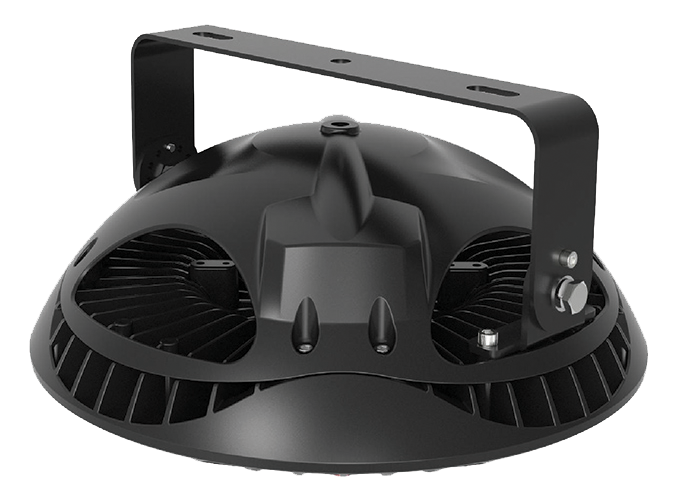

SURFACE MOUNTING KIT
MATERIAL
Steel
FINISH
Epoxy anti-corrosion coating
COLOUR
Black or White
TILT
180º
STOCKED
Yes
PRODUCT CODE:
APOLLOSMKIT

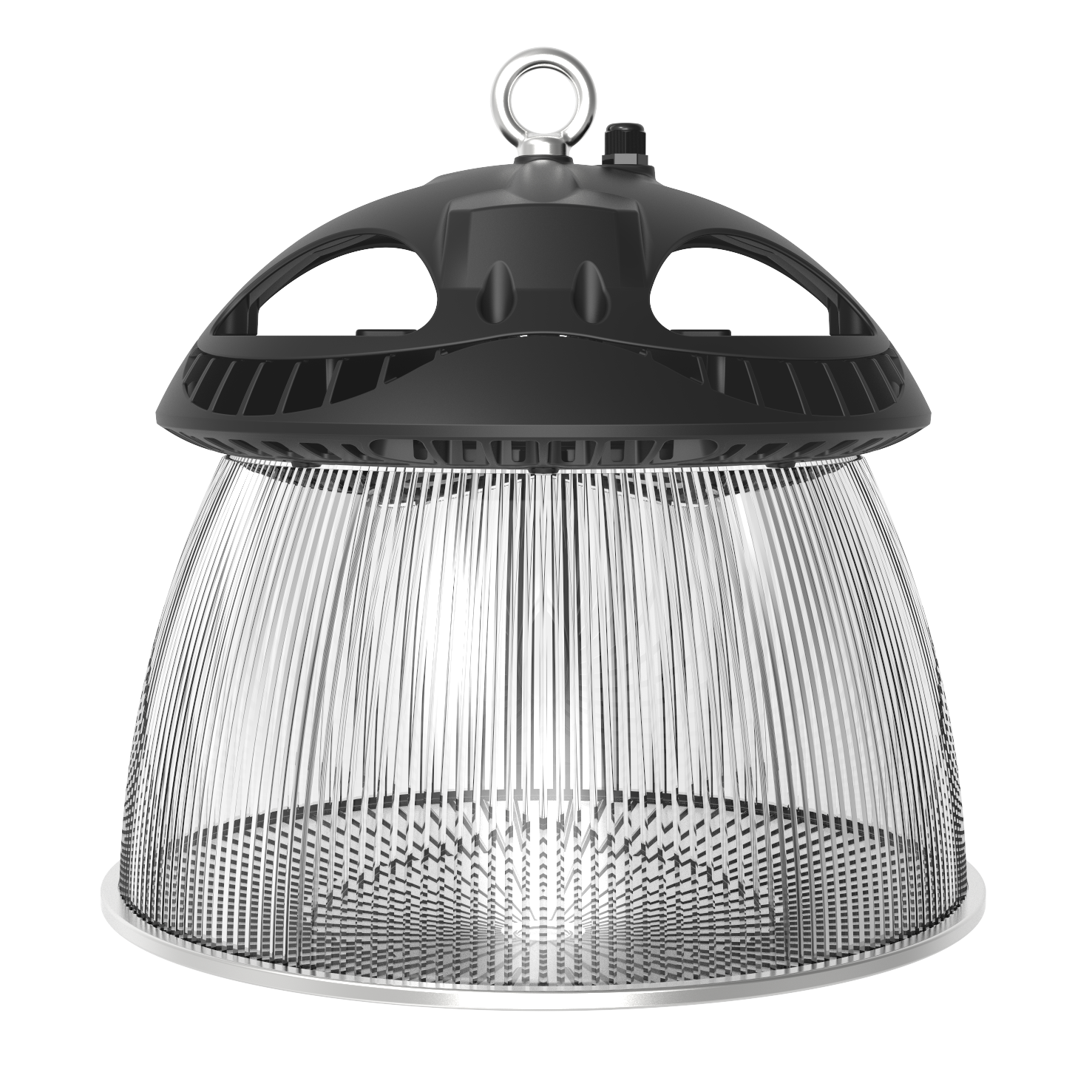

PRISMATIC REFLECTOR
