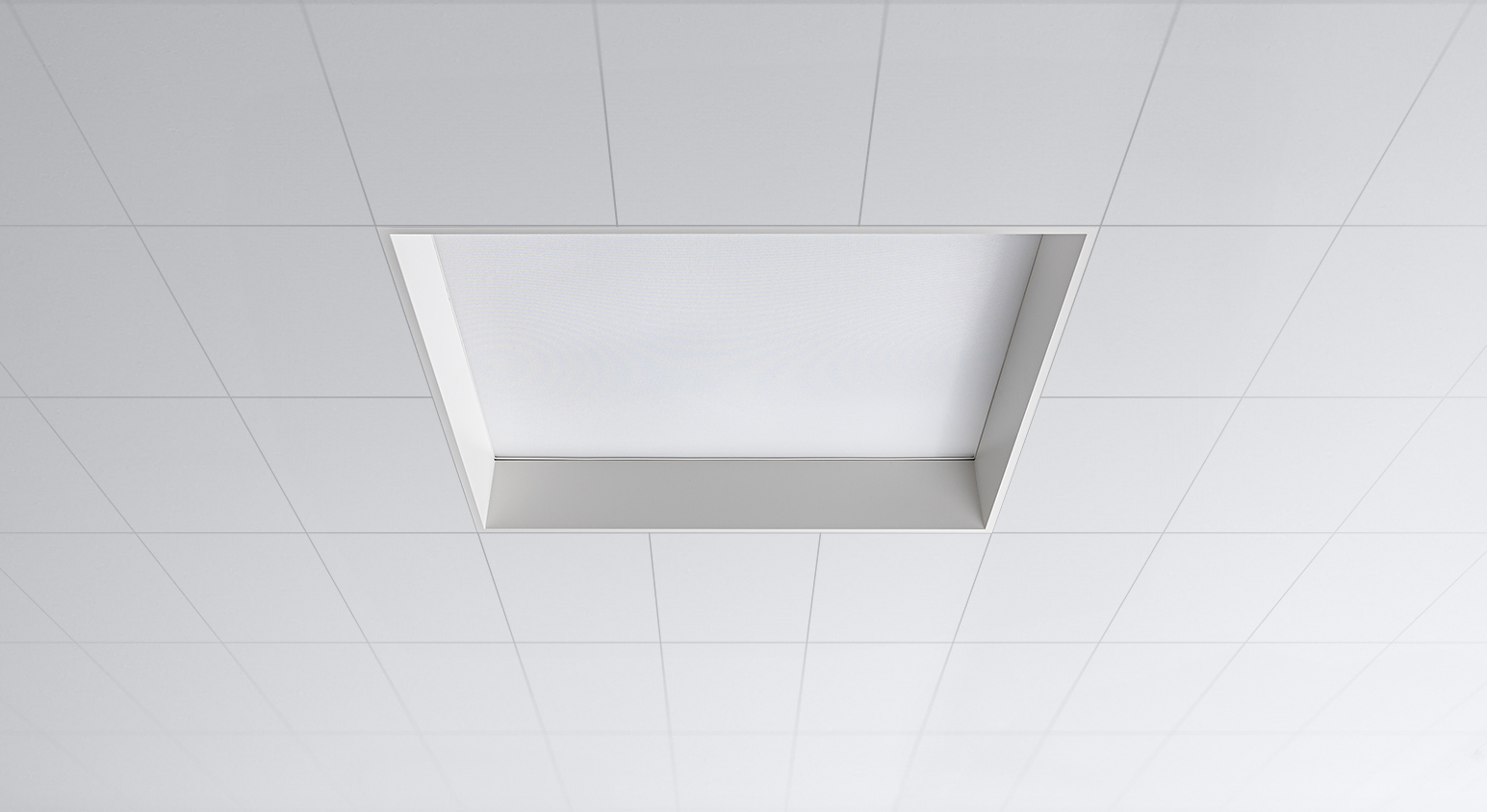

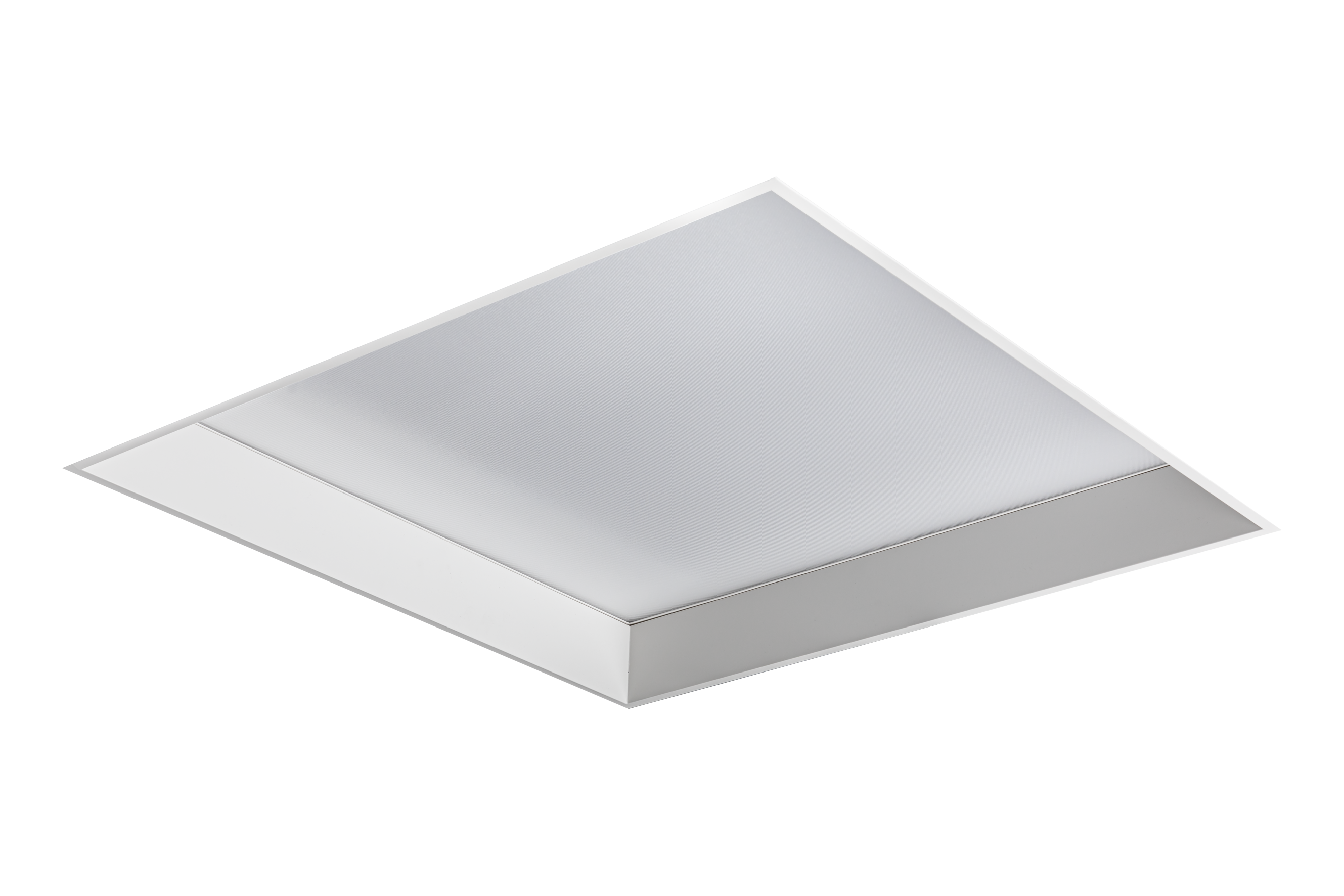

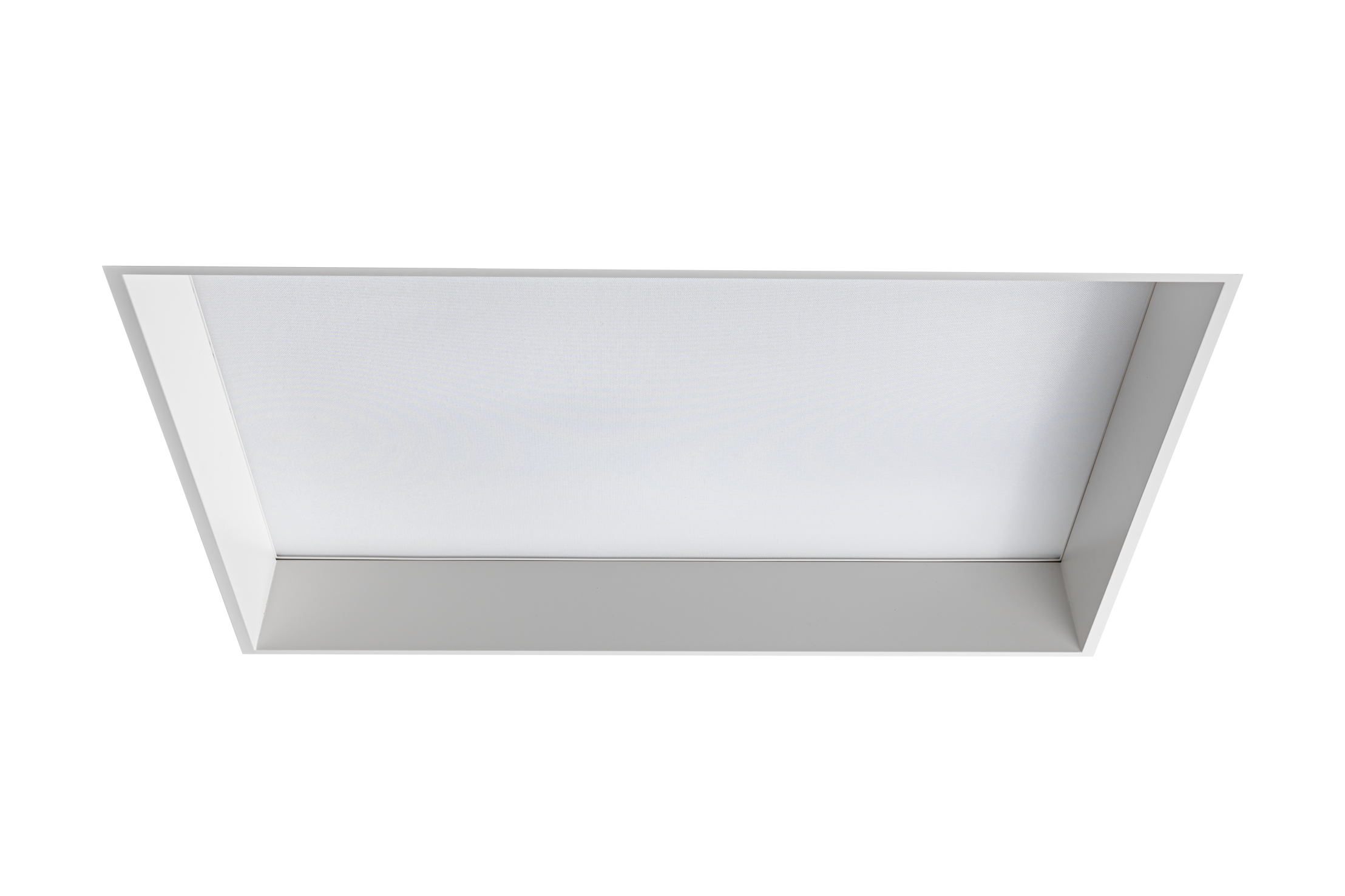

Sky Panel Skylight

Skylight style frame

✓ Skylight style design
✓ Includes LED panel
✓ White in colour

see Detailed specs
LOW

<19UGR

OPTION
HIGH

>90CRI

OPTION
LONG

>60,000HRS

LIFETIME
EXCELLENT

120lm/W

EFFICACY

Skylight style design

Add a different look to your space with our Skylight style panel.

Specifications

Filter all product variations
UGR
Warranty
Emergency
Controls
PRODUCT CODE
Variant Discription
Size
CCT
System Wattage
Lumen Output
Luminaire Efficacy
Lifetime - L80
CRI
R9 Value
SDCM
Beam Angle
UGR
Power Supply
SKY6060-30-940-CA-SL
Includes Foundation series Panel -Casambi Dimming
600x600mm
4000K
30W
3,600lm
120lm/W
>60,000hrs
>80
>0
<3
120º
22
High efficiency LED driver
Full specifications
Variant Discription
Includes Foundation series Panel -Casambi Dimming
Size
600x600mm
CCT
4000K
System Wattage
30W
Lumen Output
3,600lm
Luminaire Efficacy
120lm/W
Lifetime - L80
>60,000hrs
CRI
>80
R9 Value
>0
SDCM
<3
Beam Angle
120º
UGR
22
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
>0.90
THD
<15%
Connection
1.2m Flex and plug
Control
Casambi Dimming
Flicker Free
Yes
Body Material
Aluminium
Lens Material
PMMA / PS
Finish
Powder Coated
Colour
White
Seismic Restraints
Yes (2m Stainless cable)
Length
596mm
Width
596mm
Height
63mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Warranty
5 Year Product Replacement
Stocked
Yes
Downloads
SKY6060-30-940-DIM-SL
Includes Foundation series Panel -DALI-2 Dimming, SwitchDIM
600x600mm
4000K
30W
3,600lm
120lm/W
>60,000hrs
>80
>0
<3
120º
22
High efficiency LED driver
Full specifications
Variant Discription
Includes Foundation series Panel -DALI-2 Dimming, SwitchDIM
Size
600x600mm
CCT
4000K
System Wattage
30W
Lumen Output
3,600lm
Luminaire Efficacy
120lm/W
Lifetime - L80
>60,000hrs
CRI
>80
R9 Value
>0
SDCM
<3
Beam Angle
120º
UGR
22
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
>0.90
THD
<15%
Connection
1.2m Flex and plug
Control
DALI-2 Dimming, SwitchDIM
Flicker Free
Yes
Body Material
Aluminium
Lens Material
PMMA / PS
Finish
Powder Coated
Colour
White
Seismic Restraints
Yes (2m Stainless cable)
Length
596mm
Width
596mm
Height
63mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Warranty
5 Year Product Replacement
Stocked
Yes
Downloads
SKY6060-30-940-EM-SL
Includes Foundation series Panel -Emergency
600x600mm
4000K
30W
3,600lm
120lm/W
>60,000hrs
>80
>0
<3
120º
22
High efficiency LED driver
Full specifications
Variant Discription
Includes Foundation series Panel -Emergency
Size
600x600mm
CCT
4000K
System Wattage
30W
Lumen Output
3,600lm
Luminaire Efficacy
120lm/W
Lifetime - L80
>60,000hrs
CRI
>80
R9 Value
>0
SDCM
<3
Beam Angle
120º
UGR
22
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
>0.90
THD
<15%
Connection
1.2m Flex and plug
Control
Fixed Output
Flicker Free
Yes
Body Material
Aluminium
Lens Material
PMMA / PS
Finish
Powder Coated
Colour
White
Seismic Restraints
Yes (2m Stainless cable)
Length
596mm
Width
596mm
Height
63mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Warranty
5 Year Product Replacement
Stocked
Yes
Downloads
SKY6060-30-940-EW7-SL
Includes Foundation series Panel - 7 year warranty upgrade
600x600mm
4000K
30W
3,600lm
120lm/W
>60,000hrs
>80
>0
<3
120º
22
High efficiency LED driver
Full specifications
Variant Discription
Includes Foundation series Panel - 7 year warranty upgrade
Size
600x600mm
CCT
4000K
System Wattage
30W
Lumen Output
3,600lm
Luminaire Efficacy
120lm/W
Lifetime - L80
>60,000hrs
CRI
>80
R9 Value
>0
SDCM
<3
Beam Angle
120º
UGR
22
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
>0.90
THD
<15%
Connection
1.2m Flex and plug
Control
Fixed Output
Flicker Free
Yes
Body Material
Aluminium
Lens Material
PMMA / PS
Finish
Powder Coated
Colour
White
Seismic Restraints
Yes (2m Stainless cable)
Length
596mm
Width
596mm
Height
63mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Warranty
7 Year Product Replacement
Stocked
Yes
Downloads
SKY6060-30-940-PC-SL
Includes Foundation series Panel -Phase Cut
600x600mm
4000K
30W
3,600lm
120lm/W
>60,000hrs
>80
>0
<3
120º
22
High efficiency LED driver
Full specifications
Variant Discription
Includes Foundation series Panel -Phase Cut
Size
600x600mm
CCT
4000K
System Wattage
30W
Lumen Output
3,600lm
Luminaire Efficacy
120lm/W
Lifetime - L80
>60,000hrs
CRI
>80
R9 Value
>0
SDCM
<3
Beam Angle
120º
UGR
22
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
>0.90
THD
<15%
Connection
1.2m Flex and plug
Control
Phase Cut
Flicker Free
Yes
Body Material
Aluminium
Lens Material
PMMA / PS
Finish
Powder Coated
Colour
White
Seismic Restraints
Yes (2m Stainless cable)
Length
596mm
Width
596mm
Height
63mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Warranty
5 Year Product Replacement
Stocked
Yes
Downloads
SKY6060-30-940-SL
Includes Foundation series Panel - Standard
600x600mm
4000K
30W
3,600lm
120lm/W
>60,000hrs
>80
>0
<3
120º
22
High efficiency LED driver
Full specifications
Variant Discription
Includes Foundation series Panel - Standard
Size
600x600mm
CCT
4000K
System Wattage
30W
Lumen Output
3,600lm
Luminaire Efficacy
120lm/W
Lifetime - L80
>60,000hrs
CRI
>80
R9 Value
>0
SDCM
<3
Beam Angle
120º
UGR
22
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
>0.90
THD
<15%
Connection
1.2m Flex and plug
Control
Fixed Output
Flicker Free
Yes
Body Material
Aluminium
Lens Material
PMMA / PS
Finish
Powder Coated
Colour
White
Seismic Restraints
Yes (2m Stainless cable)
Length
596mm
Width
596mm
Height
63mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Warranty
5 Year Product Replacement
Stocked
Yes
Downloads
SKYPRO6060-30-940-CA-SL
Includes PRO Panel -Casambi Dimming
600x600mm
4000K
30W
3,600lm
120lm/W
>60,000hrs
>90
>50
<3
90º
19
High efficiency LED driver
Full specifications
Variant Discription
Includes PRO Panel -Casambi Dimming
Size
600x600mm
CCT
4000K
System Wattage
30W
Lumen Output
3,600lm
Luminaire Efficacy
120lm/W
Lifetime - L80
>60,000hrs
CRI
>90
R9 Value
>50
SDCM
<3
Beam Angle
90º
UGR
19
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
>0.90
THD
<15%
Connection
1.2m Flex and plug
Control
Casambi Dimming
Flicker Free
Yes
Body Material
Aluminium
Lens Material
PMMA / PS
Finish
Powder Coated
Colour
White
Seismic Restraints
Yes (2m Stainless cable)
Length
596mm
Width
596mm
Height
63mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Warranty
5 Year Product Replacement
Stocked
Yes
Downloads
SKYPRO6060-30-940-DIM-SL
Includes PRO Panel -DALI-2 Dimming, SwitchDIM
600x600mm
4000K
30W
3,600lm
120lm/W
>60,000hrs
>90
>50
<3
90º
19
High efficiency LED driver
Full specifications
Variant Discription
Includes PRO Panel -DALI-2 Dimming, SwitchDIM
Size
600x600mm
CCT
4000K
System Wattage
30W
Lumen Output
3,600lm
Luminaire Efficacy
120lm/W
Lifetime - L80
>60,000hrs
CRI
>90
R9 Value
>50
SDCM
<3
Beam Angle
90º
UGR
19
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
>0.90
THD
<15%
Connection
1.2m Flex and plug
Control
DALI-2 Dimming, SwitchDIM
Flicker Free
Yes
Body Material
Aluminium
Lens Material
PMMA / PS
Finish
Powder Coated
Colour
White
Seismic Restraints
Yes (2m Stainless cable)
Length
596mm
Width
596mm
Height
63mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Warranty
5 Year Product Replacement
Stocked
Yes
Downloads
SKYPRO6060-30-940-EM-SL
Includes PRO Panel -Emergency
600x600mm
4000K
30W
3,600lm
120lm/W
>60,000hrs
>90
>50
<3
90º
19
High efficiency LED driver
Full specifications
Variant Discription
Includes PRO Panel -Emergency
Size
600x600mm
CCT
4000K
System Wattage
30W
Lumen Output
3,600lm
Luminaire Efficacy
120lm/W
Lifetime - L80
>60,000hrs
CRI
>90
R9 Value
>50
SDCM
<3
Beam Angle
90º
UGR
19
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
>0.90
THD
<15%
Connection
1.2m Flex and plug
Control
Fixed Output
Flicker Free
Yes
Body Material
Aluminium
Lens Material
PMMA / PS
Finish
Powder Coated
Colour
White
Seismic Restraints
Yes (2m Stainless cable)
Length
596mm
Width
596mm
Height
63mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Warranty
5 Year Product Replacement
Stocked
Yes
Downloads
SKYPRO6060-30-940-EW7-SL
Includes PRO Panel - 7 year warranty upgrade
600x600mm
4000K
30W
3,600lm
120lm/W
>60,000hrs
>90
>50
<3
90º
19
High efficiency LED driver
Full specifications
Variant Discription
Includes PRO Panel - 7 year warranty upgrade
Size
600x600mm
CCT
4000K
System Wattage
30W
Lumen Output
3,600lm
Luminaire Efficacy
120lm/W
Lifetime - L80
>60,000hrs
CRI
>90
R9 Value
>50
SDCM
<3
Beam Angle
90º
UGR
19
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
>0.90
THD
<15%
Connection
1.2m Flex and plug
Control
Fixed Output
Flicker Free
Yes
Body Material
Aluminium
Lens Material
PMMA / PS
Finish
Powder Coated
Colour
White
Seismic Restraints
Yes (2m Stainless cable)
Length
596mm
Width
596mm
Height
63mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Warranty
7 Year Product Replacement
Stocked
Yes
Downloads
Show 2 moreShow all 12 product variants
Buy this Product

in store

There are 226 retailer locations all across New Zealand.

FIND ONE CLOSE TO YOU
Related Products

Sky PRO Lattice Panel

LOW GLARE LED PANEL LIGHT

Sky PRO TRI Panel

LOW GLARE LED PANEL LIGHT

Sky Panel PRO

LOW GLARE LED PANEL LIGHT
Contact us
FacebookInstagramLinkedInTwitter
Privacy StatementWarranties
Copyright Evolve Lighting 2018
Made by BSD & FFF
