SOL

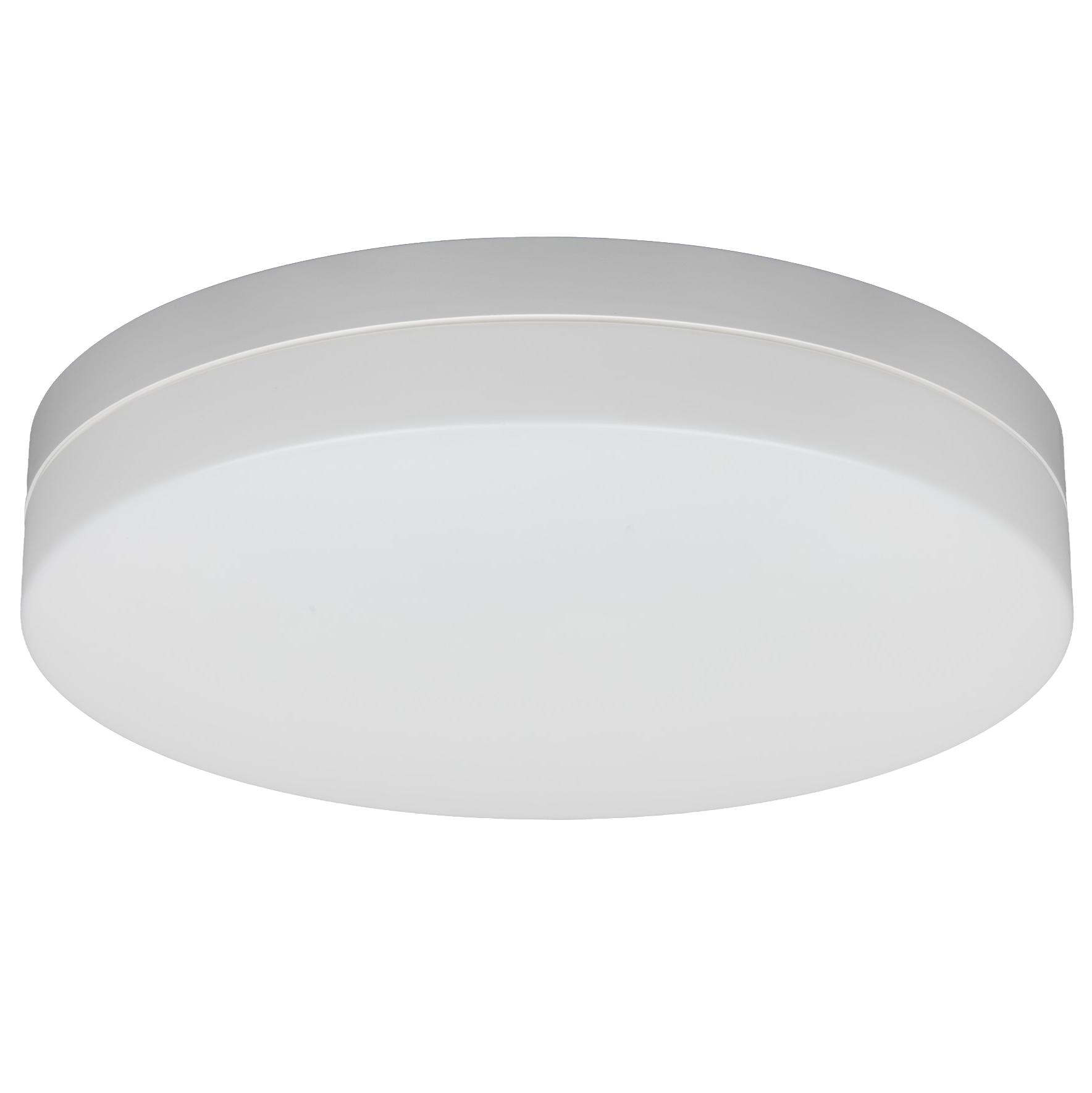

FOUNDATION SERIES CEILING BUTTON

✓ Modern design with large diffuser for visual comfort
✓ Long 50,000 hours lifespan
✓ Easy installation with centre entry points
✓ Suitable for indoor and outdoor use (IP54)
✓ Selectable colour temperature
✓ Selectable Wattage (10W(set)/20W)

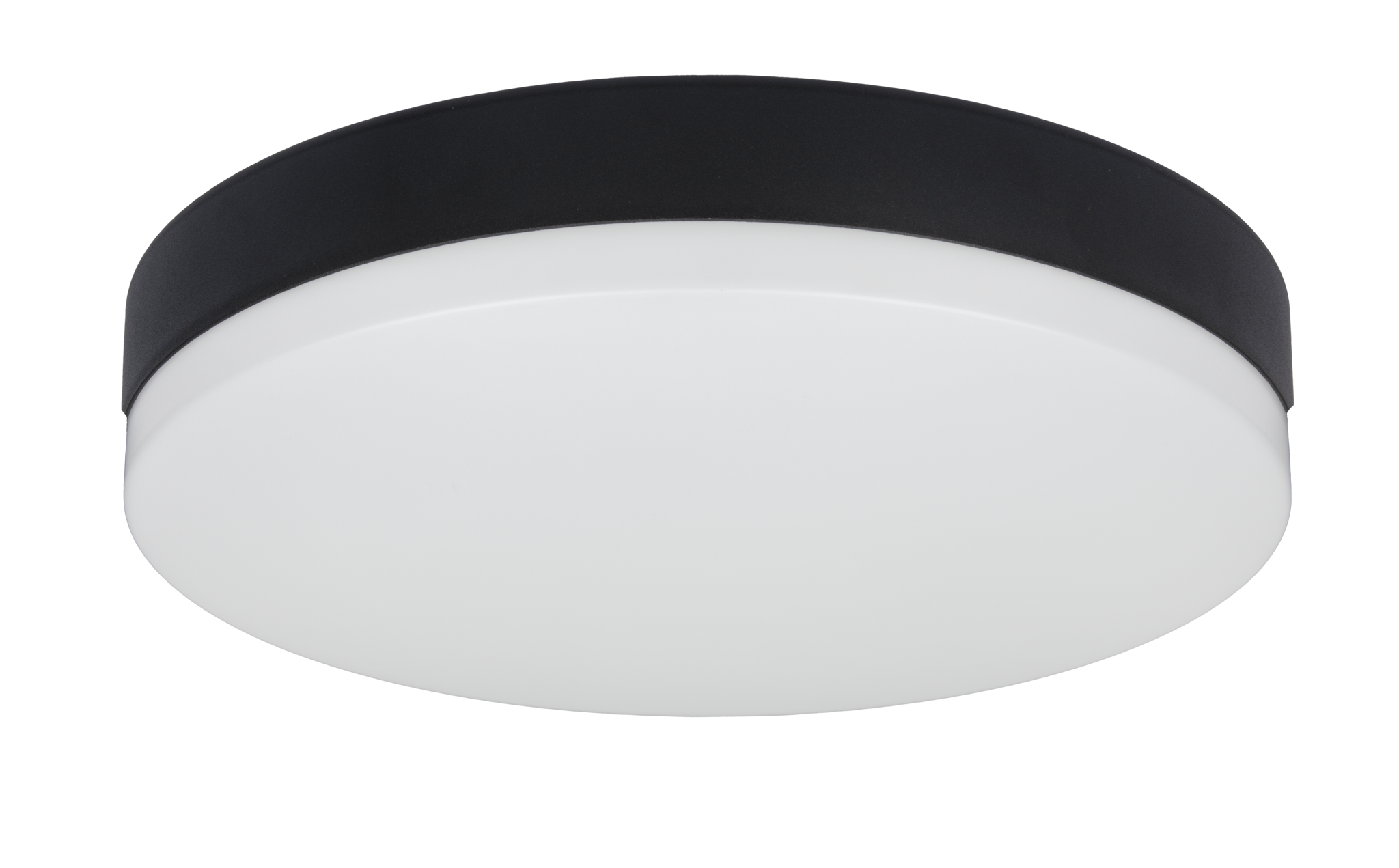

✓ Black cover ring available

see Detailed specs
High

2,000lm

Output
Long

50,000hrs

Lifetime to L70
Sealed

IP54

Ingress protection
Selectable

3000K/4000K

Colour temperature
Feature

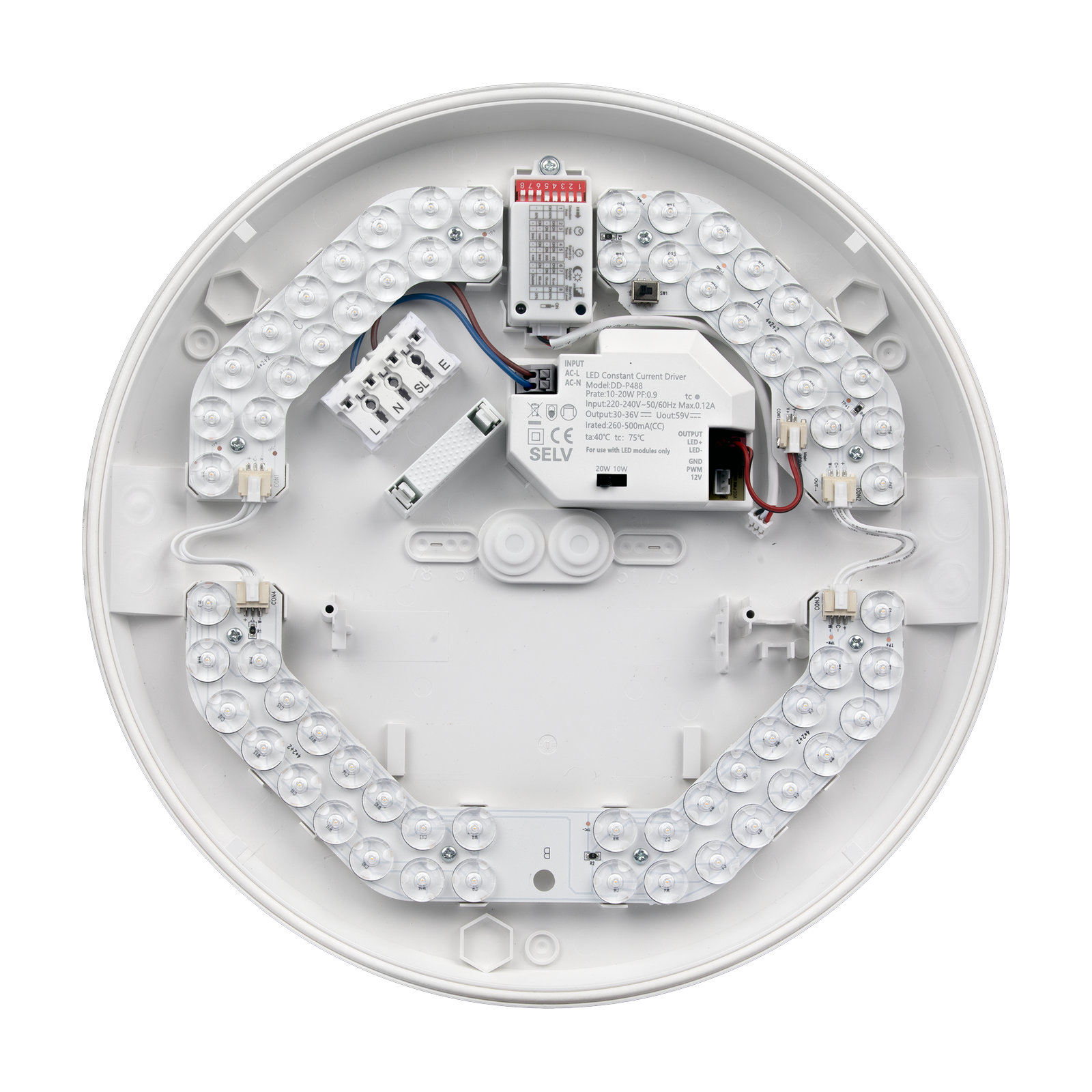

SET THE OUTPUT AND COLOUR

Two switches on the gear tray set the fitting to 10W or 20W and to 3000K or 4000K. The SOL flexibility covers a corridor, a stairwell and a bathroom.

Specifications

Filter all product variations
Controls
SOL290-20-834
10W
10W (1,000lm, set) / 20W (2,000lm)
20W
2,000lm
100lm/W
132°
3000K/4000K
>80
<5
50,000hrs
2835 SMD LED
DD-P488 constant current LED driver, 260-500mA
220-240VAC / 50-60Hz
Full specifications
Default Wattage
10W
Wattage Options
10W (1,000lm, set) / 20W (2,000lm)
System Wattage
20W
Lumen Output
2,000lm
Luminaire Efficacy
100lm/W
Beam Angle
132°
CCT
3000K/4000K
CRI
>80
SDCM
<5
Lifetime - TM21 L70
50,000hrs
Light Source
2835 SMD LED
Power Supply
DD-P488 constant current LED driver, 260-500mA
Mains Voltage
220-240VAC / 50-60Hz
Power Factor
≥0.90
THD
<20%
Connection
Plug-in terminal block (L / N / SL / E), centre cable entry
Control
Wattage Select, CCT Switch
Daylight Sensor
Body Material
Polycarbonate
Diffuser Material
Polystyrene
Colour
White (RAL 9016)

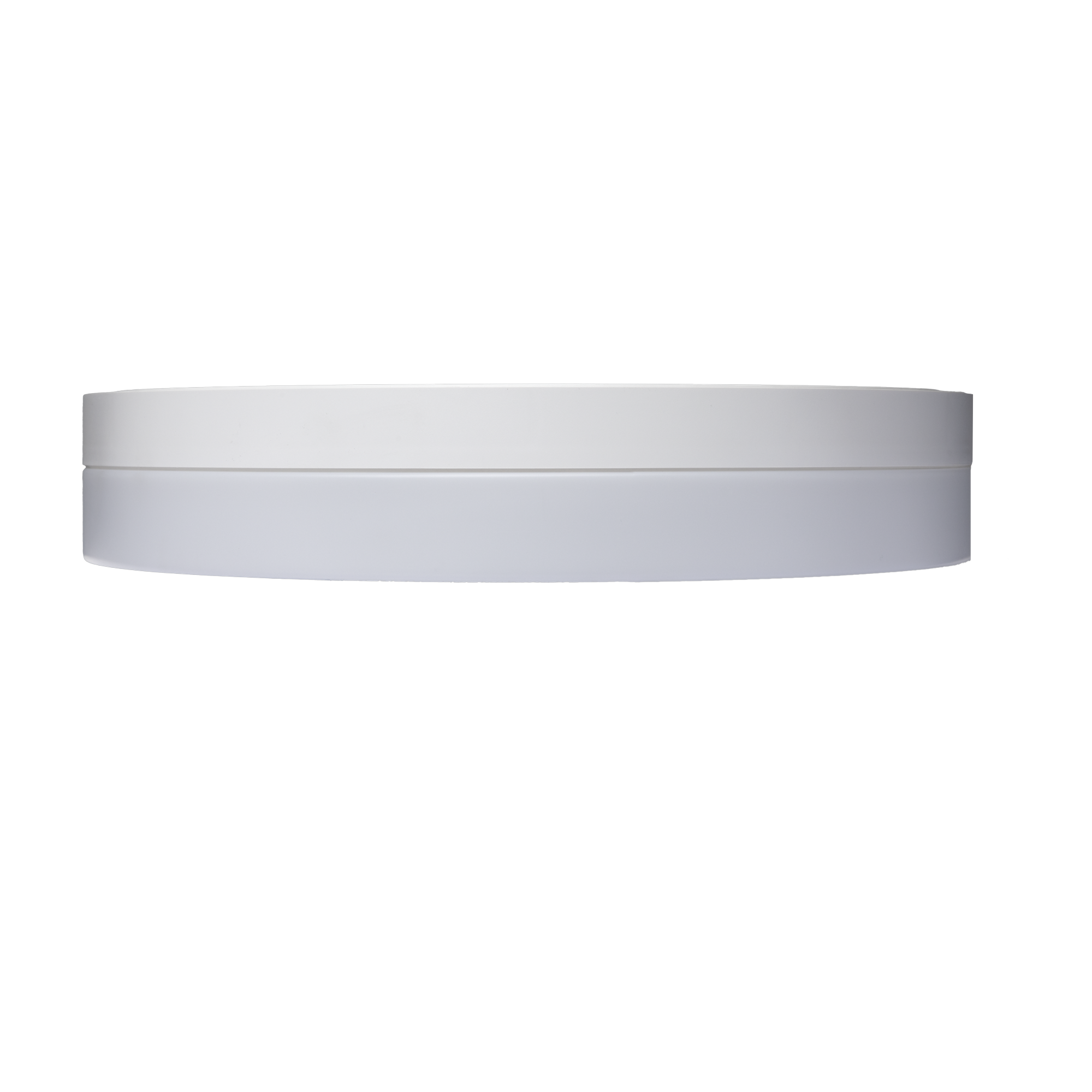

Dimensions
Ø290 x 58mm
Weight
0.55kg
Mounting Options
Surface ceiling mount
IP Rating
IP54
IK Rating
IK07
Operating Temp
-20° to +40°C
Protection Class
Class II
Certification
SAA, CE
Warranty
5 Year product replacement
Downloads
ies
SOL290-20-834-set-to-10W-4000K
ies
SOL290-20-834-set-to-20W-4000K
pdf
Evolve-Spec-Sheet-Sol-Ceiling-Button
pdf
Evolve-Sol-Ceiling-Button-Installation-Instructions
SOL290-20-834-SNR
10W
10W (1,000lm, set) / 20W (2,000lm)
20W
2,000lm
100lm/W
132°
3000K/4000K
>80
<5
50,000hrs
2835 SMD LED
DD-P488 constant current LED driver, 260-500mA
220-240VAC / 50-60Hz
Full specifications
Default Wattage
10W
Wattage Options
10W (1,000lm, set) / 20W (2,000lm)
System Wattage
20W
Lumen Output
2,000lm
Luminaire Efficacy
100lm/W
Beam Angle
132°
CCT
3000K/4000K
CRI
>80
SDCM
<5
Lifetime - TM21 L70
50,000hrs
Light Source
2835 SMD LED
Power Supply
DD-P488 constant current LED driver, 260-500mA
Mains Voltage
220-240VAC / 50-60Hz
Power Factor
≥0.90
THD
<20%
Connection
Plug-in terminal block (L / N / SL / E), centre cable entry
Control
Wattage Select, CCT Switch, Microwave Motion Sensor
Daylight Sensor
ON <5LUX / <15LUX / <50LUX selectable, or disabled
Body Material
Polycarbonate
Diffuser Material
Polystyrene
Colour
White (RAL 9016)
Dimensions
Ø290 x 58mm
Weight
0.55kg
Mounting Options
Surface ceiling mount
IP Rating
IP54
IK Rating
IK07
Operating Temp
-20° to +40°C
Protection Class
Class II
Certification
SAA, CE
Warranty
5 Year product replacement
Downloads
ies
SOL290-20-834-set-to-10W-4000K
ies
SOL290-20-834-set-to-20W-4000K
pdf
Evolve-Spec-Sheet-Sol-Ceiling-Button
pdf
Evolve-Sol-Ceiling-Button-Installation-Instructions
