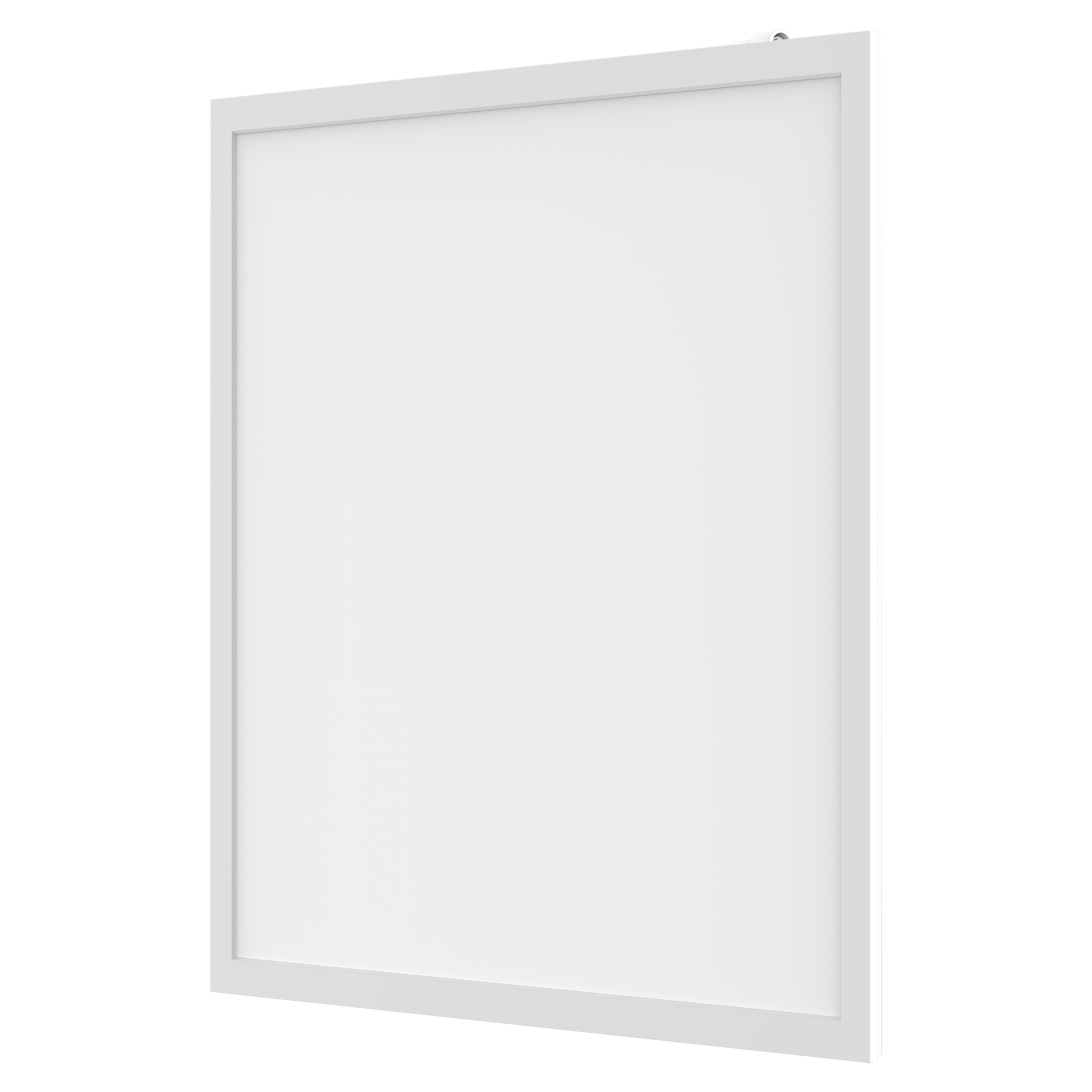

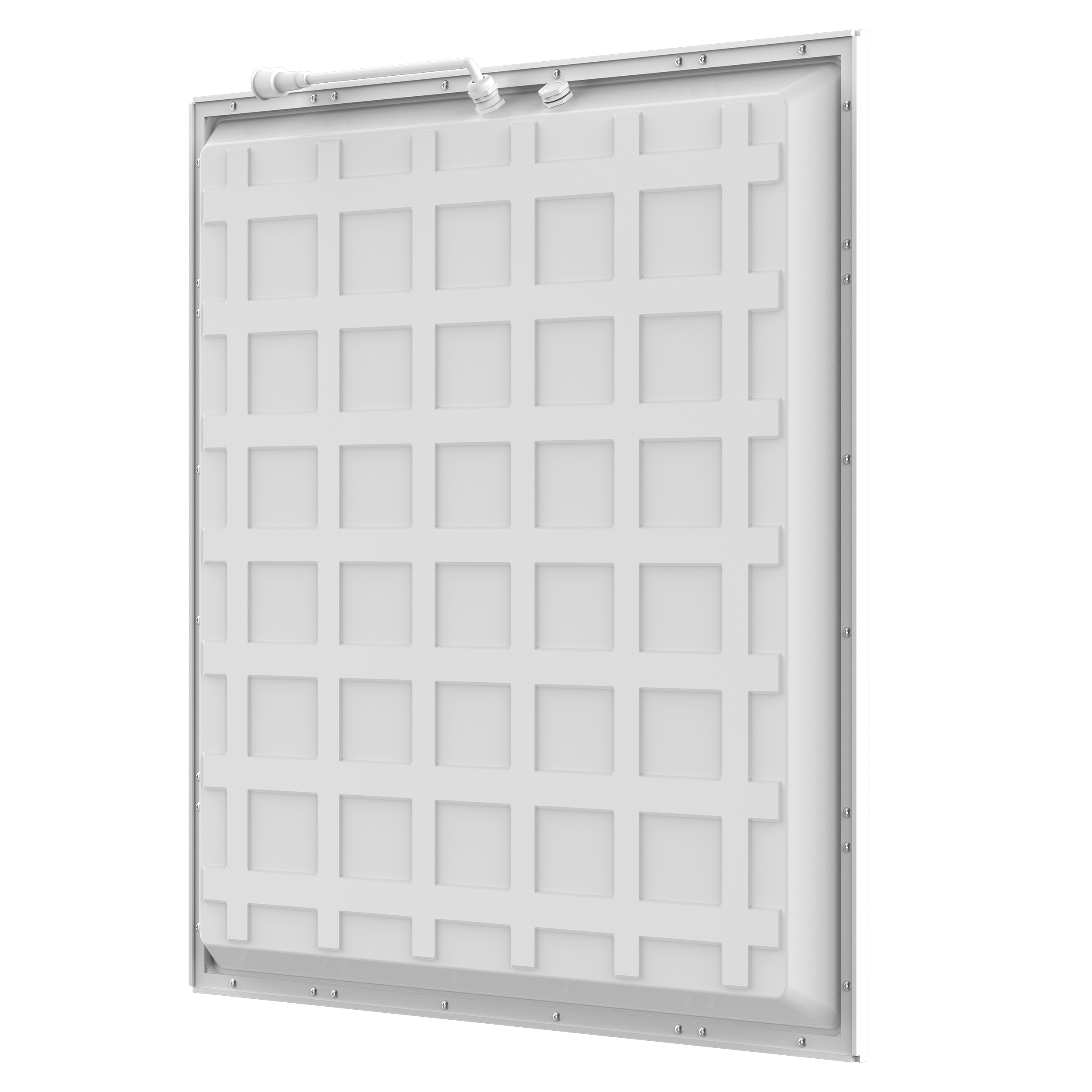

Sky Panel IP65

HIGH PERFORMANCE IP65 LED PANEL

✓ High system efficacy of up to 120lm/W
✓ Food safe with polycarbonate lens
✓ Long lasting, >60,000 hours life
✓ Flicker free
✓ Fully IP65 Rated
✓ 5 year warranty

see Detailed specs
HIGH

120lm/W

SYSTEM EFFICACY
EXCELLENT

IP65

PROTECTION
LONG

>60,000HRS

LIFETIME
HIGH

3,600LM

OUTPUT

Specifications

Filter all product variations
PRODUCT CODE
Variant Discription
Size
CCT
System Wattage
Lumen Output
Luminaire Efficacy
Lifetime - L80
CRI
R9 Value
SDCM
Beam Angle
UGR
Power Supply
SKYIP6060-30-840
Standard
600x600mm
4000K
30W
3,600lm
120lm/W
>60,000hrs
>80
>0
<3
120º
22
High efficiency LED driver
Full specifications
Variant Discription
Standard
Size
600x600mm
CCT
4000K
System Wattage
30W
Lumen Output
3,600lm
Luminaire Efficacy
120lm/W
Lifetime - L80
>60,000hrs
CRI
>80
R9 Value
>0
SDCM
<3
Beam Angle
120º
UGR
22
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
>0.90
THD
<15%
Connection
1.2m Flex and plug
Control
Fixed Output
Flicker Free
Yes
Body Material
Aluminium
Lens Material
PMMA / PS
Finish
Powder Coated
Colour
White
Seismic Restraints
Yes (2m Stainless cable)
Length
596mm
Width
596mm
Height
30mm
IP Rating
IP65
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Warranty
5 Year Product Replacement
Stocked
Yes
Downloads
pdf
Evolve Sky Panel IP65
ies
SKYIP6060-30-840
SKYIP6060-30-840-SM
Includes surface mount kit
600x600mm
4000K
30W
3,600lm
100lm/W
>60,000hrs
>80
>0
<3
120º
22
High efficiency LED driver
Full specifications
Variant Discription
Includes surface mount kit
Size
600x600mm
CCT
4000K
System Wattage
30W
Lumen Output
3,600lm
Luminaire Efficacy
100lm/W
Lifetime - L80
>60,000hrs
CRI
>80
R9 Value
>0
SDCM
<3
Beam Angle
120º
UGR
22
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
>0.90
THD
<15%
Connection
1.2m Flex and plug
Control
Fixed Output
Flicker Free
Yes
Body Material
Aluminium
Lens Material
PMMA / PS
Finish
Powder Coated
Colour
White
Seismic Restraints
Yes (2m Stainless cable)
Length
596mm
Width
596mm
Height
30mm
IP Rating
IP65
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Warranty
5 Year Product Replacement
Stocked
Yes
Downloads
pdf
Evolve Sky Panel IP65
ies
SKYIP6060-30-840
SKYIP6060-30-842-RF
Includes recessed kit
600x600mm
4000K
30W
3,600lm
100lm/W
>60,000hrs
>80
>0
<3
120º
22
High efficiency LED driver
Full specifications
Variant Discription
Includes recessed kit
Size
600x600mm
CCT
4000K
System Wattage
30W
Lumen Output
3,600lm
Luminaire Efficacy
100lm/W
Lifetime - L80
>60,000hrs
CRI
>80
R9 Value
>0
SDCM
<3
Beam Angle
120º
UGR
22
Power Supply
High efficiency LED driver
Mains Voltage
AC200-240V / 50-60Hz
Power Factor
>0.90
THD
<15%
Connection
1.2m Flex and plug
Control
Fixed Output
Flicker Free
Yes
Body Material
Aluminium
Lens Material
PMMA / PS
Finish
Powder Coated
Colour
White
Seismic Restraints
Yes (2m Stainless cable)
Length
596mm
Width
596mm
Height
30mm
IP Rating
IP65
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 2
Warranty
5 Year Product Replacement
Stocked
Yes
Downloads
pdf
Evolve Sky Panel IP65
ies
SKYIP6060-30-840
