Shield

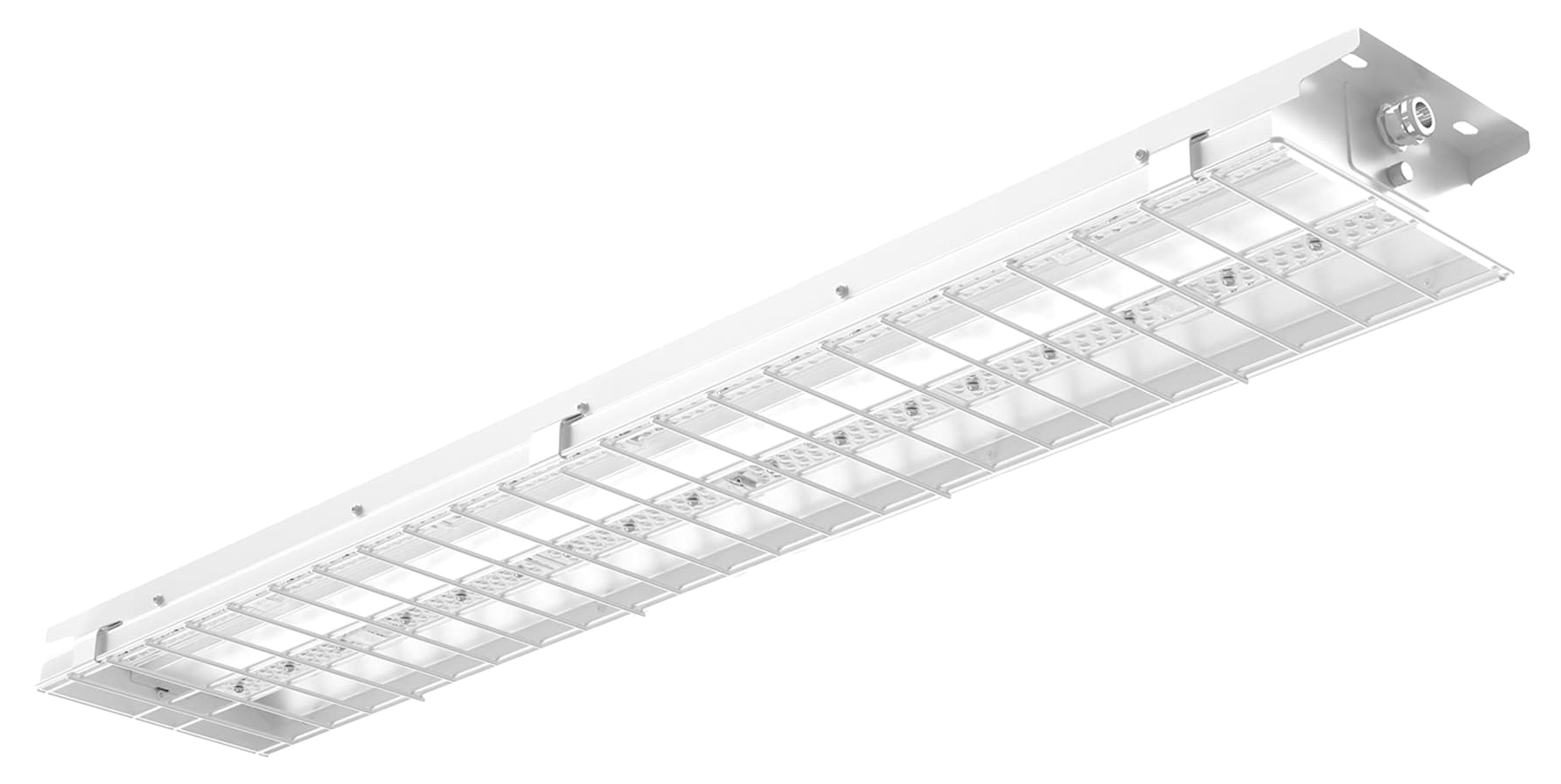

SPORTS HALL LINEAR LIGHT

✓ Ball proof construction with wire guard
✓ Ultra efficient system efficacy of up to 170lm/W
✓ Long lifetime of >100,000hrs to L80
✓ Low UGR of 22 for improved visual comfort
✓ Asymmetric and symmetric beam angles available
✓ Multiple mounting options
✓ Easy access wiring design
✓ Compliant with Ministry of Education
specification for gymnasiums
✓ DALI dimming option

see Detailed specs
LOW

22UGR

RATING
TOUGH

IK10

RATED
LONG

>100,000HRS

LIFETIME
EXCELLENT

170lm/W

EFFICACY

Easy access wiring design

Pull out draw style access to terminal block for quick wiring of product.

Specifications

Filter all product variations
Wattage
Beam Angle
Controls
PRODUCT CODE
Variant Description
System Wattage
CCT
Lumen Output
Luminaire Efficacy
CRI
SDCM
Beam Angle
UGR
Lifetime L80
Mains Voltage
Control
Body Material
SHIELD-120-840-3090
Shield 120W 30x90° beam angle 1-10V dimming
120W
4000K
19,476lm
162lm/W
>80
<3
30x90°
22
>100,000hrs
AC100-277V / 50/60 Hz
1-10V
Steel
Full specifications
Variant Description
Shield 120W 30x90° beam angle 1-10V dimming
System Wattage
120W
CCT
4000K
Lumen Output
19,476lm
Luminaire Efficacy
162lm/W
CRI
>80
SDCM
<3
Beam Angle
30x90°
UGR
22
Lifetime L80
>100,000hrs
Mains Voltage
AC100-277V / 50/60 Hz
Control
1-10V
Body Material
Steel
Lens Material
PMMA
Finish
Powder Coated
Colour
White
Weight
8.4kg
IP Rating
IP23
IK Rating
IK10
Operating Temp
-20° to +40°C
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
No
Lead Time
10 weeks
Downloads
pdf
Evolve Shield Spec Sheet
ies
SHIELD-120-840-3090
pdf
Installation Manual-Evolve Shield Sports Light
SHIELD-120-840-3090-DA
Shield 120W 30x90° beam angle DALI dimming
120W
4000K
19,476lm
162lm/W
>80
<3
30x90°
22
>100,000hrs
AC100-277V / 50/60 Hz
DALI
Steel
Full specifications
Variant Description
Shield 120W 30x90° beam angle DALI dimming
System Wattage
120W
CCT
4000K
Lumen Output
19,476lm
Luminaire Efficacy
162lm/W
CRI
>80
SDCM
<3
Beam Angle
30x90°
UGR
22
Lifetime L80
>100,000hrs
Mains Voltage
AC100-277V / 50/60 Hz
Control
DALI
Body Material
Steel
Lens Material
PMMA
Finish
Powder Coated
Colour
White
Weight
8.4kg
IP Rating
IP23
IK Rating
IK10
Operating Temp
-20° to +40°C
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
No
Lead Time
10 weeks
Downloads
pdf
Evolve Shield Spec Sheet
ies
SHIELD-120-840-3090
pdf
Installation Manual-Evolve Shield Sports Light
SHIELD-120-840-60
Shield 120W 60° beam angle 1-10V dimming
120W
4000K
20,356lm
170lm/W
>80
<3
60°
22
>100,000hrs
AC100-277V / 50/60 Hz
1-10V
Steel
Full specifications
Variant Description
Shield 120W 60° beam angle 1-10V dimming
System Wattage
120W
CCT
4000K
Lumen Output
20,356lm
Luminaire Efficacy
170lm/W
CRI
>80
SDCM
<3
Beam Angle
60°
UGR
22
Lifetime L80
>100,000hrs
Mains Voltage
AC100-277V / 50/60 Hz
Control
1-10V
Body Material
Steel
Lens Material
PMMA
Finish
Powder Coated
Colour
White
Weight
8.4kg
IP Rating
IP23
IK Rating
IK10
Operating Temp
-20° to +40°C
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
No
Lead Time
10 weeks
Downloads
pdf
Evolve Shield Spec Sheet
ies
SHIELD-120-840-60
pdf
Installation Manual-Evolve Shield Sports Light
SHIELD-120-840-60-DA
Shield 120W 60° beam angle DALI dimming
120W
4000K
20,356lm
170lm/W
>80
<3
60°
22
>100,000hrs
AC100-277V / 50/60 Hz
DALI
Steel
Full specifications
Variant Description
Shield 120W 60° beam angle DALI dimming
System Wattage
120W
CCT
4000K
Lumen Output
20,356lm
Luminaire Efficacy
170lm/W
CRI
>80
SDCM
<3
Beam Angle
60°
UGR
22
Lifetime L80
>100,000hrs
Mains Voltage
AC100-277V / 50/60 Hz
Control
DALI
Body Material
Steel
Lens Material
PMMA
Finish
Powder Coated
Colour
White
Weight
8.4kg
IP Rating
IP23
IK Rating
IK10
Operating Temp
-20° to +40°C
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
No
Lead Time
10 weeks
Downloads
pdf
Evolve Shield Spec Sheet
ies
SHIELD-120-840-60
pdf
Installation Manual-Evolve Shield Sports Light
SHIELD-120-840-90
Shield 120W 90° beam angle 1-10V dimming
120W
4000K
19,585lm
163lm/W
>80
<3
90°
22
>100,000hrs
AC100-277V / 50/60 Hz
1-10V
Steel
Full specifications
Variant Description
Shield 120W 90° beam angle 1-10V dimming
System Wattage
120W
CCT
4000K
Lumen Output
19,585lm
Luminaire Efficacy
163lm/W
CRI
>80
SDCM
<3
Beam Angle
90°
UGR
22
Lifetime L80
>100,000hrs
Mains Voltage
AC100-277V / 50/60 Hz
Control
1-10V
Body Material
Steel
Lens Material
PMMA
Finish
Powder Coated
Colour
White
Weight
8.4kg
IP Rating
IP23
IK Rating
IK10
Operating Temp
-20° to +40°C
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
No
Lead Time
10 weeks
Downloads
pdf
Evolve Shield Spec Sheet
ies
SHIELD-120-840-90
pdf
Installation Manual-Evolve Shield Sports Light
SHIELD-120-840-90-DA
Shield 120W 90° beam angle DALI dimming
120W
4000K
19,585lm
163lm/W
>80
<3
90°
22
>100,000hrs
AC100-277V / 50/60 Hz
DALI
Steel
Full specifications
Variant Description
Shield 120W 90° beam angle DALI dimming
System Wattage
120W
CCT
4000K
Lumen Output
19,585lm
Luminaire Efficacy
163lm/W
CRI
>80
SDCM
<3
Beam Angle
90°
UGR
22
Lifetime L80
>100,000hrs
Mains Voltage
AC100-277V / 50/60 Hz
Control
DALI
Body Material
Steel
Lens Material
PMMA
Finish
Powder Coated
Colour
White
Weight
8.4kg
IP Rating
IP23
IK Rating
IK10
Operating Temp
-20° to +40°C
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
No
Lead Time
10 weeks
Downloads
pdf
Evolve Shield Spec Sheet
ies
SHIELD-120-840-90
pdf
Installation Manual-Evolve Shield Sports Light
SHIELD-160-840-3090
Shield 160W 30x90° beam angle 1-10V dimming
160W
4000K
25,482lm
158lm/W
>80
<3
30x90°
22
>100,000hrs
AC100-277V / 50/60 Hz
1-10V
Steel
Full specifications
Variant Description
Shield 160W 30x90° beam angle 1-10V dimming
System Wattage
160W
CCT
4000K
Lumen Output
25,482lm
Luminaire Efficacy
158lm/W
CRI
>80
SDCM
<3
Beam Angle
30x90°
UGR
22
Lifetime L80
>100,000hrs
Mains Voltage
AC100-277V / 50/60 Hz
Control
1-10V
Body Material
Steel
Lens Material
PMMA
Finish
Powder Coated
Colour
White
Weight
8.4kg
IP Rating
IP23
IK Rating
IK10
Operating Temp
-20° to +40°C
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
No
Lead Time
10 weeks
Downloads
pdf
Evolve Shield Spec Sheet
ies
SHIELD-160-840-3090
pdf
Installation Manual-Evolve Shield Sports Light
SHIELD-160-840-3090-DA
Shield 160W 30x90° beam angle DALI dimming
160W
4000K
25,482lm
158lm/W
>80
<3
30x90°
22
>100,000hrs
AC100-277V / 50/60 Hz
DALI
Steel
Full specifications
Variant Description
Shield 160W 30x90° beam angle DALI dimming
System Wattage
160W
CCT
4000K
Lumen Output
25,482lm
Luminaire Efficacy
158lm/W
CRI
>80
SDCM
<3
Beam Angle
30x90°
UGR
22
Lifetime L80
>100,000hrs
Mains Voltage
AC100-277V / 50/60 Hz
Control
DALI
Body Material
Steel
Lens Material
PMMA
Finish
Powder Coated
Colour
White
Weight
8.4kg
IP Rating
IP23
IK Rating
IK10
Operating Temp
-20° to +40°C
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
No
Lead Time
10 weeks
Downloads
pdf
Evolve Shield Spec Sheet
ies
SHIELD-160-840-3090
pdf
Installation Manual-Evolve Shield Sports Light
SHIELD-160-840-60
Shield 160W 60° beam angle 1-10V dimming
160W
4000K
26,634lm
166lm/W
>80
<3
60°
22
>100,000hrs
AC100-277V / 50/60 Hz
1-10V
Steel
Full specifications
Variant Description
Shield 160W 60° beam angle 1-10V dimming
System Wattage
160W
CCT
4000K
Lumen Output
26,634lm
Luminaire Efficacy
166lm/W
CRI
>80
SDCM
<3
Beam Angle
60°
UGR
22
Lifetime L80
>100,000hrs
Mains Voltage
AC100-277V / 50/60 Hz
Control
1-10V
Body Material
Steel
Lens Material
PMMA
Finish
Powder Coated
Colour
White
Weight
8.4kg
IP Rating
IP23
IK Rating
IK10
Operating Temp
-20° to +40°C
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
No
Lead Time
10 weeks
Downloads
pdf
Evolve Shield Spec Sheet
ies
SHIELD-160-840-60
pdf
Installation Manual-Evolve Shield Sports Light
SHIELD-160-840-60-DA
Shield 160W 60° beam angle DALI dimming
160W
4000K
26,634lm
166lm/W
>80
<3
60°
22
>100,000hrs
AC100-277V / 50/60 Hz
DALI
Steel
Full specifications
Variant Description
Shield 160W 60° beam angle DALI dimming
System Wattage
160W
CCT
4000K
Lumen Output
26,634lm
Luminaire Efficacy
166lm/W
CRI
>80
SDCM
<3
Beam Angle
60°
UGR
22
Lifetime L80
>100,000hrs
Mains Voltage
AC100-277V / 50/60 Hz
Control
DALI
Body Material
Steel
Lens Material
PMMA
Finish
Powder Coated
Colour
White
Weight
8.4kg
IP Rating
IP23
IK Rating
IK10
Operating Temp
-20° to +40°C
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
No
Lead Time
10 weeks
Downloads
pdf
Evolve Shield Spec Sheet
ies
SHIELD-160-840-60
pdf
Installation Manual-Evolve Shield Sports Light
Show 8 moreShow all 18 product variants

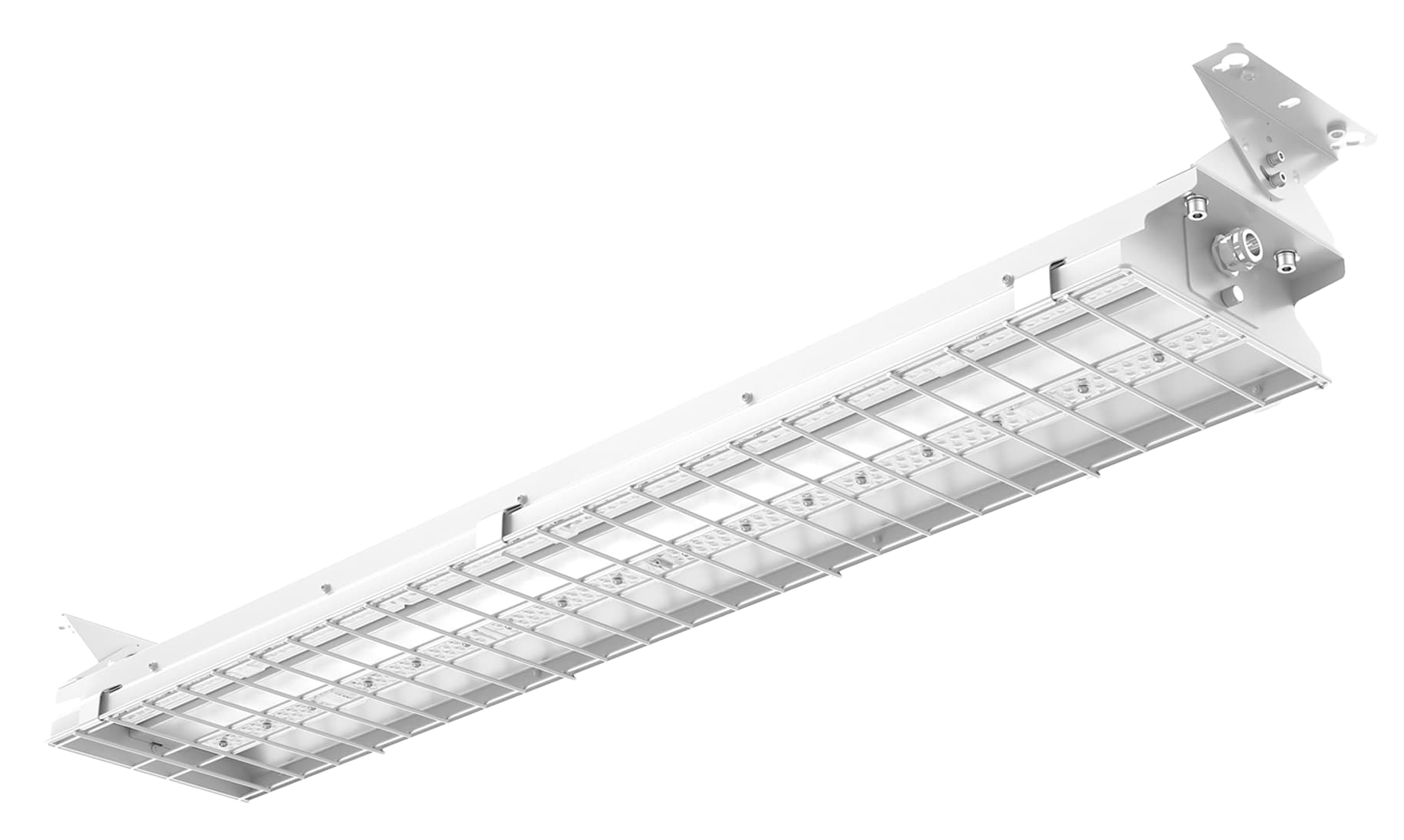

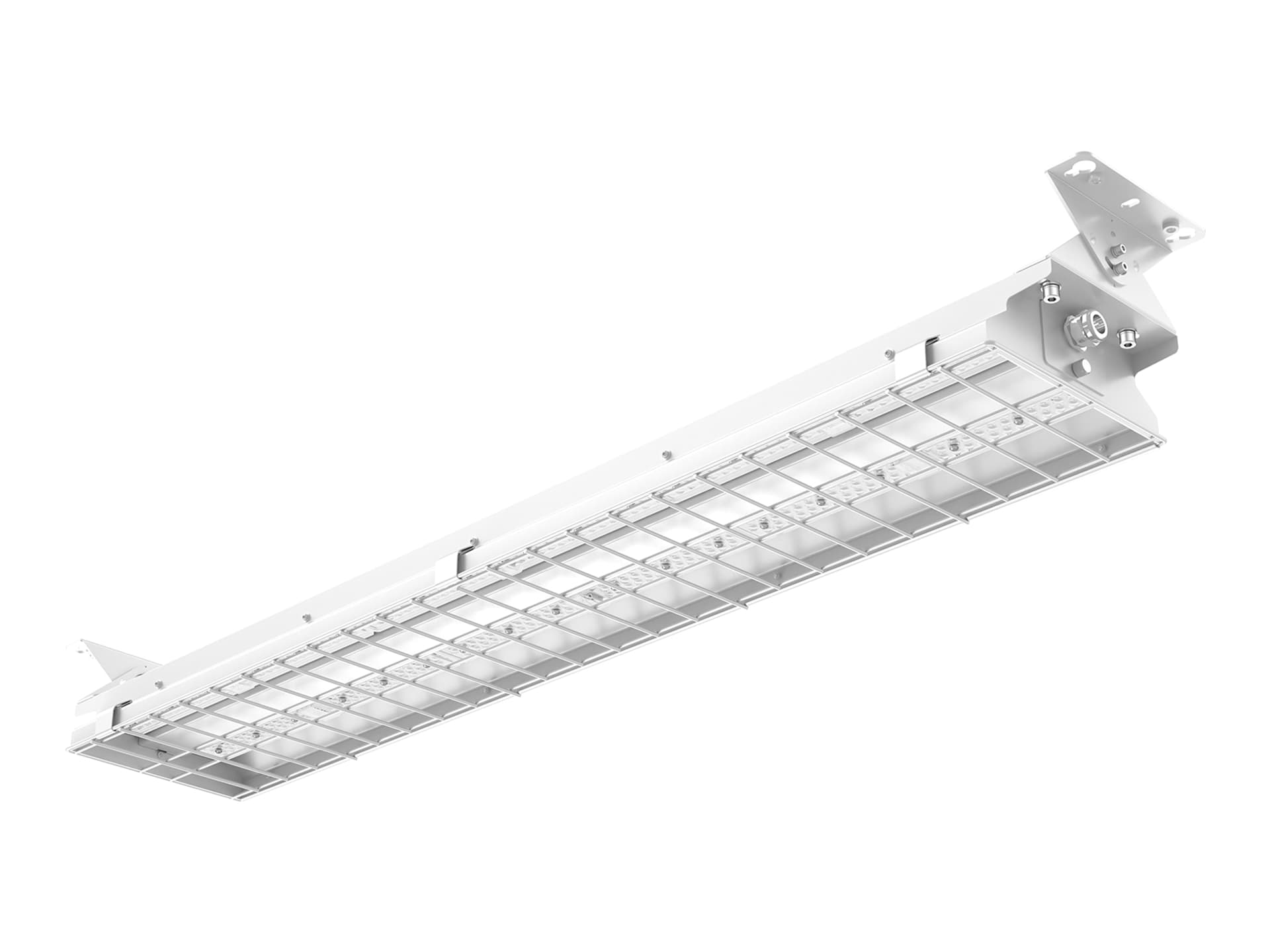

Tiltable Bracket

Code:
SHIELD-TBRAC
Accessories

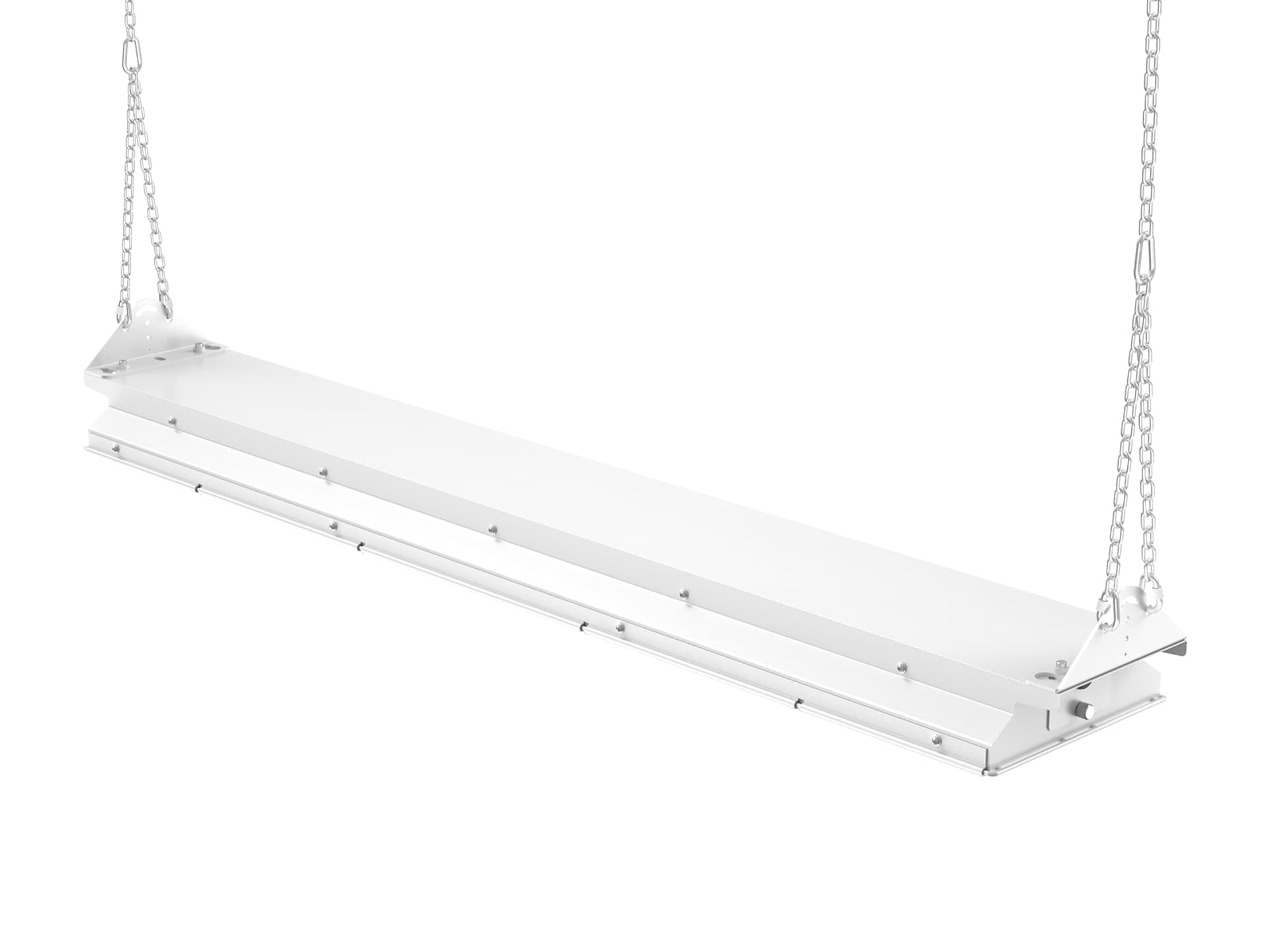

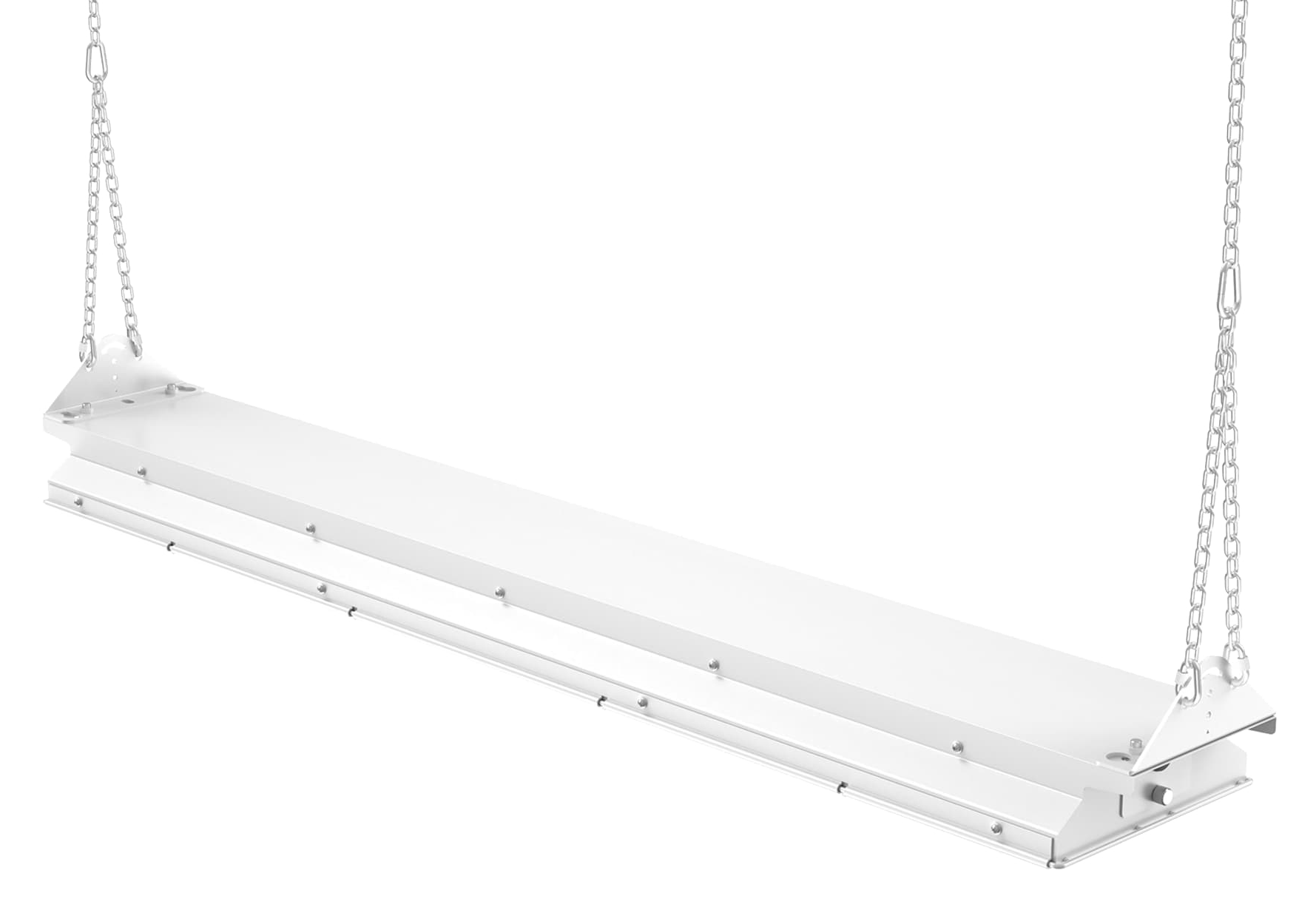

Suspension Kit
