Sentry Pole Mount

HIGH PERFORMANCE CAR PARK / AREA LIGHT

✓ Modern design with no visible heatsink
✓ Flexible mounting options
✓ Ultra efficient system efficacy of up to 160lm/W
✓ High quality Lumileds LED chips and Inventronics Driver
✓ Multiple professionally designed optics
✓ Tough IP66 and IK09 construction
✓ Internal spill shields available for strong light cutoffs
✓ Dark sky friendly with no uplight and 2200K
✓ DALI-2 D4i and Time dimming available
✓ Long lasting Interpon Polyester coating

see Detailed specs
UP TO

160lm/W

EFFICACY
ULTRA LONG

102,000HRS

LIFETIME
TOUGH

IK10

CONSTRUCTION
WEATHERPROOF

IP66

CONSTRUCTION
Feature

Dark Sky Friendly

Dark Sky friendly with 0% up light (at 3000K) and full cut-off for excellent spill control
Feature

Internal Spill Light Shields

Internal spill shields create extra strong cutoffs for excellent light control around neighbouring properties.

Specifications

Filter all product variations
Mounting Type
Wattage
Light Colour
Beam Angle
Controls
Housing Colour
PRODUCT CODE
Variant Description
System Wattage
CCT
Lumen Output
Luminaire Efficacy
Beam Angle
CRI
Mounting Type
Lifetime - TM21 L70
Distribution
Light Source
SDCM
Power Supply
SEN-100-740-B-II-CPM
LED Sentry 100W, Clamp pole mount, Type II optics, Black, 4000K
100W
4000K
13,951lm
139lm/W
Type II
>70

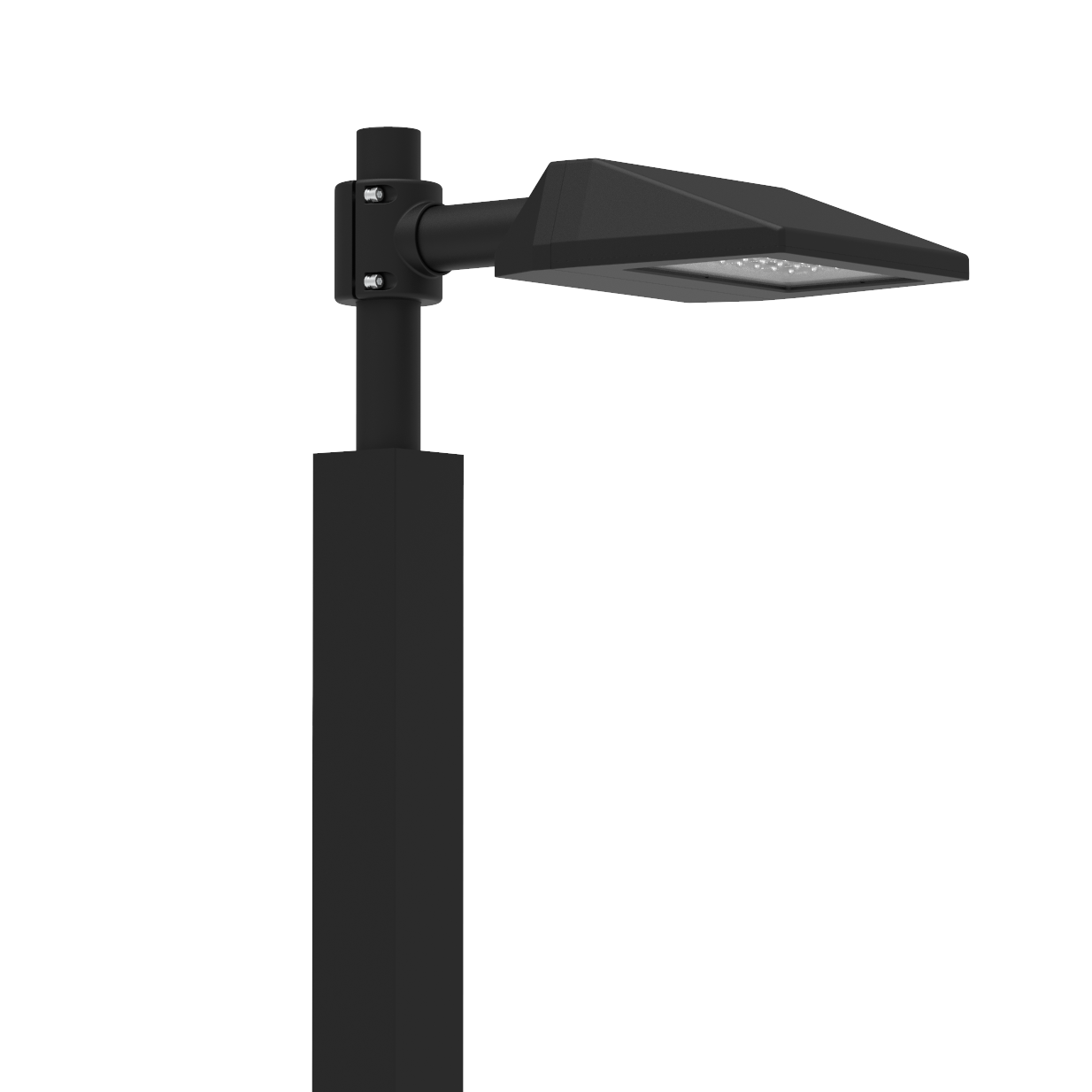

Clamp pole mount
>102,000hrs
Asymmetric
Lumileds 5050
<3
Inventronics
Full specifications
Variant Description
LED Sentry 100W, Clamp pole mount, Type II optics, Black, 4000K
System Wattage
100W
CCT
4000K
Lumen Output
13,951lm
Luminaire Efficacy
139lm/W
Beam Angle
Type II
CRI
>70
Mounting Type
Clamp pole mount
Lifetime - TM21 L70
>102,000hrs
Distribution
Asymmetric
Light Source
Lumileds 5050
SDCM
<3
Power Supply
Inventronics
Mains Voltage
AC100-277V / 50-60 Hz
Power Factor
>0.95
THD
<10%
Inrush Current
70A
Driver Lifetime
100,000hrs
Surge Protection
10kV
Connection
1.2m 3 core cable
Control
Fixed Output
Body Material
Corrosion-resistant aluminium
Lens Material
Toughened glass
Optic Material
PMMA
Coatings
Interpon Polyester Powder Coating, Epoxy Primer
Colour
Graphite black (RAL 9011)
Weight
4.8kg
EPA
0.036m2
IP Rating
IP66
IK Rating
IK09
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Documentation
LM-79, LM-80, ISTMT, TM-21
Warranty
Standard 5 Year Warranty
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Spec Sheet Sentry Type II CPM
ies
SEN-100-740-B-II
SEN-100-740-B-II-RPM
LED Sentry 100W, Round pole mount, Type II optics, Black, 4000K
100W
4000K
13,951lm
139lm/W
Type II
>70

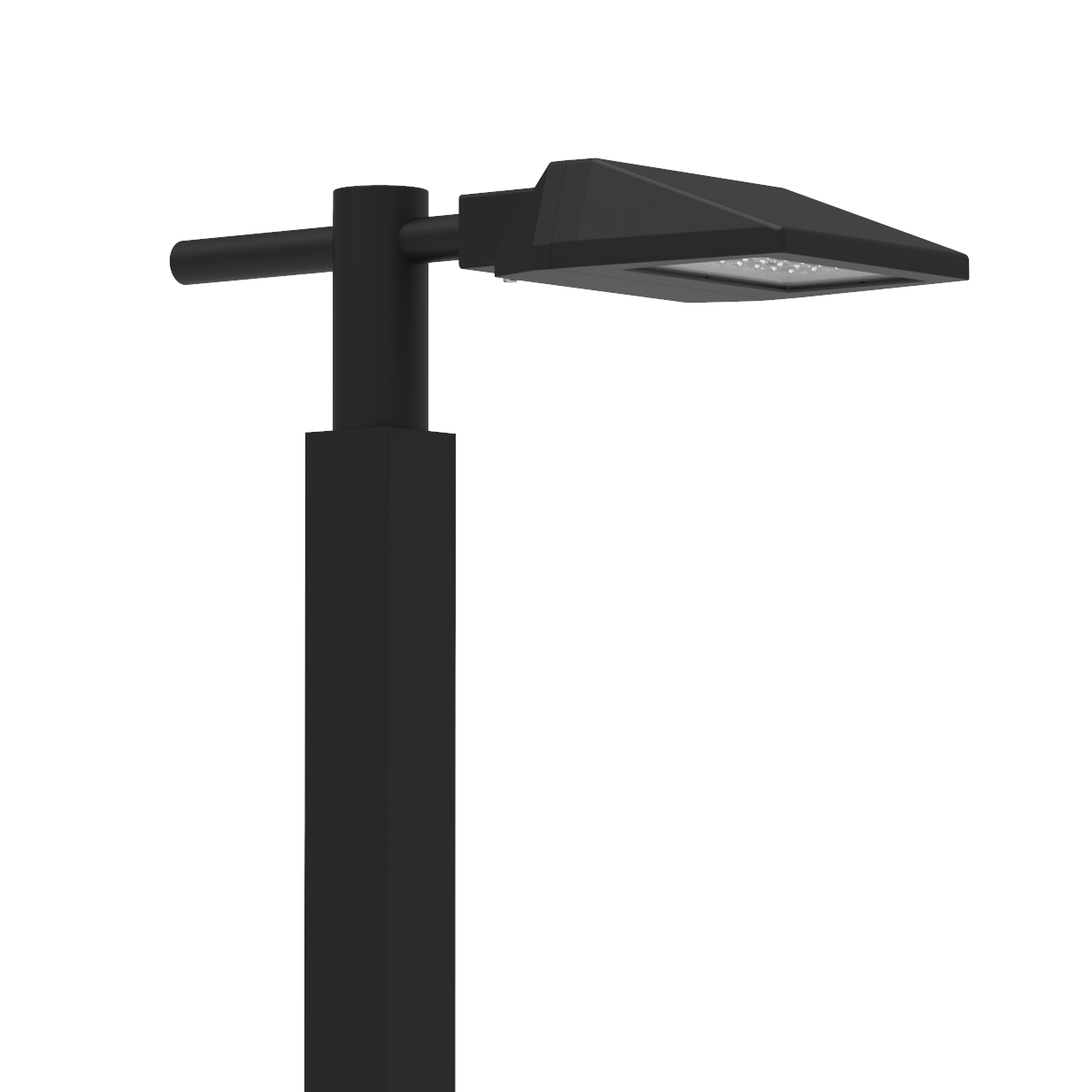

Round pole mount
>102,000hrs
Asymmetric
Lumileds 5050
<3
Inventronics
Full specifications
Variant Description
LED Sentry 100W, Round pole mount, Type II optics, Black, 4000K
System Wattage
100W
CCT
4000K
Lumen Output
13,951lm
Luminaire Efficacy
139lm/W
Beam Angle
Type II
CRI
>70
Mounting Type
Round pole mount
Lifetime - TM21 L70
>102,000hrs
Distribution
Asymmetric
Light Source
Lumileds 5050
SDCM
<3
Power Supply
Inventronics
Mains Voltage
AC100-277V / 50-60 Hz
Power Factor
>0.95
THD
<10%
Inrush Current
70A
Driver Lifetime
100,000hrs
Surge Protection
10kV
Connection
1.2m 3 core cable
Control
Fixed Output
Body Material
Corrosion-resistant aluminium
Lens Material
Toughened glass
Optic Material
PMMA
Coatings
Interpon Polyester Powder Coating, Epoxy Primer
Colour
Graphite black (RAL 9011)
Weight
4.8kg
EPA
0.036m2
IP Rating
IP66
IK Rating
IK09
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Documentation
LM-79, LM-80, ISTMT, TM-21
Warranty
Standard 5 Year Warranty
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Spec Sheet Sentry Type II RPM
ies
SEN-100-740-B-II
SEN-100-740-B-II-SPM
LED Sentry 100W, Square pole mount, Type II optics, Black, 4000K
100W
4000K
13,951lm
139lm/W
Type II
>70

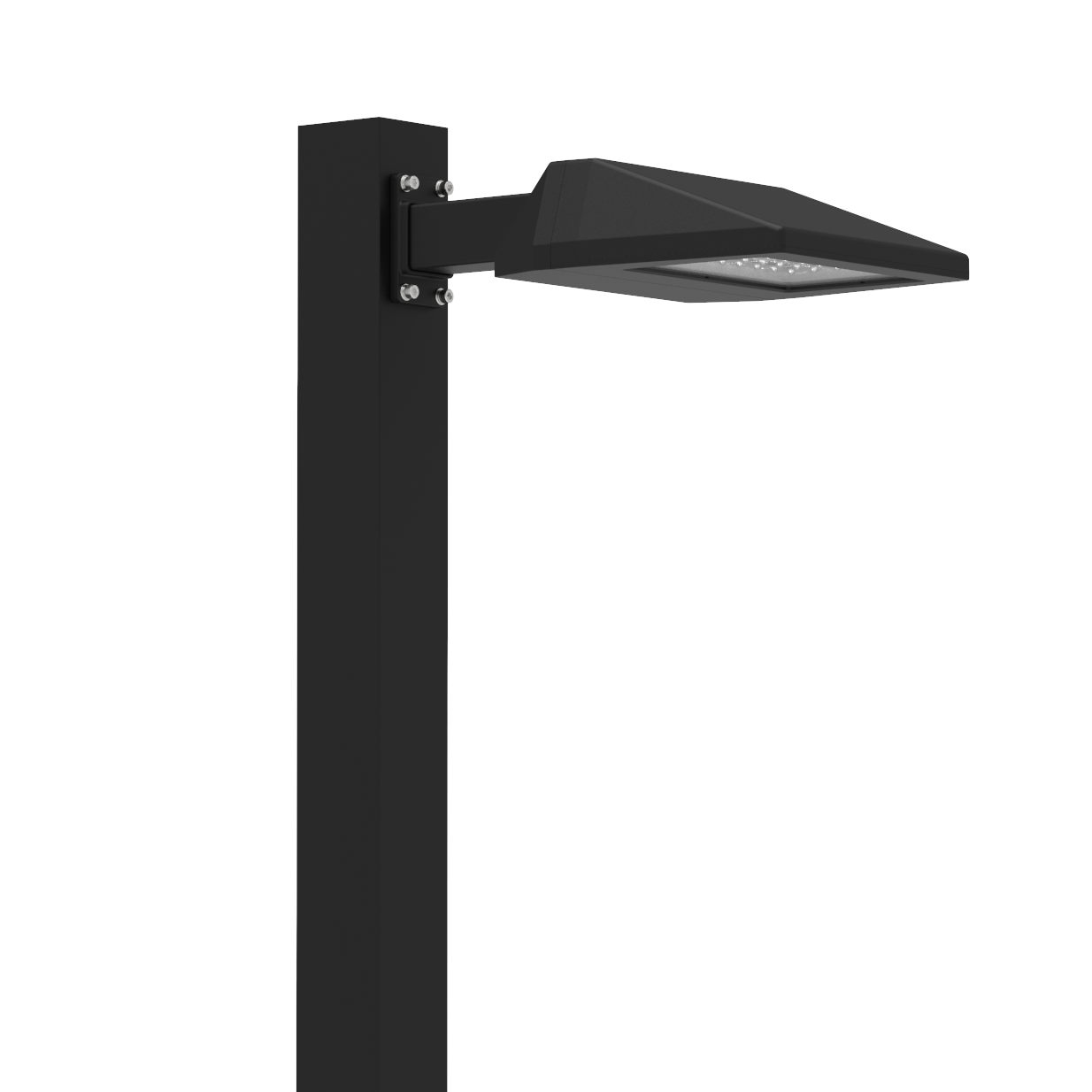

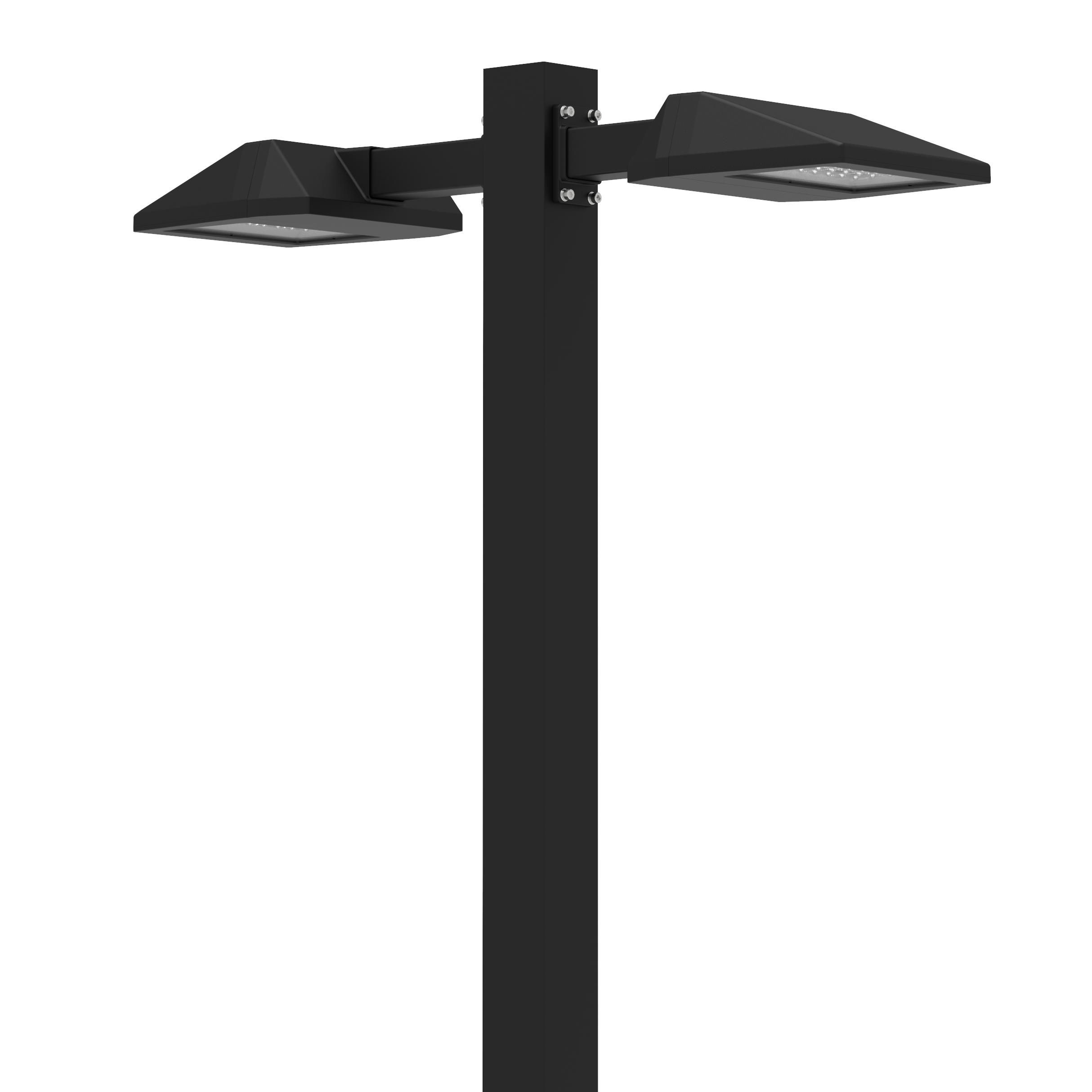

Square pole mount
>102,000hrs
Asymmetric
Lumileds 5050
<3
Inventronics
Full specifications
Variant Description
LED Sentry 100W, Square pole mount, Type II optics, Black, 4000K
System Wattage
100W
CCT
4000K
Lumen Output
13,951lm
Luminaire Efficacy
139lm/W
Beam Angle
Type II
CRI
>70
Mounting Type
Square pole mount
Lifetime - TM21 L70
>102,000hrs
Distribution
Asymmetric
Light Source
Lumileds 5050
SDCM
<3
Power Supply
Inventronics
Mains Voltage
AC100-277V / 50-60 Hz
Power Factor
>0.95
THD
<10%
Inrush Current
70A
Driver Lifetime
100,000hrs
Surge Protection
10kV
Connection
1.2m 3 core cable
Control
Fixed Output
Body Material
Corrosion-resistant aluminium
Lens Material
Toughened glass
Optic Material
PMMA
Coatings
Interpon Polyester Powder Coating, Epoxy Primer
Colour
Graphite black (RAL 9011)
Weight
4.76kg
EPA
0.036m2
IP Rating
IP66
IK Rating
IK09
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Documentation
LM-79, LM-80, ISTMT, TM-21
Warranty
Standard 5 Year Warranty
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Spec Sheet Sentry Type II SPM
ies
SEN-100-740-B-II
SEN-100-740-B-IV-CPM
LED Sentry 100W, Clamp pole mount, Type IV optics, Black, 4000K
100W
4000K
15,363lm
152lm/W
Type IV
>70
Clamp pole mount
>102,000hrs
Asymmetric
Lumileds 5050
<3
Inventronics
Full specifications
Variant Description
LED Sentry 100W, Clamp pole mount, Type IV optics, Black, 4000K
System Wattage
100W
CCT
4000K
Lumen Output
15,363lm
Luminaire Efficacy
152lm/W
Beam Angle
Type IV
CRI
>70
Mounting Type
Clamp pole mount
Lifetime - TM21 L70
>102,000hrs
Distribution
Asymmetric
Light Source
Lumileds 5050
SDCM
<3
Power Supply
Inventronics
Mains Voltage
AC100-277V / 50-60 Hz
Power Factor
>0.95
THD
<10%
Inrush Current
70A
Driver Lifetime
100,000hrs
Surge Protection
10kV
Connection
1.2m 3 core cable
Control
Fixed Output
Body Material
Corrosion-resistant aluminium
Lens Material
Toughened glass
Optic Material
PMMA
Coatings
Interpon Polyester Powder Coating, Epoxy Primer
Colour
Graphite black (RAL 9011)
Weight
4.8kg
EPA
0.036m2
IP Rating
IP66
IK Rating
IK09
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Documentation
LM-79, LM-80, ISTMT, TM-21
Warranty
Standard 5 Year Warranty
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Spec Sheet Sentry Type IV CPM
ies
SEN-100-740-B-IV
SEN-100-740-B-IV-RPM
LED Sentry 100W, Round pole mount, Type IV optics, Black, 4000K
100W
4000K
15,363lm
152lm/W
Type IV
>70
Round pole mount
>102,000hrs
Asymmetric
Lumileds 5050
<3
Inventronics
Full specifications
Variant Description
LED Sentry 100W, Round pole mount, Type IV optics, Black, 4000K
System Wattage
100W
CCT
4000K
Lumen Output
15,363lm
Luminaire Efficacy
152lm/W
Beam Angle
Type IV
CRI
>70
Mounting Type
Round pole mount
Lifetime - TM21 L70
>102,000hrs
Distribution
Asymmetric
Light Source
Lumileds 5050
SDCM
<3
Power Supply
Inventronics
Mains Voltage
AC100-277V / 50-60 Hz
Power Factor
>0.95
THD
<10%
Inrush Current
70A
Driver Lifetime
100,000hrs
Surge Protection
10kV
Connection
1.2m 3 core cable
Control
Fixed Output
Body Material
Corrosion-resistant aluminium
Lens Material
Toughened glass
Optic Material
PMMA
Coatings
Interpon Polyester Powder Coating, Epoxy Primer
Colour
Graphite black (RAL 9011)
Weight
4.8kg
EPA
0.036m2
IP Rating
IP66
IK Rating
IK09
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Documentation
LM-79, LM-80, ISTMT, TM-21
Warranty
Standard 5 Year Warranty
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Spec Sheet Sentry Type IV RPM
ies
SEN-100-740-B-IV
SEN-100-740-B-IV-SPM
LED Sentry 100W, Square pole mount, Type IV optics, Black, 4000K
100W
4000K
15,363lm
152lm/W
Type IV
>70
Square pole mount
>102,000hrs
Asymmetric
Lumileds 5050
<3
Inventronics
Full specifications
Variant Description
LED Sentry 100W, Square pole mount, Type IV optics, Black, 4000K
System Wattage
100W
CCT
4000K
Lumen Output
15,363lm
Luminaire Efficacy
152lm/W
Beam Angle
Type IV
CRI
>70
Mounting Type
Square pole mount
Lifetime - TM21 L70
>102,000hrs
Distribution
Asymmetric
Light Source
Lumileds 5050
SDCM
<3
Power Supply
Inventronics
Mains Voltage
AC100-277V / 50-60 Hz
Power Factor
>0.95
THD
<10%
Inrush Current
70A
Driver Lifetime
100,000hrs
Surge Protection
10kV
Connection
1.2m 3 core cable
Control
Fixed Output
Body Material
Corrosion-resistant aluminium
Lens Material
Toughened glass
Optic Material
PMMA
Coatings
Interpon Polyester Powder Coating, Epoxy Primer
Colour
Graphite black (RAL 9011)
Weight
4.76kg
EPA
0.036m2
IP Rating
IP66
IK Rating
IK09
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Documentation
LM-79, LM-80, ISTMT, TM-21
Warranty
Standard 5 Year Warranty
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Spec Sheet Sentry Type IV SPM
ies
SEN-100-740-B-IV
SEN-100-740-B-IVS-CPM
LED Sentry 100W, Clamp pole mount, Type IV optics with internal spill shields, Black, 4000K
100W
4000K
15,363lm
152lm/W
Type IV
>70
Clamp pole mount
>102,000hrs
Asymmetric
Lumileds 5050
<3
Inventronics
Full specifications
Variant Description
LED Sentry 100W, Clamp pole mount, Type IV optics with internal spill shields, Black, 4000K
System Wattage
100W
CCT
4000K
Lumen Output
15,363lm
Luminaire Efficacy
152lm/W
Beam Angle
Type IV
CRI
>70
Mounting Type
Clamp pole mount
Lifetime - TM21 L70
>102,000hrs
Distribution
Asymmetric
Light Source
Lumileds 5050
SDCM
<3
Power Supply
Inventronics
Mains Voltage
AC100-277V / 50-60 Hz
Power Factor
>0.95
THD
<10%
Inrush Current
70A
Driver Lifetime
100,000hrs
Surge Protection
10kV
Connection
1.2m 3 core cable
Control
Fixed Output
Body Material
Corrosion-resistant aluminium
Lens Material
Toughened glass
Optic Material
PMMA
Coatings
Interpon Polyester Powder Coating, Epoxy Primer
Colour
Graphite black (RAL 9011)
Weight
4.8kg
EPA
0.036m2
IP Rating
IP66
IK Rating
IK09
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Documentation
LM-79, LM-80, ISTMT, TM-21
Warranty
Standard 5 Year Warranty
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Spec Sheet Sentry Type IV CPM
ies
SEN-100-740-B-IVS
SEN-100-740-B-IVS-RPM
LED Sentry 100W, Round pole mount, Type IV optics with internal spill shields, Black, 4000K
100W
4000K
15,363lm
152lm/W
Type IV
>70
Round pole mount
>102,000hrs
Asymmetric
Lumileds 5050
<3
Inventronics
Full specifications
Variant Description
LED Sentry 100W, Round pole mount, Type IV optics with internal spill shields, Black, 4000K
System Wattage
100W
CCT
4000K
Lumen Output
15,363lm
Luminaire Efficacy
152lm/W
Beam Angle
Type IV
CRI
>70
Mounting Type
Round pole mount
Lifetime - TM21 L70
>102,000hrs
Distribution
Asymmetric
Light Source
Lumileds 5050
SDCM
<3
Power Supply
Inventronics
Mains Voltage
AC100-277V / 50-60 Hz
Power Factor
>0.95
THD
<10%
Inrush Current
70A
Driver Lifetime
100,000hrs
Surge Protection
10kV
Connection
1.2m 3 core cable
Control
Fixed Output
Body Material
Corrosion-resistant aluminium
Lens Material
Toughened glass
Optic Material
PMMA
Coatings
Interpon Polyester Powder Coating, Epoxy Primer
Colour
Graphite black (RAL 9011)
Weight
4.8kg
EPA
0.036m2
IP Rating
IP66
IK Rating
IK09
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Documentation
LM-79, LM-80, ISTMT, TM-21
Warranty
Standard 5 Year Warranty
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Spec Sheet Sentry Type IV RPM
ies
SEN-100-740-B-IVS
SEN-100-740-B-IVS-SPM
LED Sentry 100W, Square pole mount, Type IV optics with internal spill shields, Black, 4000K
100W
4000K
15,363lm
152lm/W
Type IV
>70
Square pole mount
>102,000hrs
Asymmetric
Lumileds 5050
<3
Inventronics
Full specifications
Variant Description
LED Sentry 100W, Square pole mount, Type IV optics with internal spill shields, Black, 4000K
System Wattage
100W
CCT
4000K
Lumen Output
15,363lm
Luminaire Efficacy
152lm/W
Beam Angle
Type IV
CRI
>70
Mounting Type
Square pole mount
Lifetime - TM21 L70
>102,000hrs
Distribution
Asymmetric
Light Source
Lumileds 5050
SDCM
<3
Power Supply
Inventronics
Mains Voltage
AC100-277V / 50-60 Hz
Power Factor
>0.95
THD
<10%
Inrush Current
70A
Driver Lifetime
100,000hrs
Surge Protection
10kV
Connection
1.2m 3 core cable
Control
Fixed Output
Body Material
Corrosion-resistant aluminium
Lens Material
Toughened glass
Optic Material
PMMA
Coatings
Interpon Polyester Powder Coating, Epoxy Primer
Colour
Graphite black (RAL 9011)
Weight
4.76kg
EPA
0.036m2
IP Rating
IP66
IK Rating
IK09
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Documentation
LM-79, LM-80, ISTMT, TM-21
Warranty
Standard 5 Year Warranty
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Spec Sheet Sentry Type IV SPM
ies
SEN-100-740-B-IVS
SEN-100-740-B-V-CPM
LED Sentry 100W, Clamp pole mount, Type V optics, Black, 4000K
100W
4000K
15,518lm
153lm/W
Type V
>70
Clamp pole mount
>102,000hrs
Asymmetric
Lumileds 5050
<3
Inventronics
Full specifications
Variant Description
LED Sentry 100W, Clamp pole mount, Type V optics, Black, 4000K
System Wattage
100W
CCT
4000K
Lumen Output
15,518lm
Luminaire Efficacy
153lm/W
Beam Angle
Type V
CRI
>70
Mounting Type
Clamp pole mount
Lifetime - TM21 L70
>102,000hrs
Distribution
Asymmetric
Light Source
Lumileds 5050
SDCM
<3
Power Supply
Inventronics
Mains Voltage
AC100-277V / 50-60 Hz
Power Factor
>0.95
THD
<10%
Inrush Current
70A
Driver Lifetime
100,000hrs
Surge Protection
10kV
Connection
1.2m 3 core cable
Control
Fixed Output
Body Material
Corrosion-resistant aluminium
Lens Material
Toughened glass
Optic Material
PMMA
Coatings
Interpon Polyester Powder Coating, Epoxy Primer
Colour
Graphite black (RAL 9011)
Weight
4.8kg
EPA
0.036m2
IP Rating
IP66
IK Rating
IK09
Operating Temp
-30° to +45°C
Protection Class
Class 1
Certification
SAA
Documentation
LM-79, LM-80, ISTMT, TM-21
Warranty
Standard 5 Year Warranty
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Spec Sheet Sentry Type V CPM
ies
SEN-100-740-B-V
Show 10 moreShow all 72 product variants
Buy this Product

in store

There are 226 retailer locations all across New Zealand.

FIND ONE CLOSE TO YOU
Contact us
FacebookInstagramLinkedInTwitter
Privacy StatementWarranties
Copyright Evolve Lighting 2018
Made by BSD & FFF
