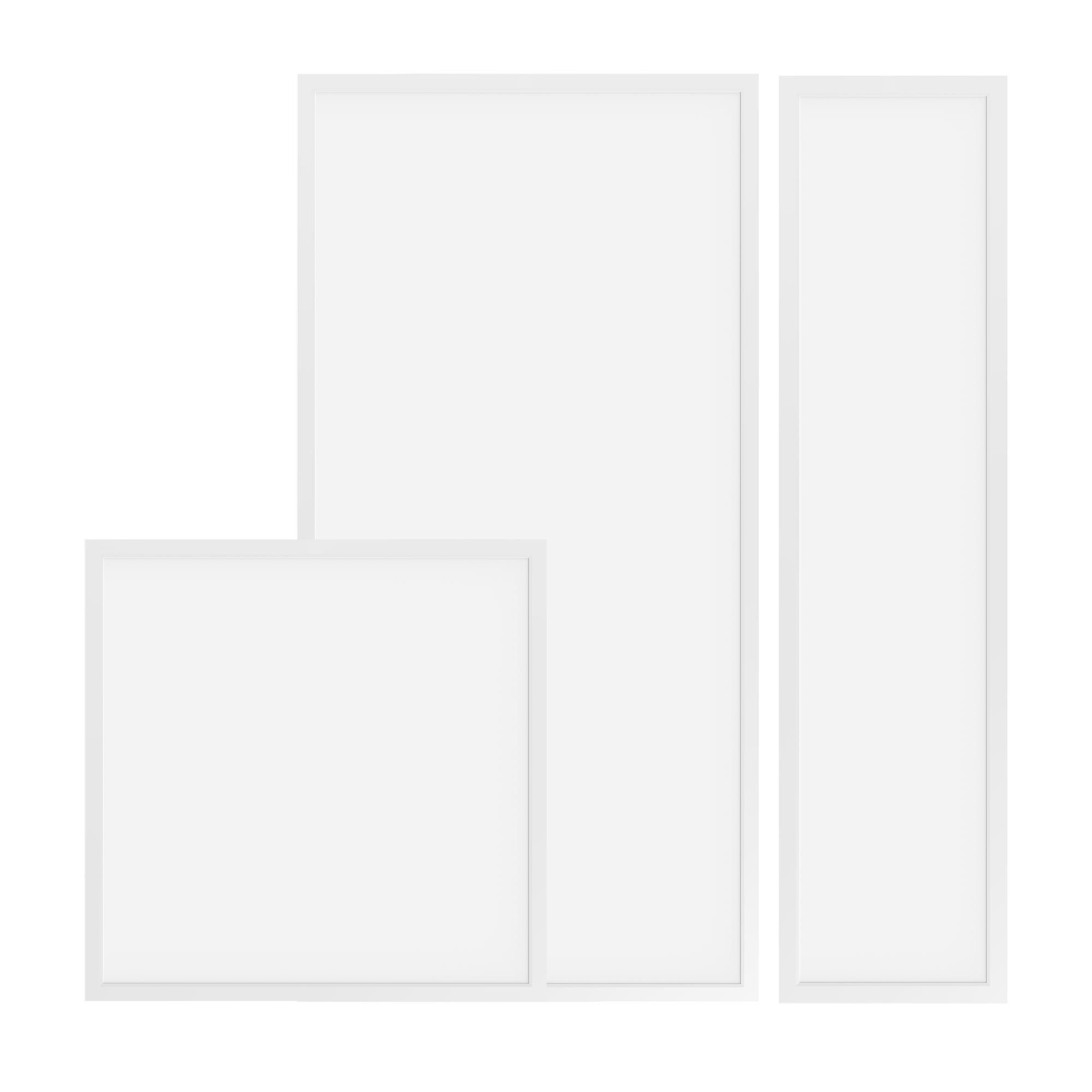

Prime Panel
Foundation Series LED Panel
✓ High 120lm/W efficacy
✓ Smooth, even light distribution
✓ Long lasting, >72,000 hours life
✓ Flicker free
✓ Dimming options available
✓ 1.2m Flex and plug included
High
5,000lm
OUTPUT
High
120lm/W
SYSTEM EFFICACY
Long
>72,000hrs
LIFETIME TO L70
Low glare
<19
UGR
Specifications
Size
Wattage
PRODUCT CODE
Default Wattage
System Wattage
Lumen Output
Luminaire Efficacy
Beam Angle
UGR
CCT
CRI
R9 Value
SDCM
Flicker Free
Lifetime - TM21 L70
Mains Voltage
PRIME1230-30-840
30W
30W
3,600lm
120lm/W
90°
<19
4000K
>80
>16
<3
Yes (PstLM <1 / SVM <0.4)
>72,000hrs (B10)
220-240VAC / 50-60Hz
PRIME1260-42-840
42W
42W
5,000lm
119lm/W
90°
<19
4000K
>80
>16
<3
Yes (PstLM <1 / SVM <0.4)
>72,000hrs (B10)
220-240VAC / 50-60Hz
PRIME6060-30-840
30W
30W
3,600lm
120lm/W
90°
<19
4000K
>80
>16
<3
Yes (PstLM <1 / SVM <0.4)
>72,000hrs (B10)
220-240VAC / 50-60Hz
