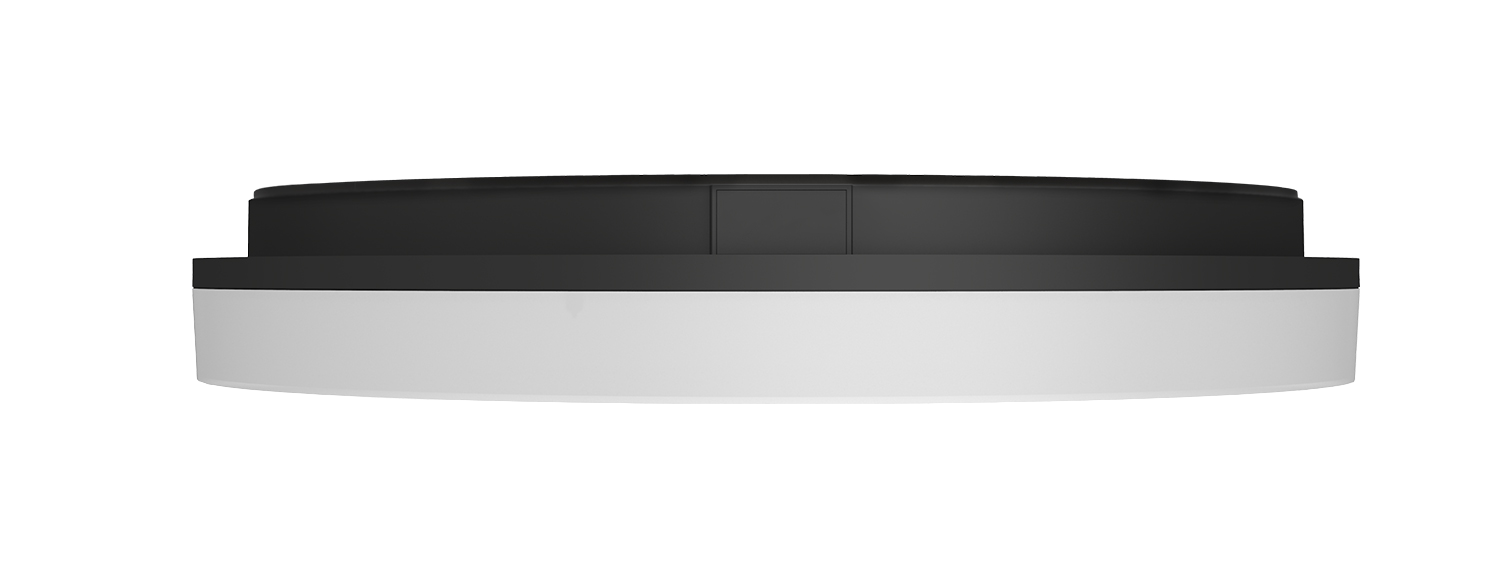

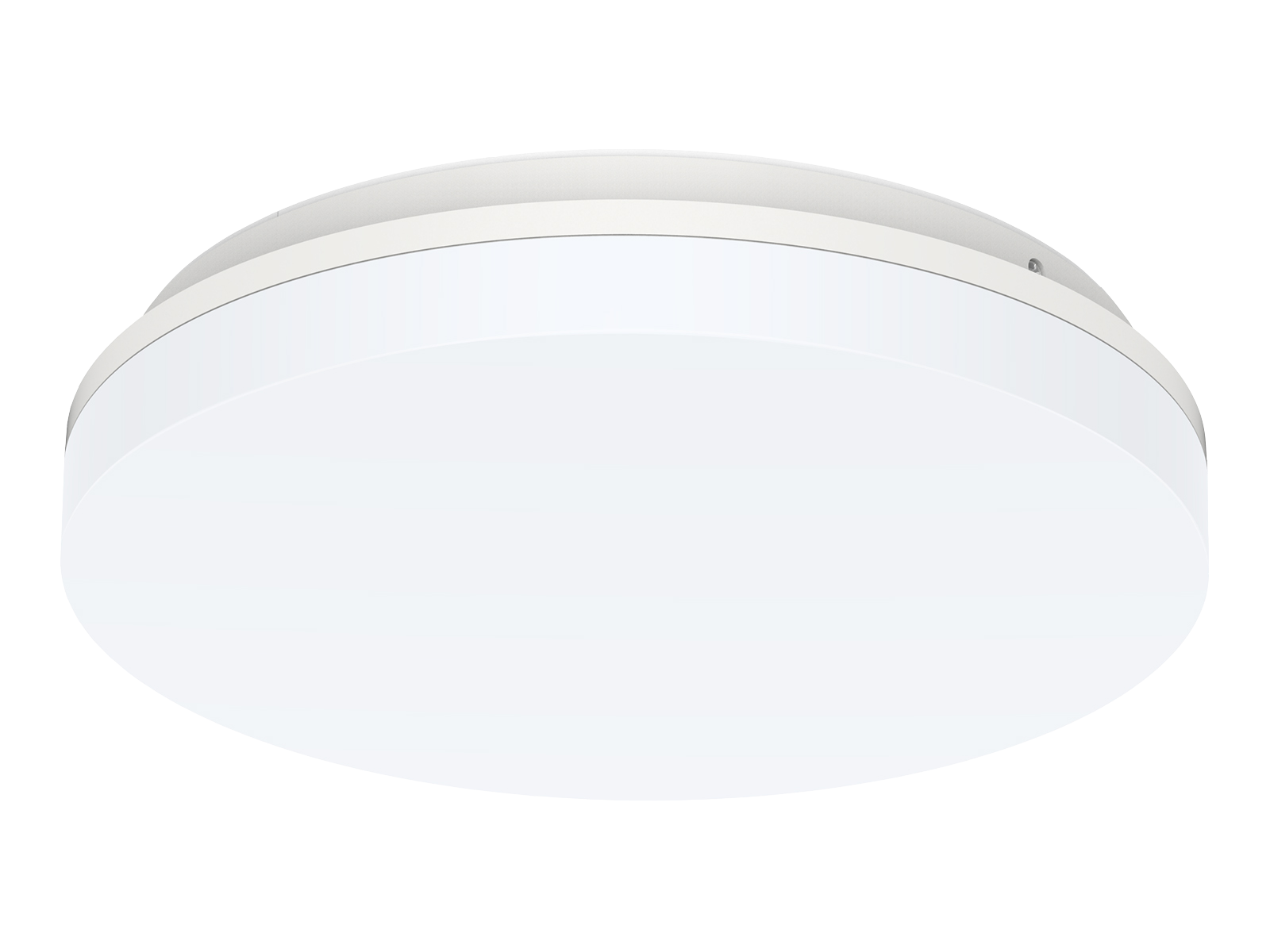

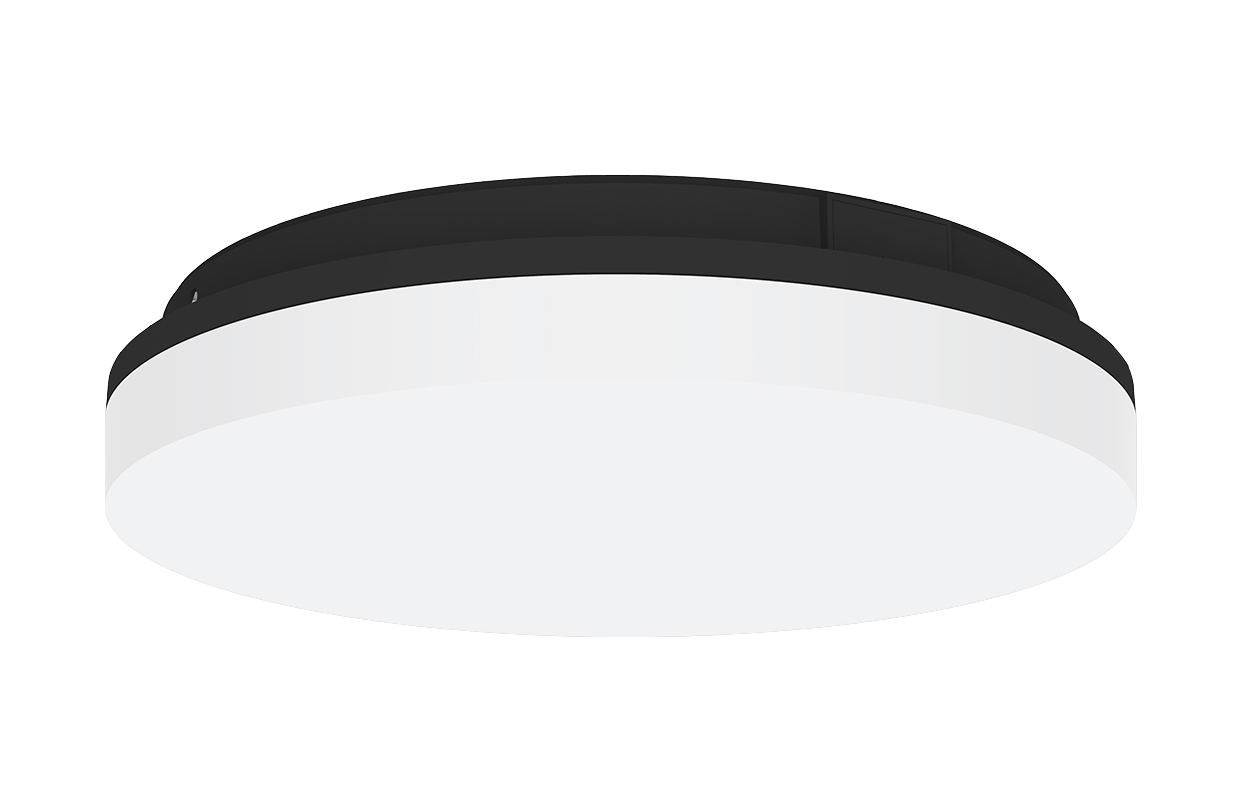

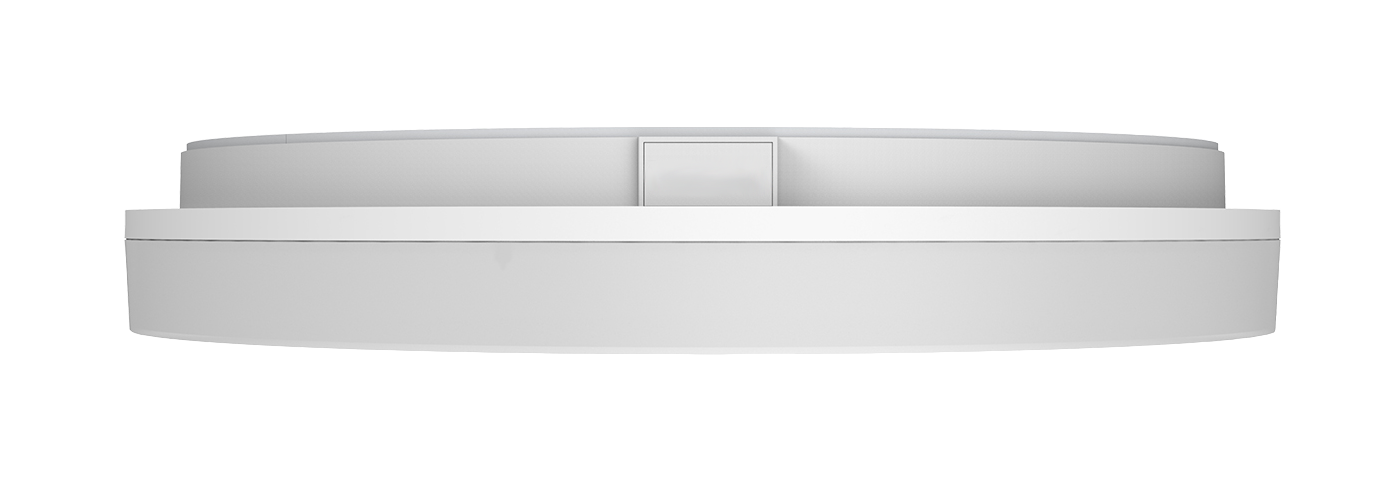

Lunar

Essential Series Ceiling Button

✓ Modern design with a large diffuser for visual comfort
✓ Long 50,000 hours lifespan
✓ Tough IK10 construction
✓ Suitable for indoor and outdoor use (IP54)
✓ Selectable colour temperature
✓ Available in black and white colours

see Detailed specs
Long

50,000+hrs

lifetime
Tough

IK10

rated
Weatherproof

IP54

Construction
Feature

Selectable Colour Temperature

Easily switch the colour temperature to suit your liking via the built-in switch

Specifications

Filter all product variations
Stocked
LED Power
Housing Colour
PRODUCT CODE
System Wattage
CCT
Lumen Output
Luminaire Efficacy
Beam Angle
CRI
Lifetime - L70
Control
Light Source
SDCM
Mains Voltage
Power Factor
THD
LUN-15-3CT-B
15W
3000K/4000K/5700K
1410-1500lm
94-100lm/W
120°
>80
>50,000hrs
Fixed Output
SMD LED
<5
AC100-240V / 50-60 Hz
>0.90
<20%
Full specifications
System Wattage
15W
CCT
3000K/4000K/5700K
Lumen Output
1410-1500lm
Luminaire Efficacy
94-100lm/W
Beam Angle
120°
CRI
>80
Lifetime - L70
>50,000hrs
Control
Fixed Output
Light Source
SMD LED
SDCM
<5
Mains Voltage
AC100-240V / 50-60 Hz
Power Factor
>0.90
THD
<20%
Protections
SCP, OTP, OVP
Body Material
Polycarbonate
Lens Material
Polycarbonate
Colour
Black (RAL 9005)
Weight
0.96kg
IP Rating
IP54
IK Rating
IK10
Operating Temp
-30° to +50°C
Protection Class
Class II
Certification
SAA, CE
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Lunar Ceiling Button Spec Sheet
pdf
SDoC - Lunar II - 15091
ies
LUN-15-3CT
LUN-15-3CT-W
15W
3000K/4000K/5700K
1410-1500lm
94-100lm/W
120°
>80
>50,000hrs
Fixed Output
SMD LED
<5
AC100-240V / 50-60 Hz
>0.90
<20%
Full specifications
System Wattage
15W
CCT
3000K/4000K/5700K
Lumen Output
1410-1500lm
Luminaire Efficacy
94-100lm/W
Beam Angle
120°
CRI
>80
Lifetime - L70
>50,000hrs
Control
Fixed Output
Light Source
SMD LED
SDCM
<5
Mains Voltage
AC100-240V / 50-60 Hz
Power Factor
>0.90
THD
<20%
Protections
SCP, OTP, OVP
Body Material
Polycarbonate
Lens Material
Polycarbonate
Colour
White (RAL 9016)
Weight
0.96kg
IP Rating
IP54
IK Rating
IK10
Operating Temp
-30° to +50°C
Protection Class
Class II
Certification
SAA, CE
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Lunar Ceiling Button Spec Sheet
pdf
SDoC - Lunar II - 15091
ies
LUN-15-3CT
LUN-25-3CT-B
25W
3000K/4000K/5700K
2370-2600lm
95-104lm/W
120°
>80
>50,000hrs
Fixed Output
SMD LED
<5
AC100-240V / 50-60 Hz
>0.90
<20%
Full specifications
System Wattage
25W
CCT
3000K/4000K/5700K
Lumen Output
2370-2600lm
Luminaire Efficacy
95-104lm/W
Beam Angle
120°
CRI
>80
Lifetime - L70
>50,000hrs
Control
Fixed Output
Light Source
SMD LED
SDCM
<5
Mains Voltage
AC100-240V / 50-60 Hz
Power Factor
>0.90
THD
<20%
Protections
SCP, OTP, OVP
Body Material
Polycarbonate
Lens Material
Polycarbonate
Colour
Black (RAL 9005)
Weight
1.66kg
IP Rating
IP54
IK Rating
IK10
Operating Temp
-30° to +50°C
Protection Class
Class II
Certification
SAA, CE
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Lunar Ceiling Button Spec Sheet
pdf
SDoC - Lunar II - 15091
ies
LUN-25-3CT
LUN-25-3CT-W
25W
3000K/4000K/5700K
2370-2600lm
95-104lm/W
120°
>80
>50,000hrs
Fixed Output
SMD LED
<5
AC100-240V / 50-60 Hz
>0.90
<20%
Full specifications
System Wattage
25W
CCT
3000K/4000K/5700K
Lumen Output
2370-2600lm
Luminaire Efficacy
95-104lm/W
Beam Angle
120°
CRI
>80
Lifetime - L70
>50,000hrs
Control
Fixed Output
Light Source
SMD LED
SDCM
<5
Mains Voltage
AC100-240V / 50-60 Hz
Power Factor
>0.90
THD
<20%
Protections
SCP, OTP, OVP
Body Material
Polycarbonate
Lens Material
Polycarbonate
Colour
White (RAL 9016)
Weight
1.66kg
IP Rating
IP54
IK Rating
IK10
Operating Temp
-30° to +50°C
Protection Class
Class II
Certification
SAA, CE
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
MOQ
-
Downloads
pdf
Evolve Lunar Ceiling Button Spec Sheet
pdf
SDoC - Lunar II - 15091
ies
LUN-25-3CT
Buy this Product

in store

There are 226 retailer locations all across New Zealand.

FIND ONE CLOSE TO YOU
Related Products

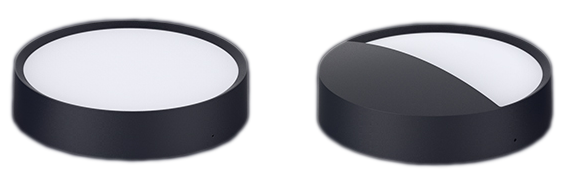

Eclipse
