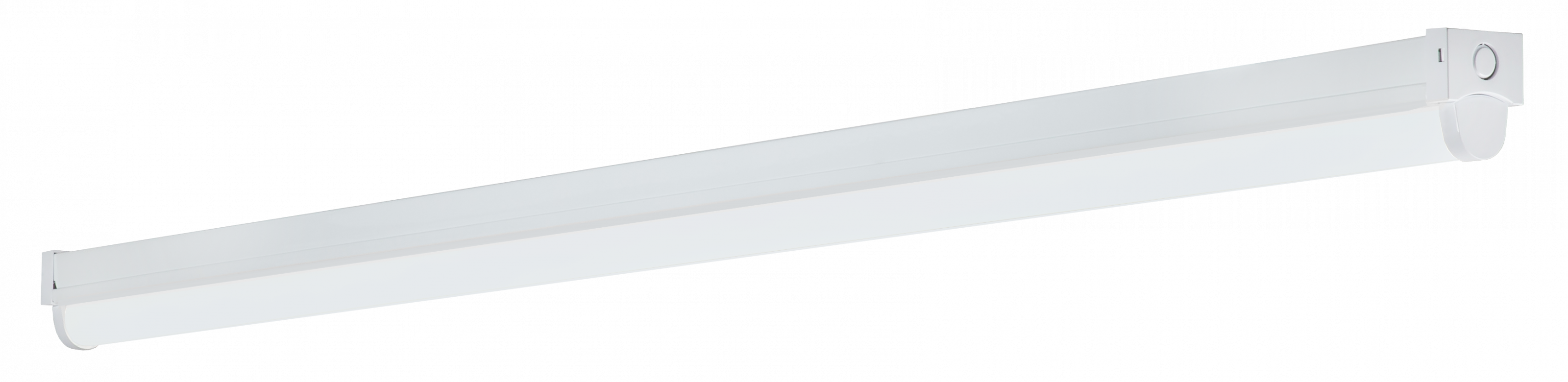

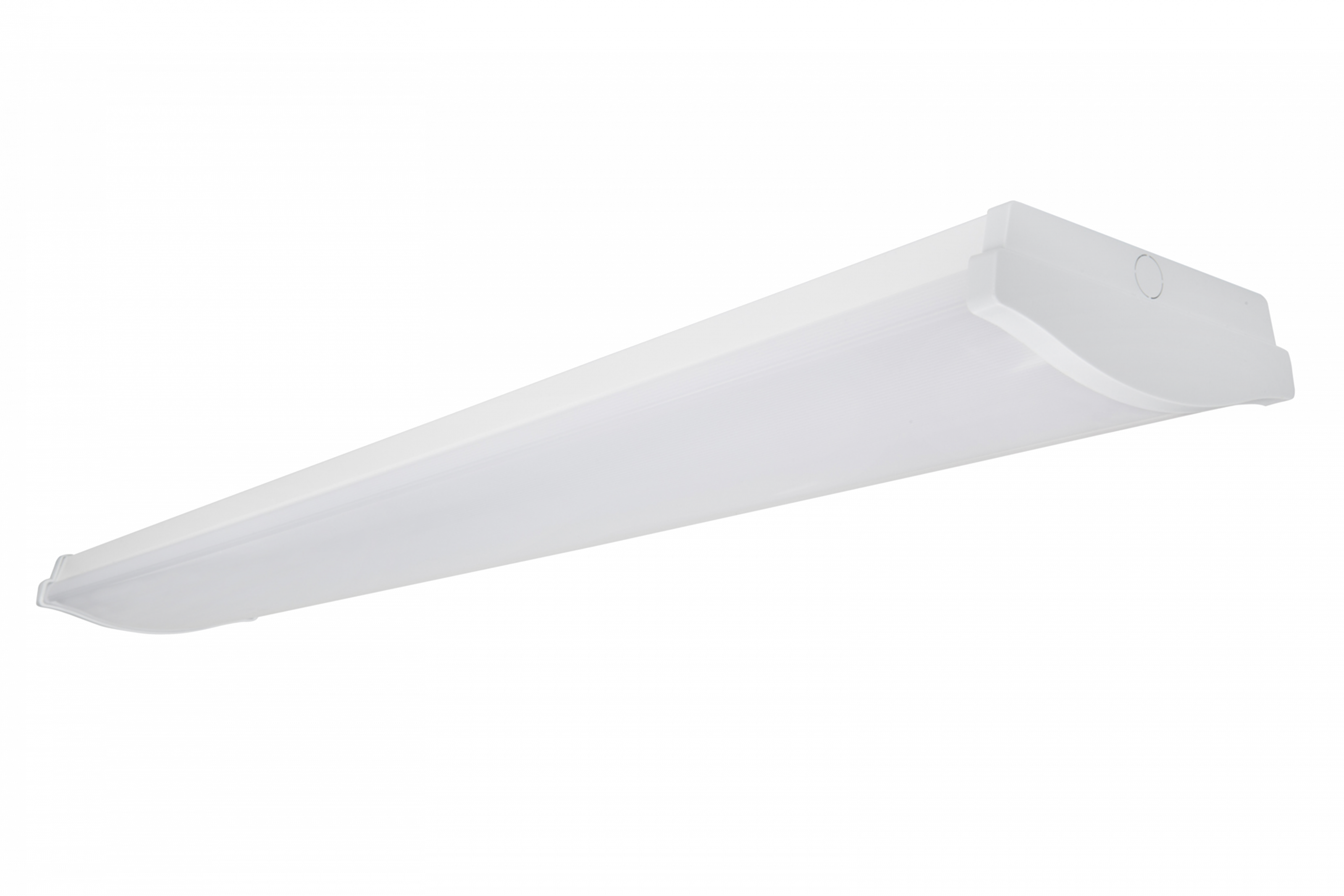

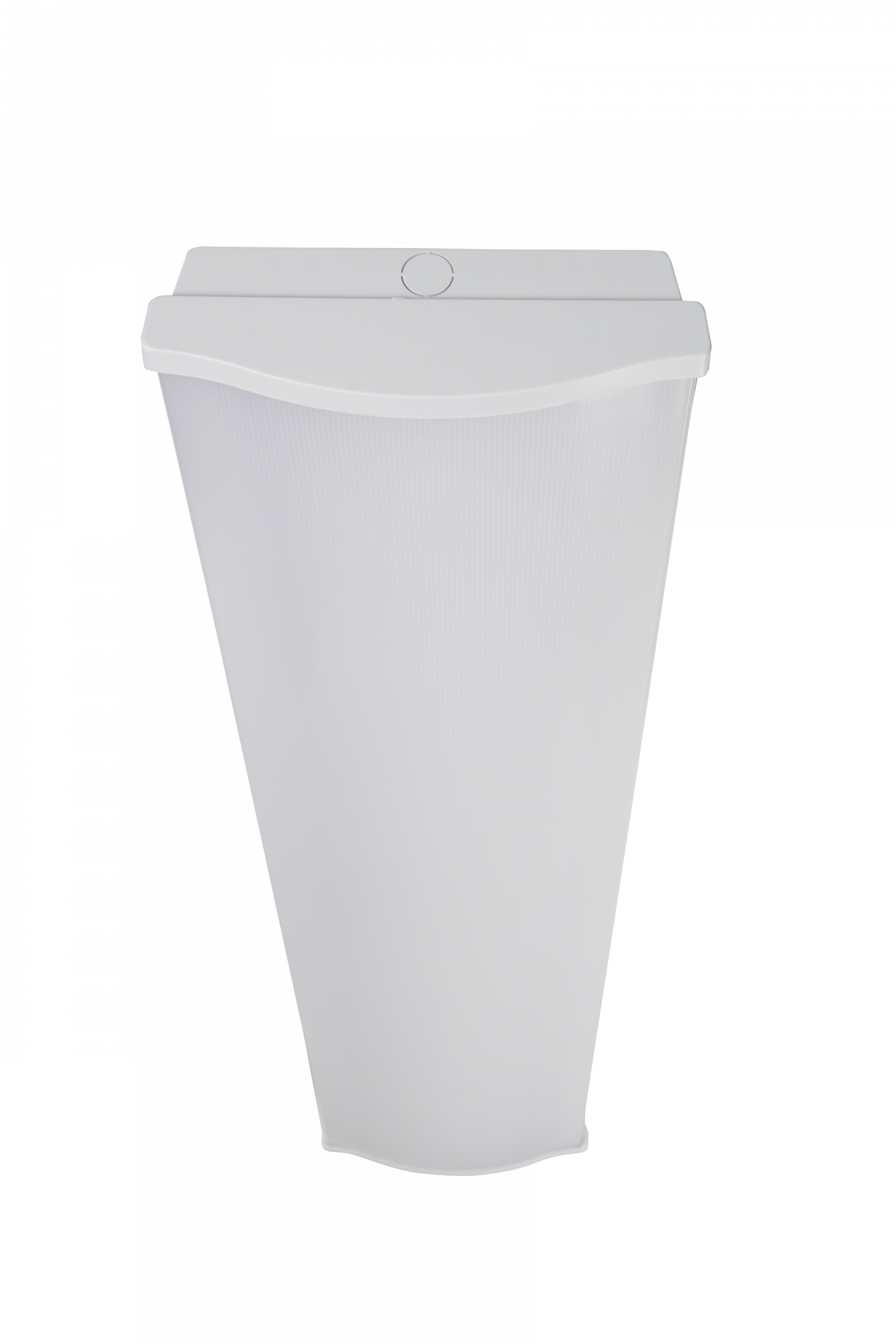

LED Surface Mounted Batten

✓ High-strength polycarbonate diffuser
✓ Ultra-long >60,000 hours life to L70
✓ Up to 110lm/W efficacy
✓ Even light distribution
✓ Available in three sizes
✓ Tridonic driver for reliability

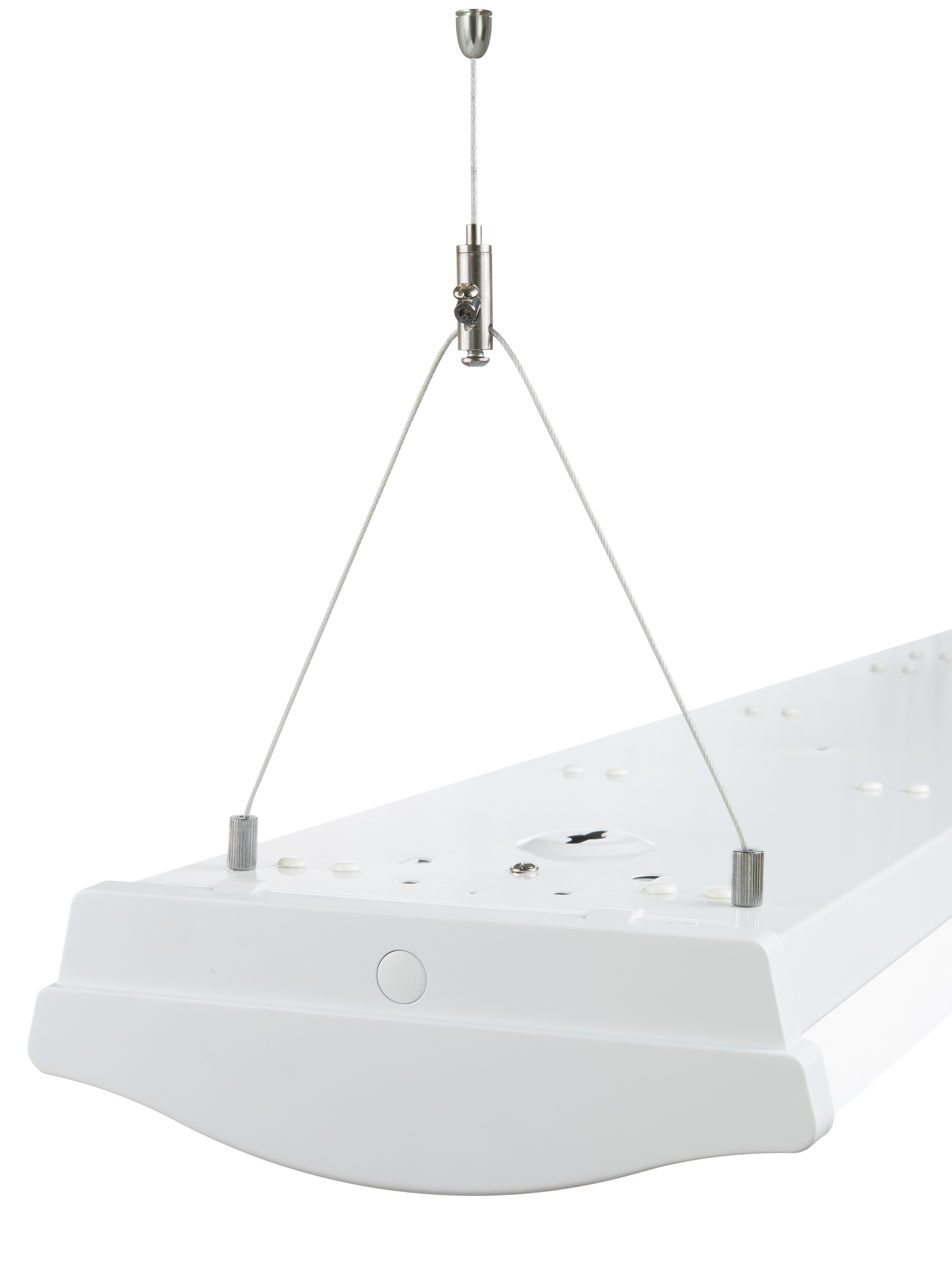

✓ Surface or suspended options
✓ Dimmable options available
✓ Emergency options available

see Detailed specs
UP TO

40%

ENERGY SAVING
UP TO

110lm/W

SYSTEM EFFICACY
LIFETIME OF

60,000+

HOURS TO L70
Graduate in use at

Wanganui Fire Station

DETAILS

Specifications

Filter all product variations
Stocked
Light Colour
Controls
Size
PRODUCT CODE
Size
System Wattage
CCT
Lumen Output
Luminaire Efficacy
Beam Angle
CRI
Lifetime - TM21 L70
Lifetime - TM21 L80
Colour
SDCM
Power Supply
Mains Voltage
GRAD2FT-25-840
2 Foot
25W
4000K
2,750lm
110lm/W
120º
>80
>60,000hrs
50,000hrs
White
<3
Osram QT Fit
220-240V / 50 Hz
Full specifications
Size
2 Foot
System Wattage
25W
CCT
4000K
Lumen Output
2,750lm
Luminaire Efficacy
110lm/W
Beam Angle
120º
CRI
>80
Lifetime - TM21 L70
>60,000hrs
Lifetime - TM21 L80
50,000hrs
Colour
White
SDCM
<3
Power Supply
Osram QT Fit
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.98
THD
<10%
Driver Lifetime
>50,000hrs
Connection
3 core cable
Control
Fixed Output
Body Material
Sheet Steel
Diffuser Material
Polycarbonate
Dimensions
580mm x 212mm x 72mm
IP Rating
IP20
IK Rating
IK06
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Evolve LED Graduate Spec Sheet
pdf
SDoC - Graduate
ies
IES File (GRAD2FT-25-840)
GRAD4FT-45-840
4 Foot
46W
4000K
5,050lm
110lm/W
120º
>80
>60,000hrs
50,000hrs
White
<3
Osram QT Fit
220-240V / 50 Hz
Full specifications
Size
4 Foot
System Wattage
46W
CCT
4000K
Lumen Output
5,050lm
Luminaire Efficacy
110lm/W
Beam Angle
120º
CRI
>80
Lifetime - TM21 L70
>60,000hrs
Lifetime - TM21 L80
50,000hrs
Colour
White
SDCM
<3
Power Supply
Osram QT Fit
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.98
THD
<10%
Driver Lifetime
>50,000hrs
Connection
3 core cable
Control
Fixed Output
Body Material
Sheet Steel
Diffuser Material
Polycarbonate
Dimensions
1161mm x 212mm x 72mm
IP Rating
IP20
IK Rating
IK06
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Driver Spec Sheet OT FIT 50 CS L - IS - v1.3
pdf
Evolve LED Graduate Spec Sheet
pdf
SDoC - Graduate
ies
IES File (GRAD4FT-45-840)
GRAD4FT-45-840-DALI
4 Foot
46W
4000K
5,050lm
110lm/W
120º
>80
>60,000hrs
50,000hrs
White
<3
Osram OTI
220-240V / 50 Hz
Full specifications
Size
4 Foot
System Wattage
46W
CCT
4000K
Lumen Output
5,050lm
Luminaire Efficacy
110lm/W
Beam Angle
120º
CRI
>80
Lifetime - TM21 L70
>60,000hrs
Lifetime - TM21 L80
50,000hrs
Colour
White
SDCM
<3
Power Supply
Osram OTI
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.98
THD
<10%
Driver Lifetime
>50,000hrs
Connection
3 core cable
Control
DALI
Body Material
Sheet Steel
Diffuser Material
Polycarbonate
Dimensions
1161mm x 212mm x 72mm
IP Rating
IP20
IK Rating
IK06
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Evolve LED Graduate Spec Sheet
pdf
SDoC - Graduate
ies
IES File (GRAD4FT-45-840)
GRAD4FT-45-840-SD
4 Foot
46W
4000K
5,050lm
110lm/W
120º
>80
>60,000hrs
50,000hrs
White
<3
Osram OTI
220-240V / 50 Hz
Full specifications
Size
4 Foot
System Wattage
46W
CCT
4000K
Lumen Output
5,050lm
Luminaire Efficacy
110lm/W
Beam Angle
120º
CRI
>80
Lifetime - TM21 L70
>60,000hrs
Lifetime - TM21 L80
50,000hrs
Colour
White
SDCM
<3
Power Supply
Osram OTI
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.98
THD
<10%
Driver Lifetime
>50,000hrs
Connection
3 core cable
Control
SwitchDIM
Body Material
Sheet Steel
Diffuser Material
Polycarbonate
Dimensions
1161mm x 212mm x 72mm
IP Rating
IP20
IK Rating
IK06
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Evolve LED Graduate Spec Sheet
pdf
SDoC - Graduate
ies
IES File (GRAD4FT-45-840)
GRAD4FT-45-860
4 Foot
46W
6000K
5,050lm
110lm/W
120º
>80
>60,000hrs
50,000hrs
White
<3
Osram QT Fit
220-240V / 50 Hz
Full specifications
Size
4 Foot
System Wattage
46W
CCT
6000K
Lumen Output
5,050lm
Luminaire Efficacy
110lm/W
Beam Angle
120º
CRI
>80
Lifetime - TM21 L70
>60,000hrs
Lifetime - TM21 L80
50,000hrs
Colour
White
SDCM
<3
Power Supply
Osram QT Fit
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.98
THD
<10%
Driver Lifetime
>50,000hrs
Connection
3 core cable
Control
Fixed Output
Body Material
Sheet Steel
Diffuser Material
Polycarbonate
Dimensions
1161mm x 212mm x 72mm
IP Rating
IP20
IK Rating
IK06
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Driver Spec Sheet OT FIT 50 CS L - IS - v1.3
pdf
Evolve LED Graduate Spec Sheet
pdf
SDoC - Graduate
ies
IES File (GRAD4FT-45-840)
GRAD5FT-60-840
5 Foot
57W
4000K
6,270lm
110lm/W
120º
>80
>60,000hrs
50,000hrs
White
<3
Osram QT Fit
220-240V / 50 Hz
Full specifications
Size
5 Foot
System Wattage
57W
CCT
4000K
Lumen Output
6,270lm
Luminaire Efficacy
110lm/W
Beam Angle
120º
CRI
>80
Lifetime - TM21 L70
>60,000hrs
Lifetime - TM21 L80
50,000hrs
Colour
White
SDCM
<3
Power Supply
Osram QT Fit
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.98
THD
<10%
Driver Lifetime
>50,000hrs
Connection
3 core cable
Control
Fixed Output
Body Material
Sheet Steel
Diffuser Material
Polycarbonate
Dimensions
1480mm x 212mm x 72mm
IP Rating
IP20
IK Rating
IK06
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Driver Spec Sheet OT FIT 50 CS L - IS - v1.3
pdf
Evolve LED Graduate Spec Sheet
pdf
SDoC - Graduate
ies
IES File (GRAD5FT-60-840)
GRAD5FT-60-840-DALI
5 Foot
57W
4000K
6,270lm
110lm/W
120º
>80
>60,000hrs
50,000hrs
White
<3
Osram OTI
220-240V / 50 Hz
Full specifications
Size
5 Foot
System Wattage
57W
CCT
4000K
Lumen Output
6,270lm
Luminaire Efficacy
110lm/W
Beam Angle
120º
CRI
>80
Lifetime - TM21 L70
>60,000hrs
Lifetime - TM21 L80
50,000hrs
Colour
White
SDCM
<3
Power Supply
Osram OTI
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.98
THD
<10%
Driver Lifetime
>50,000hrs
Connection
3 core cable
Control
DALI
Body Material
Sheet Steel
Diffuser Material
Polycarbonate
Dimensions
1480mm x 212mm x 72mm
IP Rating
IP20
IK Rating
IK06
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Evolve LED Graduate Spec Sheet
pdf
SDoC - Graduate
ies
IES File (GRAD5FT-60-840)
GRAD5FT-60-840-SD
5 Foot
57W
4000K
6,270lm
110lm/W
120º
>80
>60,000hrs
50,000hrs
White
<3
Osram OTI
220-240V / 50 Hz
Full specifications
Size
5 Foot
System Wattage
57W
CCT
4000K
Lumen Output
6,270lm
Luminaire Efficacy
110lm/W
Beam Angle
120º
CRI
>80
Lifetime - TM21 L70
>60,000hrs
Lifetime - TM21 L80
50,000hrs
Colour
White
SDCM
<3
Power Supply
Osram OTI
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.98
THD
<10%
Driver Lifetime
>50,000hrs
Connection
3 core cable
Control
SwitchDIM
Body Material
Sheet Steel
Diffuser Material
Polycarbonate
Dimensions
1480mm x 212mm x 72mm
IP Rating
IP20
IK Rating
IK06
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Evolve LED Graduate Spec Sheet
pdf
SDoC - Graduate
ies
IES File (GRAD5FT-60-840)
GRAD5FT-60-860
5 Foot
57W
6000K
6,270lm
110lm/W
120º
>80
>60,000hrs
50,000hrs
White
<3
Osram QT Fit
220-240V / 50 Hz
Full specifications
Size
5 Foot
System Wattage
57W
CCT
6000K
Lumen Output
6,270lm
Luminaire Efficacy
110lm/W
Beam Angle
120º
CRI
>80
Lifetime - TM21 L70
>60,000hrs
Lifetime - TM21 L80
50,000hrs
Colour
White
SDCM
<3
Power Supply
Osram QT Fit
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.98
THD
<10%
Driver Lifetime
>50,000hrs
Connection
3 core cable
Control
Fixed Output
Body Material
Sheet Steel
Diffuser Material
Polycarbonate
Dimensions
1480mm x 212mm x 72mm
IP Rating
IP20
IK Rating
IK06
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Driver Spec Sheet OT FIT 50 CS L - IS - v1.3
pdf
Evolve LED Graduate Spec Sheet
pdf
SDoC - Graduate
ies
IES File (GRAD5FT-60-840)
GRAD5FT-80-840
5 Foot
78W
4000K
8,548lm
110lm/W
120º
>80
>60,000hrs
50,000hrs
White
<3
Osram QT Fit
220-240V / 50 Hz
Full specifications
Size
5 Foot
System Wattage
78W
CCT
4000K
Lumen Output
8,548lm
Luminaire Efficacy
110lm/W
Beam Angle
120º
CRI
>80
Lifetime - TM21 L70
>60,000hrs
Lifetime - TM21 L80
50,000hrs
Colour
White
SDCM
<3
Power Supply
Osram QT Fit
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.98
THD
<10%
Driver Lifetime
>50,000hrs
Connection
3 core cable
Control
Fixed Output
Body Material
Sheet Steel
Diffuser Material
Polycarbonate
Dimensions
1480mm x 212mm x 72mm
IP Rating
IP20
IK Rating
IK06
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Driver Spec Sheet OT FIT 80 1A6 CS L - TDS v1 7
pdf
Evolve LED Graduate Spec Sheet
pdf
SDoC - Graduate
ies
IES File (GRAD5FT-80-840)
Show 8 moreShow all 18 product variants

Suspension Kit

LENGTH
1.5m
MATERIAL
Stainless Steel
ADJUSTABLE
YES
STOCKED
YES
CODE:
LEDGRADSUS
Accessories
Buy this Product

in store

There are 226 retailer locations all across New Zealand.

FIND ONE CLOSE TO YOU
Related Products

Base Batten

High Performance LED Batten
Contact us
FacebookInstagramLinkedInTwitter
Privacy StatementWarranties
Copyright Evolve Lighting 2018
Made by BSD & FFF
