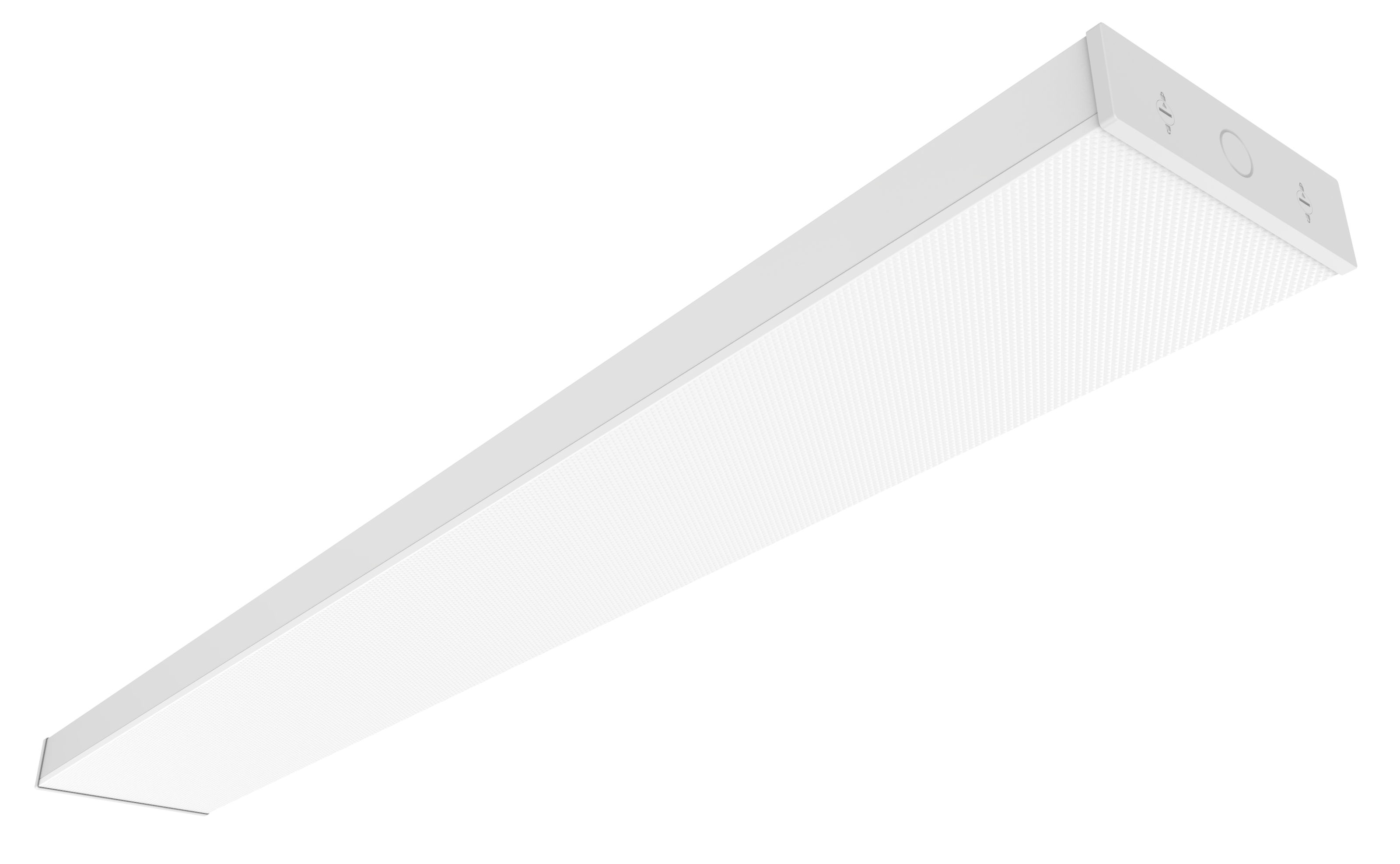

LED LOW GLARE BATTEN

✓ Compliant with MoE(Ministry of Education) specification
✓ Tridonic driver for reliability
✓ Multi Wattage Driver
✓ Low glare diffuser for excellent visual comfort
✓ CRI>93 & R9>60 for excellent colour rendering
✓ Optional uplight accessory for 70%/30% split
✓ High system efficacy of up to 136lm/W
✓ Flicker Free
✓ Wide 90° beam angle for improved uniformity
✓ Easy lock end caps
✓ Dimmable options include DALI-2 and Casambi control

see Detailed specs
LOW

<19UGR

GLARE RATING
HIGH

>93CRI

COLOUR RENDERING
EXCELLENT

>60R9

VALUE
LONG

>60,000HRS

LIFETIME
Feature

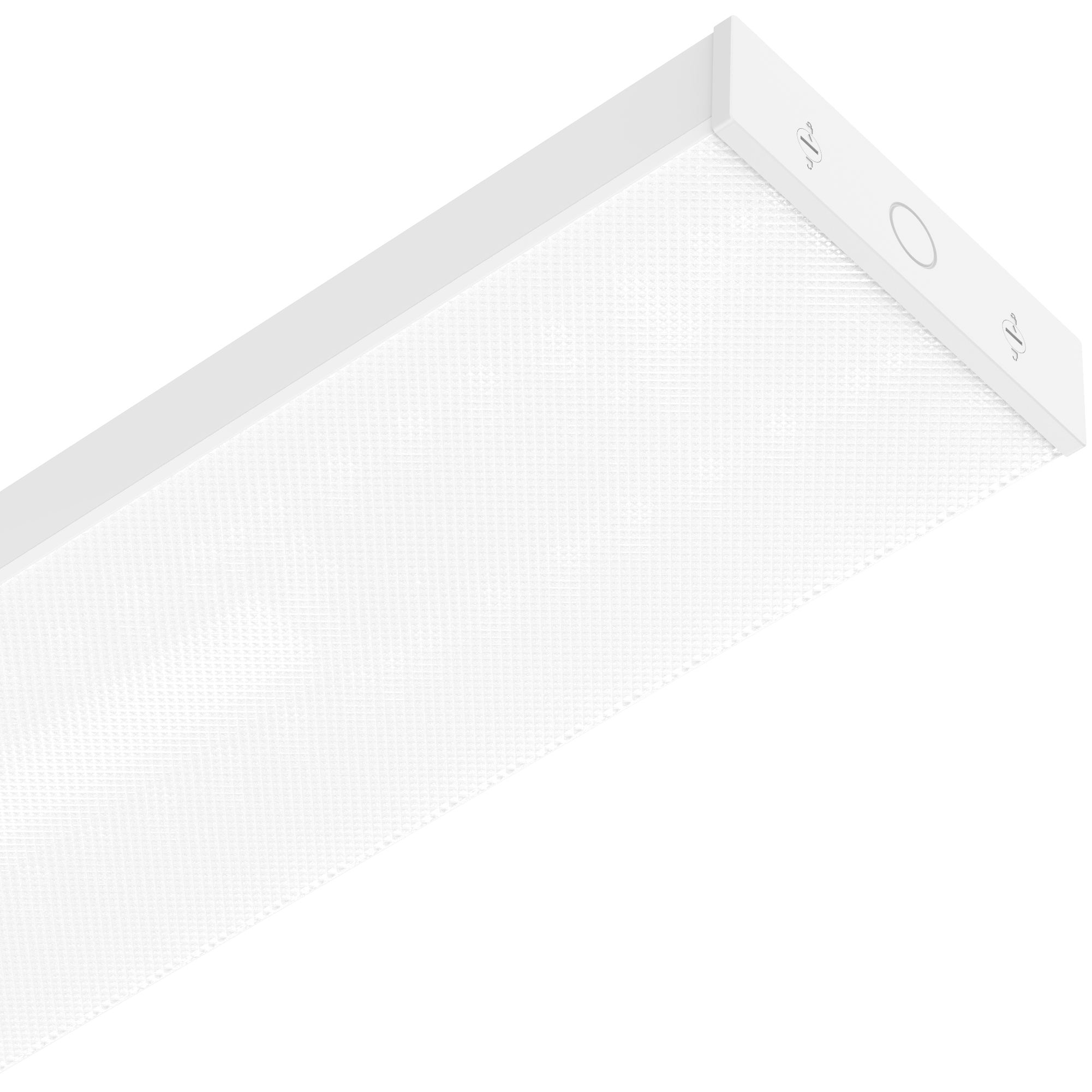

Easy Lock End Caps

Our easy-lock end caps secure the diffuser in place for peace of mind and are spring-loaded for easy installation.
Feature

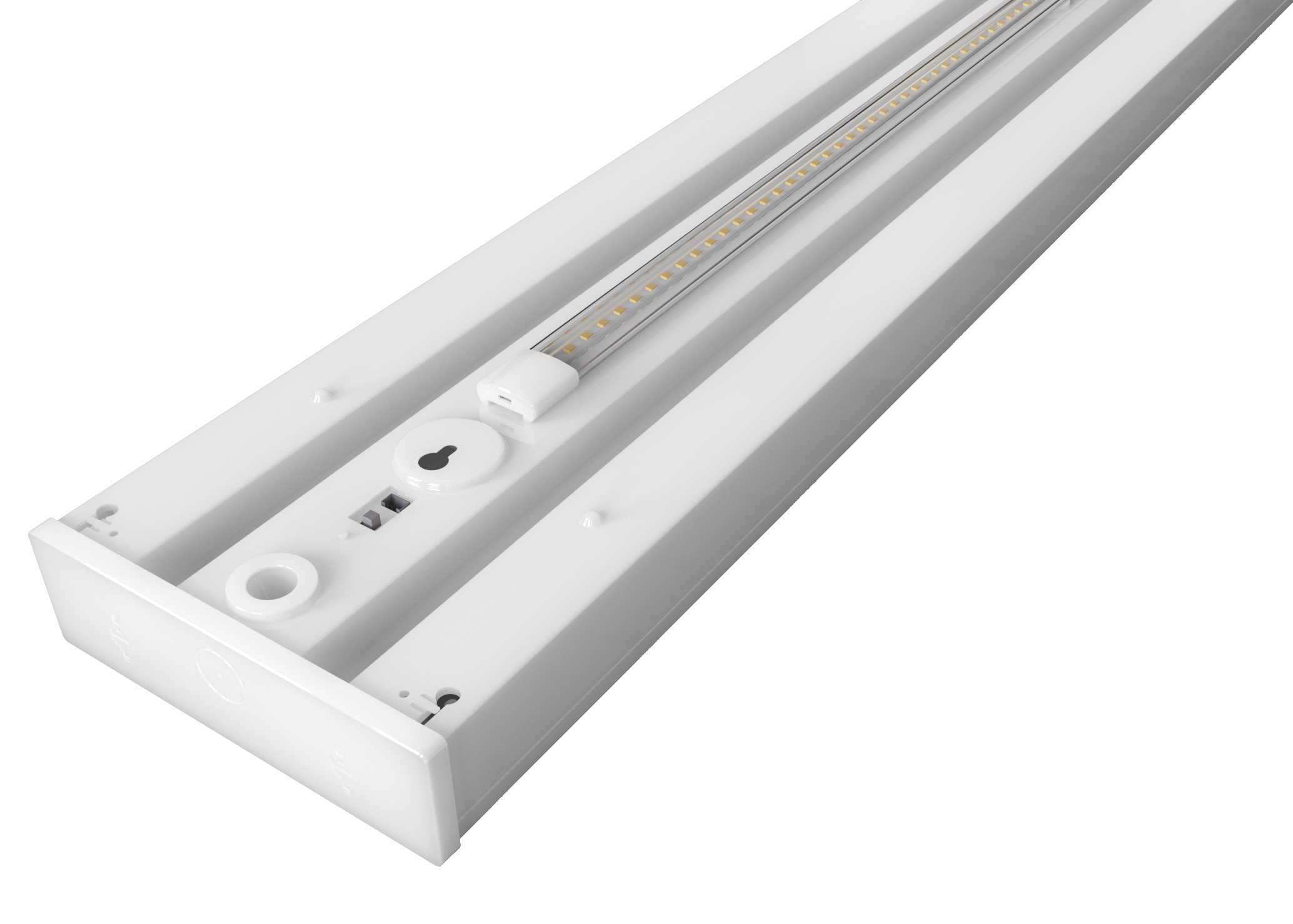

Uplight Accessory

Our optional uplight accessory helps eliminate the cave effect when suspending luminaires, creating a more comfortable space to work in. COMING SOON

Comfortable Lighting for Working and Learning Environments

The excellent colour quality of CRI 93 / R9 of 60 and UGR<19 the Excel complies with the DQLS and WELL Building Standards for healthy, comfortable working and learning environments.

Specifications

Filter all product variations
Stocked
Size
Controls
PRODUCT CODE
Description
Size
Default Wattage
Default Lumen Output
Luminaire Efficacy
UGR Rating
Beam Angle
CCT
CRI
R9 Value
Lifetime - TM21 L80
Colour
SDCM
EXCEL4FT-29-940-CA
LED Excel 4 foot with Casambi wireless control
4 Foot
29W
3,451lm
119lm/W
<19
90º
4000K
>93
>60
>60,000hrs
White
<3
Full specifications
Description
LED Excel 4 foot with Casambi wireless control
Size
4 Foot
Default Wattage
29W
Default Lumen Output
3,451lm
Luminaire Efficacy
119lm/W
UGR Rating
<19
Beam Angle
90º
CCT
4000K
CRI
>93
R9 Value
>60
Lifetime - TM21 L80
>60,000hrs
Colour
White
SDCM
<3
Flicker Free
Yes (PstLM <1 / SVM <0.4)
Power Supply
Tridonic
Full Wattage Range
23W/29W/34W/40W
Full Lumen output Range
2,812lm/3,451lm/4,119lm/4,752lm
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.95
THD
<10%
Driver Lifetime
<100,000hrs
Connection
3 core cable
Control
Casambi
Body Material
Sheet Steel
Diffuser Material
PMMA
Dimensions
1200mm x 162mm x 49.5mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
no
Lead Time
5 days depending on quantity
Downloads
pdf
Evolve A5 Excel Installation Sheet
pdf
Evolve Excel Low Glare Batten Spec Sheet
zip
Excel 4 Foot ies Files
EXCEL4FT-29-940-DA
LED Excel 4 foot with DALI-2 dimming
4 Foot
29W
3,451lm
119lm/W
<19
90º
4000K
>93
>60
>60,000hrs
White
<3
Full specifications
Description
LED Excel 4 foot with DALI-2 dimming
Size
4 Foot
Default Wattage
29W
Default Lumen Output
3,451lm
Luminaire Efficacy
119lm/W
UGR Rating
<19
Beam Angle
90º
CCT
4000K
CRI
>93
R9 Value
>60
Lifetime - TM21 L80
>60,000hrs
Colour
White
SDCM
<3
Flicker Free
Yes (PstLM <1 / SVM <0.4)
Power Supply
Tridonic
Full Wattage Range
23W/29W/34W/40W
Full Lumen output Range
2,812lm/3,451lm/4,119lm/4,752lm
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.95
THD
<10%
Driver Lifetime
<100,000hrs
Connection
5 core cable
Control
DALI-2
Body Material
Sheet Steel
Diffuser Material
PMMA
Dimensions
1200mm x 162mm x 49.5mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
no
Lead Time
5 days depending on quantity
Downloads
pdf
Evolve A5 Excel Installation Sheet
pdf
Evolve Excel Low Glare Batten Spec Sheet
zip
Excel 4 Foot ies Files
EXCEL4FT-29-940-SD
LED Excel 4 foot with SwitchDIM dimming
4 Foot
29W
3,451lm
119lm/W
<19
90º
4000K
>93
>60
>60,000hrs
White
<3
Full specifications
Description
LED Excel 4 foot with SwitchDIM dimming
Size
4 Foot
Default Wattage
29W
Default Lumen Output
3,451lm
Luminaire Efficacy
119lm/W
UGR Rating
<19
Beam Angle
90º
CCT
4000K
CRI
>93
R9 Value
>60
Lifetime - TM21 L80
>60,000hrs
Colour
White
SDCM
<3
Flicker Free
Yes (PstLM <1 / SVM <0.4)
Power Supply
Tridonic
Full Wattage Range
23W/29W/34W/40W
Full Lumen output Range
2,812lm/3,451lm/4,119lm/4,752lm
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.95
THD
<10%
Driver Lifetime
<100,000hrs
Connection
4 core cable
Control
SwitchDIM
Body Material
Sheet Steel
Diffuser Material
PMMA
Dimensions
1200mm x 162mm x 49.5mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
no
Lead Time
5 days depending on quantity
Downloads
pdf
Evolve A5 Excel Installation Sheet
pdf
Evolve Excel Low Glare Batten Spec Sheet
zip
Excel 4 Foot ies Files
EXCEL5FT-34-940-CA
LED Excel 5 foot with Casambi wireless control
5 Foot
34W
4,632lm
136lm/W
<19
90º
4000K
>93
>60
>60,000hrs
White
<3
Full specifications
Description
LED Excel 5 foot with Casambi wireless control
Size
5 Foot
Default Wattage
34W
Default Lumen Output
4,632lm
Luminaire Efficacy
136lm/W
UGR Rating
<19
Beam Angle
90º
CCT
4000K
CRI
>93
R9 Value
>60
Lifetime - TM21 L80
>60,000hrs
Colour
White
SDCM
<3
Flicker Free
Yes (PstLM <1 / SVM <0.4)
Power Supply
Tridonic
Full Wattage Range
34W/43W/52W/60W
Full Lumen output Range
4,632lm/5,724lm/6,730lm/7,812lm
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.95
THD
<10%
Driver Lifetime
<100,000hrs
Connection
3 core cable
Control
Casambi
Body Material
Sheet Steel
Diffuser Material
PMMA
Dimensions
1500mm x 162mm x 49.5mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
no
Lead Time
5 days depending on quantity
Downloads
pdf
Evolve A5 Excel Installation Sheet
pdf
Evolve Excel Low Glare Batten Spec Sheet
zip
Excel 5 Foot ies Files
EXCEL5FT-34-940-DA
LED Excel 5 foot with DALI-2 dimming
5 Foot
34W
4,632lm
136lm/W
<19
90º
4000K
>93
>60
>60,000hrs
White
<3
Full specifications
Description
LED Excel 5 foot with DALI-2 dimming
Size
5 Foot
Default Wattage
34W
Default Lumen Output
4,632lm
Luminaire Efficacy
136lm/W
UGR Rating
<19
Beam Angle
90º
CCT
4000K
CRI
>93
R9 Value
>60
Lifetime - TM21 L80
>60,000hrs
Colour
White
SDCM
<3
Flicker Free
Yes (PstLM <1 / SVM <0.4)
Power Supply
Tridonic
Full Wattage Range
34W/43W/52W/60W
Full Lumen output Range
4,632lm/5,724lm/6,730lm/7,812lm
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.95
THD
<10%
Driver Lifetime
<100,000hrs
Connection
5 core cable
Control
DALI-2
Body Material
Sheet Steel
Diffuser Material
PMMA
Dimensions
1500mm x 162mm x 49.5mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
no
Lead Time
5 days depending on quantity
Downloads
pdf
Evolve A5 Excel Installation Sheet
pdf
Evolve Excel Low Glare Batten Spec Sheet
zip
Excel 5 Foot ies Files
EXCEL5FT-34-940-SD
LED Excel 5 foot with SwitchDIM dimming
5 Foot
34W
4,632lm
136lm/W
<19
90º
4000K
>93
>60
>60,000hrs
White
<3
Full specifications
Description
LED Excel 5 foot with SwitchDIM dimming
Size
5 Foot
Default Wattage
34W
Default Lumen Output
4,632lm
Luminaire Efficacy
136lm/W
UGR Rating
<19
Beam Angle
90º
CCT
4000K
CRI
>93
R9 Value
>60
Lifetime - TM21 L80
>60,000hrs
Colour
White
SDCM
<3
Flicker Free
Yes (PstLM <1 / SVM <0.4)
Power Supply
Tridonic
Full Wattage Range
34W/43W/52W/60W
Full Lumen output Range
4,632lm/5,724lm/6,730lm/7,812lm
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.95
THD
<10%
Driver Lifetime
<100,000hrs
Connection
4 core cable
Control
SwitchDIM
Body Material
Sheet Steel
Diffuser Material
PMMA
Dimensions
1500mm x 162mm x 49.5mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
no
Lead Time
5 days depending on quantity
Downloads
pdf
Evolve A5 Excel Installation Sheet
pdf
Evolve Excel Low Glare Batten Spec Sheet
zip
Excel 5 Foot ies Files
EXCEL4FT-29-940
LED Excel 4 foot
4 Foot
29W
3,451lm
119lm/W
<19
90º
4000K
>93
>60
>60,000hrs
White
<3
Full specifications
Description
LED Excel 4 foot
Size
4 Foot
Default Wattage
29W
Default Lumen Output
3,451lm
Luminaire Efficacy
119lm/W
UGR Rating
<19
Beam Angle
90º
CCT
4000K
CRI
>93
R9 Value
>60
Lifetime - TM21 L80
>60,000hrs
Colour
White
SDCM
<3
Flicker Free
Yes (PstLM <1 / SVM <0.4)
Power Supply
Tridonic
Full Wattage Range
23W/29W/34W/40W
Full Lumen output Range
2,812lm/3,451lm/4,119lm/4,752lm
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.95
THD
<10%
Driver Lifetime
>50,000hrs
Connection
3 core cable
Control
Fixed Output
Body Material
Sheet Steel
Diffuser Material
PMMA
Dimensions
1200mm x 162mm x 49.5mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Evolve A5 Excel Installation Sheet
pdf
Evolve Excel Low Glare Batten Spec Sheet
zip
Excel 4 Foot ies Files
EXCEL5FT-34-940
LED Excel 5 foot
5 Foot
34W
4,632lm
136lm/W
<19
90º
4000K
>93
>60
>60,000hrs
White
<3
Full specifications
Description
LED Excel 5 foot
Size
5 Foot
Default Wattage
34W
Default Lumen Output
4,632lm
Luminaire Efficacy
136lm/W
UGR Rating
<19
Beam Angle
90º
CCT
4000K
CRI
>93
R9 Value
>60
Lifetime - TM21 L80
>60,000hrs
Colour
White
SDCM
<3
Flicker Free
Yes (PstLM <1 / SVM <0.4)
Power Supply
Tridonic
Full Wattage Range
34W/43W/52W/60W
Full Lumen output Range
4,632lm/5,724lm/6,730lm/7,812lm
Mains Voltage
220-240V / 50 Hz
Power Factor
>0.95
THD
<10%
Driver Lifetime
>50,000hrs
Connection
3 core cable
Control
Fixed Output
Body Material
Sheet Steel
Diffuser Material
PMMA
Dimensions
1500mm x 162mm x 49.5mm
IP Rating
IP40
IK Rating
IK04
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Certification
LM-79, TM-21
Warranty
5 Year product replacement
Stocked
Yes
Lead Time
-
Downloads
pdf
Evolve A5 Excel Installation Sheet
pdf
Evolve Excel Low Glare Batten Spec Sheet
zip
Excel 5 Foot ies Files

Uplight Strip (Code: EXCEL-UPLIGHT)

Distribution
70%(down), 30% (up)
Beam Angle
140°
Installation
Plugs in the back of the luminaire
Stocked
Coming soon
Accessories
Buy this Product

in store

There are 226 retailer locations all across New Zealand.

FIND ONE CLOSE TO YOU
Contact us
FacebookInstagramLinkedInTwitter
Privacy StatementWarranties
Copyright Evolve Lighting 2018
Made by BSD & FFF
