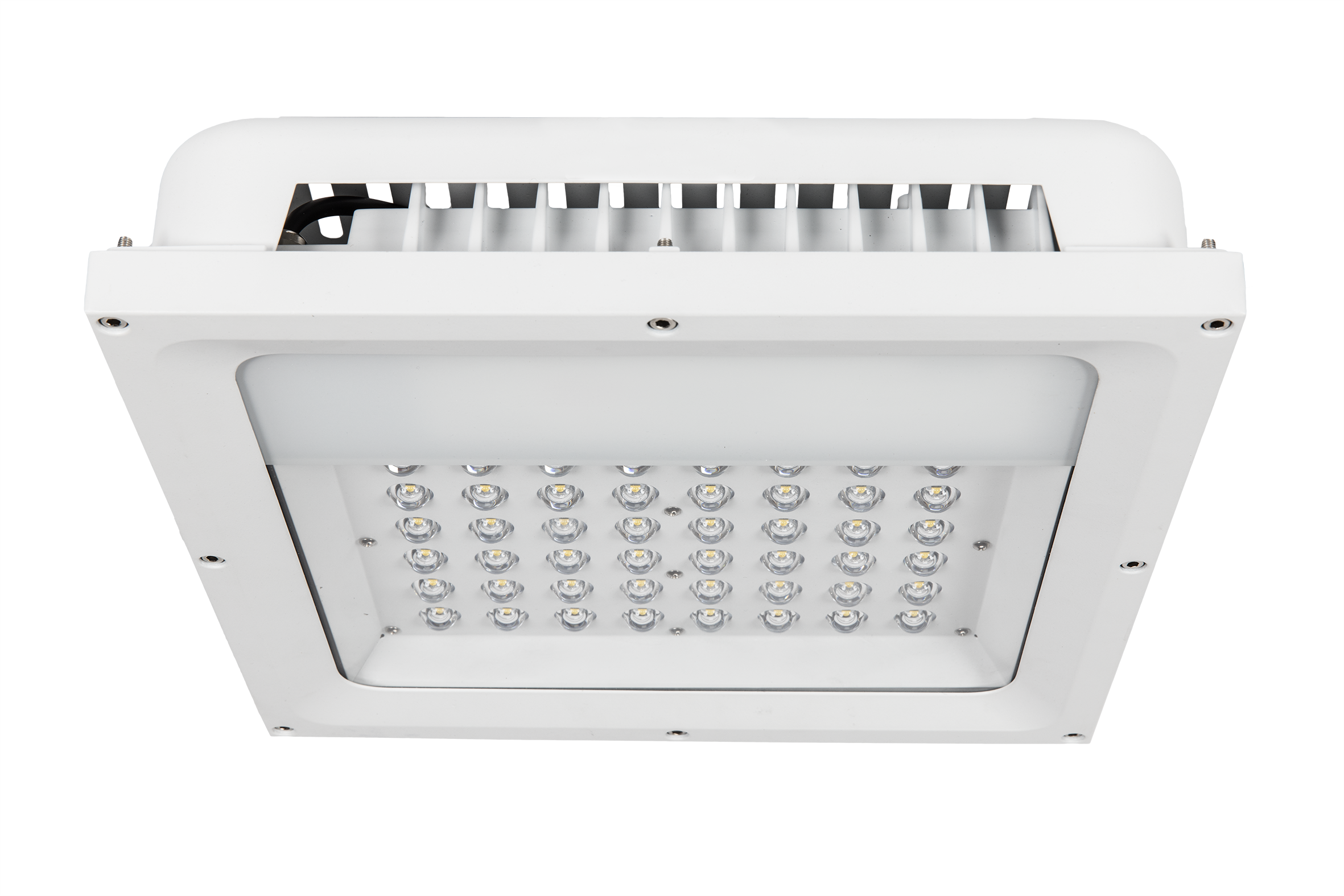

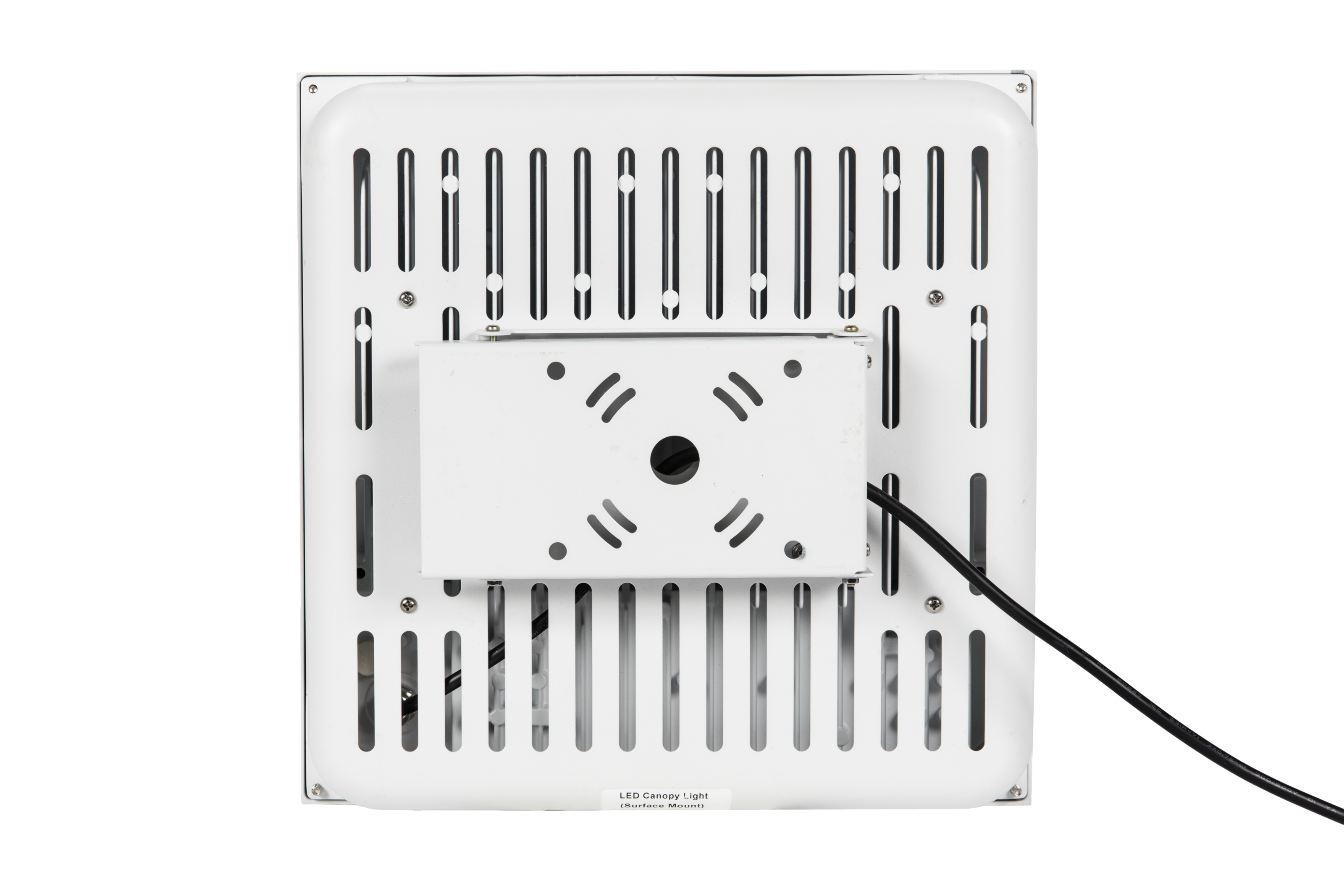

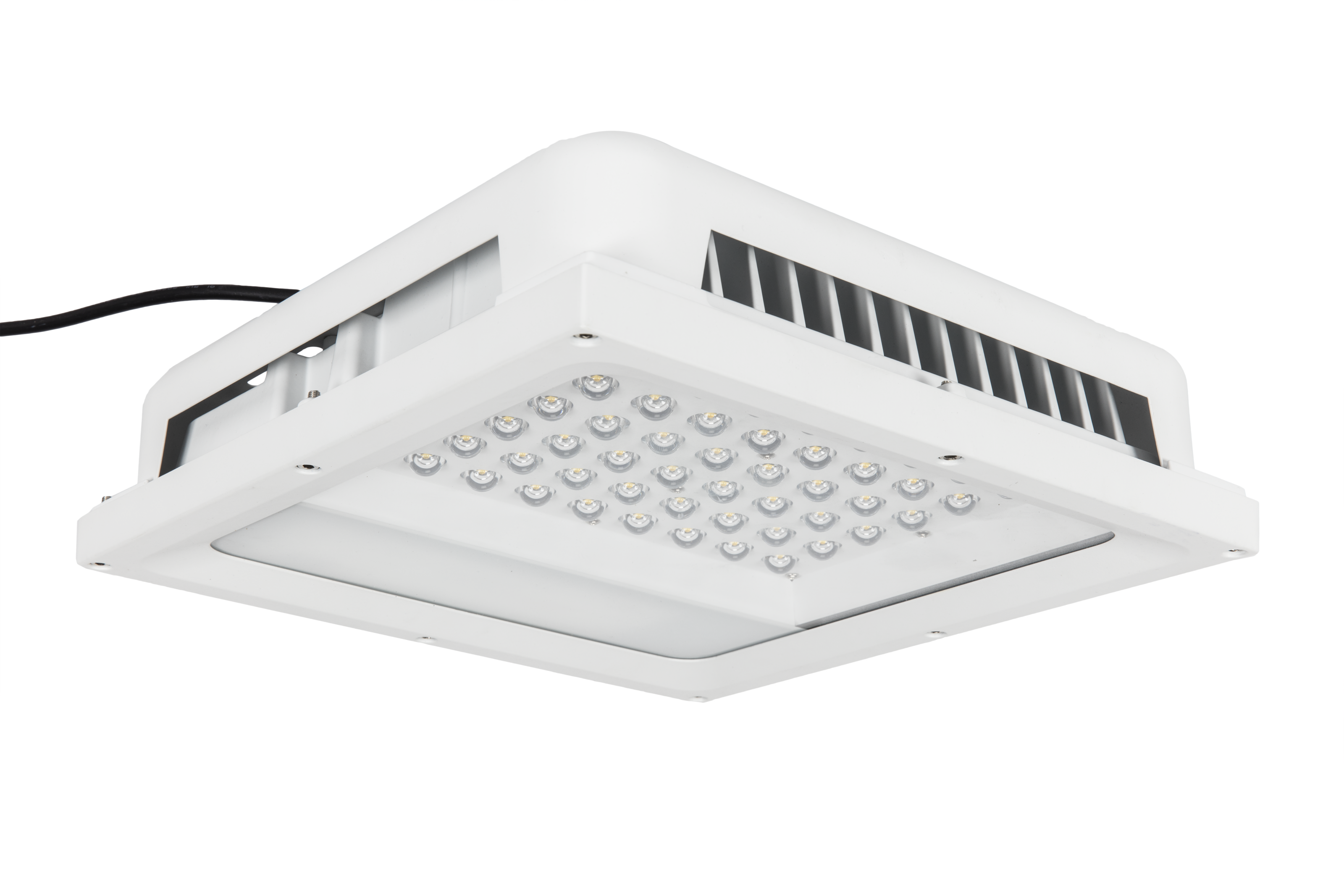

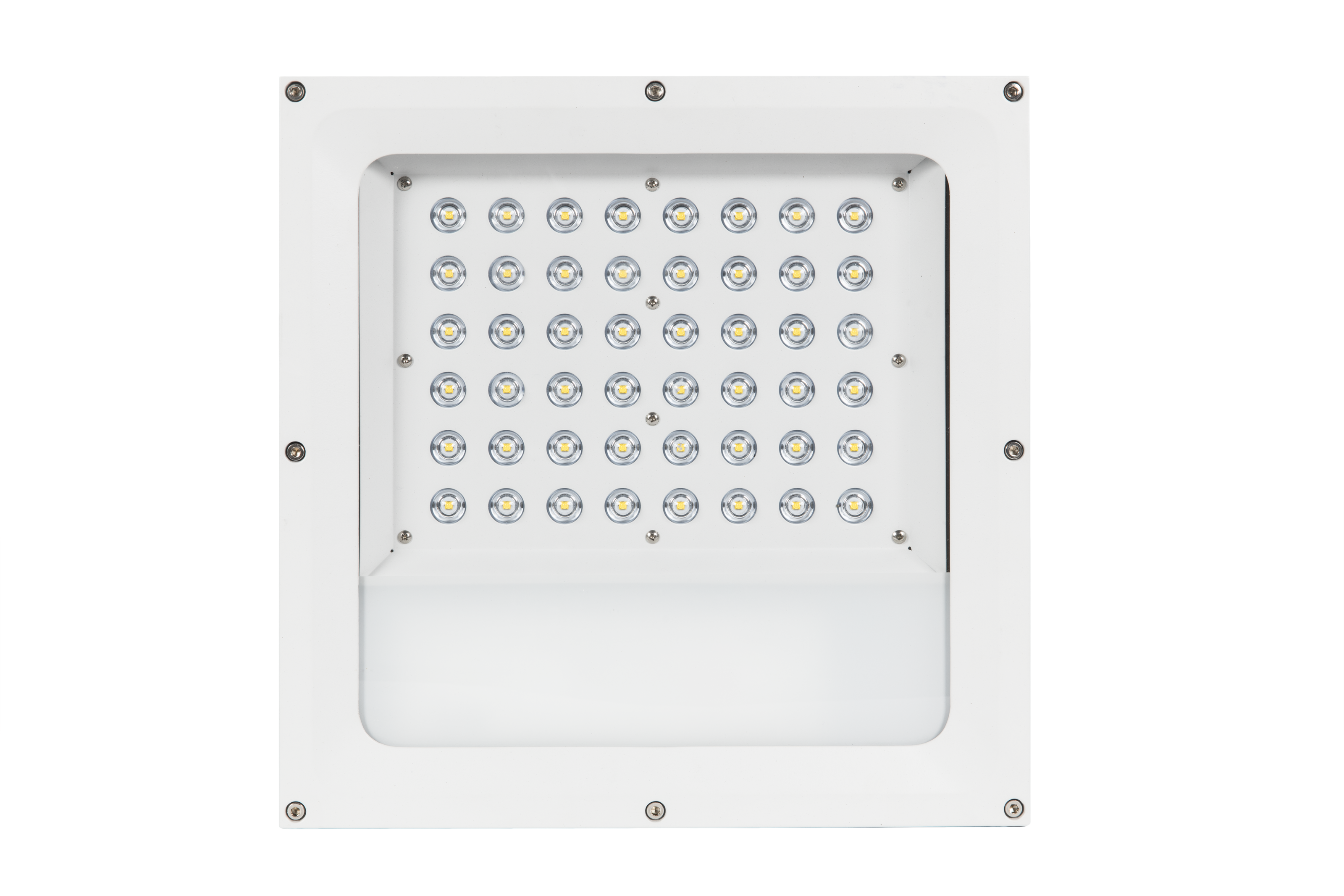

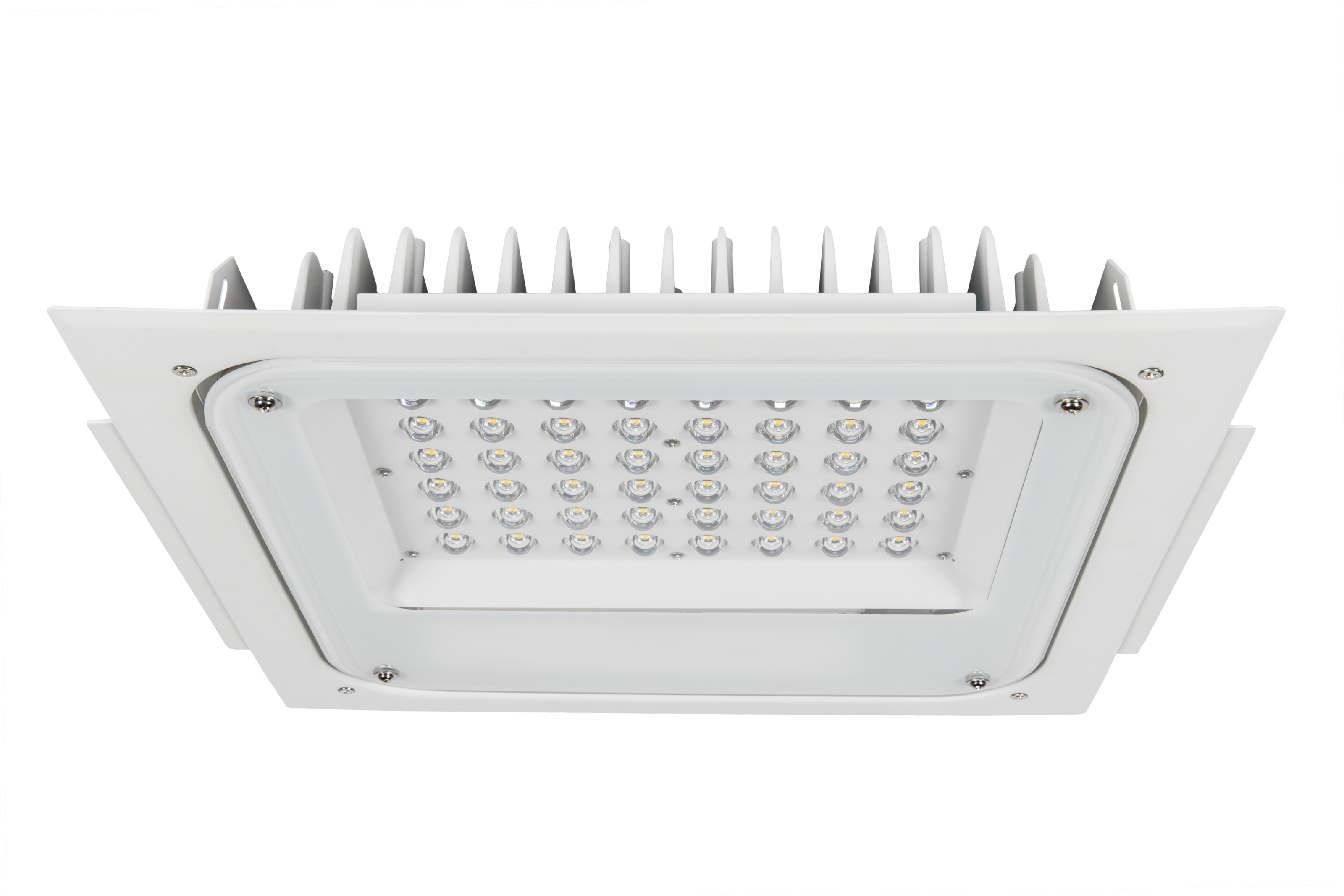

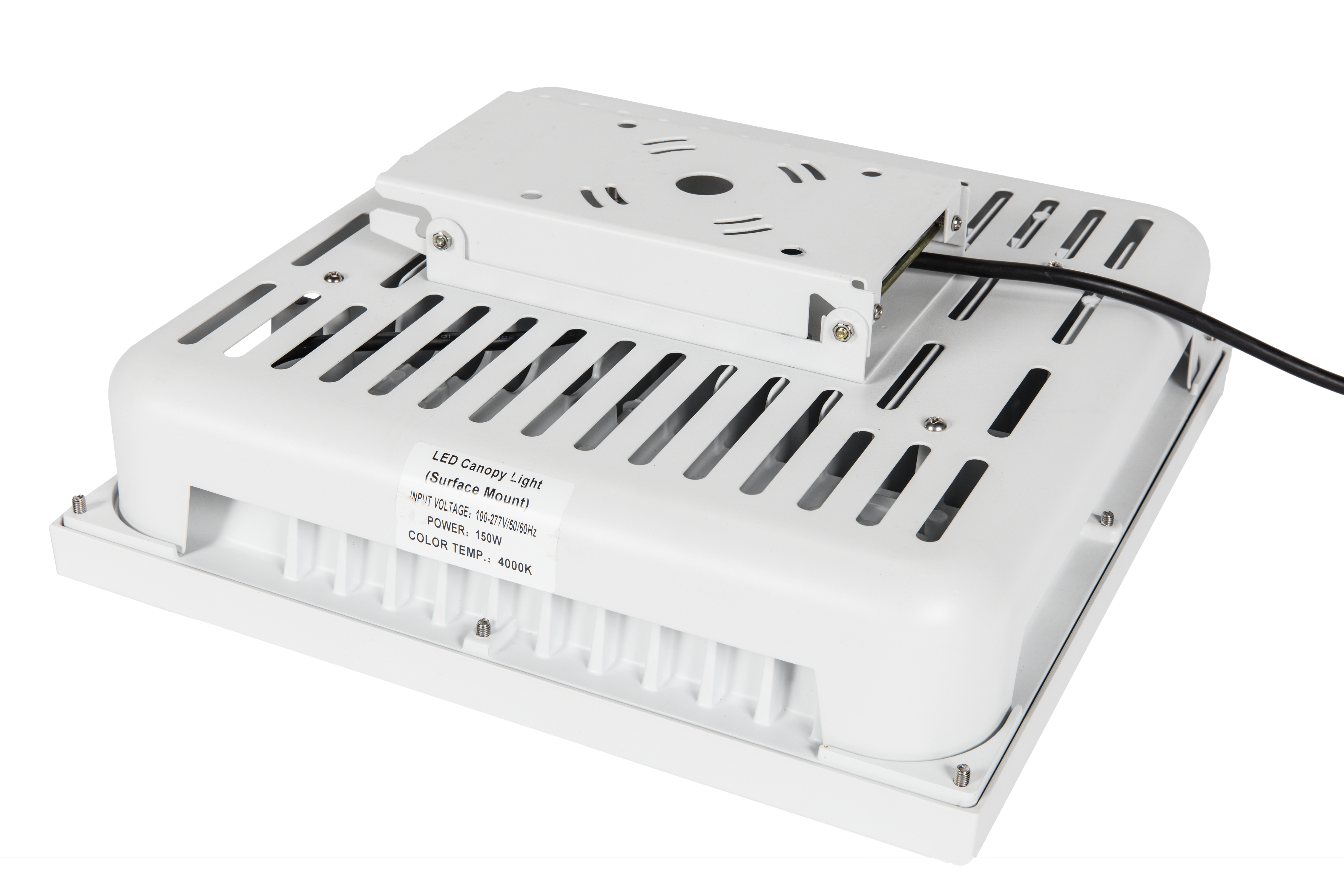

Canopy Surface

LED Surface Mounted Low Bay

✓ High output Cree XTE LED Chip
✓ Long lasting, >50,000 hours life to L70
✓ Mean Well Control gear
✓ 50% energy savings over traditional fittings

see Detailed specs

Specifications

Filter all product variations
Light Colour
Controls
LED Power
PRODUCT CODE
System Wattage
CCT
Lumen Output
Luminaire Efficacy
Beam Angle
CRI
Lifetime - TM21 L70
Dimensions
Control
Light Source
SDCM
Power Supply
Mains Voltage
CAN100SUR CW
100W
4000K
11,000lm
110lm/W
114º
>70
>50,000hrs
355mm x 355mm x 90mm
Fixed Output
Cree XTE
<3
Mean Well ELG-100
220-240V
Full specifications
System Wattage
100W
CCT
4000K
Lumen Output
11,000lm
Luminaire Efficacy
110lm/W
Beam Angle
114º
CRI
>70
Lifetime - TM21 L70
>50,000hrs
Dimensions
355mm x 355mm x 90mm
Control
Fixed Output
Light Source
Cree XTE
SDCM
<3
Power Supply
Mean Well ELG-100
Mains Voltage
220-240V
Power Factor
>0.97
THD
<20%
Inrush Current
65A
Driver Lifetime
>50,000hrs
Connection
0.5M Flex + IP67 Rated Connector
Body Material
Aluminium
Lens Material
Toughened Glass
Finish
Outdoor Powder Coated
Colour
White
Weight
8kg
IP Rating
IP65
IK Rating
IK08
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
yes
Lead Time
-
MOQ
-
Downloads
pdf
LED Canopy Surface Spec Sheet
ies
IES FIle (CAN100)
pdf
SDoC - Canopy Lights
pdf
Driver Spec Sheet (Mean Well ELG-100)
CAN100SUR CW 0-10V
100W
4000K
11,000lm
110lm/W
114º
>70
>50,000hrs
355mm x 355mm x 90mm
0-10V
Cree XTE
<3
Mean Well ELG-100
220-240V
Full specifications
System Wattage
100W
CCT
4000K
Lumen Output
11,000lm
Luminaire Efficacy
110lm/W
Beam Angle
114º
CRI
>70
Lifetime - TM21 L70
>50,000hrs
Dimensions
355mm x 355mm x 90mm
Control
0-10V
Light Source
Cree XTE
SDCM
<3
Power Supply
Mean Well ELG-100
Mains Voltage
220-240V
Power Factor
>0.97
THD
<20%
Inrush Current
65A
Driver Lifetime
>50,000hrs
Connection
0.5M Flex + IP67 Rated Connector
Body Material
Aluminium
Lens Material
Toughened Glass
Finish
Outdoor Powder Coated
Colour
White
Weight
8kg
IP Rating
IP65
IK Rating
IK08
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
yes
Lead Time
-
MOQ
-
Downloads
pdf
LED Canopy Surface Spec Sheet
ies
IES FIle (CAN100)
pdf
SDoC - Canopy Lights
pdf
Driver Spec Sheet (Mean Well ELG-100)
CAN100SUR CW DALI
100W
4000K
11,000lm
110lm/W
114º
>70
>50,000hrs
355mm x 355mm x 90mm
DALI
Cree XTE
<3
Mean Well ELG-100
220-240V
Full specifications
System Wattage
100W
CCT
4000K
Lumen Output
11,000lm
Luminaire Efficacy
110lm/W
Beam Angle
114º
CRI
>70
Lifetime - TM21 L70
>50,000hrs
Dimensions
355mm x 355mm x 90mm
Control
DALI
Light Source
Cree XTE
SDCM
<3
Power Supply
Mean Well ELG-100
Mains Voltage
220-240V
Power Factor
>0.97
THD
<20%
Inrush Current
65A
Driver Lifetime
>50,000hrs
Connection
0.5M Flex + IP67 Rated Connector
Body Material
Aluminium
Lens Material
Toughened Glass
Finish
Outdoor Powder Coated
Colour
White
Weight
8kg
IP Rating
IP65
IK Rating
IK08
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
yes
Lead Time
-
MOQ
-
Downloads
pdf
LED Canopy Surface Spec Sheet
ies
IES FIle (CAN100)
pdf
SDoC - Canopy Lights
pdf
Driver Spec Sheet (Mean Well ELG-100)
CAN150SUR CW
150W
4000K
16,500lm
110lm/W
114º
>70
>50,000hrs
355mm x 355mm x 90mm
Fixed Output
Cree XTE
<3
Mean Well ELG-150
220-240V
Full specifications
System Wattage
150W
CCT
4000K
Lumen Output
16,500lm
Luminaire Efficacy
110lm/W
Beam Angle
114º
CRI
>70
Lifetime - TM21 L70
>50,000hrs
Dimensions
355mm x 355mm x 90mm
Control
Fixed Output
Light Source
Cree XTE
SDCM
<3
Power Supply
Mean Well ELG-150
Mains Voltage
220-240V
Power Factor
>0.97
THD
<20%
Inrush Current
65A
Driver Lifetime
>50,000hrs
Connection
0.5M Flex + IP67 Rated Connector
Body Material
Aluminium
Lens Material
Toughened Glass
Finish
Outdoor Powder Coated
Colour
White
Weight
8kg
IP Rating
IP65
IK Rating
IK08
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
yes
Lead Time
-
MOQ
-
Downloads
pdf
LED Canopy Surface Spec Sheet
ies
IES FIle (CAN150)
pdf
SDoC - Canopy Lights
pdf
Driver Spec Sheet (Mean Well ELG-150)
CAN150SUR CW 0-10V
150W
4000K
16,500lm
110lm/W
114º
>70
>50,000hrs
355mm x 355mm x 90mm
0-10V
Cree XTE
<3
Mean Well ELG-150
220-240V
Full specifications
System Wattage
150W
CCT
4000K
Lumen Output
16,500lm
Luminaire Efficacy
110lm/W
Beam Angle
114º
CRI
>70
Lifetime - TM21 L70
>50,000hrs
Dimensions
355mm x 355mm x 90mm
Control
0-10V
Light Source
Cree XTE
SDCM
<3
Power Supply
Mean Well ELG-150
Mains Voltage
220-240V
Power Factor
>0.97
THD
<20%
Inrush Current
65A
Driver Lifetime
>50,000hrs
Connection
0.5M Flex + IP67 Rated Connector
Body Material
Aluminium
Lens Material
Toughened Glass
Finish
Outdoor Powder Coated
Colour
White
Weight
8kg
IP Rating
IP65
IK Rating
IK08
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
yes
Lead Time
-
MOQ
-
Downloads
pdf
LED Canopy Surface Spec Sheet
ies
IES FIle (CAN150)
pdf
SDoC - Canopy Lights
pdf
Driver Spec Sheet (Mean Well ELG-150)
CAN150SUR CW DALI
150W
4000K
16,500lm
110lm/W
114º
>70
>50,000hrs
355mm x 355mm x 90mm
DALI
Cree XTE
<3
Mean Well ELG-150
220-240V
Full specifications
System Wattage
150W
CCT
4000K
Lumen Output
16,500lm
Luminaire Efficacy
110lm/W
Beam Angle
114º
CRI
>70
Lifetime - TM21 L70
>50,000hrs
Dimensions
355mm x 355mm x 90mm
Control
DALI
Light Source
Cree XTE
SDCM
<3
Power Supply
Mean Well ELG-150
Mains Voltage
220-240V
Power Factor
>0.97
THD
<20%
Inrush Current
65A
Driver Lifetime
>50,000hrs
Connection
0.5M Flex + IP67 Rated Connector
Body Material
Aluminium
Lens Material
Toughened Glass
Finish
Outdoor Powder Coated
Colour
White
Weight
8kg
IP Rating
IP65
IK Rating
IK08
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
yes
Lead Time
-
MOQ
-
Downloads
pdf
LED Canopy Surface Spec Sheet
ies
IES FIle (CAN150)
pdf
SDoC - Canopy Lights
pdf
Driver Spec Sheet (Mean Well ELG-150)
CAN100SUR NW
100W
5000K
11,000lm
110lm/W
114º
>70
>50,000hrs
355mm x 355mm x 90mm
Fixed Output
Cree XTE
<3
Mean Well ELG-100
220-240V
Full specifications
System Wattage
100W
CCT
5000K
Lumen Output
11,000lm
Luminaire Efficacy
110lm/W
Beam Angle
114º
CRI
>70
Lifetime - TM21 L70
>50,000hrs
Dimensions
355mm x 355mm x 90mm
Control
Fixed Output
Light Source
Cree XTE
SDCM
<3
Power Supply
Mean Well ELG-100
Mains Voltage
220-240V
Power Factor
>0.97
THD
<20%
Inrush Current
65A
Driver Lifetime
>50,000hrs
Connection
0.5M Flex + IP67 Rated Connector
Body Material
Aluminium
Lens Material
Toughened Glass
Finish
Outdoor Powder Coated
Colour
White
Weight
8kg
IP Rating
IP65
IK Rating
IK08
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
No
Lead Time
8-10 weeks
MOQ
10
Downloads
pdf
LED Canopy Surface Spec Sheet
ies
IES FIle (CAN100)
pdf
SDoC - Canopy Lights
pdf
Driver Spec Sheet (Mean Well ELG-100)
CAN100SUR NW 0-10V
100W
5000K
11,000lm
110lm/W
114º
>70
>50,000hrs
355mm x 355mm x 90mm
0-10V
Cree XTE
<3
Mean Well ELG-100
220-240V
Full specifications
System Wattage
100W
CCT
5000K
Lumen Output
11,000lm
Luminaire Efficacy
110lm/W
Beam Angle
114º
CRI
>70
Lifetime - TM21 L70
>50,000hrs
Dimensions
355mm x 355mm x 90mm
Control
0-10V
Light Source
Cree XTE
SDCM
<3
Power Supply
Mean Well ELG-100
Mains Voltage
220-240V
Power Factor
>0.97
THD
<20%
Inrush Current
65A
Driver Lifetime
>50,000hrs
Connection
0.5M Flex + IP67 Rated Connector
Body Material
Aluminium
Lens Material
Toughened Glass
Finish
Outdoor Powder Coated
Colour
White
Weight
8kg
IP Rating
IP65
IK Rating
IK08
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
No
Lead Time
8-10 weeks
MOQ
10
Downloads
pdf
LED Canopy Surface Spec Sheet
ies
IES FIle (CAN100)
pdf
SDoC - Canopy Lights
pdf
Driver Spec Sheet (Mean Well ELG-100)
CAN100SUR NW DALI
100W
5000K
11,000lm
110lm/W
114º
>70
>50,000hrs
355mm x 355mm x 90mm
DALI
Cree XTE
<3
Mean Well ELG-100
220-240V
Full specifications
System Wattage
100W
CCT
5000K
Lumen Output
11,000lm
Luminaire Efficacy
110lm/W
Beam Angle
114º
CRI
>70
Lifetime - TM21 L70
>50,000hrs
Dimensions
355mm x 355mm x 90mm
Control
DALI
Light Source
Cree XTE
SDCM
<3
Power Supply
Mean Well ELG-100
Mains Voltage
220-240V
Power Factor
>0.97
THD
<20%
Inrush Current
65A
Driver Lifetime
>50,000hrs
Connection
0.5M Flex + IP67 Rated Connector
Body Material
Aluminium
Lens Material
Toughened Glass
Finish
Outdoor Powder Coated
Colour
White
Weight
8kg
IP Rating
IP65
IK Rating
IK08
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
No
Lead Time
8-10 weeks
MOQ
10
Downloads
pdf
LED Canopy Surface Spec Sheet
ies
IES FIle (CAN100)
pdf
SDoC - Canopy Lights
pdf
Driver Spec Sheet (Mean Well ELG-100)
CAN150SUR NW
150W
5000K
16,500lm
110lm/W
114º
>70
>50,000hrs
355mm x 355mm x 90mm
Fixed Output
Cree XTE
<3
Mean Well ELG-150
220-240V
Full specifications
System Wattage
150W
CCT
5000K
Lumen Output
16,500lm
Luminaire Efficacy
110lm/W
Beam Angle
114º
CRI
>70
Lifetime - TM21 L70
>50,000hrs
Dimensions
355mm x 355mm x 90mm
Control
Fixed Output
Light Source
Cree XTE
SDCM
<3
Power Supply
Mean Well ELG-150
Mains Voltage
220-240V
Power Factor
>0.97
THD
<20%
Inrush Current
65A
Driver Lifetime
>50,000hrs
Connection
0.5M Flex + IP67 Rated Connector
Body Material
Aluminium
Lens Material
Toughened Glass
Finish
Outdoor Powder Coated
Colour
White
Weight
8kg
IP Rating
IP65
IK Rating
IK08
Operating Temp
-20º to +45ºC
Protection Class
Class 1
Warranty
5 Year product replacement
Stocked
No
Lead Time
8-10 weeks
MOQ
10
Downloads
pdf
LED Canopy Surface Spec Sheet
ies
IES FIle (CAN150)
pdf
SDoC - Canopy Lights
pdf
Driver Spec Sheet (Mean Well ELG-150)
Show 2 moreShow all 12 product variants
Buy this Product

in store

There are 226 retailer locations all across New Zealand.

FIND ONE CLOSE TO YOU
Related Products

Canopy Recessed

LED Recessed Low Bay
Contact us
FacebookInstagramLinkedInTwitter
Privacy StatementWarranties
Copyright Evolve Lighting 2018
Made by BSD & FFF
