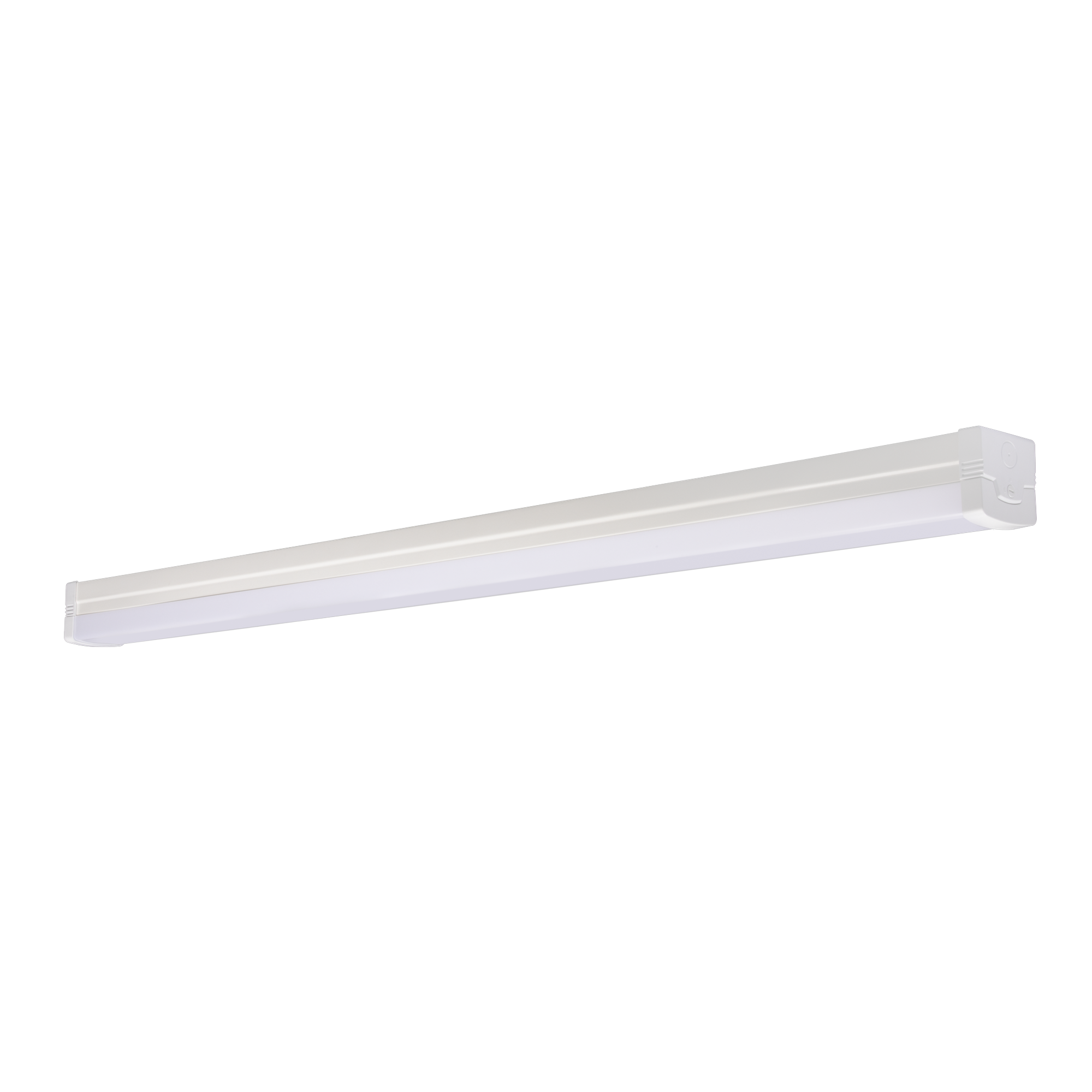

Boxy

LED High Output Batten

✓ High output up to 7,000lm @ 50W
✓ Long >50,000 hours life
✓ Very high efficacy of 140lm/W
✓ Flexible with 3CCT Selectable (4000K / 5000K / 6000K)
✓ Flicker Free
✓ Fast install with:

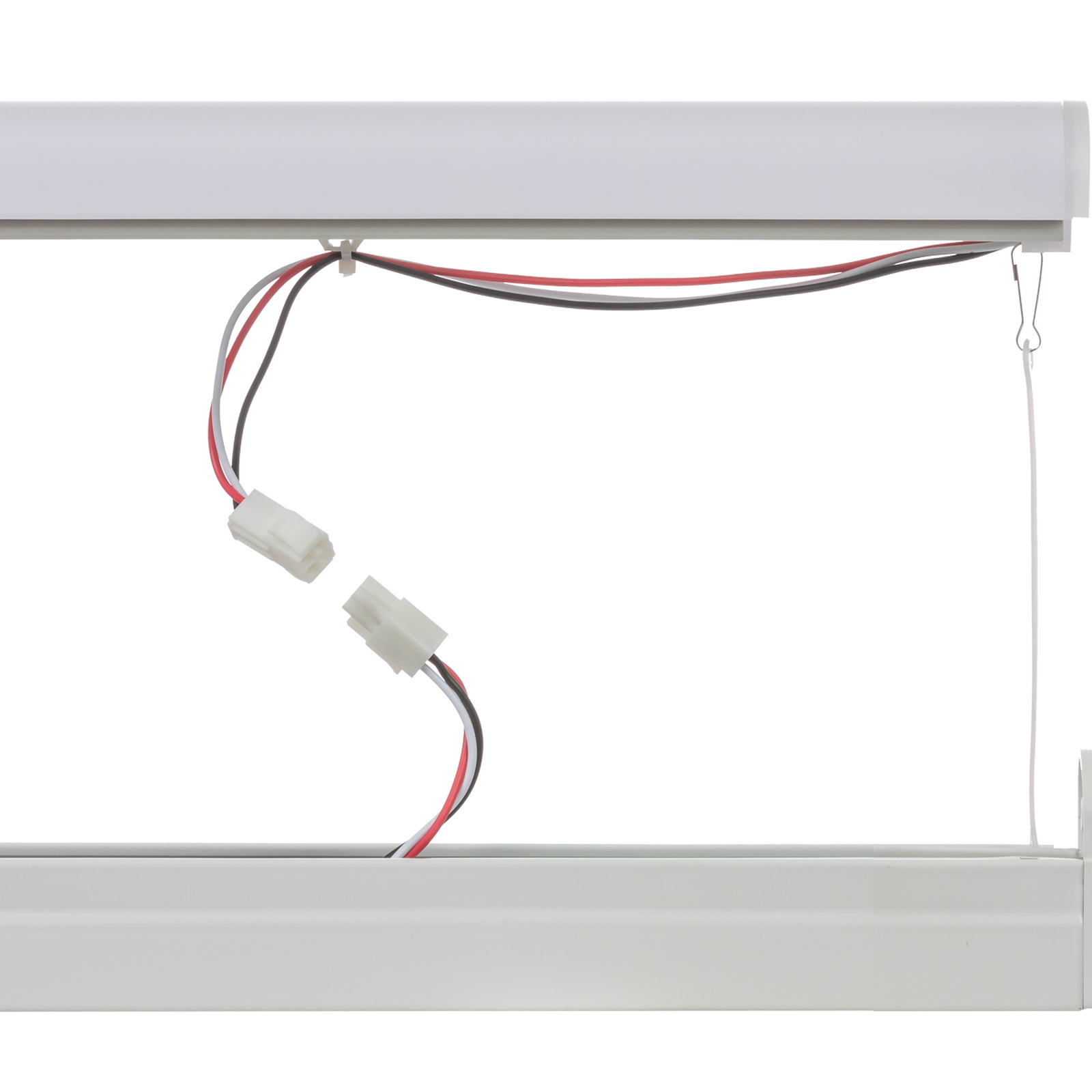

– Quick release gear tray
– Push to fit diffuser

see Detailed specs
High

7,000lm

OUTPUT
Very high

140lm/W

SYSTEM EFFICACY
Long

>50,000hrs

LIFETIME TO L70
Robust

IK08

IMPACT RATING

Specifications

Filter all product variations
Size
Wattage
BOXY1200-40-8456
40W
22W/28W/34W/40W
40W
5,600lm
140lm/W
120°
25
4000K/5000K/6000K
>80
<4
Yes (PstLM <1 / SVM <0.4)
>50,000hrs (B10)
SMD LED
Full specifications
Default Wattage
40W
Wattage Options
22W/28W/34W/40W
System Wattage
40W
Lumen Output
5,600lm
Luminaire Efficacy
140lm/W
Beam Angle
120°
UGR
25
CCT
4000K/5000K/6000K
CRI
>80
SDCM
<4
Flicker Free
Yes (PstLM <1 / SVM <0.4)
Lifetime - TM21 L70
>50,000hrs (B10)
Light Source
SMD LED
Power Supply
Lifud LED driver
Mains Voltage
220-240VAC / 50-60Hz
Power Factor
>0.95
THD
<10%
Inrush Current
32A
Driver Lifetime
>50,000hrs
Surge Protection
L-N: 1kV / L-PE: 2kV
Connection
20mm cable entry, 3-pole terminal block
Control
Wattage Select, CCT Switch
Body Material
Steel
Diffuser Material
Polycarbonate
Colour
White
Dimensions
1203 x 68 x 66mm
Weight
1.6kg
Mounting Options
Surface/Suspended
IP Rating
IP20
IK Rating
IK08
Operating Temp
-20° to +45°C
Protection Class
Class 1
Certification
SAA
Test Reports
AS/NZS 60598 (GMA-514283)
Warranty
5 Year product replacement
Downloads
ies
BOXY1200-40-8456-set-to-22W-4000K
ies
BOXY1200-40-8456-set-to-28W-4000K
ies
BOXY1200-40-8456-set-to-34W-4000K
ies
BOXY1200-40-8456-set-to-40W-4000K
pdf
Evolve-Boxy-Batten-Spec-Sheet
pdf
Evolve-Boxy-Batten-SDoC-15103
pdf
Evolve-Boxy-Batten-Installation-Sheet
BOXY1500-50-8456
50W
28W/35W/42W/50W
50W
7,000lm
140lm/W
120°
25
4000K/5000K/6000K
>80
<4
Yes (PstLM <1 / SVM <0.4)
>50,000hrs (B10)
SMD LED
Full specifications
Default Wattage
50W
Wattage Options
28W/35W/42W/50W
System Wattage
50W
Lumen Output
7,000lm
Luminaire Efficacy
140lm/W
Beam Angle
120°
UGR
25
CCT
4000K/5000K/6000K
CRI
>80
SDCM
<4
Flicker Free
Yes (PstLM <1 / SVM <0.4)
Lifetime - TM21 L70
>50,000hrs (B10)
Light Source
SMD LED
Power Supply
Lifud LED driver
Mains Voltage
220-240VAC / 50-60Hz
Power Factor
>0.95
THD
<10%
Inrush Current
45A
Driver Lifetime
>50,000hrs
Surge Protection
L-N: 1kV / L-PE: 2kV
Connection
20mm cable entry, 3-pole terminal block
Control
Wattage Select, CCT Switch
Body Material
Steel
Diffuser Material
Polycarbonate
Colour
White
Dimensions
1503 x 68 x 66mm
Weight
1.8kg
Mounting Options
Surface/Suspended
IP Rating
IP20
IK Rating
IK08
Operating Temp
-20° to +45°C
Protection Class
Class 1
Certification
SAA
Test Reports
AS/NZS 60598 (GMA-514283)
Warranty
5 Year product replacement
Downloads
ies
BOXY1500-50-8456-set-to-28W-4000K
ies
BOXY1500-50-8456-set-to-35W-4000K
ies
BOXY1500-50-8456-set-to-42W-4000K
ies
BOXY1500-50-8456-set-to-50W-4000K
pdf
Evolve-Boxy-Batten-Spec-Sheet
pdf
Evolve-Boxy-Batten-SDoC-15103
pdf
Evolve-Boxy-Batten-Installation-Sheet
