Bitta
Professional Urban Bollard Light
✓ Excellent system efficacy of up to 78lm/W
✓ High-quality Lumileds LED chips and Meanwell Driver
✓ Long lasting, >72,000 hours life to L80
✓ Strong base plate for secure installation
✓ Self-cleaning design
✓ Easy connectivity with the built-in junction box
✓ Low glare design for visual comfort
✓ Dark Sky friendly
✓ Dual AkzoNobel polyester coating for excellent weatherability
TOTAL OF
2
DISTRIBUTIONS
LONG LASTING
>72,000HRS
TO L80
HIGH
1,050LM
OUTPUT
HIGH
80
CRI
1
Anti-glare Cap
Custom wide distribution optics with a strong cutoff provides a comfortable visual experience.
2
Flexible Control
Multiple dimming options from Tridonic and Osram allow for the ultimate control.
3
Tough Body
Corrosion-resistant aluminium profile and Dual AkzoNobel polyester coating create a tough exterior.
4
Easy Connectivity
A built-in IP66 junction box allows for quick and easy connections.
5
Secure Base Plate
A tough and secure base plate, with concrete anchors available also.
Feature
Optical Lens
Our optical Lens form LEDiL provides a comfortable low glare experience with excellent light coverage.
Family specifications and downloads
- bitta900-180
- 900mm
- 180
- 15W
- 1,050lm
- 70lm/W
- >72,000hrs
- 40,000hrs
- 4000K, 3000K (other CCT's available)
- >83
- AC100-277V / 50-60Hz / PF>0.95
- IP66
- IK10
- Mean well
- Lumileds
- Polyester (Interpon)
- Graphite Grey (RAL7024)
- 6.8kg
- 180mm
- bitta900-360
- 900mm
- 360
- 15W
- 1,170lm
- 78lm/W
- >72,000hrs
- 40,000hrs
- 4000K, 3000K (other CCT's available)
- >83
- AC100-277V / 50-60Hz / PF>0.95
- IP66
- IK10
- Mean well
- Lumileds
- Polyester (Interpon)
- Graphite Grey (RAL7024)
- 6.8kg
- 180mm
- bitta600-180
- 600mm
- 180
- 15W
- 1,050lm
- 70lm/W
- >72,000hrs
- 40,000hrs
- 4000K, 3000K (other CCT's available)
- >83
- AC100-277V / 50-60Hz / PF>0.95
- IP66
- IK10
- Mean well
- Lumileds
- Polyester (Interpon)
- Graphite Grey (RAL7024)
- 5.3kg
- 180mm
- bitta600-360
- 600mm
- 360
- 15W
- 1,170lm
- 78lm/W
- >72,000hrs
- 40,000hrs
- 4000K, 3000K (other CCT's available)
- >83
- AC100-277V / 50-60Hz / PF>0.95
- IP66
- IK10
- Mean well
- Lumileds
- Polyester (Interpon)
- Graphite Grey (RAL7024)
- 5.3kg
- 180mm
- bitta280-180
- 280mm
- 180
- 10W
- 760lm
- 76lm/W
- >72,000hrs
- 40,000hrs
- 4000K, 3000K (other CCT's available)
- >83
- AC100-277V / 50-60Hz / PF>0.95
- IP66
- IK10
- Mean well
- Lumileds
- Polyester (Interpon)
- Graphite Grey (RAL7024)
- 4.0kg
- 180mm
- Product code
- Height
- Beam Angle
- Wattage
- Lumen Output (max)
- Efficacy (max)
- Lifetime @L80 B10
- Lifetime @L90
- CCT
- CRI
- Input Voltage
- IP Rating
- IK Rating
- Driver
- LED Chips
- Coating
- Body Colour
- Weight
- Diameter
- Downloads
Specifications
PRODUCT CODE
System Wattage
Lumen Output
Luminaire Efficacy
CCT
Beam Angle
Lifetime - L90
Lifetime - L80
CRI
SDCM
Light Source
Power Supply
Mains Voltage
Power Factor
BITTA900-15-830-G-180
15W
987lm
66lm/W
3000K
180°
40,000hrs
>72,000hrs
>83
<3
Lumileds LED SMD
Mean Well Driver
AC100-277V / 50-60Hz
≥0.95
BITTA900-15-830-G-360
15W
1,092lm
73lm/W
3000K
360°
40,000hrs
>72,000hrs
>83
<3
Lumileds LED SMD
Mean Well Driver
AC100-277V / 50-60Hz
≥0.95
BITTA900-15-840-G-180
15W
1,056lm
70lm/W
4000K
180°
40,000hrs
>72,000hrs
>83
<3
Lumileds LED SMD
Mean Well Driver
AC100-277V / 50-60Hz
≥0.95
BITTA900-15-840-G-360
15W
1,168lm
78lm/W
4000K
360°
40,000hrs
>72,000hrs
>83
<3
Lumileds LED SMD
Mean Well Driver
AC100-277V / 50-60Hz
≥0.95
BITTA280-10-830-G-180
10W
708lm
71lm/W
3000K
180°
40,000hrs
>72,000hrs
>83
<3
Lumileds LED SMD
Mean Well Driver
AC100-277V / 50-60Hz
≥0.95
BITTA280-10-830-G-360
10W
873lm
87lm/W
3000K
360°
40,000hrs
>72,000hrs
>83
<3
Lumileds LED SMD
Mean Well Driver
AC100-277V / 50-60Hz
≥0.95
BITTA280-10-840-G-180
10W
757lm
76lm/W
4000K
180°
40,000hrs
>72,000hrs
>83
<3
Lumileds LED SMD
Mean Well Driver
AC100-277V / 50-60Hz
≥0.95
BITTA280-10-840-G-360
10W
933lm
93lm/W
4000K
360°
40,000hrs
>72,000hrs
>83
<3
Lumileds LED SMD
Mean Well Driver
AC100-277V / 50-60Hz
≥0.95
BITTA600-15-830-G-180
15W
987lm
66lm/W
3000K
180°
40,000hrs
>72,000hrs
>83
<3
Lumileds LED SMD
Mean Well Driver
AC100-277V / 50-60Hz
≥0.95
BITTA600-15-830-G-360
15W
1,092lm
73lm/W
3000K
360°
40,000hrs
>72,000hrs
>83
<3
Lumileds LED SMD
Mean Well Driver
AC100-277V / 50-60Hz
≥0.95

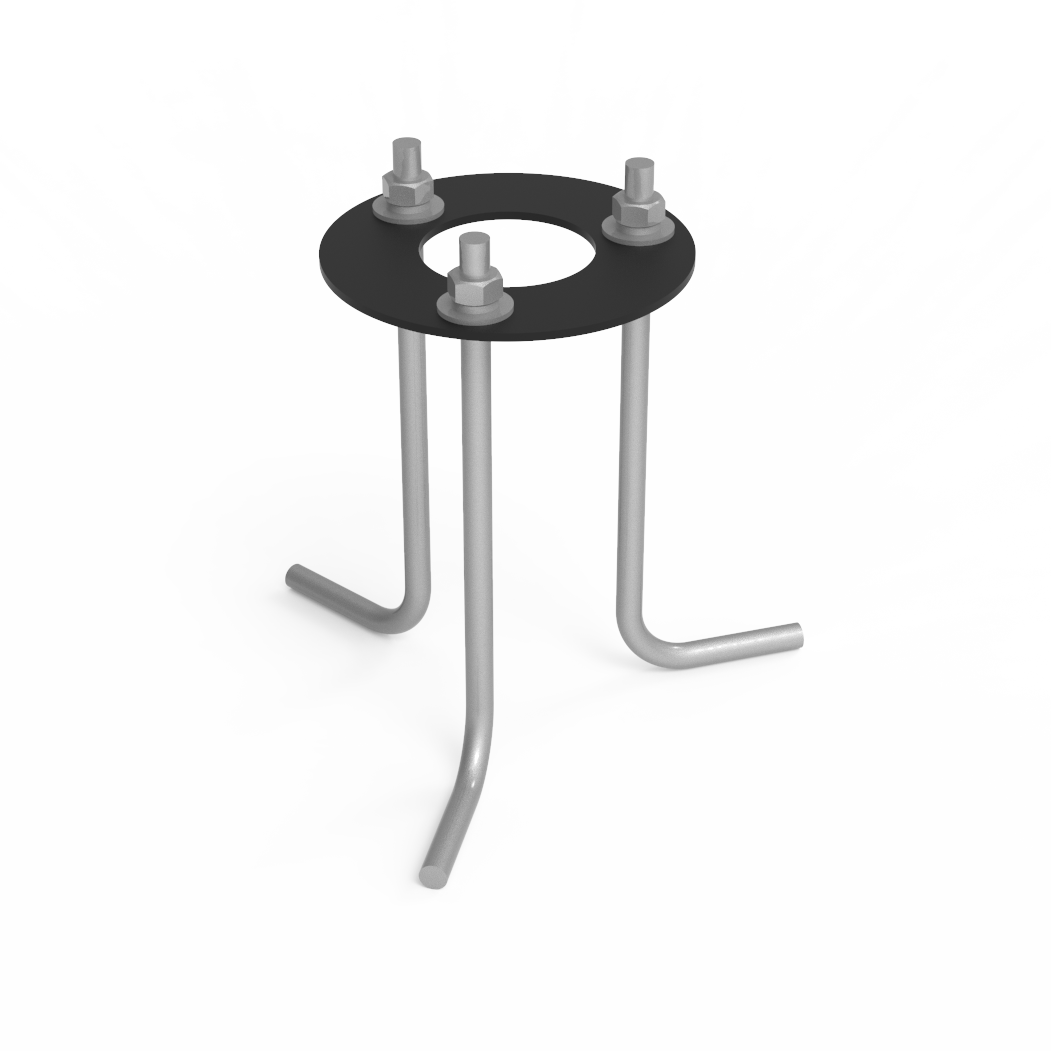

Concrete Anchor
Product Code
BITTA-CA
Material
Mild Steel
Finish - Circular plate
Powder-Coat
Finish - Other components
Galvanised
Colour - Circular plate
Black
Colour - Other components
Silver
